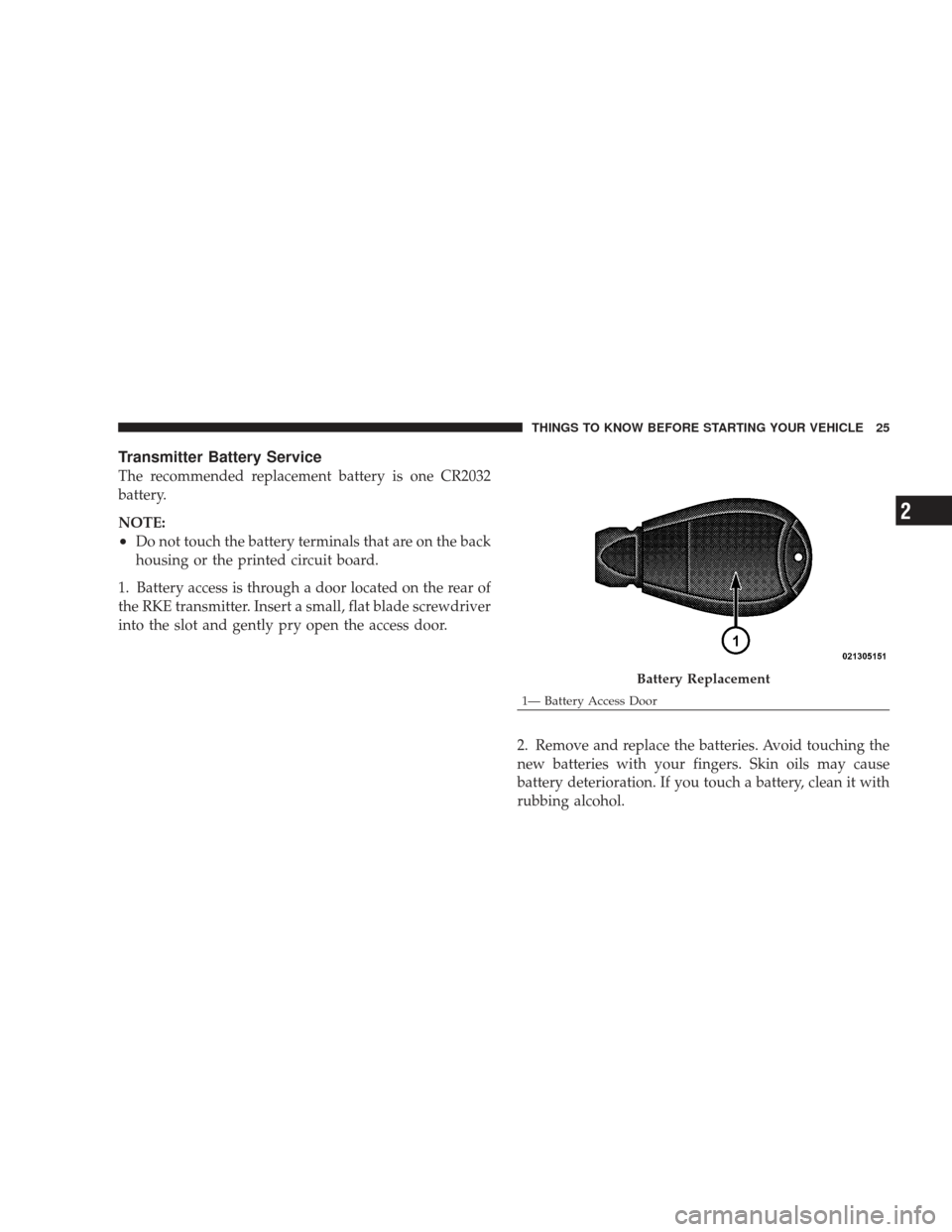

Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the RKE transmitter. Insert a small, flat blade screwdriver
into the slot and gently pry open the access door.
2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
Battery Replacement
1— Battery Access DoorTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.7L ............. 379
 Engine Compartment — 3.5L ............. 380
 Engine Compartment — 5.7L ............. 381
 Onboard Diagnostic System — OBD II ...... 382
▫ Loose Fuel Filler Cap ................. 382
 Emissions Inspection And Maintenance
Programs ............................ 383
 Replacement Parts ..................... 384
 Dealer Service ........................ 385
Maintenance Procedures ................. 385
▫ Engine Oil ......................... 385
▫ Engine Oil Filter ..................... 388
▫ Engine Air Cleaner Filter ............... 389
▫ Maintenance-Free Battery .............. 389
▫ Air Conditioner Maintenance ............ 391
▫ A/C Air Filter ...................... 392
▫ Body Lubrication .................... 392
▫ Windshield Wiper Blades ............... 393
7

5. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready. Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
384 MAINTAINING YOUR VEHICLE

Engine Air Cleaner Filter
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine air
cleaner filters are a high quality filter and are
recommended.
Maintenance-Free Battery
The top of the maintenance-free battery is permanently
sealed. You will never have to add water, nor is periodic
maintenance required.
MAINTAINING YOUR VEHICLE 389
7

*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch (if
equipped) are fused by the 25-Amp circuit breaker in
Cavity 11. The passenger seat switch (if equipped) is
fused by the 25-Amp circuit breaker in Cavity 12. The
door modules, the driver power window switch, and the
passenger power window switch are fused by the 25-
Amp circuit breaker in Cavity 13. If you experience
temporary or permanent loss of these systems, see your
authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
Interior
Bulb Number
Rear Courtesy/Reading Lights .............. W5W
Rear Compartment (Trunk) Light ............. 562
Overhead Console Reading Lights ............. 578
Visor Vanity Lights ..................... A6220
Glove Box Light ......................... 194
Door Courtesy .......................... 562
Shift Indicator Light ................. JKLE14140
Optional Door Map Pocket / Cupholder
Lighting ........ LED (Serviced at Authorized Dealer)
418 MAINTAINING YOUR VEHICLE

Auto Up Power Windows.................. 37
Automatic Dimming Mirror ................. 86
Automatic Door Locks ................... 30,31
Automatic Headlights .................... 132
Automatic Oil Change Indicator ..........177,186
Automatic Temperature Control (ATC) ......... 256
Automatic Transaxle Special Additives ...................... 405
Automatic Transmission ...........276,282,404,405
Adding Fluid ...................... 405,430
Autostick ............................ 286
Fluid and Filter Changes ................. 405
Fluid Change ......................... 405
Fluid Level Check ..................... 404
Fluid Type ........................... 430
Gear Ranges ....................... 277,282
Overdrive ........................... 278
Shifting .......................... 276,282
Special Additives ...................... 405 Torque Converter
...................... 280
Automatic Transmission Limp Home Mode . . 281,285
Autostick ............................. 286
Axle Fluid ............................. 430
Axle Lubrication (Axle Fluid) ............... 430
Battery ............................... 389
Emergency Starting ..................... 369
Jump Starting ......................... 369
Keyless Transmitter Replacement (RKE) ....... 25
Location .......................... 370,390
Belts, Seat ............................ 42,79
Body Mechanism Lubrication ............... 392
B-Pillar Location ........................ 306
Brake Assist System ...................... 297
Brake Control System, Electronic ............. 296
Brake Fluid ............................ 430
Brake, Parking .......................... 292
Brake System ........................... 402
