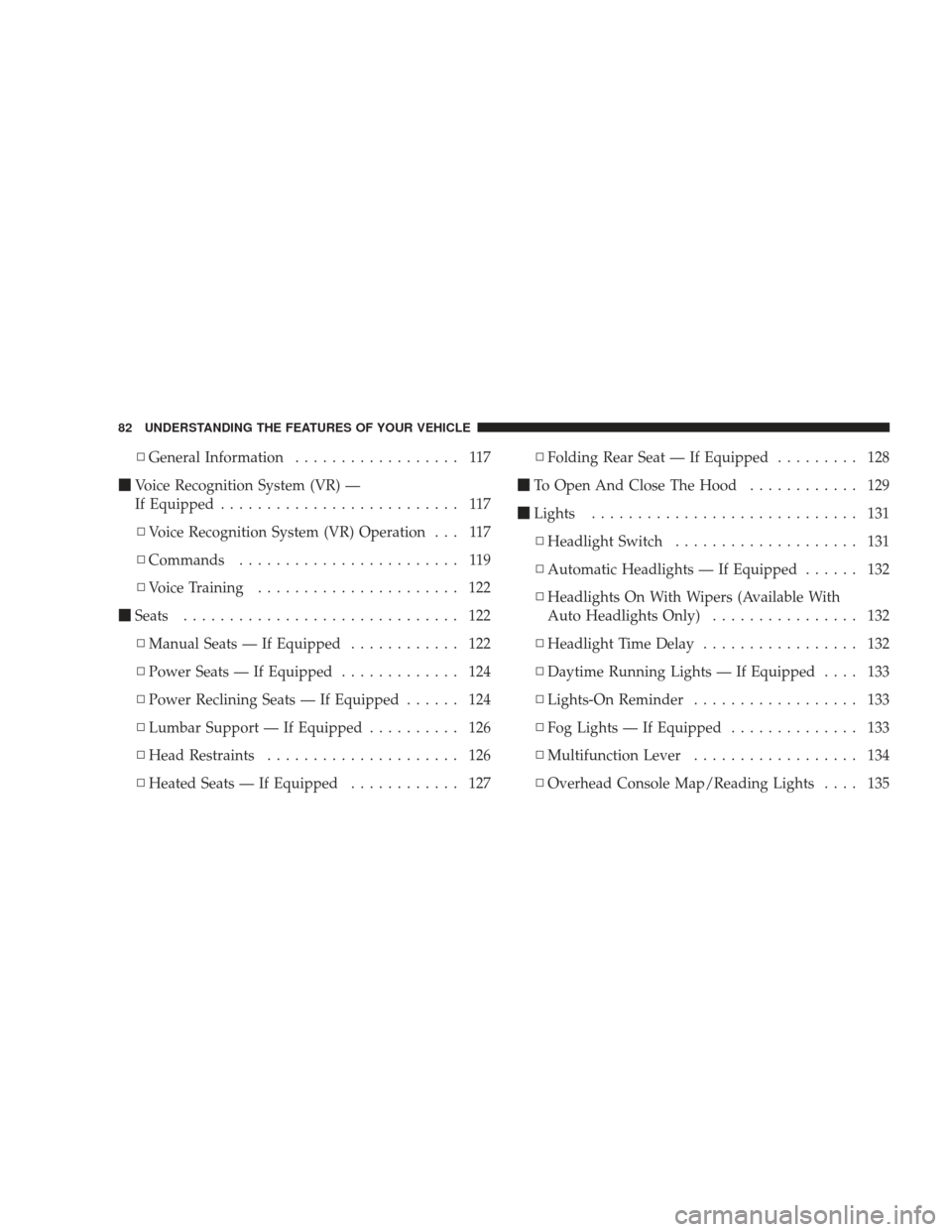

▫General Information .................. 117
 Voice Recognition System (VR) —
If Equipped .......................... 117
▫ Voice Recognition System (VR) Operation . . . 117
▫ Commands ........................ 119
▫ Voice Training ...................... 122
 Seats .............................. 122
▫ Manual Seats — If Equipped ............ 122
▫ Power Seats — If Equipped ............. 124
▫ Power Reclining Seats — If Equipped ...... 124
▫ Lumbar Support — If Equipped .......... 126
▫ Head Restraints ..................... 126
▫ Heated Seats — If Equipped ............ 127▫
Folding Rear Seat — If Equipped ......... 128
 To Open And Close The Hood ............ 129
 Lights ............................. 131
▫ Headlight Switch .................... 131
▫ Automatic Headlights — If Equipped ...... 132
▫ Headlights On With Wipers (Available With
Auto Headlights Only) ................ 132
▫ Headlight Time Delay ................. 132
▫ Daytime Running Lights — If Equipped .... 133
▫ Lights-On Reminder .................. 133
▫ Fog Lights — If Equipped .............. 133
▫ Multifunction Lever .................. 134
▫ Overhead Console Map/Reading Lights .... 135
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

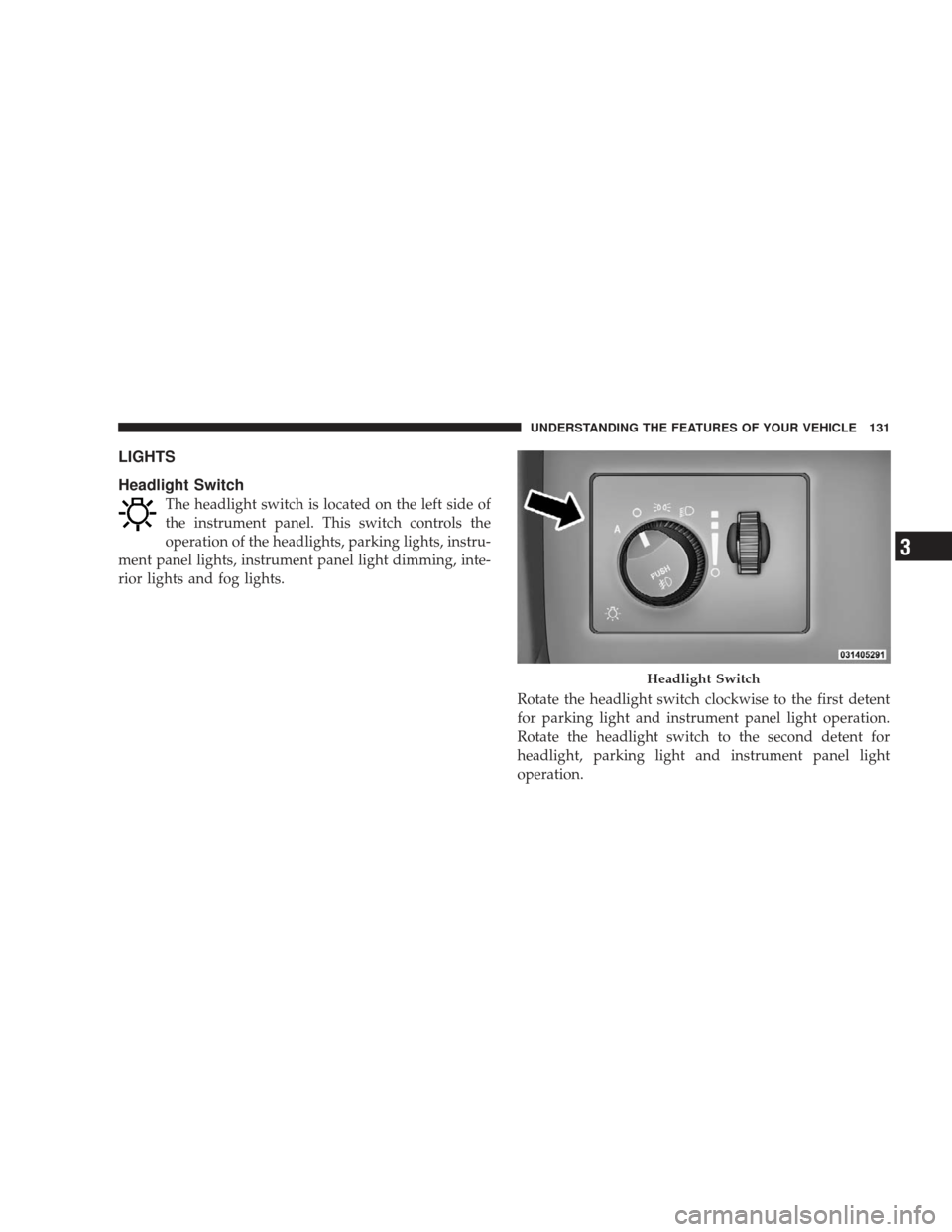

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights and fog lights.
Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light
operation.
Headlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:The lights must be turned off within 45 seconds
of turning the ignition OFF to activate this feature.
The headlight delay time is programmable on vehicles
equipped with the EVIC. Refer to “Delay Turning Head-
lights Off,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.
Daytime Running Lights — If Equipped
The high beam headlights will come on as Daytime
Running Lights whenever the ignition switch is ON, the
headlights are off and the parking brake is off. The
headlight switch must be used for normal nighttime
driving.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the head-
light switch. To activate the front fog lights, turn
on the parking lights or the low beam headlights
and press the headlight switch. To turn off the front fog
lights, either press the headlight switch a second time or
turn off the headlight switch.
An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE: The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

14. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle, and shut OFF the engine as soon as possible. A
single chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked using the procedure
shown in Section 7.
15. High Beam Light This light will turn on when the high beam
headlights are ON. Push the multifunction lever
away from the steering wheel to switch the headlights to
high beam. 16. Seat Belt Reminder Light
This light will turn on for five to eight seconds as
a bulb check when the ignition switch is first
turned ON. A chime will sound if the driver’s seat
belt is unbuckled during the bulb check. The Seat Belt
Reminder Light will flash or remain on continuously if
the driver’s seat belt remains unbuckled after the bulb
check or when driving.
17. Shift Lever Indicator
This indicator shows the automatic transmission shift
lever selection.
18. Front Fog Light Indicator — If Equipped This light will turn on when the front fog lights are
ON.
176 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Exterior Bulb Number
Low Beam Headlight (Standard Halogen) ......9006
Low Beam Headlight – High Intensity
Discharge (HID) ......................... D1S
(Serviced at Authorized Dealer)
High Beam Headlight ..................... 9005
Front Park/Turn Light ................... 3157A
Front Fog Light — If Equipped ..........9145/H10
(Serviced at Authorized Dealer)
Front Side Marker ........................ 194
(Serviced at Authorized Dealer)
Tail/Stop Light ......................... 3057
Tail/Turn Light ......................... 3057Rear Side Marker
........................ 168
Backup Light ........................... 921
Center High-Mount Stop Light (CHMSL) ....... LED
(Serviced at Authorized Dealer)
License ................................ 168
BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight,
Park/Turn Light, and Front Side Marker Light —
Models with Halogen Headlights
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlight assem-
bly.
MAINTAINING YOUR VEHICLE 419
7

Exterior Lighting........................ 131
Exterior Lights .......................... 80
Filler Location Fuel ...................... 337
Filters Air Cleaner .......................... 389
Air Conditioning .................... 262,392
Engine Oil ........................ 388,429
Engine Oil Disposal .................... 388
Flashers Hazard Warning ....................... 356
Turn Signal ...................... 80,134,174
Flash-To-Pass ........................... 135
Flat Tire Changing ....................... 357
Flooded Engine Starting ................... 271
Floor Console .......................... 159
Fluid, Brake ........................... 430
Fluid Capacities ......................... 427
Fluid Leaks ............................. 80 Fluid Level Checks
Automatic Transmission ................. 404
Brake .............................. 403
Cooling System ....................... 397
Engine Oil ........................ 385,386
Power Steering ........................ 291
Transfer Case ......................... 405
Fluids ................................ 429
Fluids, Lubricants and Genuine Parts .......... 429
Fog Lights .......................... 133,176
Folding Rear Seat ........................ 128
Freeing A Stuck Vehicle ................... 372
Fuel ................................. 332
Adding ............................. 337
Additives ............................ 335
Clean Air ............................ 333
Ethanol ............................. 333
Filler Cap (Gas Cap) .................... 337
Gasoline ............................ 332
466 INDEX

Engine Temperature Warning.............. 175
Exterior .............................. 80
Fog ............................. 133,176
Hazard Warning Flasher ................. 356
Headlight Switch ...................... 131
Headlights ........................ 131,422
Headlights On Reminder ................. 133
Headlights On With Wipers ............132,138
High Beam ........................ 135,176
High Beam Indicator .................... 176
High Beam/Low Beam Select ............. 135
Instrument Cluster .................. 131,172
Intensity Control ...................... 136
Interior .......................... 135,145
License ............................. 426
Lights On Reminder .................... 133
Low Fuel ............................ 182
Malfunction Indicator (Check Engine) ........ 183
Map Reading ...................... 135,145Oil Pressure
.......................... 176
Parade Mode (Daytime Brightness) ......... 136
Passing ............................. 135
Reading .......................... 135,145
Seat Belt Reminder ..................... 176
Service ........................... 418,419
Service Engine Soon (Malfunction Indicator) . . . 183
Tire Pressure Monitoring (TPMS) ........180,322
Traction Control ....................... 300
Turn Signal ...................... 80,134,174
Vanity Mirror .......................... 88
Voltage ............................. 173
Warning (Instrument Cluster Description) ..... 172
Load Leveling System .................... 164
Loading Vehicle ...................... 340,341
Capacities ........................... 341
Tires ............................... 306
Locks ................................. 29
Auto Unlock .......................... 31
470 INDEX
