2009 DODGE CALIBER SRT Owners Manual

Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 216
▫Operating Instructions — Radio Mode...... 216
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play.................. 222
▫Notes On Playing MP3 Files............. 224
▫List Button (CD Mode For MP3 Play)...... 227
▫Info Button (CD Mode For MP3 Play)...... 227
Satellite Radio — If Equipped
(REN/REQ/RER/RES/REU Radios Only)..... 228
▫System Activation.................... 228
▫Electronic Serial Number/Sirius
Identification Number (ESN/SID)......... 229
▫Selecting Satellite Mode................ 229▫Satellite Antenna..................... 230
▫Reception Quality.................... 230
▫Operating Instructions — Satellite Mode.... 230
▫Operating Instructions — Hands-Free Phone
(If Equipped)........................ 233
▫Operating Instructions — Video
Entertainment System (VES)™
(If Equipped)........................ 233
KickerHigh Performance Sound System With
Driver-Selectable Surround (DSS) –
If Equipped........................... 233
Remote Sound System Controls —
If Equipped........................... 236
▫Radio Operation..................... 236
▫CD Player.......................... 237
UNDERSTANDING YOUR INSTRUMENT PANEL 159
4

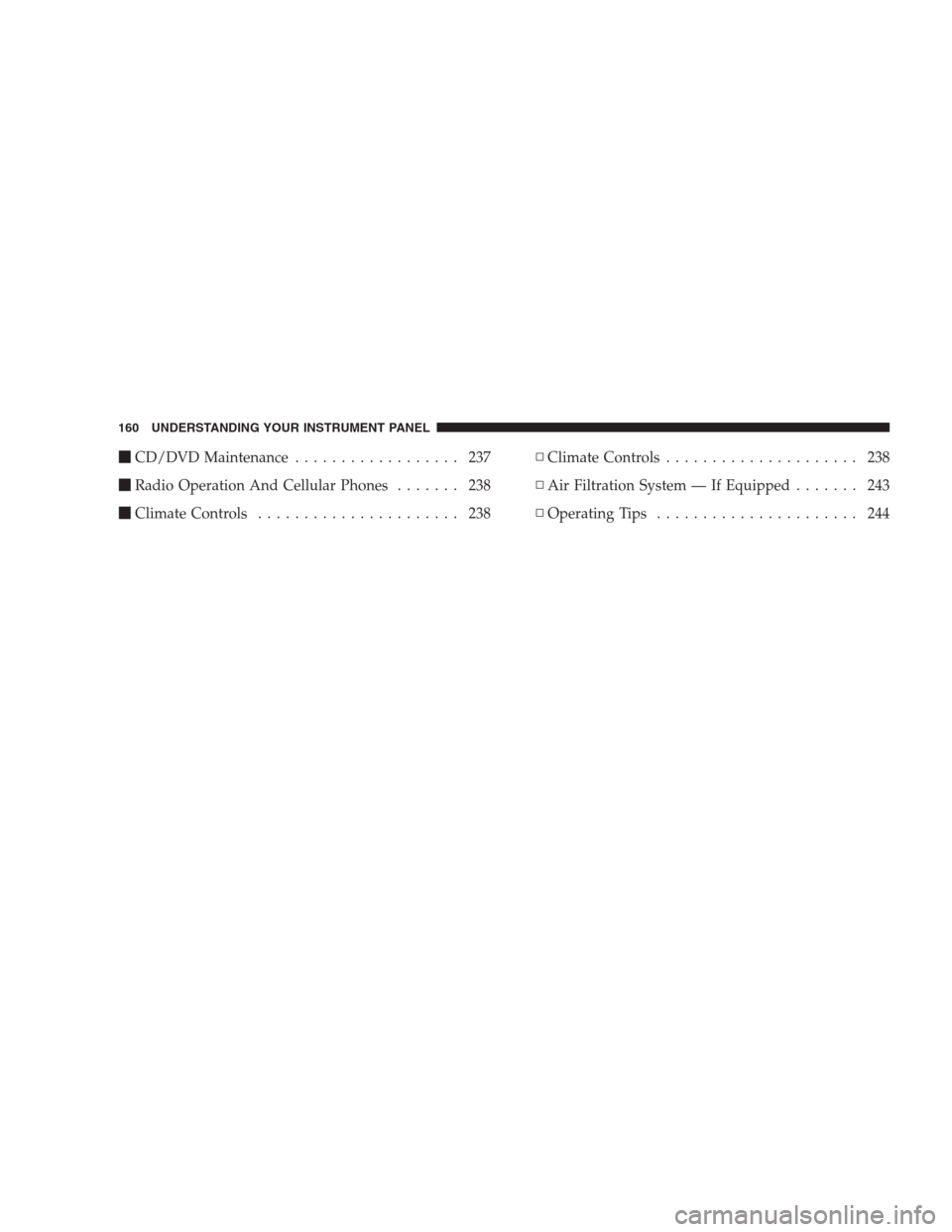

CD/DVD Maintenance.................. 237
Radio Operation And Cellular Phones....... 238
Climate Controls...................... 238▫Climate Controls..................... 238
▫Air Filtration System — If Equipped....... 243
▫Operating Tips...................... 244
160 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 - Air Outlets 5 - Glove Compartment 9 - Hazard Warning Flasher Switch
2 - Demisters 6 - Beverage Cooler 10 - Passenger Airbag Disable Light
3 - Instrument Cluster 7 - Storage Cubby 11 - Boost Gauge
4 - Radio 8 - Climate Controls
UNDERSTANDING YOUR INSTRUMENT PANEL 161
4

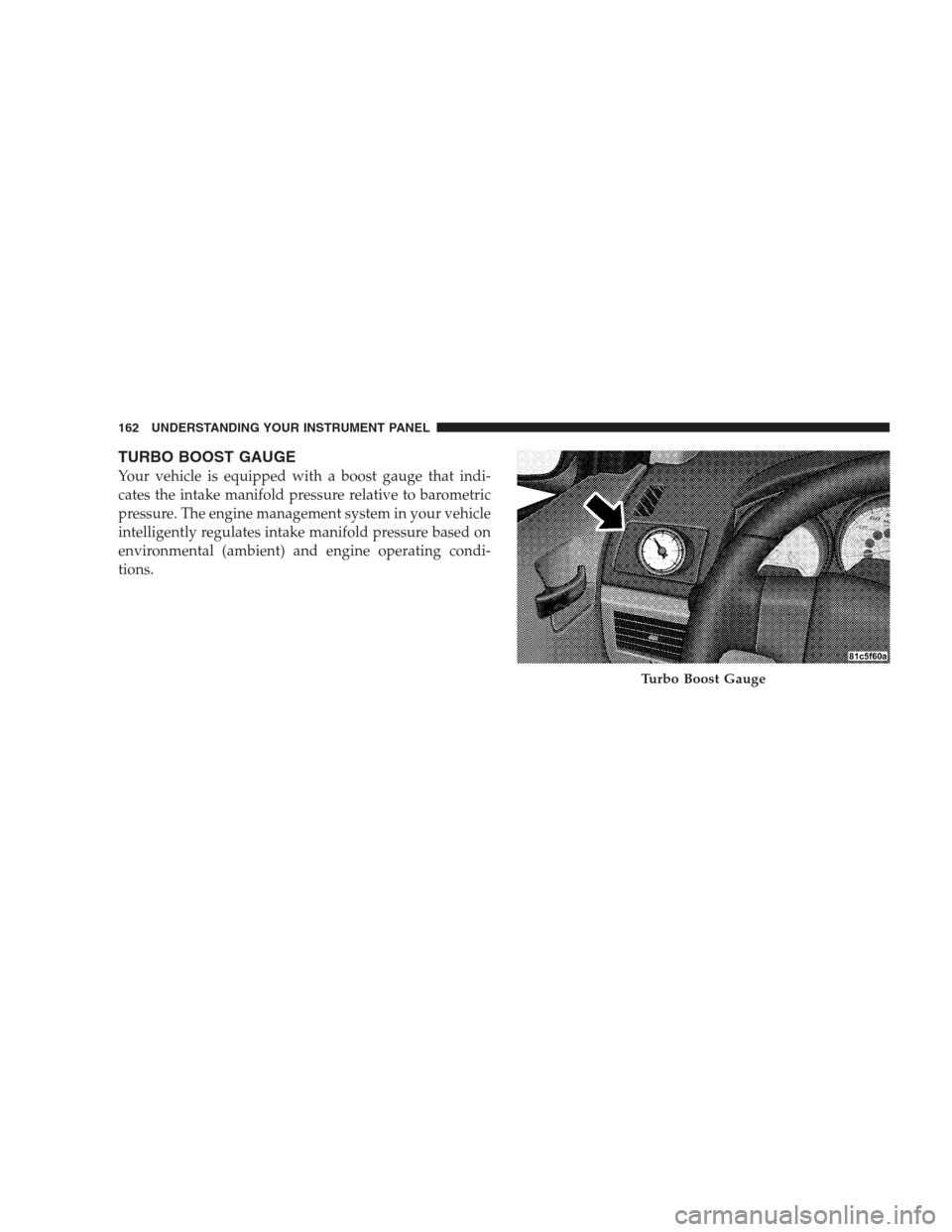

TURBO BOOST GAUGE
Your vehicle is equipped with a boost gauge that indi-
cates the intake manifold pressure relative to barometric
pressure. The engine management system in your vehicle
intelligently regulates intake manifold pressure based on
environmental (ambient) and engine operating condi-
tions.
Turbo Boost Gauge
162 UNDERSTANDING YOUR INSTRUMENT PANEL

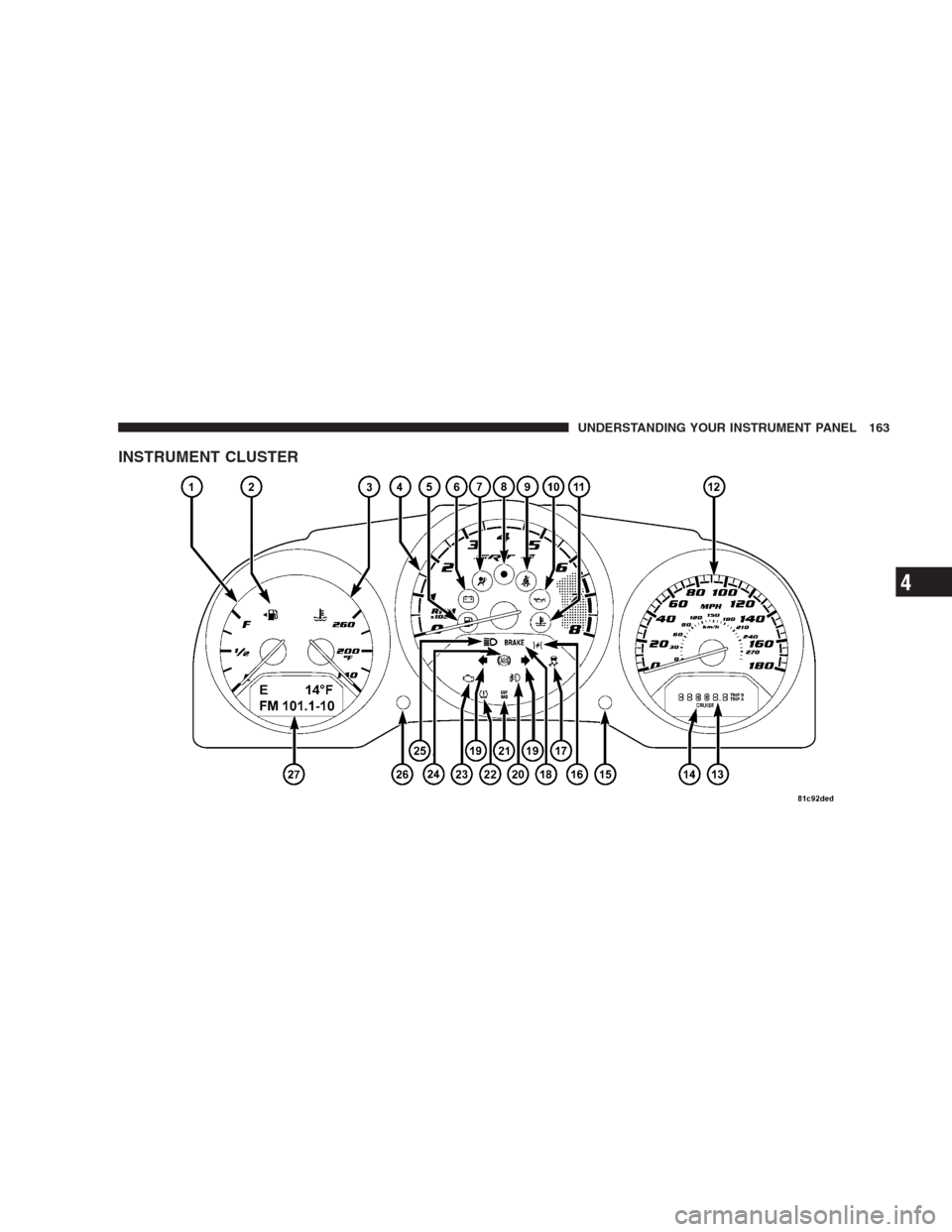

INSTRUMENT CLUSTER
UNDERSTANDING YOUR INSTRUMENT PANEL 163
4

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
When the ignition switch is in the ON position, the
pointer will show the level of fuel remaining in the fuel
tank.
2. Fuel Door Indicator
This indicates that the Fuel Filler Door is
located on the left side of the vehicle.
3. Temperature Gauge
The temperature gauge shows engine coolant tem-
perature. Any reading below thered(260 °F /
126.6 °C) area of the gauge shows that the engine
cooling system is operating properly. The gauge pointer
may show a higher than normal temperature when
driving in hot weather, up mountain grades, or in heavy
stop-and-go traffic.If the pointer rises to theredmark (260 °F / 126.6 °C), the
instrument cluster will sound a chime. Pull over and stop
the vehicle. Idle the vehicle with the air conditioner
turned off until the pointer drops back into the normal
range. If the pointer remains on theredmark (260 °F /
126.6 °C), turn the engine off immediately and call for
service.
There are steps that you can take to slow down an
impending overheat condition. If your air conditioning is
on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to Floor and
the Fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

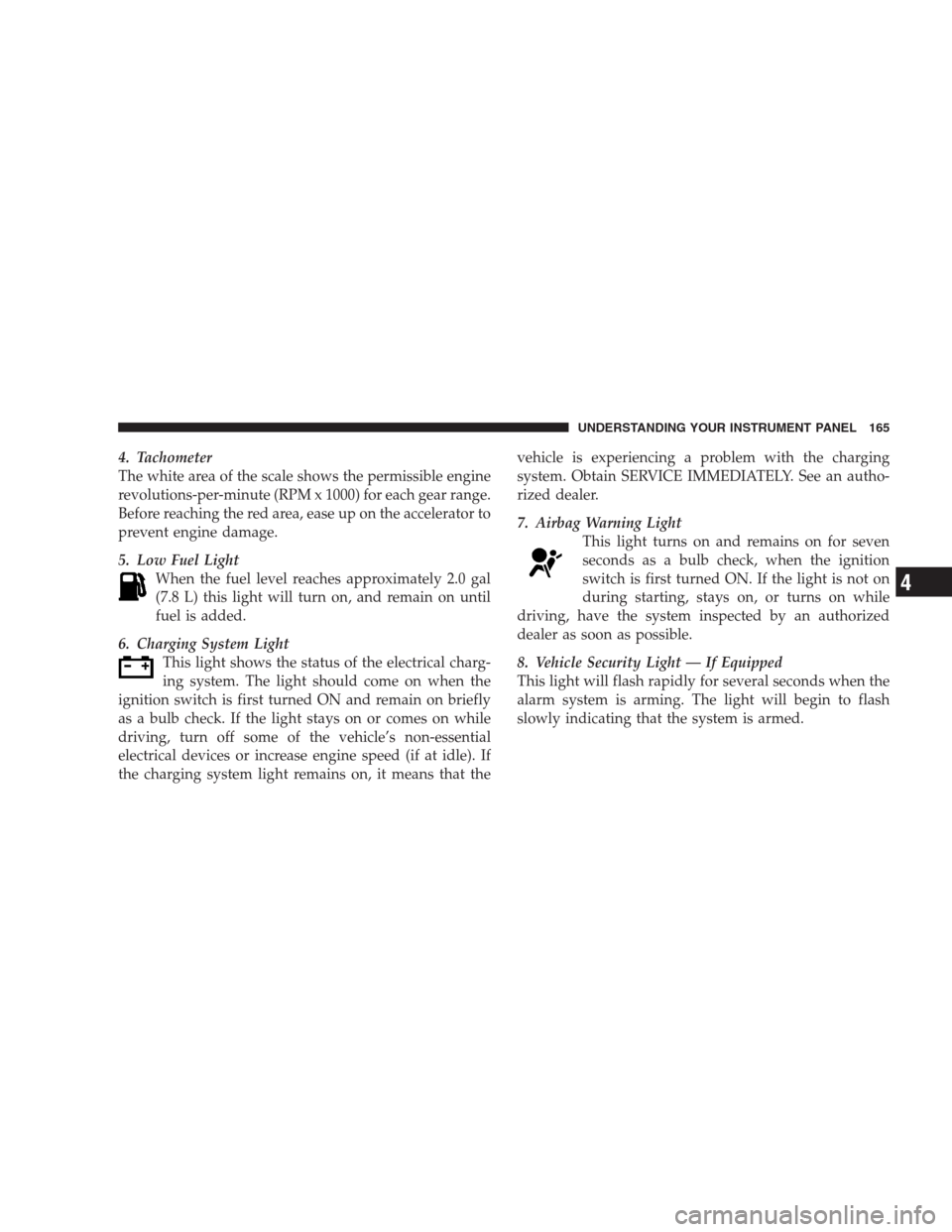

4. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
5. Low Fuel Light
When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added.
6. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that thevehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
7. Airbag Warning Light
This light turns on and remains on for seven
seconds as a bulb check, when the ignition
switch is first turned ON. If the light is not on
during starting, stays on, or turns on while
driving, have the system inspected by an authorized
dealer as soon as possible.
8. Vehicle Security Light — If Equipped
This light will flash rapidly for several seconds when the
alarm system is arming. The light will begin to flash
slowly indicating that the system is armed.
UNDERSTANDING YOUR INSTRUMENT PANEL 165
4

9. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat
belt is unbuckled, a chime will sound. After the bulb
check or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in Section 2 for more information.
10. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.
11. Engine Temperature Warning Light
This light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-
proaches red (260°F/126.6°C), this indicator will
illuminate and a single chime will sound after reaching a
set threshold. Further overheating will cause the tem-
perature gauge to pass red (260°F/126.6°C), the indicator
will continuously flash and a continuous chime will
occur until the engine is allowed to cool.
