193
XII
T E C H N I C A L D A T A
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines 1.6
L
VTi 16V 120
hp 1.6
L
THP 16V 150
hp 1.6
L
THP 16V 140
hp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UE... UD...
5FW-C 5FX-H/P 5FT-F
- Unladen weight 1 486 - 1 467 - 1 458 1 530 - 1 521 - 1 506 1 568 - 1 572 - 1 539
- Kerb weight 1 561 - 1 542 - 1 533 1 605 - 1 5 96 - 1 581 1 643 - 1 647 - 1 614
- Payload 714 - 648 - 557 690 - 539 - 534 667 - 513 - 516
- Gross vehicle weight (GVW) 2 200 - 2 115 - 2 015 2 220 - 2 060 - 2 040 2 235 - 2 085 - 2 055
- Gross train weight (GTW)

on a 12 % gradient 3 400 - 3 515 - 3 415 3 420 - 3 460 - 3 440 3 635 - 3 585 - 3 555
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 400 - 1 400 1 200 - 1 400 - 1 400 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 60 60 60
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

194
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
2
L
16V 143
hp

Gearboxes
Auto.

Model codes:
UA... UE... UD....
RFJ-F
- Unladen weight 1 600 - 1 556 - 1 552
- Kerb weight 1 675 - 1 631 - 1 627
- Payload 660 - 514 - 538
- Gross vehicle weight (GVW) 2 260 - 2 070 - 2 090
- Gross train weight (GTW)
on a 12 % gradient 3 660 - 3 570 - 3 590
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 - 1 500 - 1 500
- Braked trailer * (with load transfer within GTW limit) 1 500
- Unbraked trailer 750
- Recommended nose weight 60

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

197
XII
T E C H N I C A L D A T A
WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6
L
HDi 110
hp

Gearboxes
Manual Electronic gearbox system

Model codes:
UA... UE... UD...
9HZ-C 9HZ-H/P
- Unladen weight 1 530 - 1 484 - 1 489 1 539 - 1 494 - 1 499
- Kerb weight 1 605 - 1 559 - 1 564 1 614 - 1 5 69 - 1 574
- Payload 720 - 546 - 561 711 - 536 - 561
- Gross vehicle weight (GVW) 2 250 - 2 030 - 2 050 2 250 - 2 030 - 2 060
- Gross train weight (GTW)

on a 12 % gradient 3 130 3 130
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 880 - 1 100 - 1 080 88 0 - 1 100 - 1 070
- Braked trailer * (with load transfer within GTW limit) 1 180 - 1 300 - 1 300 1 180 - 1 300 - 1 300
- Unbraked trailer 750 750
- Recommended nose weight 50 - 60 - 60 50 - 60 - 6 0
* The weight of the braked trailer can be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

198
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
2
L
HDi 138
hp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UE... UD...
RHR-H RHJ-H/P RHR-J
- Unladen weight 1 613 - 1 580 - 1 610 1 620 - 1 582 - 1 581 1 650 - 1 611 - 1 640
- Kerb weight 1 688 - 1 655 - 1 685 1 695 - 1 6 57 - 1 656 1 725 - 1 686 - 1 715
- Payload 695 - 685 - 520 700 - 558 - 559 700 - 559 - 510
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 2 320 - 2 140 - 2 140 2 350 - 2 170 - 2 150
- Gross train weight (GTW)

on a 12 % gradient 3 508 - 3 515 - 3 530 3 620 - 3 590 - 3 540 3 550 - 3 520 - 3 550
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 200 - 1 250 - 1 400 1 300 - 1 450 - 1 400 1 200 - 1 350 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 500 - 1 600 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 70 70 - 60 - 60 70 - 60 - 60

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

199
XII
T E C H N I C A L D A T A * Depending on suspensions and roof bars.
DIMENSIONS (IN METRES)
Exterior (Grand C4 Picasso and C4 Picasso)
Grand C4
Picasso
C4 Picasso

A 2.730 2.730

B 4.590 4.470

C 0.990 0.990

D 0.870 0.750

E 1.510 1.510

F 1.540 1.540

G * 1.660 to 1.710 1.660 to 1.680

H 2.100 2.100

I 1.830 1.830

200
XII
T E C H N I C A L D A T A

A 0.930

B 0.960/0.980

C 0.880/1.000

D 1.610/1.870
E 0.930

F 1.140

G 1.120

H 1.170
Interior (C4 Picasso)

201
XII

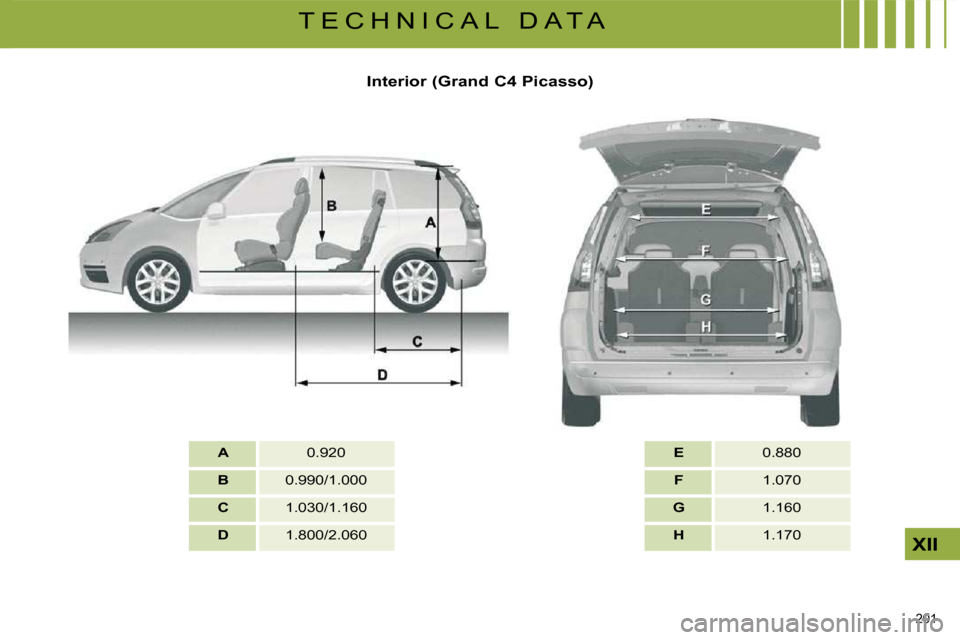

T E C H N I C A L D A T A Interior (Grand C4 Picasso)

E 0.880

F 1.070

G 1.160

H 1.170

A 0.920

B 0.990/1.000

C 1.030/1.160

D 1.800/2.060

202
T E C H N I C A L D A T A
IDENTIFICATION MARKINGS
Various visible markings for identifi -
cation of the vehicle.
The vehicle type and the identifi ca-
tion number are also indicated on
the registration document.
All CITROËN original replacement
parts are available exclusively within
the dealer network.
For your safety and in order to re-
main within the terms of the war-
ranty, you are advised to use only
CITROËN replacement parts A. Manufacturer’s label
Located on the left-hand door centre
pillar.

1. EU type approval number.

2. Vehicle Identifi cation No. (VIN).

3. Gross vehicle weight.

4. Gross train weight.

5. Maximum weight on front axle.

6. Maximum weight on rear axle. B. Vehicle Identification
No. (VIN)
Located on bodywork and behind
windscreen.
C. Paint colour code Tyre reference
Tyre pressures
Located on the driver's door interior
pillar.
Use the tyre pressures recom-
mended by CITROËN.
Check the tyre pressures when the
tyres are cold, on a frequent basis.
Never reduce the pressure of a hot
tyre.
If replacing your tyres, it is essen-
tial to use the tyre sizes that are
recommended for your vehicle.
