C H I L D S A F E T Y
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended chi ld seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg

L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of
the restraining cushion is
compulsory for
the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is
used on its own.

106
VII
C H I L D S A F E T Y
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended chi ld seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg

L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of
the restraining cushion is
compulsory for
the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is
used on its own.

107
VII
C H I L D S A F E T Y
* Applies only to the 7 seater model.
LOCATION OF CHILD SEATS SECURED BY MEANS OF THE VEHI CLE SEAT BELT
In conformity with European law, this table tells you to what extent each of the seat positions in your vehicle may take a
child seat that is secured by means of the vehicle seat belt an d approved as Universal (a), according to the weight of the
child and the position in the vehicle.

(a) Universal child seat: child seat which can be installed in all vehicles by means of the seat belt.

(b) Group 0: from birth to 10 kg. Shell seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U : seat position suitable for the installation (in conjuncti on with the vehicle seat belt) of a universal rearwards-facing a nd/or
forwards-facing child seat.
For seats in groups 1, 2 and 3, check that the ch ild seat is correctly secured on the backrest of th e vehicle seat. If necessary,
remove and stow the head restraint.
Seat position
Weight groups established by legislation

< 10 kg and < 13 kg
(groups 0 (b) and 0+)
9 – 18 kg
(group 1)
15 – 25 kg
(group 2)
22 – 36 kg
(group 3)

1 st row Front passenger (c)
U U U U

2 nd row
Lateral U U U U

Central U U U U

3 rd row * Lateral U U U U

108
VII
C H I L D S A F E T Y *
According to country and current
local legislation.
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the
seat belt passes correctly over the
child's thighs.
CITROËN recommends the use of
a booster seat which has a back,
fi tted with a seat belt guide at
shoulder level.
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear windows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
When installing a child seat using the
seat belt, check that the seat belt is
tightened correctly on the child seat
and that it secures the child seat
fi rmly on the seat of your vehicle.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child's
body to a minimum, even for short
journeys.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in con-
tact with the back of the vehicle's
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger air bag *
when a "rearwards-facing" child seat is
installed on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the air bag were to
infl ate.

109
VII
C H I L D S A F E T Y
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation .
The three second row seats are fi tted
with regulation ISOFIX mountings. These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion,
indicated by a label,
-
a ring B , used to fi x the upper strap, referred to as the TOP TETHER ,
indicated by a label on a cover at
the top of the seat back. This ISOFIX mounting system gua-
rantees you fast, reliable and safe fi t-
ting of the child seat in your vehicle.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats. The
ISOFIX child seats are fi tted
with two locks which are secured
easily on the two rings A .
Some also have an upper strap
which is attached to the ring B .
To attach this strap, remove the
vehicle seat's head restraint and the
cover at the top of the seat back.
Then fi x the hook on the ring B and
tighten the upper strap.

110
VII
C H I L D S A F E T Y
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

111
VII
C H I L D S A F E T Y
* The ISOFIX shell is secured to the bottom rings on an I SOFIX position, occupying 2 rear seat positions.
** To install ISOFIX child seats type B1 , remove the head restraints from the seats.
TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHIL D SEATS
In compliance with European legislation (ECE 16), this table indicates which of the ISOFIX child seats can be installed in
seat positions in your vehicle that are equipped with ISOFIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size class, defi ned by a letter from A to G , is shown on
the child seat to the right of the ISOFIX logo.

IUF
: seat position suitable for installation of an I SOFIX U niversal " F orwards-facing" seat attached using the top belt.

IL-SU : seat position suitable for installation of an I SOFIX S emi- U niversal seat: ISOFIX "rearwards-facing" child seats
equipped with a top belt and ISOFIX "shell" child seats wit h a top belt.
Do not install ISOFIX child seats equipped with a bar.


Child weight/age given as a guide
Less than 10 kg (group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year old
9 to 18 kg (group 1)
From 1 to 3 years approx.

Type of ISOFIX child seat Shell seat *

"
Rearwards
-facing" "
Rearwards
-facing"
"
Forwards
-facing"

ISOFIX size classes F G C D E C D A B B1 **

ISOFIX rear lateral seats IL-SU IL-SU IL-SU IUF

ISOFIX central rear seat X IL-SU IL-SU IUF

112
VII
C H I L D S A F E T Y

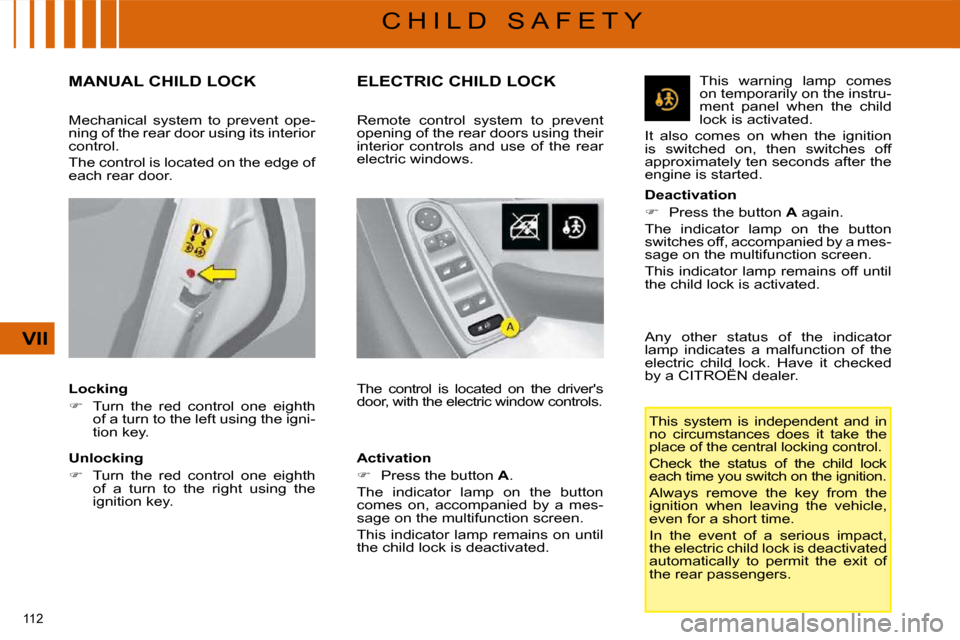

MANUAL CHILD LOCK
Locking

 Turn the red control one eighth
of a turn to the left using the igni-
tion key.
Unlocking

 Turn the red control one eighth
of a turn to the right using the
ignition key.
ELECTRIC CHILD LOCK
Mechanical system to prevent ope-
ning of the rear door using its interior
control.
The control is located on the edge of
each rear door. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.
Activation

 Press the button A.
The indicator lamp on the button
comes on, accompanied by a mes-
sage on the multifunction screen.
This indicator lamp remains on until
the child lock is deactivated. Deactivation

 Press the button A again.
The indicator lamp on the button
switches off, accompanied by a mes-
sage on the multifunction screen.
This indicator lamp remains off until
the child lock is activated.
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers. This warning lamp comes
on temporarily on the instru-
ment panel when the child
lock is activated.
It also comes on when the ignition
is switched on, then switches off
approximately ten seconds after the
engine is started.
The control is located on the driver's
door, with the electric window controls. Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a CITROËN dealer.
