2009 Citroen BERLINGO FIRST RHD Owner's Manual

FAMILIARISATION4 -

5FAMILIARISATION-
INSTRUMENTS AND CONTROLS

12. Windscreen wash-wipe stalk.

13. Audio equipment steering
wheel control.

14. Steering lock and ignition.

15. Fuse box.

16. Passenger air bag disarming
control.

17. Alarm.

18. Steering wheel adjustment
control.

19. Passenger's electric mirror
control.

20. Headlamp height adjustment.

21. Heated seats control.

22. Handbrake.

23. Lighter.

24. Removable ashtray.

25. Gear lever.
26. Storage.

27. Heating/air conditioning controls.

28. Audio RD3.

29. Lower glove box.

30. Upper glove box or passenger
air bag.

31. Bonnet release.

32. Side adjustable heating/
ventilation vents.

33. Side window de-icing/
demisting vents.

1. Speaker (tweeter).

2. Windscreen demisting vents.

3. Controls:
- Electric windows.
- Demisting of rear door windows.
- Air conditioning.

4. Central locking button.

5. Multifunction display or clock.

6. Hazard lights button.

7. Central adjustable heating/
ventilation vents.

8. Lights and direction indicators
stalk.

9. Speed limiter/cruise control.

10. Instrument panel.

11. Driver's air bag
Horn.

FAMILIARISATION6 -
STARTING The remote control
THE KEYS
The keys allow you to switch on the
ignition and operate the passenger
air bag disarming switch, as well as
to independently operate the locks
on the doors and the fuel fi ller cap. Unlocking
Press button
B to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.
Locating the vehicle
To locate your vehicle, previously
locked, in a car park:

 press button A , the courtesy lights
come on and the direction indica-
tors fl ash for a few seconds.

 52
Locking
Press button
A to lock the vehicle.
This is confi rmed by fi xed lighting of
the direction indicators for approxi-
mately two seconds. STOP position (S):
The ignition is off.
To release the steering, turn the
steering wheel slightly while turning
the key, without forcing it.
Accessories position (A):
The ignition is off but the accessories
can be used.
On position (M):
The ignition is on.
Starting position (D):
Operates the starter.
Release the key when the engine
has started. Never operate the starter
while the engine is running.
Central locking
From the front doors, the keys allow
you to lock and unlock all of the doors.
If one of the doors is open, it is impos-
sible to operate the central locking.

The remote control performs the
same functions at a distance.

7FAMILIARISATION-
WINDSCREEN WIPERS STEERING WHEEL STALKS
LIGHTING Front fog lamps (1 st turn of the ring
forwards).
Front fog lamps and rear fog lamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rear-
wards.

Lights off
Side lights
Dipped headlamps/
Main beam headlamps Vehicles fi tted with a rear
fog lamp (ring B)
Turn the ring forwards.
Vehicles fi tted with
front fog lamps and
a rear fog lamp
(ring B)
Off Wash-wipe
Intermittent
wipe
Rear

 59
 60
Front and rear lights (ring A)
Front

2 Rapid wipe (heavy rain).

1 Normal wipe (moderate rain).

I Intermittent wipe.

0 Off.

 Single wipe.
Windscreen wash-wipe: pull the stalk
towards you.

FAMILIARISATION8 -

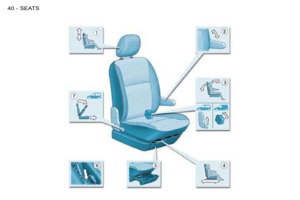

FRONT SEATS
Never travel with the head
restraints removed.

2. Armrest.

3. Seat back angle adjustment.

4. Forwards-backwards adjustment.

5. Storage drawer (passenger).

 40

1. Head restraint height adjust-
ment.

9FAMILIARISATION-
AIR BAGS
Disarming the passenger air bag

 With the ignition off , insert the
ignition key into the passenger
air bag switch 1 and turn it to the

"OFF" position.

 As soon as you remove the child
seat, turn the air bag switch to the

"ON" position to activate the air
bag again.
Disarming check With the ignition switched
on (2 nd notch), illumina-
tion of this warning light
indicates that the passenger
air bag is disarmed (switch
in the "OFF" position).
The warning light remains on throughout
the duration of disarming.

 78
Front air bags
These are folded in the centre of the
steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,
except in cases where the passenger
air bag is disarmed.
Side air bags are incorporated into
the front seat back frame, on the
door side.
They are deployed independently of
each other, on whichever side the
collision occurs.
Precautions regarding the
passenger air bag

 disarm the air bag if you install a
rear-facing child seat,

 activate the air bag for an adult
passenger.

 77 Side air bags

FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT

 When stationary, push the control

A forwards to unlock the steering
wheel.

 Adjust the height of the steering
wheel.

 Lock it by pulling control A
towards you fully.
ELECTRIC WINDOWS

1. Driver's electric window.

2. Passenger's electric window.
EXTERIOR MIRRORS

 Move the manual control 3 in all
four directions to adjust.
Electric control for the
passenger's side mirror

 From the driver's seat, adjust in
all four directions by operating
the control 4 .
Manual mode:

 Press the switch. The window
stops as soon as the switch is
released.
Automatic mode (driver):

 Press and hold the switch. One
touch completely opens or closes
the window.

 61
 62
 66

11FAMILIARISATION-
SPEED LIMITER
This limiter indicates the status
of selection of the function on the
instrument panel and displays the
programmed speed. The minimum
speed which can be programmed is
at least 18 mph (30 km/h).
It prevents exceeding of the speed
programmed by the driver, this func-
tion remains active regardless of any
action on the brake or clutch pedals.
On the other hand, pressing the acce-
lerator pedal to the point of resis-
tance does not have any effect.
It is possible to exceed the pro-
grammed speed temporarily by pres-
sing the accelerator fi rmly beyond this
point of resistance.
The operating actions must be car-
ried out with the engine running. The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
at least fourth gear engaged.
 74

 72 If the vehicle is fi tted with
a speed limiter and cruise
control, these functions can-
not be activated at the same
time.
