2009 CHRYSLER ASPEN Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
mInstruments And Controls................ 202
mInstrument Cluster..................... 203
mInstrument Cluster Description............ 204
mSetting The Analog Clock................ 216
mElectronic Digital Clock................. 216
NClock Setting Procedure................ 217
mAM/FM/CD/DVD Multimedia System Radio
(RER/REN) ± If Equipped................ 217
NOperating Instructions Ð Voice Recognition
System (VR) Ð If Equipped............. 218NOperating Instructions Ð Hands-Free
Communication (UConnectt) Ð If Equipped
. . 218
NClock Setting Procedure................ 218
mSales Code RES Ð AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)................ 220
NOperating Instructions - Radio Mode....... 220
NOperation Instructions - CD Mode For CD
And MP3 Audio Play.................. 223
NNotes On Playing MP3 Files............. 226
NOperation Instructions - Auxiliary Mode.... 2284

mSales Code RES/RSC Ð AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 229
NOperating Instructions - Radio Mode....... 229
NOperation Instructions - CD Mode For CD
And MP3 Audio Play.................. 235
NNotes On Playing MP3 Files............. 237
NList Button (CD Mode For MP3 Play)...... 240
NInfo Button (CD Mode For MP3 Play)...... 240
mUniversal Consumer Interface (UCI)
Ð If Equipped......................... 241
NConnecting The iPodt................. 242
NUsing This Feature................... 242
NControlling The iPodtUsing Radio Buttons . . 243NPlay Mode......................... 243
NList Or Browse Mode.................. 244
mSatellite Radio Ð If Equipped
(REN/REQ/RER/RES/REU Radios Only)..... 246
NSystem Activation.................... 246
NElectronic Serial Number/Sirius
Identification Number (ESN/SID)......... 247
NSelecting Satellite Mode................ 248
NSatellite Antenna..................... 248
NReception Quality.................... 248
NOperating Instructions - Satellite Mode..... 248
NOperating Instructions - Hands-Free Phone
(If Equipped)........................ 251
200 UNDERSTANDING YOUR INSTRUMENT PANEL

NOperating Instructions - Video Entertainment
System (VESt) (If Equipped)............. 251
mSirius Backseat TVŸÐ If Equipped......... 251
mVideo Entertainment System (Sales Code XRV)
Ð If Equipped......................... 252
m
Remote Sound System Controls Ð If Equipped. . 252
NRadio Operation..................... 253
NCD Player.......................... 253
mCD/DVD Maintenance.................. 253
mRadio Operation And Cellular Phones....... 254
mClimate Controls...................... 255
NManual Control...................... 255
NAir Conditioning Operation............. 255
NFront Blower Control.................. 256NFront Mode Control................... 256
NRear Temperature Control Ð If Equipped . . . 259
NRear Window Defrosting And Rear Window
Washer/Wiper....................... 259
NAutomatic Temperature Control (ATC)
Ð If Equipped....................... 260
NAutomatic Control.................... 260
NLevel Of Automatic Control............. 261
NManual Control (ATC)................. 261
NRear Zone Climate Control Ð If Equipped . . . 265
NRear Rotary Temperature Control......... 266
NFront Unit To Rear Unit Chart........... 267
NOperating Tips...................... 267
NOperating Tips Chart.................. 269
UNDERSTANDING YOUR INSTRUMENT PANEL 201
4

INSTRUMENTS AND CONTROLS
1 Ð Headlight Switch 7 Ð Radio 13 Ð Transfer Case Switch*
2 Ð Air Outlets 8 Ð Climate Control 14 Ð Speed Control Switches
3 Ð Demister Outlets 9 Ð Rear Washer / Wiper 15 Ð Hood Release
4 Ð Instrument Cluster 10 Ð Power Outlet 16 Ð Adjustable Pedal Control Switch*
5 Ð Airbags 11 Ð Heated Seat Switches* 17 Ð 115v Inverter Switch
6 Ð Glove Compartment 12 Ð Electronic Stability System (ESP) Off
Switch* If Equipped 202 UNDERSTANDING YOUR INSTRUMENT PANEL

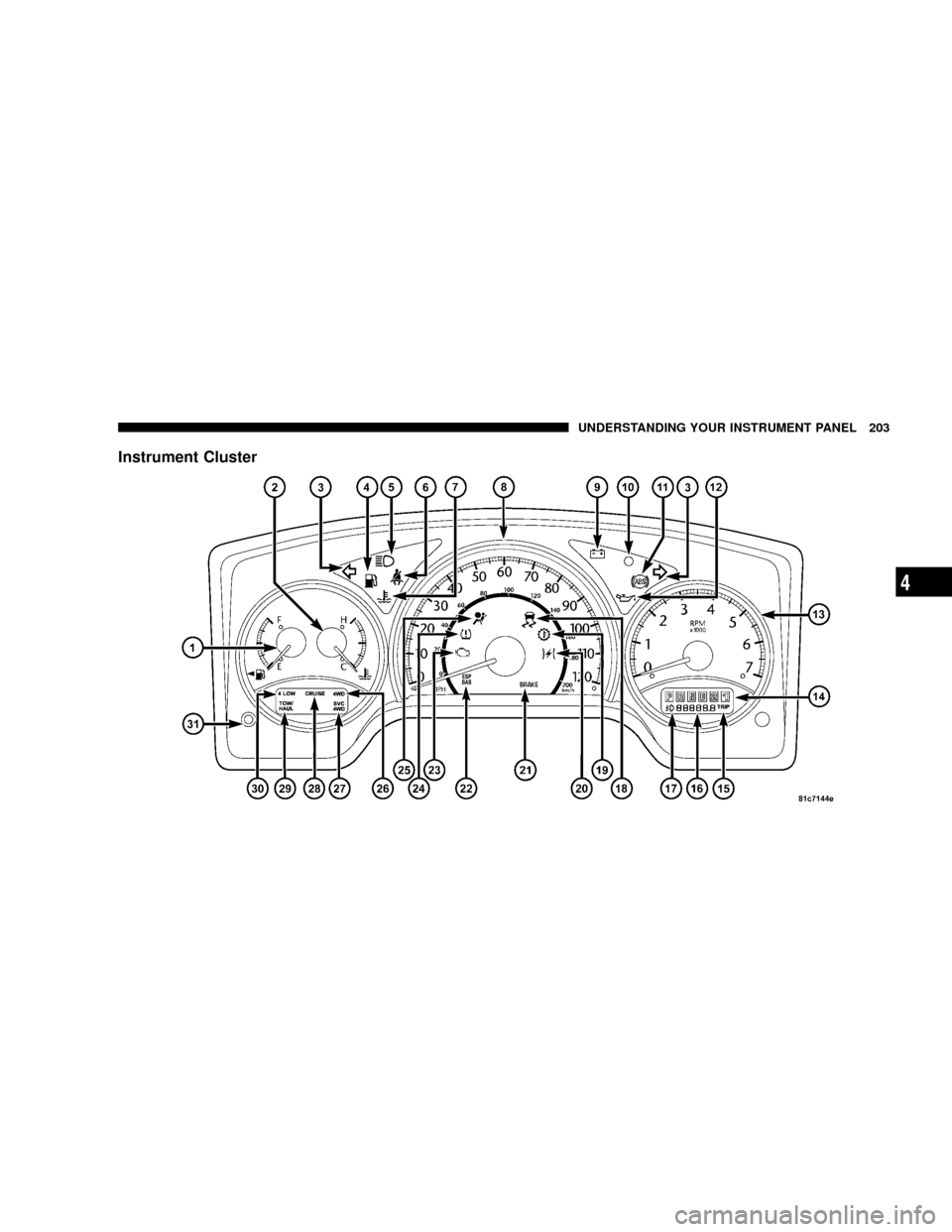

Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 203
4

INSTRUMENT CLUSTER DESCRIPTION
1. Fuel Gauge
The fuel gauge shows level of fuel in the tank when
ignition switch is in the ON position.
2. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily. The
gauge pointer will likely indicate a higher temperature
when driving in hot weather, up mountain grades, or
when towing a trailer. It should not be allowed to exceed
the upper limits of the normal operating range.
CAUTION!
Do not leave your vehicle unattended with the en-
gine running as you would not be able to react to the
temperature indicator if the engine overheats.The gauge pointer will remain near its last reading when
the engine is turned off. It will return to a true reading
when the engine is restarted.
3. Turn Signal Indicators
When a turn signal is activated, a right-pointing or
left-pointing arrow lights up and flashes to indicate the
direction of the turn. These indicators also indicate
proper operation of the front and rear turn signal lights.
If either indicator flashes at a faster rate than normal,
check for a defective bulb. If either indicator fails to light
up when the lever is moved, check for a defective fuse or
turn signal LED. A single chime is activated when the
left/right turn signal is left on with the engine RPM
vehicle speed greater than 15 mph (24 km/h) for more
than one mile.
4. Low Fuel Warning Light
This indicator lights when the fuel gauge reads
1/16 of a tank or less.
204 UNDERSTANDING YOUR INSTRUMENT PANEL

5. High Beam Indicator
Indicates that headlights are on high beam.
6. Seat Belt Reminder Light
This light comes on for several seconds after the
ignition is turned ON as a reminder to ªbuckle
up.º This light will remain on as long as the seat
belt remains unbuckled. If this light flashes, it indicates a
fault in the seat belt system. Have the system checked by
an authorized dealer.
7. Engine Temperature Warning Light
This light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-
proachesH(Hot), this indicator will illuminate
and a single chime will sound after reaching a set
threshold. Further overheating will cause the tempera-
ture gauge to passH(Hot), the indicator will continu-
ously flash and a continuous chime will occur until the
engine is allowed to cool.CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature light is on,
safely pull over and stop the vehicle. Idle the vehicle
in neutral with the air conditioner turned off until
the light turns off. If the light remains on, turn the
engine off immediately, and call for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, see Section 7 of this manual. Follow
the warnings under the Cooling System Pressure Cap
paragraph.
UNDERSTANDING YOUR INSTRUMENT PANEL 205
4

8. Speedometer
The speedometer shows the speed of the vehicle.
9. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle's non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
10. Vehicle Security Light
This light will flash rapidly for approximately 15 seconds
when the vehicle security alarm is arming. The light will
flash at a slower speed continuously after the alarm is set.The security light will also come on for about three
seconds when the ignition is first turned on.
11. Anti-Lock Brake System (ABS) Light
This light monitors the Anti-Lock Brake System
(ABS) which is described elsewhere in this
manual. This light will come on when the
ignition key is turned to the ON position and
may stay on for approximately three seconds. If this light
remains on or comes on during driving, it indicates that
the Anti-Lock portion of the brake system is not func-
tioning and that service is required. See an authorized
dealer immediately. With the ABS malfunctioning, the
Brake Assist System (BAS) and Electronic Stability Pro-
gram (ESP) are also switched off. Both malfunction
indicator lights illuminate with the engine running. If the
charging voltage falls below 10 volts, the malfunction
indicator light illuminates and the ABS is switched off.
