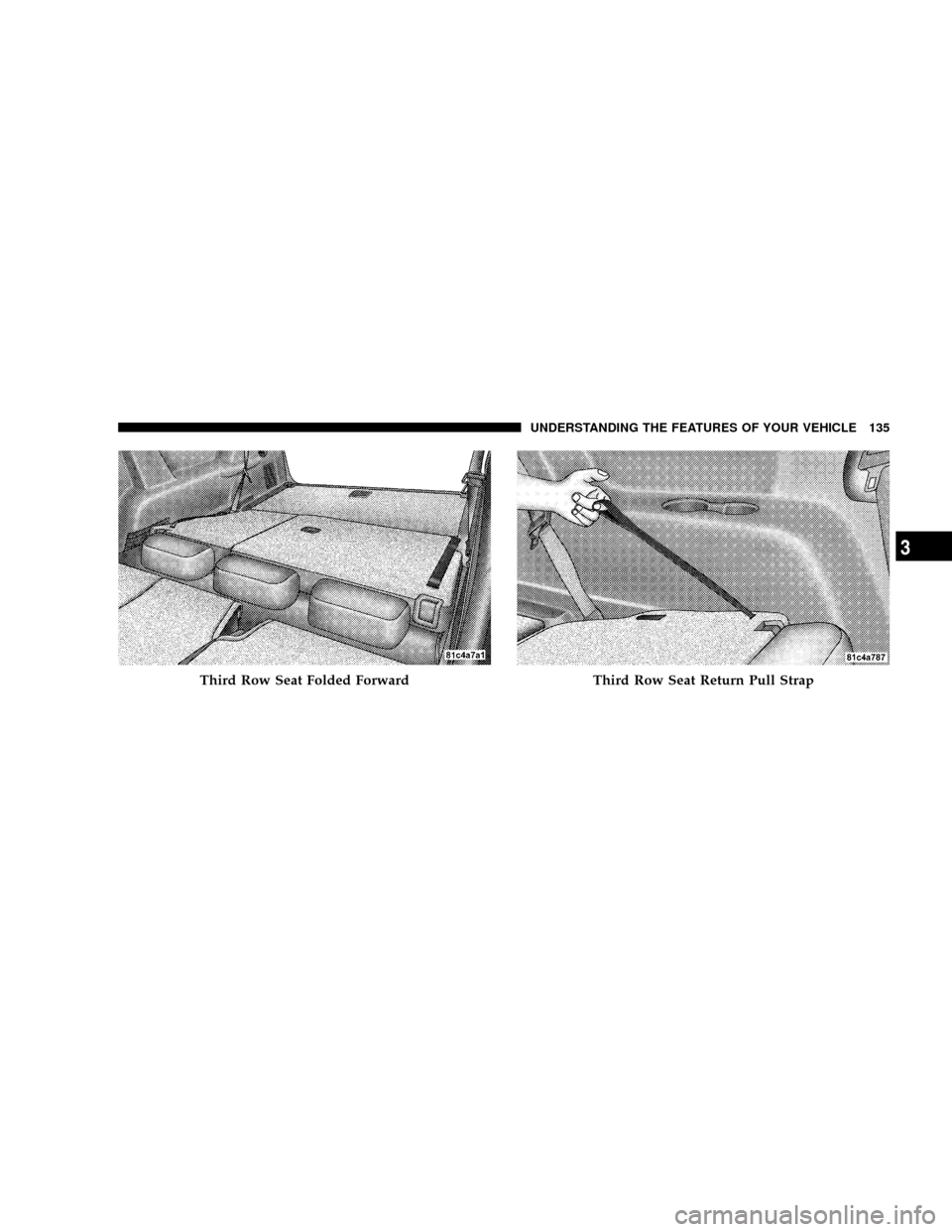

Third Row Seat Folded ForwardThird Row Seat Return Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

DRIVER MEMORY SYSTEM Ð IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver's door panel can be used to recall the driver's seat
position, driver's outside mirror position, adjustable
brake, accelerator pedals position, Automatic Tempera-
ture Control (ATC) temperature setting and radio station
preset settings. Your Remote Keyless Entry (RKE) trans-
mitters can also be programmed to recall the same
positions when the UNLOCK button is pressed.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Memory Buttons
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Setting Memory Positions and Linking RKE
Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Turn the vehicle key to the ON/RUN position.
2. Adjust the driver's seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time. Refer
to the eight-way power seat description in this section.
3. Adjust the brake and accelerator pedals to the desired
positions.
4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.6. Press and release the SET button located on the
driver's door.
7. Within five seconds, press and release memory button
1 or 2 on the driver's door. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the vehicle off and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key and turn the ignition switch to
the ON position.
11. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

Memory Position Recall
NOTE:
²The driver's seat belt must be unbuckled to recall
memory positions.
²The vehicle must be in PARK to recall memory posi-
tions.
²Not all motors may be moved at one time. Please refer
to the eight-way power seat description in this section.
To recall the memory settings for driver one, press
memory button number 1 on the driver's door or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver's door or the
UNLOCK button on the RKE transmitter linked to
memory position 2.A recall can be cancelled by pressing any of the memory
buttons on the driver's door during a recall (S, 1, or 2), or
pressing any one of the power seat buttons, pressing the
adjustable pedals button, or pressing either the LOCK or
UNLOCK button on the RKE transmitter when not in the
ignition switch. When a recall is cancelled, the driver's
seat, and the pedals stop moving. A delay of one second
will occur before another recall can be selected.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
To Disable A RKE Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET button located on
the driver's door.
3. Within 10 seconds, press and release the UNLOCK
button on the RKE transmitter.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To disable another RKE transmitter linked to either
memory position, repeat steps 1-3 for each RKE transmit-
ter.
NOTE:The capability to link RKE transmitters to
memory is enabled when delivered from the factory. The
capability to link RKE transmitters to memory can be
disabled (or later re-enabled) by a qualified Chrysler LLC
representative. For vehicles equipped with the Electronic
vehicle Information Center (EVIC), refer to ªPersonal
Settings (Customer Programmable Features)º under
ªOverhead Console with Electronic Vehicle Information
Center (EVIC) ± If Equippedº in Section 3.
Self-Limiting Control
To improve vehicle reliability, the memory system in-
cludes a self-limiting control for full travel positioning of
power seat and adjustable pedal movement (all direc-
tions). This self-limiting control may, however, develop
an unintended movement limitation if an obstruction isencountered sometime during usage. One example of
such an occurrence may include a box or package ob-
structing the full rearward movement of the driver's seat.
Once the obstruction is removed, the self-limiting control
may be restored to maximum position. The self-limiting
control may be restored by first reaching the recently
limited or obstructed position, then release and reactivate
the same button or buttons. Continued seat travel beyond
the obstructed position will indicate the recently encoun-
tered self-limitation has been cleared.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver's seat
positioning which will enhance driver mobility out of
and into the vehicle. The seat cushion will move rear-
ward approximately 2.5 in (60 mm) when the key is
removed from the ignition switch. The seat will move
forward approximately 2.5 in (60 mm) when the key is
placed into the ignition and turned out of the LOCK
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3

position. Each stored memory setting will have an asso-
ciated Easy Exit and Easy Entry position. The Easy Exit
and Easy Entry feature may be automatically disabled if
the seat is positioned rearward enough and there is no
benefit in moving the seat any farther rearward.
NOTE:The Easy Entry/Easy Exit feature can be en-
abled or disabled through the programmable features in
the Electronic Vehicle Information Center (EVIC). For
details, refer to ªPersonal Settings (Customer Program-
mable Features)º under ªOverhead Console with Elec-
tronic Vehicle Information Center (EVIC) ± If Equippedº
in Section 3.TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released:
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Push the safety latch lever to the left. It is located
between the grille and hood opening right of the center.To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center front
edge of the hood to ensure that both latches engage.
Never drive your vehicle unless the hood is fully closed,
with both latches engaged.
NOTE:Ensure hood prop rod is fully seated into clip
before closing hood to prevent damaging the grille.
WARNING!
If the hood is not fully latched, it could open when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
Hood Safety Catch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

LIGHTS
Headlight Switch
Headlights, Parking Lights and Instrument Panel
Lights
The headlight switch is located next to the steering
wheel, on the left side of the instrument panel.
The headlight switch controls the operation of the head-
lights, automatic headlights (if equipped), parking lights
and instrument panel lights.
Headlight Switch Location
