Storing a Flat or Spare
Tire and Tools
Storing the Spare Tire
{CAUTION
The underbody-mounted spare tire
needs to be stored with the valve
stem pointing down. If the spare
tire is stored with the valve stem
pointing upwards, the secondary
latch will not work properly and
the spare tire could loosen and
suddenly fall from the vehicle.
If this happened when the vehicle
was being driven, the tire might
contact a person or another
vehicle, causing injury and
damage to itself. Be sure the
underbody-mounted spare tire
is stored with the valve stem
pointing down.
{CAUTION
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
To store the spare tire:
1. Lay the compact spare tire near
the rear of the vehicle with the
valve stem down.
2. Reinstall the plastic spare tire
heat shield on the compact
spare tire.
3. Slide the cable retainer through
the center of the wheel and start
to raise the compact spare tire.
Make sure the retainer is fully
seated across the underside of
the wheel.4. When the compact spare tire is
almost in the stored position,
turn the tire so the valve is
toward the rear of the vehicle.
This position helps when
checking the air pressure in the
compact spare tire.
5. Raise the tire fully against the
underside of the vehicle. Continue
turning the lug wrench until you
feel more than two clicks. This
indicates that the compact spare
tire is secure and the cable is
tight. The spare tire hoist cannot
be overtightened.
5-74 Service and Appearance Care

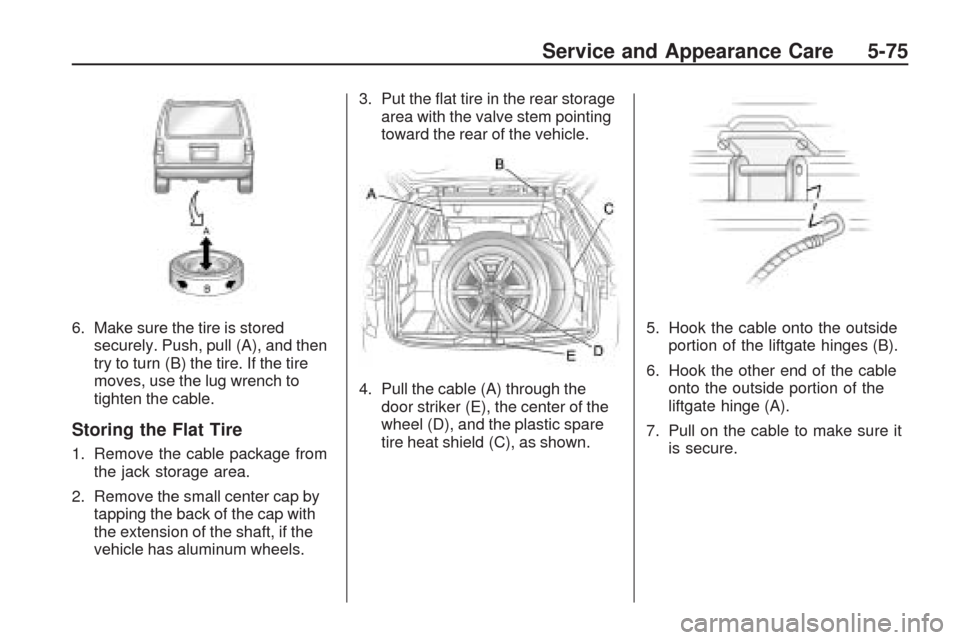

6. Make sure the tire is stored
securely. Push, pull (A), and then
try to turn (B) the tire. If the tire
moves, use the lug wrench to
tighten the cable.
Storing the Flat Tire
1. Remove the cable package from
the jack storage area.
2. Remove the small center cap by
tapping the back of the cap with
the extension of the shaft, if the
vehicle has aluminum wheels.3. Put the at tire in the rear storage
area with the valve stem pointing
toward the rear of the vehicle.
4. Pull the cable (A) through the
door striker (E), the center of the
wheel (D), and the plastic spare
tire heat shield (C), as shown.5. Hook the cable onto the outside
portion of the liftgate hinges (B).
6. Hook the other end of the cable
onto the outside portion of the
liftgate hinge (A).
7. Pull on the cable to make sure it
is secure.
Service and Appearance Care 5-75

8. Make sure the metal tube is
centered at the striker. Push
the tube toward the front of the
vehicle.
9. Close the liftgate and make sure
it is latched properly.
Storing the Tools
A. Tool Bag
B. Wing Bolt
C. Jack
Put back all tools as they were stored
in the jack storage compartment and
put the compartment cover back on.
1. Ensure that the bottom of the
jack is facing toward you.
2. Turn the jack (C) on its side and
place down on the holding
bracket.3. Reinstall the wing bolt (B) by
turning clockwise.
4. To replace the cover, line up the
tab at the front of the cover with
the notch in the cover opening.
Push the cover in place and make
sure that the rear clips are in the
slots and push the cover closed.
Store the center cap or the plastic
bolt-on wheel covers until a full size
tire is put back on the vehicle. When
you replace the compact spare with a
full-size tire, reinstall the bolt-on
wheel covers or the center cap.
Hand-tighten them over the wheel
nuts, using the lug wrench.
5-76 Service and Appearance Care

Do not clean the vehicle using:
A knife or any other sharp object
to remove a soil from any interior
surface.
A stiff brush. It can cause damage
to the vehicle’s interior surfaces.
Heavy pressure or aggressive
rubbing with a cleaning cloth. Use
of heavy pressure can damage
the interior and does not improve
the effectiveness of soil removal.
Laundry detergents or
dishwashing soaps with
degreasers can leave residue
that streaks and attracts dirt. For
liquid cleaners, about 20 drops
per gallon (3.78 L) of water is a
good guide. Use only mild,
neutral-pH soaps.
Too much cleaner that saturates
the upholstery.
Organic solvents such as naptha,
alcohol, etc. that can damage the
vehicle’s interior.
Fabric/Carpet
Use a vacuum cleaner with a
soft brush attachment frequently
to remove dust and loose dirt.
A canister vacuum with a beater bar
in the nozzle may only be used on
oor carpet and carpeted oor mats.
For any soil, always try to remove it
rst with plain water or club soda.
Before cleaning, gently remove as
much of the soil as possible using
one of the following techniques:
For liquids: gently blot the
remaining soil with a paper towel.
Allow the soil to absorb into the
paper towel until no more can be
removed.
For solid dry soils: remove as
much as possible and then
vacuum.
To clean:
1. Saturate a lint-free, clean white
cloth with water or club soda.
2. Wring the cloth to remove excess
moisture.3. Start on the outside edge of the
soil and gently rub toward the
center. Continue cleaning, using
a clean area of the cloth each
time it becomes soiled.
4. Continue to gently rub the soiled
area until the cleaning cloth
remains clean.
5. If the soil is not completely
removed, use a mild soap
solution and repeat the cleaning
process that was used with
plain water.
If any of the soil remains, a
commercial fabric cleaner or spot
lifter may be necessary. When a
commercial upholstery cleaner or
spot lifter is to be used, test a small
hidden area for colorfastness rst.
If the locally cleaned area gives any
impression that a ring formation may
result, clean the entire surface.
After the cleaning process has been
completed, a paper towel can be
used to blot excess moisture from
the fabric or carpet.
Service and Appearance Care 5-79

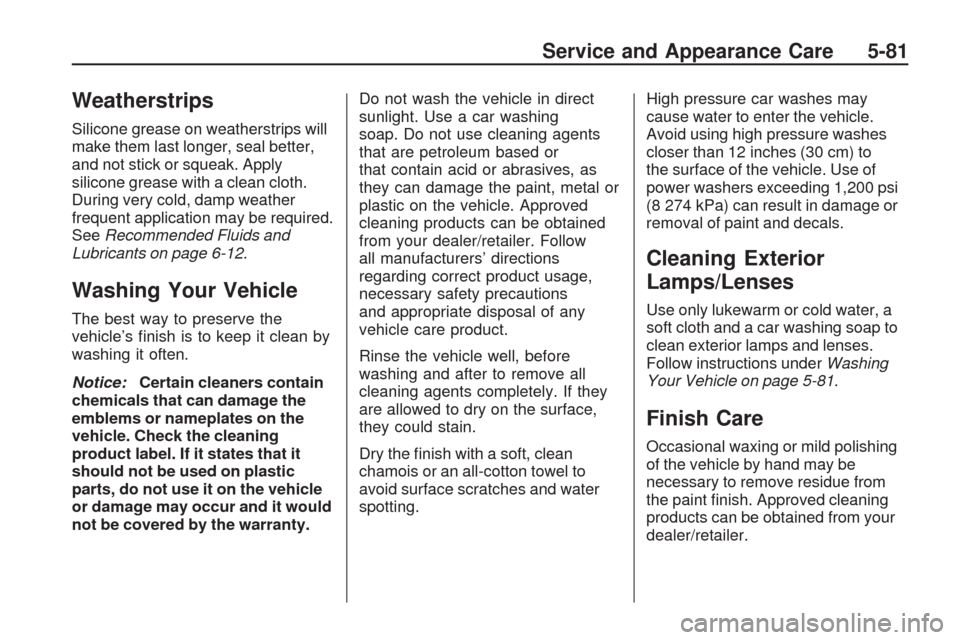

Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal better,
and not stick or squeak. Apply
silicone grease with a clean cloth.
During very cold, damp weather
frequent application may be required.
SeeRecommended Fluids and
Lubricants on page 6-12.
Washing Your Vehicle
The best way to preserve the
vehicle’s nish is to keep it clean by
washing it often.
Notice:Certain cleaners contain
chemicals that can damage the
emblems or nameplates on the
vehicle. Check the cleaning
product label. If it states that it
should not be used on plastic
parts, do not use it on the vehicle
or damage may occur and it would
not be covered by the warranty.Do not wash the vehicle in direct
sunlight. Use a car washing
soap. Do not use cleaning agents
that are petroleum based or
that contain acid or abrasives, as
they can damage the paint, metal or
plastic on the vehicle. Approved
cleaning products can be obtained
from your dealer/retailer. Follow
all manufacturers’ directions
regarding correct product usage,
necessary safety precautions
and appropriate disposal of any
vehicle care product.
Rinse the vehicle well, before
washing and after to remove all
cleaning agents completely. If they
are allowed to dry on the surface,
they could stain.
Dry the nish with a soft, clean
chamois or an all-cotton towel to
avoid surface scratches and water
spotting.High pressure car washes may
cause water to enter the vehicle.
Avoid using high pressure washes
closer than 12 inches (30 cm) to
the surface of the vehicle. Use of
power washers exceeding 1,200 psi
(8 274 kPa) can result in damage or
removal of paint and decals.
Cleaning Exterior
Lamps/Lenses
Use only lukewarm or cold water, a
soft cloth and a car washing soap to
clean exterior lamps and lenses.
Follow instructions underWashing
Your Vehicle on page 5-81.
Finish Care
Occasional waxing or mild polishing
of the vehicle by hand may be
necessary to remove residue from
the paint nish. Approved cleaning
products can be obtained from your
dealer/retailer.
Service and Appearance Care 5-81

If the vehicle has a basecoat/
clearcoat paint nish, the clearcoat
gives more depth and gloss to the
colored basecoat. Always use waxes
and polishes that are non-abrasive
and made for a basecoat/clearcoat
paint nish.
Notice:Machine compounding
or aggressive polishing on a
basecoat/clearcoat paint nish
may damage it. Use only
non-abrasive waxes and polishes
that are made for a basecoat/
clearcoat paint nish on the
vehicle.
Foreign materials such as calcium
chloride and other salts, ice melting
agents, road oil and tar, tree sap,
bird droppings, chemicals from
industrial chimneys, etc., can
damage the vehicle’s nish if they
remain on painted surfaces. Wash
the vehicle as soon as possible.If necessary, use non-abrasive
cleaners that are marked safe for
painted surfaces to remove foreign
matter.
Exterior painted surfaces are
subject to aging, weather and
chemical fallout that can take their
toll over a period of years. To
help keep the paint nish looking
new, keep the vehicle garaged
or covered whenever possible.
Protecting Exterior Bright Metal
Parts
Bright metal parts should be cleaned
regularly to keep their luster.
Washing with water is all that is
usually needed. However, chrome
polish may be used on chrome or
stainless steel trim, if necessary.
Use special care with aluminum trim.
To avoid damaging protective trim,
never use auto or chrome polish,
steam or caustic soap to clean
aluminum. A coating of wax, rubbed
to high polish, is recommended for all
bright metal parts.Windshield, Backglass,
and Wiper Blades
Clean the outside of the windshield
and backglass with glass cleaner.
Clean the rubber blades using a
lint free cloth or paper towel soaked
with windshield washer uid or a
mild detergent. Wash the windshield
thoroughly when you clean the
blades. Bugs, road grime, sap
and a buildup of vehicle wash/wax
treatments may cause wiper
streaking. Replace the wiper blades
if they are worn or damaged.
Wipers can be damaged by:
Extreme dusty conditions
Sand and salt
Heat and sun
Snow and ice, without proper
removal
5-82 Service and Appearance Care

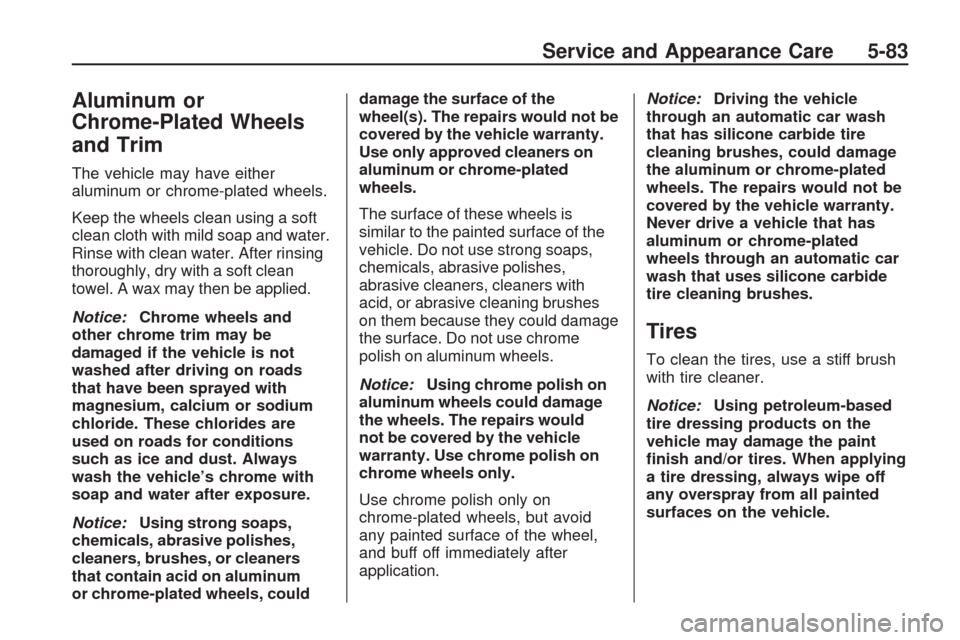

Aluminum or
Chrome-Plated Wheels
and Trim
The vehicle may have either
aluminum or chrome-plated wheels.
Keep the wheels clean using a soft
clean cloth with mild soap and water.
Rinse with clean water. After rinsing
thoroughly, dry with a soft clean
towel. A wax may then be applied.
Notice:Chrome wheels and
other chrome trim may be
damaged if the vehicle is not
washed after driving on roads
that have been sprayed with
magnesium, calcium or sodium
chloride. These chlorides are
used on roads for conditions
such as ice and dust. Always
wash the vehicle’s chrome with
soap and water after exposure.
Notice:Using strong soaps,
chemicals, abrasive polishes,
cleaners, brushes, or cleaners
that contain acid on aluminum
or chrome-plated wheels, coulddamage the surface of the
wheel(s). The repairs would not be
covered by the vehicle warranty.
Use only approved cleaners on
aluminum or chrome-plated
wheels.
The surface of these wheels is
similar to the painted surface of the
vehicle. Do not use strong soaps,
chemicals, abrasive polishes,
abrasive cleaners, cleaners with
acid, or abrasive cleaning brushes
on them because they could damage
the surface. Do not use chrome
polish on aluminum wheels.
Notice:Using chrome polish on
aluminum wheels could damage
the wheels. The repairs would
not be covered by the vehicle
warranty. Use chrome polish on
chrome wheels only.
Use chrome polish only on
chrome-plated wheels, but avoid
any painted surface of the wheel,
and buff off immediately after
application.Notice:Driving the vehicle
through an automatic car wash
that has silicone carbide tire
cleaning brushes, could damage
the aluminum or chrome-plated
wheels. The repairs would not be
covered by the vehicle warranty.
Never drive a vehicle that has
aluminum or chrome-plated
wheels through an automatic car
wash that uses silicone carbide
tire cleaning brushes.
Tires
To clean the tires, use a stiff brush
with tire cleaner.
Notice:Using petroleum-based
tire dressing products on the
vehicle may damage the paint
nish and/or tires. When applying
a tire dressing, always wipe off
any overspray from all painted
surfaces on the vehicle.
Service and Appearance Care 5-83

(e)Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or damaged
safety belt system parts. If you see
anything that might keep a safety
belt system from doing its job, have
it repaired. Have any torn or frayed
safety belts replaced. Also see
Checking the Restraint Systems
on page 1-59.
(f)Lubricate all key lock cylinders,
hood latch assemblies, secondary
latches, pivots, spring anchor and
release pawl, hood and door hinges,
rear folding seats, and liftgate
hinges. More frequent lubrication
may be required when exposed to
a corrosive environment. Applying
silicone grease on weatherstrips with
a clean cloth will make them last
longer, seal better, and not stick
or squeak.
(g)A fluid loss in any vehicle system
could indicate a problem. Have the
system inspected and repaired and
the fluid level checked. Add fluid if
needed.(h)Change automatic transmission
fluid if the vehicle is mainly driven
under one or more of these
conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi, police,
or delivery service.
(i)Drain, flush, and refill cooling
system. This service can be
complex; you should have your
dealer/retailer perform this service.
See Engine Coolant on page 5-17 for
what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.(j)Check system for interference or
binding and for damaged or missing
parts. Replace parts as needed.
Replace any components that have
high effort or excessive wear. Do not
lubricate accelerator or cruise control
cables.
(k)Visually inspect belt for fraying,
excessive cracks, or obvious
damage. Replace belt if necessary.
(l)If driving regularly under dusty
conditions, inspect the filter at each
engine oil change.
(m)Change transfer case fluid if the
vehicle is mainly driven under one
or more of these conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi, police,
or delivery service.
6-8 Maintenance Schedule
