Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions work up to
195 feet (60 m) away from the
vehicle.
There are other conditions which
can affect the performance of
the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-3.
/(Remote Vehicle Start):For
vehicles with this feature, see
Remote Vehicle Start on page 2-6
for additional information.
Q(Lock):Press to lock all the
doors.
If enabled through the Driver
Information Center (DIC), the
parking lamps ash once to indicate
locking has occurred. If enabled
through the DIC, the horn sounds
when
Qis pressed again within
ve seconds. SeeDIC Vehicle
Customization (With DIC Buttons)
on page 3-65for additional
information.
Pressing
Qmay arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 2-16.
K(Unlock):Press once to unlock
only the driver door. If
Kis
pressed again within ve seconds,
all remaining doors unlock. The
interior lamps come on and stay on
for 20 seconds or until the ignition
is turned on.
If enabled through the DIC,
the parking lamps ash twice to
indicate unlocking has occurred.
SeeDIC Vehicle Customization
(With DIC Buttons) on page 3-65.
Pressing
Kon the RKE transmitter
disarms the content theft-deterrent
system. SeeContent Theft-Deterrent
on page 2-16.
&(Power Liftgate):Press and
hold for about one second to
open and close the liftgate.
The taillamps ash and a chime
sounds to indicate when the liftgate
is opening and closing.
With Remote Start and Liftgate
(Without Remote Start or
Liftgate Similar)
2-4 Features and Controls

L(Vehicle Locator/Panic Alarm):
Press and release to locate the
vehicle. The parking lamps ash and
the horn sounds three times.
Press and hold
Lfor more than
two seconds to activate the
panic alarm. The parking lamps
ash and the horn sounds
repeatedly for 30 seconds. The
alarm turns off when the ignition is
moved to ON/RUN or
Lis
pressed again. The ignition must be
in LOCK/OFF for the panic alarm
to work.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to this vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer/
retailer. When the replacement
transmitter is programmed to this
vehicle using the DIC, all remaining
transmitters must also be
reprogrammed. Any lost or stolentransmitters will no longer work once
the new transmitter is programmed.
Each vehicle can have up to
eight transmitters programmed to it.
See “Relearn Remote Key” under
DIC Operation and Displays
(With DIC Buttons) on page 3-45
orDIC Operation and Displays
(Without DIC Buttons) on page 3-51
for instructions on how to program
transmitters to this vehicle.
Battery Replacement
Replace the battery if the REPLACE
BATTERY IN REMOTE KEY
message displays in the DIC.
Notice:When replacing the
battery, do not touch any of the
circuitry on the transmitter.
Static from your body could
damage the transmitter.1. Separate the transmitter with a
at, thin object inserted into the
notch on the side.
2. Remove the old battery. Do not
use a metal object.
3. Insert the new battery, positive
side facing down. Replace with
a CR2032 or equivalent battery.
4. Snap the transmitter back
together.
Features and Controls 2-5

Remote Vehicle Start
This vehicle may have a remote
starting feature that starts the engine
from outside of the vehicle.
If the vehicle has an automatic
climate control system, the climate
control system defaults to a
heating or cooling mode depending
on the outside temperatures.
If the vehicle does not have an
automatic climate control system,
the system turns on at the
setting the vehicle was set to when
the vehicle was last turned off.
If the vehicle has an automatic
climate control system and heated
seats, the heated seats turn on
during colder outside temperatures
and shut off when the key is
turned to ON/RUN. SeeHeated
Seats on page 1-5orHeated and
Cooled Seats on page 1-5for
more information.The rear window defogger and
heated mirrors, if the vehicle has
them, turn on during colder outside
temperatures and turn off when
the key is turned to ON/RUN.
Laws in some communities may
restrict the use of remote starters.
For example, some laws may
require a person using the remote
start to have the vehicle in view
when doing so. Check local
regulations for any requirements on
remote starting of vehicles.
Do not use the remote start feature
if the vehicle is low on fuel. The
vehicle could run out of fuel.
If the vehicle has the remote start
feature, the RKE transmitter
functions have an increased range
of operation. However, the range
may be less while the vehicle
is running.
There are other conditions which
can affect the performance of
the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-3
for additional information.
/(Remote Start):This button is
located on the RKE transmitter if the
vehicle has remote start.
To start the vehicle:
1. Aim the transmitter at the
vehicle.
2. Press and release
Q, then
immediately press and hold
/until the parking lamps ash.
If the vehicle’s lights can not
be seen, press and hold
/for at
least four seconds. The
vehicle’s doors lock. When the
vehicle starts, the parking
lamps turn on and remain on
while the vehicle is running.
Pressing
/again, after the
vehicle has started, shuts the
vehicle off.
2-6 Features and Controls

3. If it is the rst remote start since
the vehicle has been driven,
repeat these steps while the
engine is still running, to extend
the time by 10 minutes for
the engine to continue to run.
Remote start can be extended
one time.
After entering the vehicle during a
remote start, insert and turn the key
to the ON/RUN position to drive
the vehicle.
If the vehicle is left running it
automatically shuts off after
10 minutes unless a time extension
has been done.
To manually shut off a remote start:
Aim the RKE transmitter at the
vehicle and press
/until the
parking lamps turn off.
Turn on the hazard warning
ashers.
Turn the ignition switch on and
then off.The vehicle can be started using the
remote start feature two separate
times between driving sequences.
The engine runs for 10 minutes after
each remote start. Or, the engine
run time can be extended another
10 minutes within the rst 10 minute
remote start time frame, and before
the engine stops.
For example, if
Qand then/are
pressed again after the vehicle
has been running for ve minutes,
10 minutes are added, allowing
the engine to run for 15 minutes.
The additional 10 minutes are
considered a second remote start.
The vehicle must be started with the
key once two remote starts, or a
single remote start with one time
extension has been done.
The vehicle can be started using the
remote start feature again after
the key is removed from the ignition.The vehicle cannot be started using
the remote start feature if the key
is in the ignition, the hood is open,
or if there is an emission control
system malfunction.
The engine turns off during a
remote start if the coolant
temperature gets too high or if the
oil pressure gets low.
Vehicles that have the remote
vehicle start feature are shipped from
the factory with the remote vehicle
start system enabled. The system
may be enabled or disabled through
the DIC if the vehicle has DIC
buttons. See “REMOTE START”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65for
additional information. If the vehicle
does not have DIC buttons, see your
dealer/retailer to enable or disable
the remote start system.
Features and Controls 2-7

Doors and Locks
Door Locks
{CAUTION
Unlocked doors can be
dangerous.
Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. When a door is
locked, the handle will not
open it. The chance of being
thrown out of the vehicle in a
crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and the
doors should be locked
whenever the vehicle is
driven.
(Continued)
CAUTION (Continued)
Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
Outsiders can easily enter
through an unlocked door
when you slow down or stop
your vehicle. Locking your
doors can help prevent this
from happening.
To lock or unlock a door, use the
key from the outside or the door lock
from the inside.
Power Door Locks
The power door lock switches are
located on the front doors.
"(Unlock):Press to unlock the
doors.
Q(Lock):Remove the key from
the ignition and press to lock
the doors.
Delayed Locking
When locking the doors with the
power lock switch and a door or the
liftgate is open, the doors will lock
ve seconds after the last door
is closed. You will hear three chimes
to signal that the delayed locking
feature is in use.
Pressing the power lock switch
twice or the lock button on the RKE
transmitter twice will override the
delayed locking feature and
immediately lock all the doors.
2-8 Features and Controls

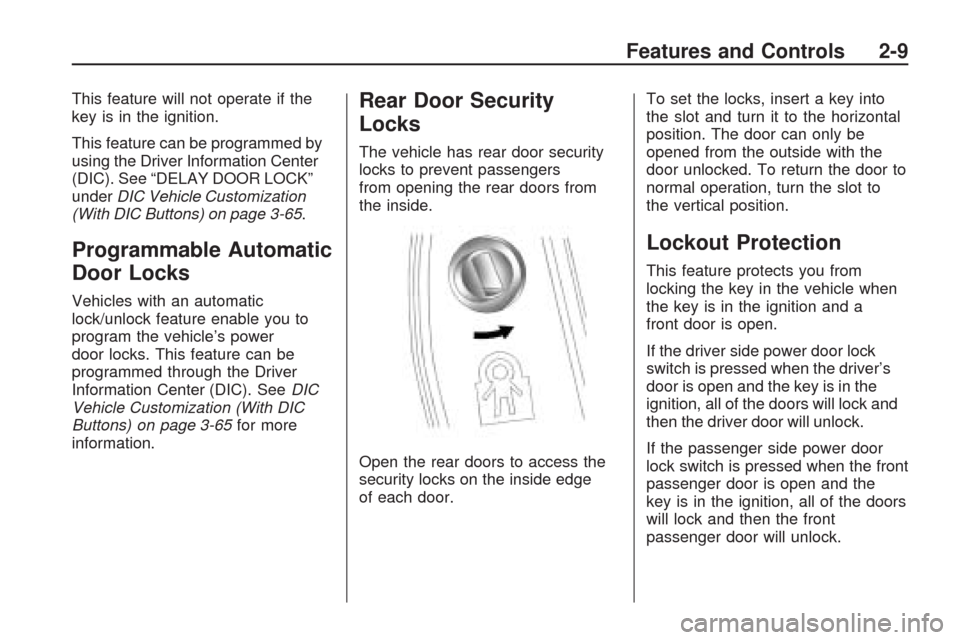

This feature will not operate if the
key is in the ignition.
This feature can be programmed by
using the Driver Information Center
(DIC). See “DELAY DOOR LOCK”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65.
Programmable Automatic
Door Locks
Vehicles with an automatic
lock/unlock feature enable you to
program the vehicle’s power
door locks. This feature can be
programmed through the Driver
Information Center (DIC). SeeDIC
Vehicle Customization (With DIC
Buttons) on page 3-65for more
information.
Rear Door Security
Locks
The vehicle has rear door security
locks to prevent passengers
from opening the rear doors from
the inside.
Open the rear doors to access the
security locks on the inside edge
of each door.To set the locks, insert a key into
the slot and turn it to the horizontal
position. The door can only be
opened from the outside with the
door unlocked. To return the door to
normal operation, turn the slot to
the vertical position.
Lockout Protection
This feature protects you from
locking the key in the vehicle when
the key is in the ignition and a
front door is open.
If the driver side power door lock
switch is pressed when the driver’s
door is open and the key is in the
ignition, all of the doors will lock and
then the driver door will unlock.
If the passenger side power door
lock switch is pressed when the front
passenger door is open and the
key is in the ignition, all of the doors
will lock and then the front
passenger door will unlock.
Features and Controls 2-9

Liftgate
{CAUTION
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on
or under the instrument
panel.
(Continued)
CAUTION (Continued)
Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-30.
If the vehicle has a power liftgate,
seePower Liftgate on page 2-11.
To unlock the liftgate, use the power
door lock switch or press the door
unlock button on the RKE transmitter
twice. SeeRemote Keyless Entry
(RKE) System Operation on
page 2-4.To open the liftgate, press the
touchpad on the underside of the
liftgate handle. The vehicle must be
in P (Park) to open the liftgate.
To close the liftgate, use the pull cup
or strap.
The liftgate has an electric latch.
If the battery is disconnected or has
low voltage, the liftgate will not
open. The liftgate will resume
operation when the battery is
reconnected and charged.
If the battery is properly connected
and has adequate voltage, and
the liftgate still will not function,
the vehicle should be taken
to a dealers/retailer for service.
2-10 Features and Controls

Power Liftgate
Power Liftgate Operation
{CAUTION
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on
or under the instrument
panel.
(Continued)
CAUTION (Continued)
Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-30.
The vehicle may have a power
liftgate. The vehicle must be
in P (Park) to use this feature.
The taillamps will ash and a chime
will sound when the power liftgate
is used.
{CAUTION
You or others could be injured if
caught in the path of the power
liftgate. Make sure there is no one
in the way of the liftgate as it is
opening and closing.
Notice:If you open the liftgate
without checking for overhead
obstructions such as a garage
door, you could damage the
liftgate or the liftgate glass.
Always check to make sure the
area above and behind the liftgate
is clear before opening it.
The power liftgate can be power
opened and closed in the
following ways:
Press and hold the power liftgate
button on the RKE transmitter
until the liftgate starts moving.
Remote Keyless Entry (RKE)
System Operation on page 2-4
for more information.
Features and Controls 2-11
