2009 CHEVROLET AVEO Owners Manual

Notice:Improper use of the power outlet can cause
damage not covered by the warranty. Do not hang
any type of accessory or accessory bracket from the
plug because the power outlets are designed for
accessory power plugs only.

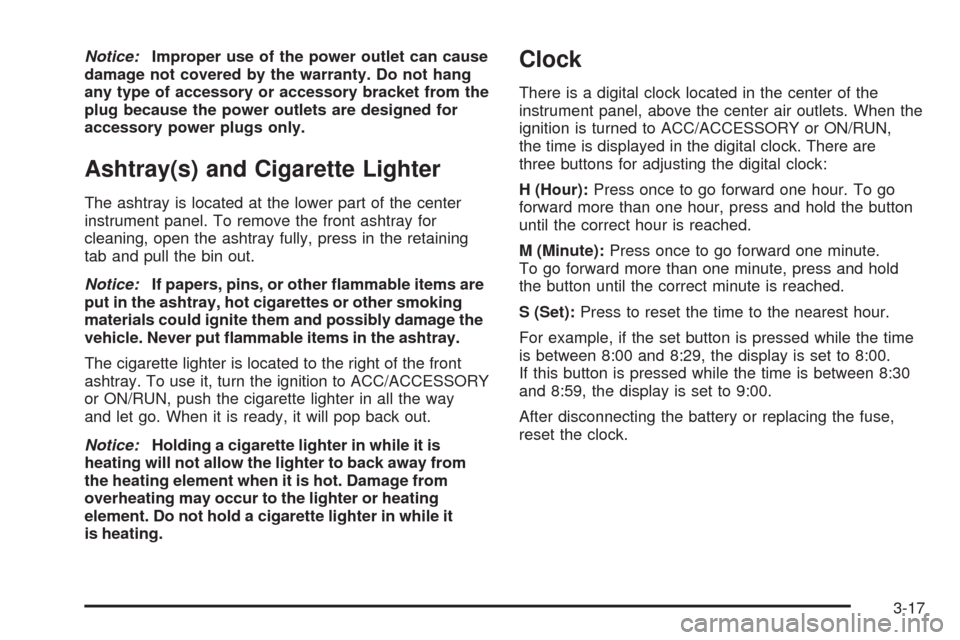

Ashtray(s) and Cigarette Lighter
The ashtray is located at the lower part of the center
instrument panel. To remove the front ashtray for
cleaning, open the ashtray fully, press in the retaining
tab and pull the bin out.
Notice:If papers, pins, or other ammable items are
put in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage the
vehicle. Never put ammable items in the ashtray.
The cigarette lighter is located to the right of the front
ashtray. To use it, turn the ignition to ACC/ACCESSORY
or ON/RUN, push the cigarette lighter in all the way
and let go. When it is ready, it will pop back out.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element. Do not hold a cigarette lighter in while it
is heating.
Clock
There is a digital clock located in the center of the
instrument panel, above the center air outlets. When the
ignition is turned to ACC/ACCESSORY or ON/RUN,
the time is displayed in the digital clock. There are
three buttons for adjusting the digital clock:
H (Hour):Press once to go forward one hour. To go
forward more than one hour, press and hold the button
until the correct hour is reached.
M (Minute):Press once to go forward one minute.
To go forward more than one minute, press and hold
the button until the correct minute is reached.
S (Set):Press to reset the time to the nearest hour.
For example, if the set button is pressed while the time
is between 8:00 and 8:29, the display is set to 8:00.
If this button is pressed while the time is between 8:30
and 8:59, the display is set to 9:00.
After disconnecting the battery or replacing the fuse,
reset the clock.
3-17

Climate Controls
Climate Control System
The heating, cooling, and ventilation for the vehicle can
be controlled with this system.
A. Temperature Control
B. Fan Control
C. Air Delivery Mode
ControlD. Air Conditioning (A/C)
E. Recirculation
F. Rear Window
DefoggerA. Temperature Control
B. Fan Control
C. Air Delivery Mode
ControlD. Rear Window
Defogger
E. Outside Air/
Recirculation
Climate Control System with Heater and
Air Conditioning
Climate Control System with Heater Only
3-18

OFF:Turns the fan off.
Temperature Control:Turn clockwise or
counterclockwise to increase or decrease the
temperature of the air owing from the system.
9(Fan Control):Turn clockwise or counterclockwise
to increase or decrease the fan speed. The fan must
be turned on to run the air conditioning compressor.
Air Delivery Mode Control:Turn clockwise or
counterclockwise to change the current airow mode.
Select from the following air delivery modes:
Y(Vent):Air is directed to the instrument panel
outlets.
\(Bi-Level):Air is divided between the instrument
panel and oor outlets.
[(Floor):Air is directed to the oor outlets, with
some air directed to the rear outlets. Keep the area
under the front seats clear to allow the ow of air to the
rear compartment.
É(Defog):This mode clears the windows of fog or
moisture. Air is directed to the windshield, oor, and
side window outlets. When this mode is selected,
the system automatically runs the air-conditioning.
To defog the windows faster, turn the temperature
control to the warmest setting.
1(Defrost):This mode quickly clears the windshield
of fog or frost. Air is directed to the windshield and
side window outlets. When this mode is selected,
the system automatically runs the air-conditioning.
To defrost the windows faster, turn the temperature
control to the warmest setting.
Do not drive the vehicle until all the windows are clear.
A/C (Air Conditioning):For vehicles with air
conditioning, follow these steps to use the system.
Turn
9to the desired speed. The air conditioning
does not operate when the fan control knob is in the off
position. Press A/C to turn the air conditioning on
and off. When A/C is pressed, an indicator light comes
on to show that the air conditioning is on.
3-19

For quick cool down on hot days, do the following:
1. Open the windows to let hot air escape.
2. Press
?.
3. Press A/C.
4. Select the coolest temperature.
5. Select the highest
9speed.
Using these settings together for long periods of time may
cause the air inside of the vehicle to become too dry.
To prevent this from happening, after the air in the vehicle
has cooled, turn the recirculation mode off.
The air conditioning system removes moisture from the
air, so a small amount of water might drip under the
vehicle while idling or after turning off the engine.
This is normal.
?(Recirculation):This mode recirculates and helps
to quickly cool the air inside the vehicle. It can be
used to prevent outside air and odors from entering
the vehicle.For vehicles with a recirculation button, press the button
to turn the recirculation mode on. An indicator light
comes on to show that the recirculation is on. Press the
button again to return to outside air mode.
For vehicles with a lever, move the lever to choose the
recirculation mode.
Using the recirculation mode for extended periods may
cause the windows to fog. If this happens, select the
defrost mode.
:(Outside Air):This mode brings outside air into
the vehicle.
For vehicles with a recirculation button, press the button
until the recirculation mode is turned off. The vehicle
then returns to the outside air mode.
For vehicles with a lever, move the lever to choose the
outside air mode.
3-20

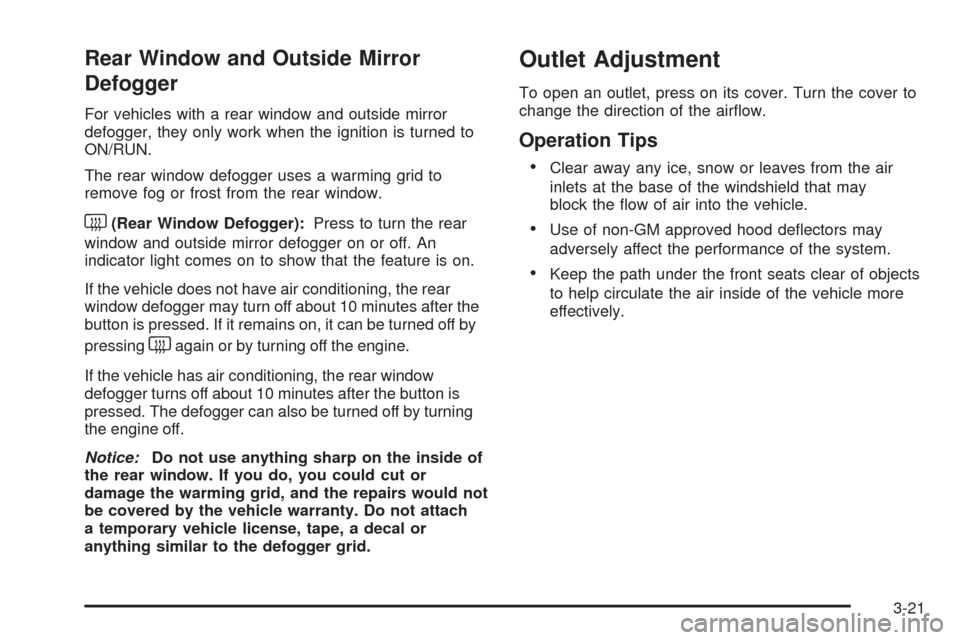

Rear Window and Outside Mirror
Defogger
For vehicles with a rear window and outside mirror
defogger, they only work when the ignition is turned to
ON/RUN.
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
<(Rear Window Defogger):Press to turn the rear
window and outside mirror defogger on or off. An
indicator light comes on to show that the feature is on.
If the vehicle does not have air conditioning, the rear
window defogger may turn off about 10 minutes after the
button is pressed. If it remains on, it can be turned off by
pressing
If the vehicle has air conditioning, the rear window
defogger turns off about 10 minutes after the button is
pressed. The defogger can also be turned off by turning
the engine off.
Notice:Do not use anything sharp on the inside of
the rear window. If you do, you could cut or
damage the warming grid, and the repairs would not
be covered by the vehicle warranty. Do not attach
a temporary vehicle license, tape, a decal or
anything similar to the defogger grid.
Outlet Adjustment
To open an outlet, press on its cover. Turn the cover to
change the direction of the airow.
Operation Tips

Clear away any ice, snow or leaves from the air
inlets at the base of the windshield that may
block the ow of air into the vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of objects
to help circulate the air inside of the vehicle more
effectively.
3-21

Passenger Compartment Air Filter
For vehicles with a passenger compartment air lter, it is
located behind the glove box. It can be accessed after
removing the glove box from its housing.
Pollen and dust are removed by the lter. The air
cleaner/lter may need to be changed periodically.
To change the passenger compartment air lter, use the
following steps:
1. Open the glove box halfway down.
2. Grip the glove box by both the upper and lower
sides and pull it out of its housing.3. Remove the lter cover by pressing in on the
bottom retaining tab and pulling the cover down.
3-22

4. Replace the air conditioner lter.
5. View the air ow arrows on the lter before installing
to ensure the lter is installed correctly.
Warning Lights, Gages, and
Indicators
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
the warning lights and gages could prevent injury.
Warning lights come on when there may be or is a
problem with one of the vehicle’s functions. Some
warning lights come on briey when the engine is started
to indicate they are working.
Gages can indicate when there may be or is a problem
with one of the vehicle’s functions. Often gages and
warning lights work together to indicate a problem with
the vehicle.
When one of the warning lights comes on and stays on
while driving, or when one of the gages shows there
may be a problem, check the section that explains what
to do. Follow this manual’s advice. Waiting to do
repairs can be costly and even dangerous.
3-23

Instrument Panel Cluster
The instrument panel cluster is designed to show how the vehicle is running. It indicates how fast the vehicle is
going, how much fuel is being used, and many other things needed to drive safely and economically.
The vehicle’s instrument panel cluster includes indicator warning lights and gages that are explained on the following
pages.
United States Manual Transmission shown, Canada and Automatic Transmission similar
3-24
