2009 CHERY TIGGO sensor

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMCONDITIONDATA (DC VOLTAGE)
18 Upstream oxygen sensor •
Engine is running
• Warm-up condition
• Keep the engine speed
2000 RPM Approximately 0.1 - 0.9 V
(change5-8times in 10 seconds periodically)
28 Downstream oxygen
sensor heating --
36 Sensor (GND)•
Warm-up condition
• Idle speed Approximately 0 V
48 Upstream oxygen sensor
heating --
55 Downstream oxygen
sensor •
Engine is running
• Warm-up condition
• Keep the engine speed
2000 RPM Approximately 100 mV
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION POSSIBLE CAUSE
P0031 O
2sensor 1 heater control
circuit low Engine is running•
Fuel quality
• Upstream O2sensor
• Harness or connectors
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on and record and erase DTC.
• Start engine and warm it up to the normal operating temperature.
• Turn ignition switch off and wait at least 10 seconds.
• Start engine and keep the engine speed 2000 RPM for at least 1 minute.
• Let engine idle for 2 minutes, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03
03–273Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect ground connections E-20 7 and E-208 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness (With 2.0L Engine) in Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground harness or connections.
2.CHECK UPSTREAM O2SENSOR ELECTRICAL CONNECTOR
• Disconnect the upstream O
2sensor (1) electrical
connector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK UPSTREAM O2SENSOR POWER SUPPLY CIRCUIT
• Turn ignition switch on.
• Check supply voltage between O
2sensor terminal
2 and ground in the O
2sensor electrical connector
E-005.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to Step 5.
No
>>Go to the next step.
DIAGNOSIS & TESTING
BESM030017
LTSMD030029
03–274Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H2, H5
Fuse 25, fuse 12, fuse 23, fuse 24
• Check harness for an open or short between O
2sensor and fuse.
• Repair or replace malfunctioning part.
• With the X-431, select view DTC.
Is DTC P0031 still present?
Ye s>>Go to the next step.
No
>>The system is normal now.
5.CHECK O2SENSOR HEATER CONTROL CIRCUIT FOR OPEN OR SHORT
• Turn ignition switch off.
• Disconnect ECM connector.
• Check harness continuity between ECM terminal and O
2sensor terminal.
COMPONENT ECMUPSTREAM O2SENSOR
TERMINAL •
48 (With EOBD)
• 1 (Without EOBD) 1
• Continuity should exist.
• Check harness for short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair the circuit for an open or short in harness or connectors.
6.CHECK O2SENSOR HEATER
• Check resistance between O
2sensor heater terminals.
TERMINAL NO. RESISTANCE
1 and 2 (including cable
and connector) Approximately 9

DIAGNOSIS & TESTING
03
03–275Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine •Check resistance between O2sensor terminals.
TERMINAL NO. RESISTANCE
1&3and1&4
(Continuity
should not exist)
4&1and4&2
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace O2sensor.
7.CHECK DTC
• With the X-431 scan tool, read ECM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0031 still present?
Ye s>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
03–276Chery Automobile Co., Ltd.

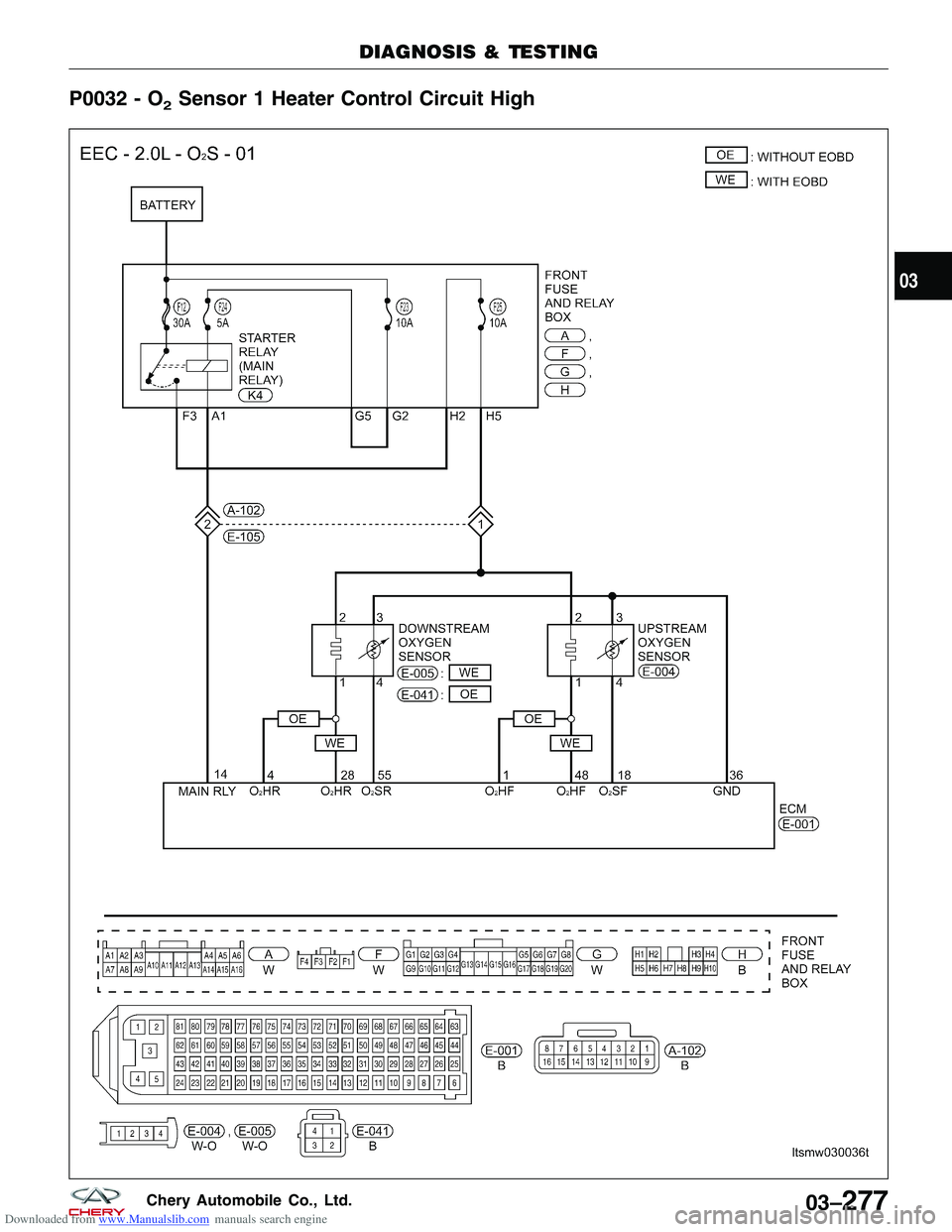

Downloaded from www.Manualslib.com manuals search engine P0032 - O2Sensor 1 Heater Control Circuit High
DIAGNOSIS & TESTING
LTSMW030036T
03
03–277Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Specification data are reference values and are measured between each terminal and ground.
ECM TERMINAL NO.ITEMCONDITIONDATA (DC VOLTAGE)
18 Upstream oxygen sensor •
Engine is running
• Warm-up condition Approximately 0.1 - 0.9 V
(change5-8times in 10 seconds periodically)
28 Downstream oxygen
sensor heating (with EOBD) --
36 Sensor (GND)•
Warm-up condition
• Idle speed Approximately 0 V
48 Upstream oxygen sensor
heating (without EOBD) --
55 Downstream oxygen
sensor •
Engine is running
• Warm-up condition Approximately 100 mV
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION POSSIBLE CAUSE
P0032 O
2sensor 1 heater control
circuit high Engine is running•
Upstream Oxygen
Sensor
• Harness or connectors
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on and record and erase DTC.
• Start engine and warm it up to the normal operating temperature.
• Turn ignition switch off and wait at least 10 seconds.
• Start engine and keep the engine speed 2000 RPM for at least 1 minute.
• Let engine idle for 2 minutes, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03–278Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect ground connections E-207 and E-208 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness (With 2.0L Engine) in Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connections.
2.CHECK UPSTREAM O2SENSOR ELECTRICAL CONNECTOR
• Disconnect the upstream O
2sensor (1) electrical
connector E-004.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK UPSTREAM O2SENSOR POWER SUPPLY CIRCUIT
• Turn ignition switch on.
• Check supply voltage between upstream O
2sensor
terminal 2 and ground in the O
2sensor electrical
connector E-004.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to Step 5.
No
>>Go to the next step.
DIAGNOSIS & TESTING
BESM030017
LTSMD030029
03
03–279Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H2, H5
Fuse 25, Fuse 12, Fuse 23, Fuse 24
• Check harness for open or short between O
2sensor and fuse.
• Repair or replace malfunctioning part.
• With the X-431, select view DTC.
Is DTC P0032 still present?
Ye s>>Go to the next step.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
5.CHECK O2SENSOR HEATER CONTROL CIRCUIT FOR A SHORT
• Turn ignition switch off.
• Disconnect ECM connector.
• Check harness continuity between ECM terminal and O
2sensor terminal.
COMPONENT ECMUPSTREAM O2SENSOR
TERMINAL •
48 (With EOBD)
• 1 (Without EOBD) 1
• Continuity should exist.
• Check harness short to power supply circuit.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for a short to power in harness or connectors.
6.CHECK THE O2SENSOR HEATER
• Check resistance between O
2sensor heater terminals.
TERMINAL NO. RESISTANCE
1 & 2 (including
cable and connector) Approximately 9

DIAGNOSIS & TESTING
