2009 CHERY TIGGO engine

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Manual Temperature Control Module
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the bezel of the central control panel.
3. Remove the bolts, and remove the CD player, and then disconnect the harness connectors.
4. Remove the mounting screws (1).
5. Disconnect the electrical connector behind the panel.
LTSM130013
13
13–15Chery Automobile Co., Ltd.

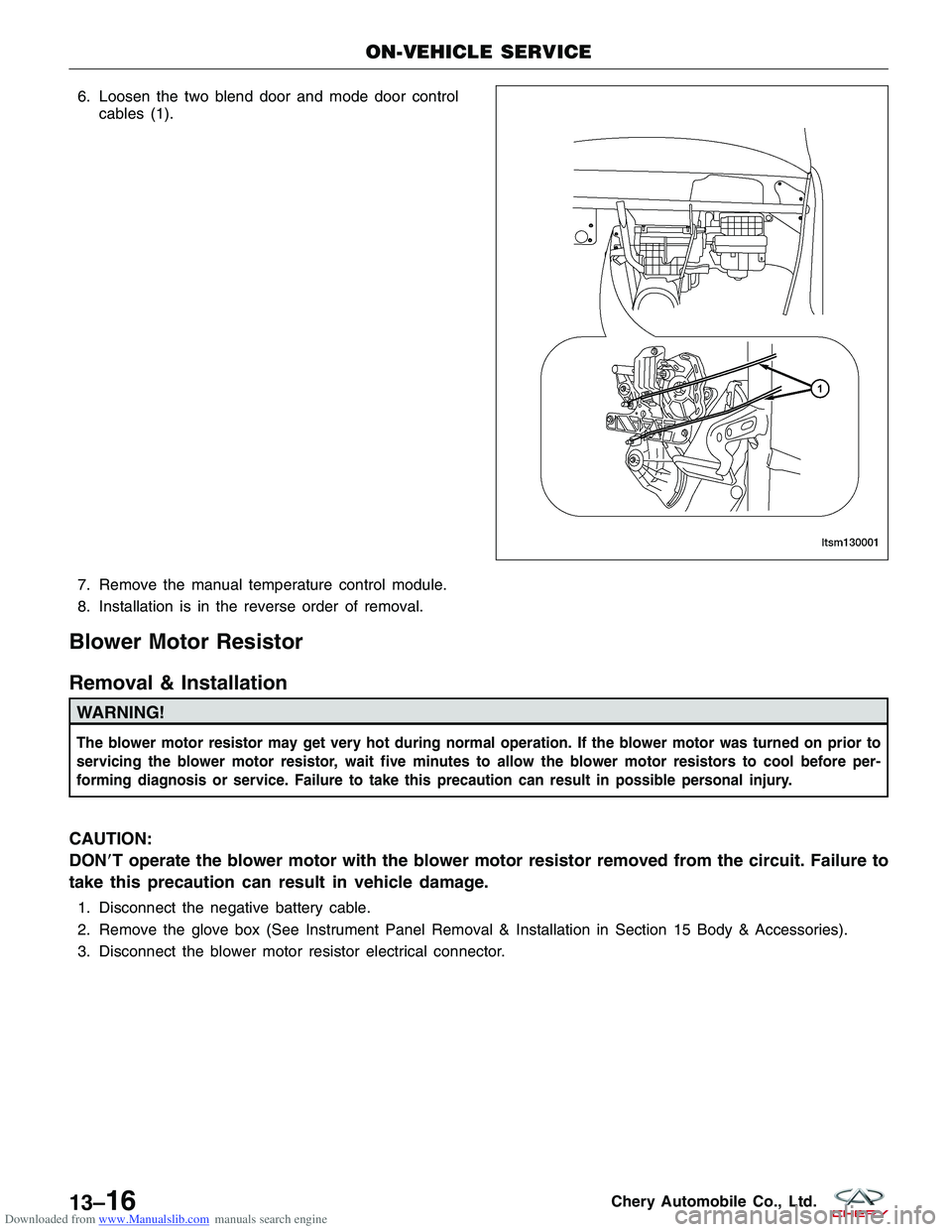

Downloaded from www.Manualslib.com manuals search engine 6. Loosen the two blend door and mode door controlcables (1).
7. Remove the manual temperature control module.
8. Installation is in the reverse order of removal.
Blower Motor Resistor
Removal & Installation
WARNING!
The blower motor resistor may get very hot during normal operation. If the blower motor was turned on prior to
servicing the blower motor resistor, wait five minutes to allow the blower motor resistors to cool before per-
forming diagnosis or service. Failure to take this precaution can result in possible personal injury.
CAUTION:
DONT operate the blower motor with the blower motor resistor removed from the circuit. Failure to
take this precaution can result in vehicle damage.
1. Disconnect the negative battery cable.
2. Remove the glove box (See Instrument Panel Removal & Installation in Section 15 Body & Accessories).
3. Disconnect the blower motor resistor electrical connector.
ON-VEHICLE SERVICE
LTSM130001
13–16Chery Automobile Co., Ltd.

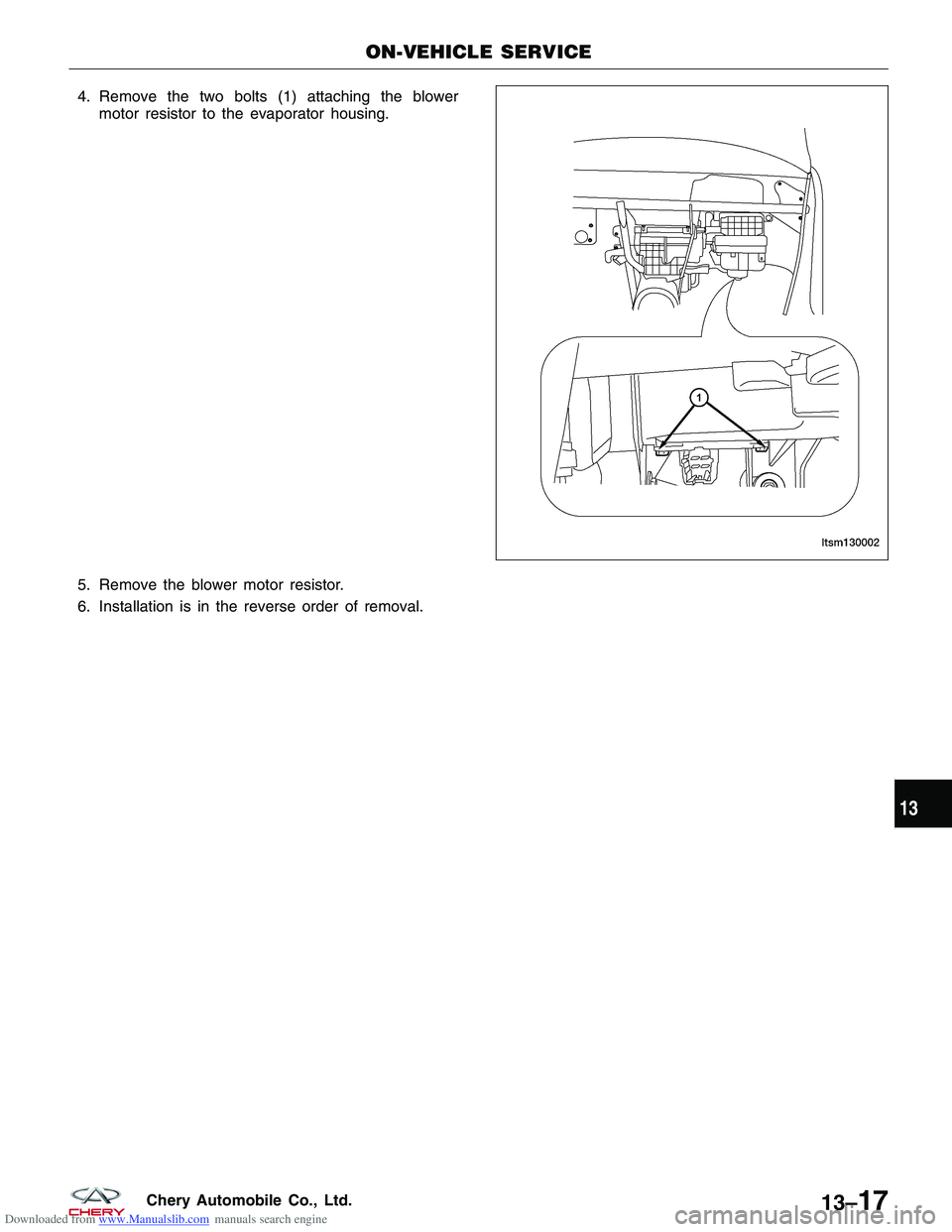

Downloaded from www.Manualslib.com manuals search engine 4. Remove the two bolts (1) attaching the blowermotor resistor to the evaporator housing.
5. Remove the blower motor resistor.
6. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
LTSM130002
13
13–17Chery Automobile Co., Ltd.

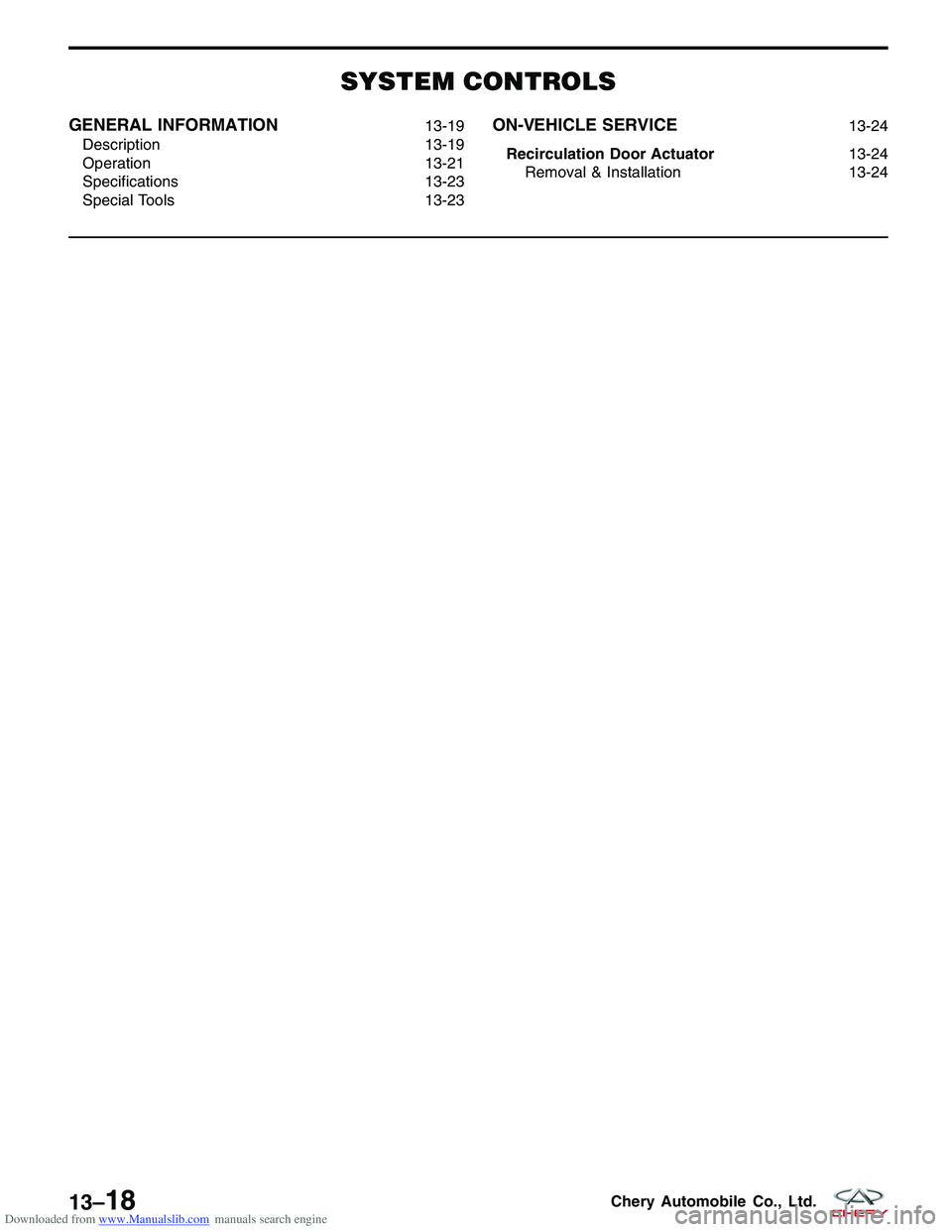

Downloaded from www.Manualslib.com manuals search engine SYSTEM CONTROLS
GENERAL INFORMATION13-19
Description 13-19
Operation 13-21
Specifications 13-23
Special Tools 13-23ON-VEHICLE SERVICE13-24
Recirculation Door Actuator 13-24
Removal & Installation 13-24
13–18Chery Automobile Co., Ltd.

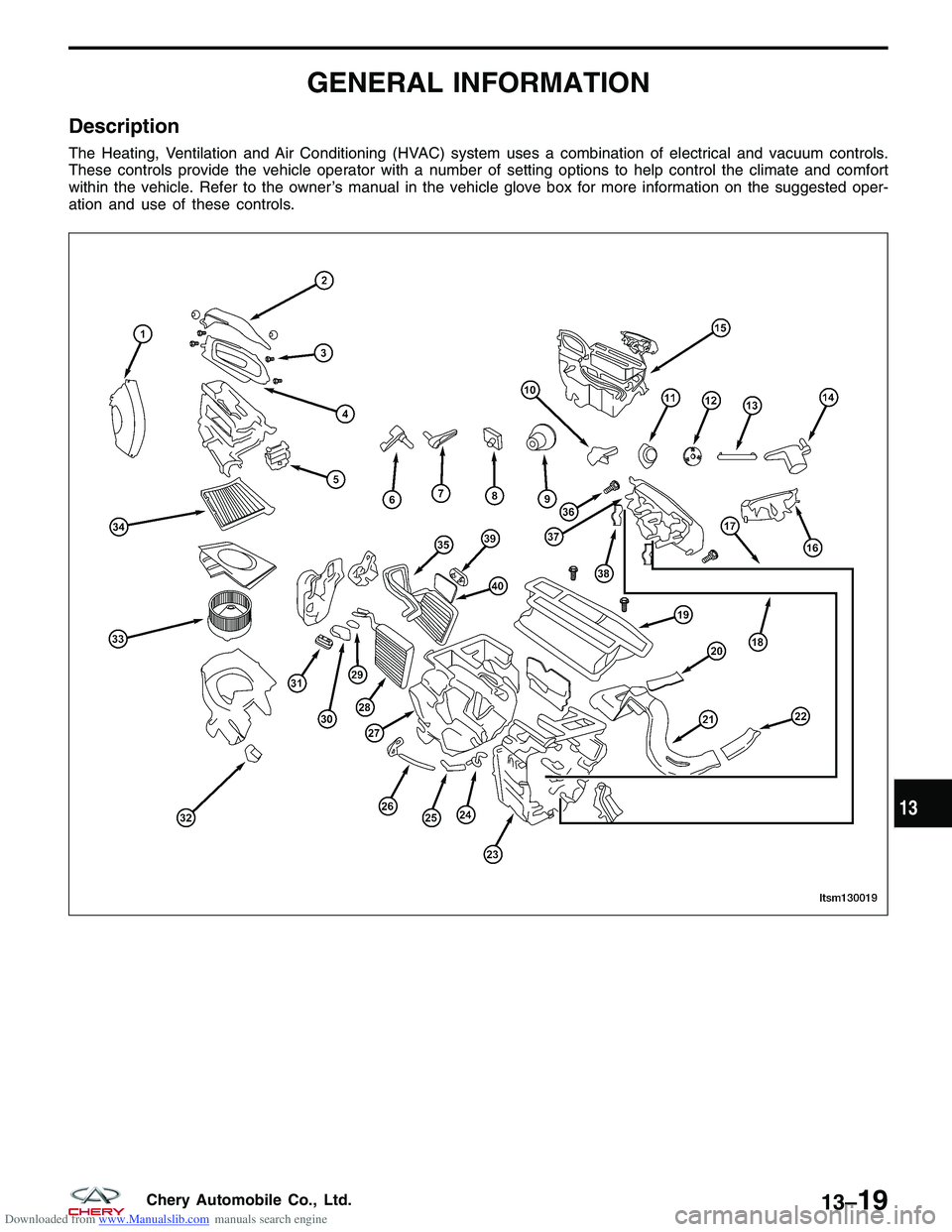

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The Heating, Ventilation and Air Conditioning (HVAC) system uses a combination of electrical and vacuum controls.
These controls provide the vehicle operator with a number of setting options to help control the climate and comfort
within the vehicle. Refer to the owner’s manual in the vehicle glove box for more information on the suggested oper-
ation and use of these controls.
LTSM130019
13
13–19Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 1 - Inlet Shell Shield
2 - Inlets Shrouds
3 - Bolt (M6)
4 - Inlet Shell Assembly
5 - Recirculation Door Actuator
6 - Mixed Door Lever
7 - Defrost Door Lever
8 - Water Hose Clamp
9 - Blower Control Dial
10 - Defrost Door Linkage
11 - Mode Door Dial
12 - Plastic Washer
13 - Mode Door Dial Linkage
14 - Mode Door Dial Lever
15 - Evaporator Assembly
16 - HVAC Control Panel
17 - Temperature Control Dial Cable
18 - Mode Door Cable
19 - Outlet Assembly
20 - Clamp21 - Left Outlet
22 - Right Outlet
23 - Evaporator Assembly Upper Cover
24 - Drain Inner Hose Assembly
25 - Rubber Drain Inside Hose
26 - Rubber Drain Outside Hose
27 - Evaporator Assembly Lower Cover
28 - Evaporator Core
29 - Sealed Gasket
30 - Sponge
31 - Expansion Valve
32 - Blower Motor Resistor
33 - Blower Motor
34 - HVAC Filter
35 - Heater Core
36 - HVAC Control Panel Bolt
37 - HVAC Control Panel
38 - Clamp
39 - Water Hose Sealed Gasket
40 - Sponge
GENERAL INFORMATION
LTSM130019
13–20Chery Automobile Co., Ltd.

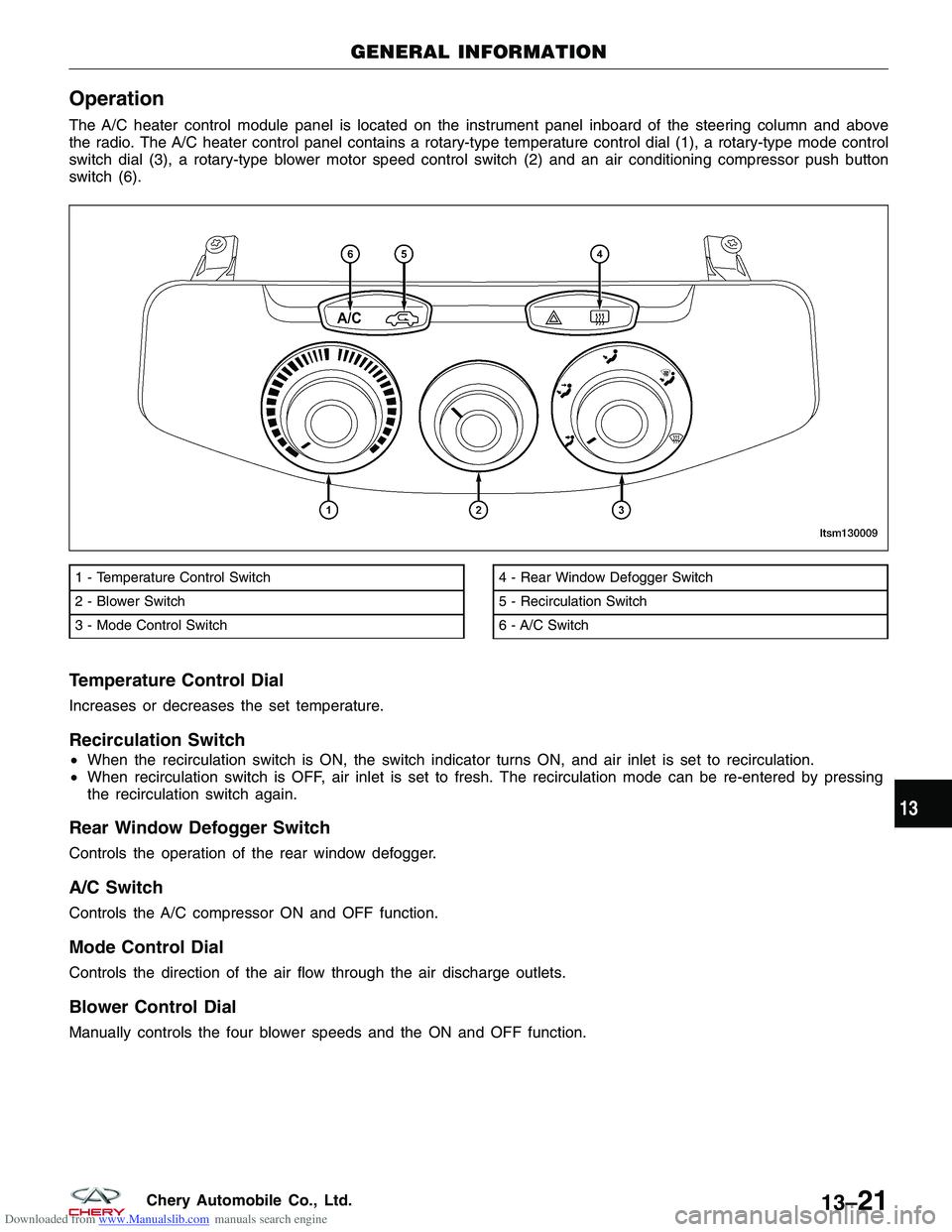

Downloaded from www.Manualslib.com manuals search engine Operation
The A/C heater control module panel is located on the instrument panel inboard of the steering column and above
the radio. The A/C heater control panel contains a rotary-type temperature control dial (1), a rotary-type mode control
switch dial (3), a rotary-type blower motor speed control switch (2) and an air conditioning compressor push button
switch (6).
Temperature Control Dial
Increases or decreases the set temperature.
Recirculation Switch
•When the recirculation switch is ON, the switch indicator turns ON, and air inlet is set to recirculation.
• When recirculation switch is OFF, air inlet is set to fresh. The recirculation mode can be re-entered by pressing
the recirculation switch again.
Rear Window Defogger Switch
Controls the operation of the rear window defogger.
A/C Switch
Controls the A/C compressor ON and OFF function.
Mode Control Dial
Controls the direction of the air flow through the air discharge outlets.
Blower Control Dial
Manually controls the four blower speeds and the ON and OFF function.
1 - Temperature Control Switch
2 - Blower Switch
3 - Mode Control Switch4 - Rear Window Defogger Switch
5 - Recirculation Switch
6 - A/C Switch
GENERAL INFORMATION
LTSM130009
13
13–21Chery Automobile Co., Ltd.

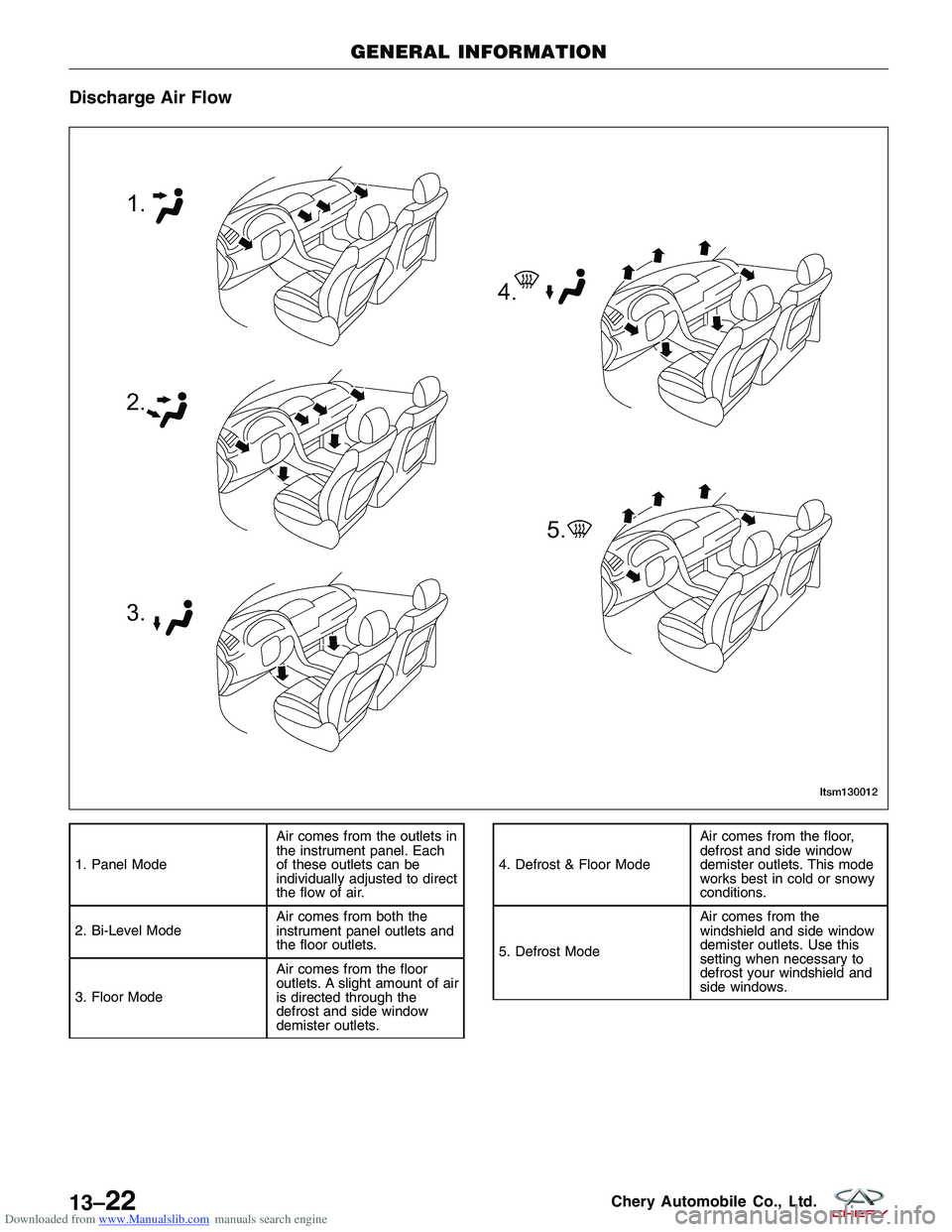

Downloaded from www.Manualslib.com manuals search engine Discharge Air Flow
1. Panel ModeAir comes from the outlets in
the instrument panel. Each
of these outlets can be
individually adjusted to direct
the flow of air.
2. Bi-Level Mode Air comes from both the
instrument panel outlets and
the floor outlets.
3. Floor Mode Air comes from the floor
outlets. A slight amount of air
is directed through the
defrost and side window
demister outlets.4. Defrost & Floor ModeAir comes from the floor,
defrost and side window
demister outlets. This mode
works best in cold or snowy
conditions.
5. Defrost Mode Air comes from the
windshield and side window
demister outlets. Use this
setting when necessary to
defrost your windshield and
side windows.
GENERAL INFORMATION
LTSM130012
13–22Chery Automobile Co., Ltd.
