Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 2 (SSV2) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between shift solenoid valve 2
(SSV2) E-037 terminal B8 and ground in the A/T
assembly connector E-037.
• Voltage should be more than 12 V.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS2 solenoid supply voltage between TCM pin 1 and TCM pin 9 when activating the EVS2 sole-
noid and deactivating the EVS2 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS2 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B8.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0 V0V0V0V0V 0 V
N/P 0 V0 V+12 V 0 V0 V 0 V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0 V0V0V0V0V 0 V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080033
08–66Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 2 (SSV2) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL GROUND VOLTAGE
B8
Ground Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B8
9Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power supply in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0758 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–67Chery Automobile Co., Ltd.

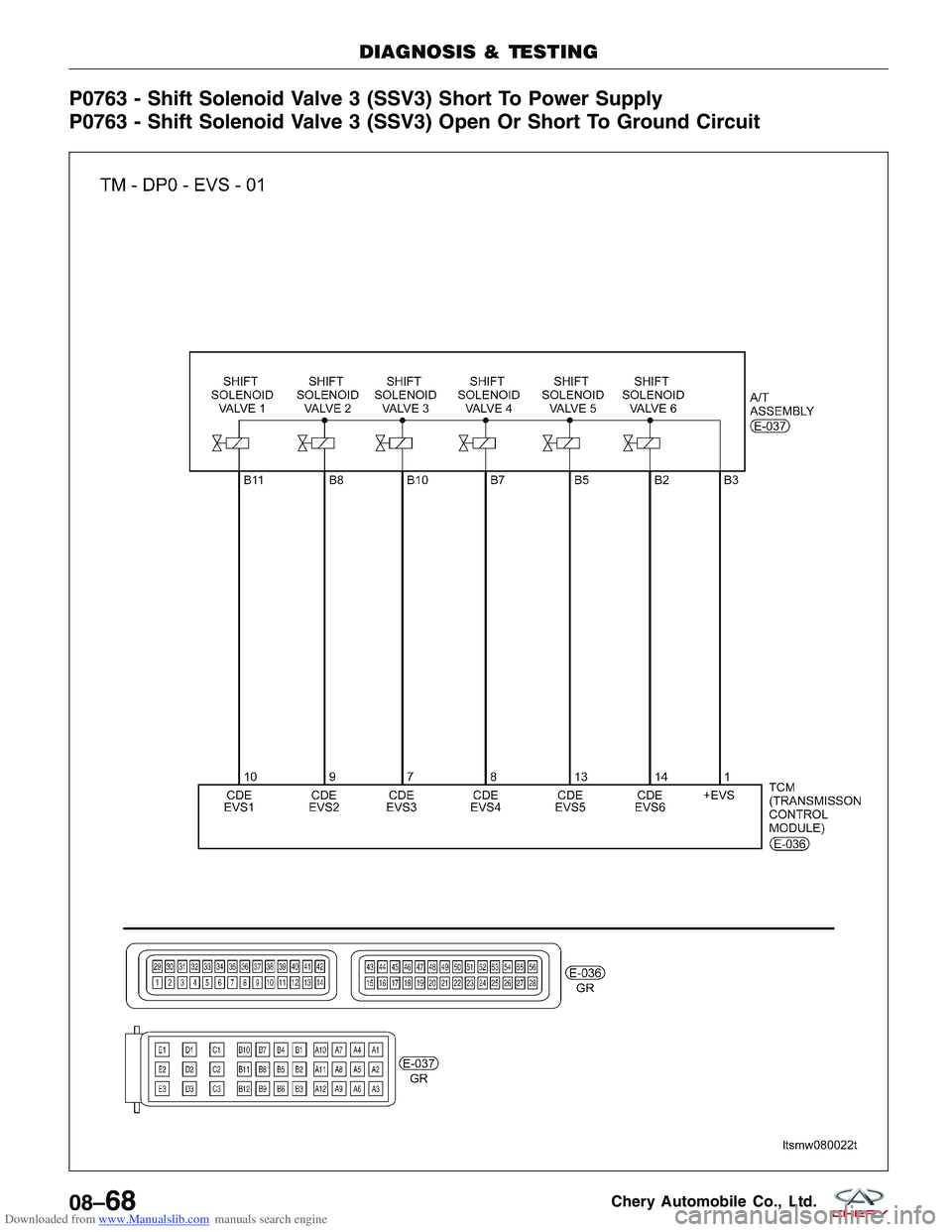

Downloaded from www.Manualslib.com manuals search engine P0763 - Shift Solenoid Valve 3 (SSV3) Short To Power Supply
P0763 - Shift Solenoid Valve 3 (SSV3) Open Or Short To Ground Circuit
DIAGNOSIS & TESTING
LTSMW080022T
08–68Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
P0763 Shift Solenoid Valve
3 (SSV3) short to power supply Vehicle is driving The Transaxle
Control Module
(TCM) will set this
DTC when the TCM detected an
improper voltage
drop when it tries to
operate the solenoid valve. •
Shift Solenoid
Valve 3 (SSV3)
• Harness or
connectors (The
sensor circuit short
to power supply)
• Transaxle Control
Module (TCM)
P0763 Shift Solenoid Valve
3 (SSV3) open orshort to ground circuit Vehicle is driving The Transaxle
Control Module
(TCM) will set this
DTC when the TCM detected an
improper voltage
drop when it tries to
operate the solenoid valve. •
Shift Solenoid
Valve 3 (SSV3)
• Harness or
connectors (The
sensor circuit is open
or shorted)
• Transaxle Control
Module (TCM)
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
• If using the appropriate diagnostic test tool, you can diagnose the TCM harness while the TCM is still connected.
• Using the appropriate diagnostic test tool in this way will help prevent electrical connector terminal damage.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–69Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION EVS
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
R Not
active Not
active Not
active Not
active Not
active Not
active
N/P Not
active Not
active Active Not
active Not
active Not
active
1 Not
active Not
active Active Active Not
active Not
active
2 Not
active Active Not
active Active Not
active Not
active
3 Not
active Not
active Not
active Not
active Not
active Not
active
4 Active Active Not
active Not
active Not
active Not
active
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–70Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 3 (SSV3) RESISTANCE
• Check SSV3 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid Valve 2
3 Shift Solenoid Valve 3
4 Shift Solenoid Valve 4
5 Shift Solenoid Valve 5
6 Shift Solenoid Valve 6
7 Pressure adjust solenoid
valve
8 Torque converter lock
solenoid valve
9 Manual valve
10 Valve body
• Check SSV3 resistance as shown in the following table:
SHIFT SOLENOID VALVE A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42()
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, go to step 6.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–71Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 3 (SSV3) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between SSV3 E-037 terminal
B10 and ground in the A/T assembly connector
E-037.
• Battery voltage should exist.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS3 solenoid supply voltage between TCM pin 1 and TCM pin 7 when activating the EVS3 sole-
noid and deactivating the EVS3 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS3 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B10.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0V 0V0V0V0V 0V
N/P 0V0V+12V 0V0V 0V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0V 0V0V0V0V 0V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080041
08–72Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 3 (SSV3) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL GROUND VOLTAGE
B10
Ground Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B10
7Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to power supply or short to ground in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0763 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
