2009 CADILLAC ESCALADE ESV Owners Manual

60/40 Split Bench Seat
(Second Row) If your vehicle has a 60/40 split bench, the seat(s) can
be folded for additional cargo space or folded and
tumbled for easy entry and exit to the third row seats, if
your vehicle has them. These seats will have either
the manual fold and tumble feature or the automatic seat
release fold and tumble feature.
Manual Fold and Tumble Feature Folding and Tumbling the Seat(s) To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat. 2. Lift the lever, located on the outboard side of the
seat, to release the seatback.
1-11

The seatback will fold forward automatically.
Leaving the seatback in this position creates a at
load oor.
If the seatback cannot fold at, try moving the front
seat forward and/or put the front seatback in the
upright position. 3. Lift the same lever
again to release the
rear of the seat from the
oor. The seat will
tumble forward.
1-12

Returning the Seat(s) to the Sitting
Position To return the seat to the sitting position, do the following:
1. Pull the seat down until it latches to the oor. The
seatback cannot be raised if the seat is not latched
to the oor.
{ CAUTION: If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Lift the seatback and push it rearward. Push and
pull on the seatback to make sure it is locked. { CAUTION: A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
3. Make sure the safety belt in the center seating
position is not caught between the two seats
and is not twisted.
1-13

Folding and Tumbling the Seat(s) from the
Third Row Seats
{ CAUTION: Using the third row seating position while the
second row is folded, or folded and tumbled, could
cause injury in a sudden stop or crash. Be sure to
return the seat to the passenger seating position.
Push and pull on the seat to make sure it is locked
into place.
To fold and tumble the seat from the third rows, if your
vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat. 2. Lift the lever(s), located on the bottom rear of the
second row seat(s) on the inboard side, to release
the seatback. The seatback will fold forward.
3. Lift the same lever again to release the rear of the
seat from the oor. The seat will tumble forward
automatically.
1-14

Power Release Fold and Tumble
Feature The transmission must be in (P) Park for this feature
to work.
Folding and Tumbling the Seat(s)
{ CAUTION: Automatically folding and tumbling the seat when
someone is sitting in the seat, could cause injury
to the person sitting there. Always make sure
there is no one sitting in the seat before pressing
the automatic seat release button.
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat. 2. From the front seats,
press one of the
automatic seat release
buttons located on
the overhead console.
When accessing the third row seats, if your vehicle
has them, from the outside of the vehicle, press
the button on the panel behind either rear door.
One press of the button automatically folds
the seatback at and tumbles the seat forward.
There will be a slight delay between the folding of
the seatback and the tumbling of the seat.Overhead Console
Buttons shown, Panel
Button similar
1-15

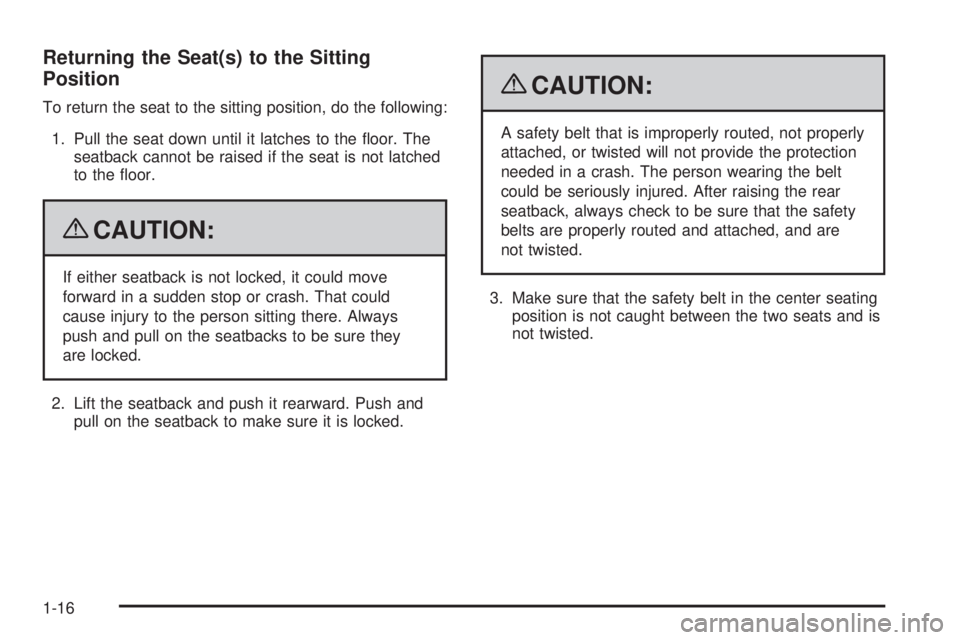

Returning the Seat(s) to the Sitting
Position To return the seat to the sitting position, do the following:
1. Pull the seat down until it latches to the oor. The
seatback cannot be raised if the seat is not latched
to the oor.
{ CAUTION: If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Lift the seatback and push it rearward. Push and
pull on the seatback to make sure it is locked. { CAUTION: A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
3. Make sure that the safety belt in the center seating
position is not caught between the two seats and is
not twisted.
1-16

Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{ CAUTION: Using the third row seating position while the
second row is folded, or folded and tumbled, could
cause injury in a sudden stop or crash. Be sure to
return the seat to the passenger seating position.
Push and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third row seats, if
your vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat. 2. Press the automatic
seat release button
located on the panel
behind the rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward. There
will be a slight delay between the folding of the
seatback and the tumbling of the seat.
Bucket Seats (Second Row) If your vehicle has bucket seats, the seatbacks can be
reclined, the seats can be folded for additional cargo
space, or folded and tumbled for easy entry and exit to
the third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble feature
or the automatic seat release fold and tumble feature. Driver’s Side Rear Panel
Button shown
1-17

Reclining Seatbacks To recline the seatback, do the following:
1. Lift the lever located on the outboard side of
the seat.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked. To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
{ CAUTION: If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Push and pull on the seatback to make sure it is
locked.
1-18
