2009 CADILLAC ESCALADE ESV window

Keys
{ CAUTION: Leaving children in a vehicle with the ignition key
is dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function with the keys in the ignition and children
could be seriously injured or killed if caught in the
path of a closing window. Do not leave the keys in
a vehicle with children.
The key can be used for the ignition and door locks.
See your dealer/retailer if a replacement key or
additional key is needed.
Notice: If you ever lock your keys in the vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Service. See Roadside Service on page 8-7 for more
information.
2-3

Remote Vehicle Start This feature allows you to start the engine from outside of
the vehicle. It may also start up the vehicle’s heating or
air conditioning systems and rear window defogger.
Normal operation of the system will return after the key
is turned to the ON/RUN position.
During a remote start, the climate control system will
default to a heating or cooling mode depending on the
outside temperatures.
During a remote start, if your vehicle has an automatic
climate control system and heated seats, the heated
seats will turn on during colder outside temperatures and
will shut off when the key is turned to ON/RUN. If your
vehicle does not have an automatic climate control
system, during remote start, you will need to manually
turn the heated seats on and off. See Heated Seats on
page 1-5 for additional information.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require a
person using the remote start to have the vehicle in
view when doing so. Check local regulations for
any requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is low
on fuel. Your vehicle may run out of fuel. If your vehicle has the remote start feature, the RKE
transmitter functions will have an increased range
of operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, see Remote Keyless
Entry (RKE) System on page 2-4 for additional
information.
/ (Remote Start): This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button. The
vehicle’s doors will lock. Immediately press and hold
the transmitter’s remote start button until the turn
signal lights ash. If you cannot see the vehicle’s
lights, press and hold the remote start button for two
to four seconds. Pressing the remote start button
again after the vehicle has started will turn the
engine off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
If the vehicle is left running it will automatically shut
off after 10 minutes unless a time extension has
been done.
2-8

Lockout Protection This feature protects you from locking the key in the
vehicle when the key is in the ignition and a front door
is open.
If the driver’s side power door lock switch is pressed
when the driver’s door is open and the key is in the
ignition, all of the doors will lock and then the driver’s
door will unlock.
If the passenger’s side power door lock switch is pressed
when the front passenger’s door is open and the key is in
the ignition, all of the doors will lock and then the front
passenger’s door will unlock. Liftgate/Liftglass
{ CAUTION: It can be dangerous to drive with the liftglass or
liftgate open because carbon monoxide (CO) gas
can come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and even
death.
If you must drive with the liftglass or liftgate open, or
if electrical wiring or other cable connections must
pass through the seal between the body and the
liftglass or liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling system
to its highest speed with the recirculation mode
off. That will force outside air into your vehicle.
See Dual Automatic Climate Control System on
page 3-27 .
If you have air outlets on or under the
instrument panel, open them all the way.
If your vehicle is equipped with a power liftgate,
disable the power liftgate function.
See Engine Exhaust on page 2-38 .
2-12

Power Liftgate Power Liftgate Operation
{ CAUTION: Exhaust gases can enter the vehicle if it is driven
with the liftgate, trunk/hatch open, or with any
objects that pass through the seal between the
body and the trunk/hatch or liftgate. Engine
exhaust contains Carbon Monoxide (CO) which
cannot be seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with the liftgate, or
trunk/hatch open:
Close all of the windows.
Fully open the air outlets on or under the
instrument panel.
Adjust the Climate Control system to a setting
that brings in only outside air and set the fan
speed to the highest setting. See Climate
Control System in the Index.
If the vehicle is equipped with a power liftgate,
disable the power liftgate function.
For more information about carbon monoxide, see
Engine Exhaust on page 2-38 . On vehicles with a power liftgate the button is located
on the overhead console.
The vehicle must be in PARK (P) to use the power
liftgate feature.
& : Press the top of the button to open or close the
power liftgate.
OFF: Press the bottom of the button for manual
operation of the power liftgate.
The taillamps will ash and a chime will sound when the
power liftgate is moving.
{ CAUTION: You or others could be injured if caught in the
path of the power liftgate. Make sure there is no
one in the way of the liftgate as it is opening and
closing.
Notice: If you open the liftgate without checking
for overhead obstructions such as a garage door,
you could damage the liftgate or the liftgate glass.
Always check to make sure the area above and
behind the liftgate is clear before opening it.
2-14

Windows
{ CAUTION: Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat and
suffer permanent injuries or even death from heat
stroke. Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the windows
closed in warm or hot weather.
2-17

Power Windows
{ CAUTION: Leaving children in a vehicle with the keys is
dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function and they could be seriously injured or
killed if caught in the path of a closing window.
Do not leave keys in a vehicle with children.
When there are children in the rear seat use the
window lockout button to prevent unintentional
operation of the windows. The power window
switches are located on
the driver door.
In addition, each door has a switch for its own window.
The front power window switch operates with two
positions for both up and down movement and the rear
power window switch operates with one position for up
and two positions for down movement. Press the switch
to the rst position to lower the window to the desired
level. Pull the switch up to raise the window.
The vehicle has Retained Accessory Power (RAP) that
allows you to use the power windows once the ignition
has been turned off. For more information, see Retained
Accessory Power (RAP) on page 2-26 .
2-18

Express-Down/Up Windows Windows with the express feature allow the windows
to be raised and lowered all the way without holding the
switch.
Press or pull the switch fully and release it to activate
the express feature.
The express mode can be canceled at any time by
briey pressing or pulling the switch.
Express Window Anti-Pinch Feature If any object is in the path of the window when
the express-up is active, the window will stop at the
obstruction and auto-reverse to a preset factory position.
Weather conditions such as severe icing may also cause
the window to auto-reverse. The window will return to
normal operation once the obstruction or condition is
removed. Express Window Anti-Pinch Override
{ CAUTION: If express override is activated, the window will not
reverse automatically. You or others could be
injured and the window could be damaged. Before
you use express override, make sure that all people
and obstructions are clear of the window path.
In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way up to the second position. The window
will rise for as long as the switch is held. Once the
switch is released, the express mode is re-activated.
In this mode, the window can still close on an object in
its path. Use care when using the override mode.
2-19

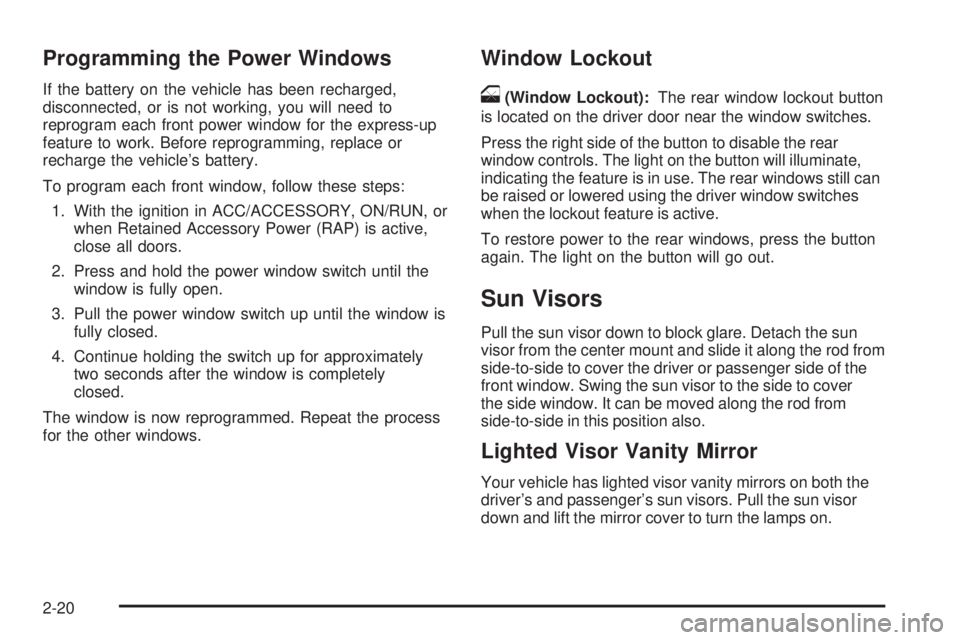

Programming the Power Windows If the battery on the vehicle has been recharged,
disconnected, or is not working, you will need to
reprogram each front power window for the express-up
feature to work. Before reprogramming, replace or
recharge the vehicle’s battery.
To program each front window, follow these steps:
1. With the ignition in ACC/ACCESSORY, ON/RUN, or
when Retained Accessory Power (RAP) is active,
close all doors.
2. Press and hold the power window switch until the
window is fully open.
3. Pull the power window switch up until the window is
fully closed.
4. Continue holding the switch up for approximately
two seconds after the window is completely
closed.
The window is now reprogrammed. Repeat the process
for the other windows. Window Lockout
o (Window Lockout): The rear window lockout button
is located on the driver door near the window switches.
Press the right side of the button to disable the rear
window controls. The light on the button will illuminate,
indicating the feature is in use. The rear windows still can
be raised or lowered using the driver window switches
when the lockout feature is active.
To restore power to the rear windows, press the button
again. The light on the button will go out.
Sun Visors Pull the sun visor down to block glare. Detach the sun
visor from the center mount and slide it along the rod from
side-to-side to cover the driver or passenger side of the
front window. Swing the sun visor to the side to cover
the side window. It can be moved along the rod from
side-to-side in this position also.
Lighted Visor Vanity Mirror Your vehicle has lighted visor vanity mirrors on both the
driver’s and passenger’s sun visors. Pull the sun visor
down and lift the mirror cover to turn the lamps on.
2-20
