1. Audio and telematics system
steering mounted controls.
2. Steering lock and ignition.
3. Wiper/wash-wipe/trip computer
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Panoramic sunroof blind control.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11. Passenger's airbag deactivation
switch.
12. Manual headlamp height
adjustment.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.
Page 7 of 329
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicators
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Audio/video sockets/
Fusebox.
9. Bonnet release lever.
10. Storage compartment or control
panel navigator associated with the
Peugeot Connect Media.
11. 12 V accessories socket.
12. Front ashtray.
13. Heating/air conditioning controls.
14. CD changer.
15. Audio and telematics system.
16. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.
Page 9 of 329
i
!
Steering wheel adjustment
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
Front seats
Other functions available...
Access to the rear seats (3-door).
Front passenger seat table posi-
tion (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar Front armrest
64
106
77 For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these op-
erations must only be carried out
when stationary.
Page 18 of 329
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.
1. Gear lever.
2. Button "S" (sport) .
3. Steering wheel "-"
paddle.
4. Steering wheel "+"
paddle. The gear or the driving mode select-
ed appears on the instrument panel
screen.
N: neutral.
R: reverse.
1 2 3 4 5 6: gears engaged.
AUTO: automatic mode.
S: Sport programme.
Display on the instrument panel
Select position N and press the
b r a k e p e d a l fi r m l y w h i l e s t a r t i n g
the engine.
E n g a g e fi r s t g e a r ( p o s i t i o n A or M )
or reverse (position R ) using the
gear lever 1 .
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
Moving off
143
6-speed electronic gear
control gearbox
Page 26 of 329
!
29
INSTRUMENTS and CONTROLS
When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.
Central alert.
Lighting is associated with
the displaying of another
warning lamp:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle as soon as it is safe to
do so.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
h a v e a s p e c i fi c w a r n i n g l a m p .
To identify the problem, consult the
message on the multifunction screen. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e b r a k e fl u i d level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp),
stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the parking brake is fully released.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
I n t h e e v e n t o f d i f fi c u l t y , d o n o t
hesitate to contact a PEUGEOT
dealer.
Warning lamps
Common warning lamps After checking:
- that the doors, boot, the rear
screen and bonnet are closed,
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) ,
for any other situations, contact a
PEUGEOT dealer.
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent operation
of the vehicle's servo-assisted braking.
Page 29 of 329
!
32
INSTRUMENTS and CONTROLS Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e b r a k e fl u i d level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.
Door open.
A door, the boot or the rear
screen is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t . Fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately
6 litres of
fuel remaining in the tank.
Fill up as soon as possible to avoid
running out of fuel.
This warning lamp reappears each time
t h e i g n i t i o n i s s w i t c h e d o n u n t i l s u f fi c i e n t
fuel has been added.
Capacity of the tank: approximately
60 litres .
S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wiper stalk, it indi-
c a t e s t h a t t h e s c r e e n w a s h fl u i d
level is low.
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u i d
reservoir when you next stop. -
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Page 78 of 329
!i
77
COMFORT

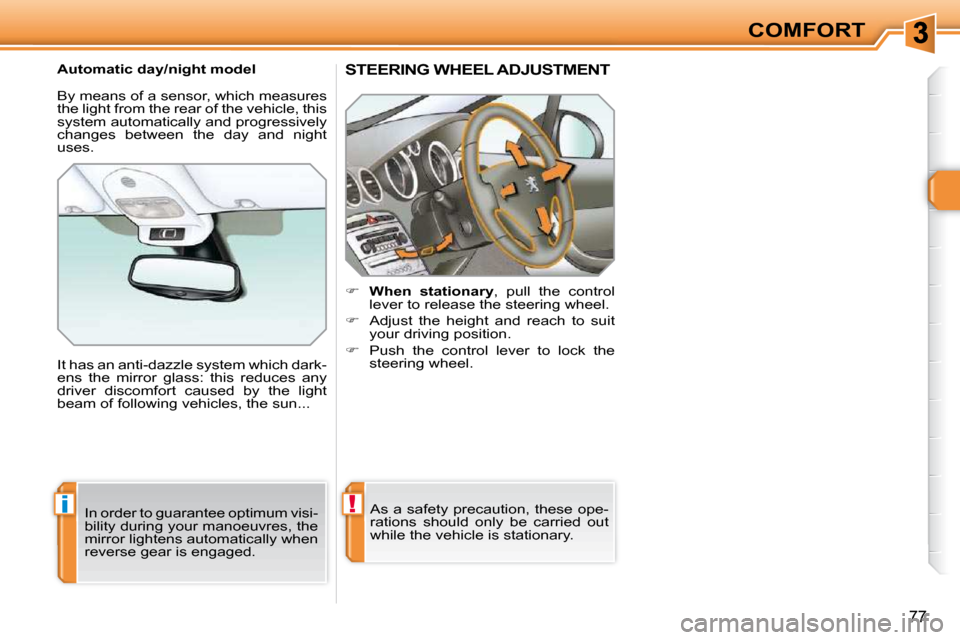

STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
Page 79 of 329
!i
77
COMFORT
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
