FITTINGS
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY
Pull the drawer for access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the
ashtray.
PEUGEOT CONNECT USB
This connection box, consisting of a USB
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
d i g i t a l a u -
dio player of generation 5 or later or a
USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
e q u i p m e n t , r e f e r t o t h e " P e u g e o t C o n n e c t
M e d i a " o r " P e u g e o t C o n n e c t S o u n d " p a r t
of the "Audio and Telematics" section.
Page 118 of 329
FITTINGS
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY
Pull the drawer for access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the
ashtray.
PEUGEOT CONNECT USB
This connection box, consisting of a USB
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
d i g i t a l a u -
dio player of generation 5 or later or a
USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
e q u i p m e n t , r e f e r t o t h e " P e u g e o t C o n n e c t
M e d i a " o r " P e u g e o t C o n n e c t S o u n d " p a r t
of the "Audio and Telematics" section.
Page 142 of 329
ii
128
SAFETY
DIRECTION INDICATORS
If you forget to cancel the direction
indicators for more than twenty sec-
onds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Left: lower the lighting stalk passing
the point of resistance.
Right: raise the lighting stalk passing
the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Press this button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the
steering wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
Page 143 of 329
!
i
i
i
129
SAFETY

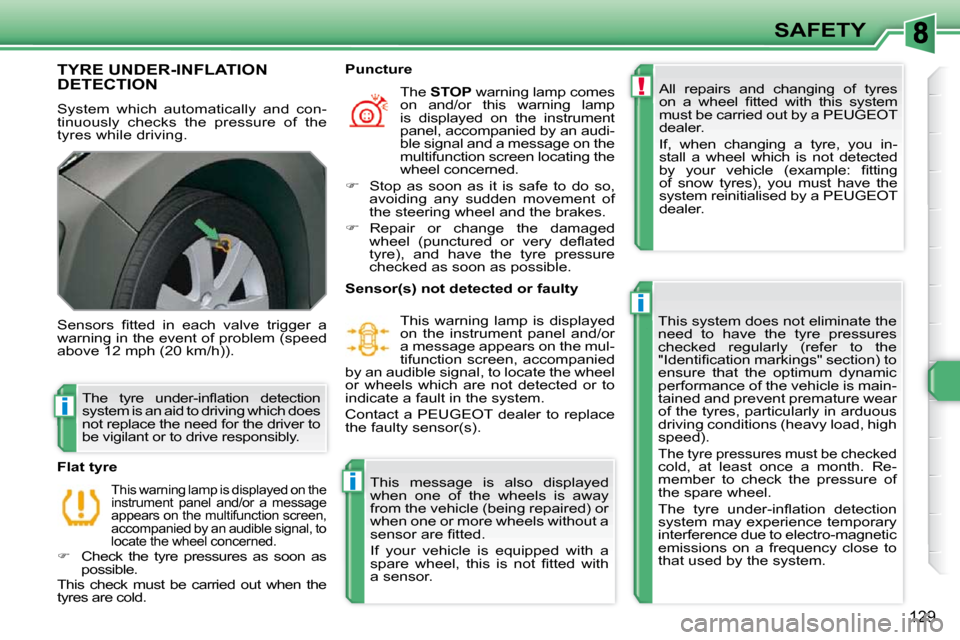

TYRE UNDER-INFLATION DETECTION
System which automatically and con-
tinuously checks the pressure of the
tyres while driving. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate the
need to have the tyre pressures
checked regularly (refer to the
" I d e n t i fi c a t i o n m a r k i n g s " s e c t i o n ) t o
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal, to
locate the wheel concerned.
Check the tyre pressures as soon as
possible.
This check must be carried out when the
tyres are cold.
Flat tyre The
STOP warning lamp comes
on and/or this warning lamp
is displayed on the instrument
panel, accompanied by an audi-
ble signal and a message on the
multifunction screen locating the
wheel concerned.
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
Repair or change the damaged
w h e e l ( p u n c t u r e d o r v e r y d e fl a t e d
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
If your vehicle is equipped with a
s p a r e w h e e l , t h i s i s n o t fi t t e d w i t h
a sensor.
Page 151 of 329
i
!
137
SAFETY

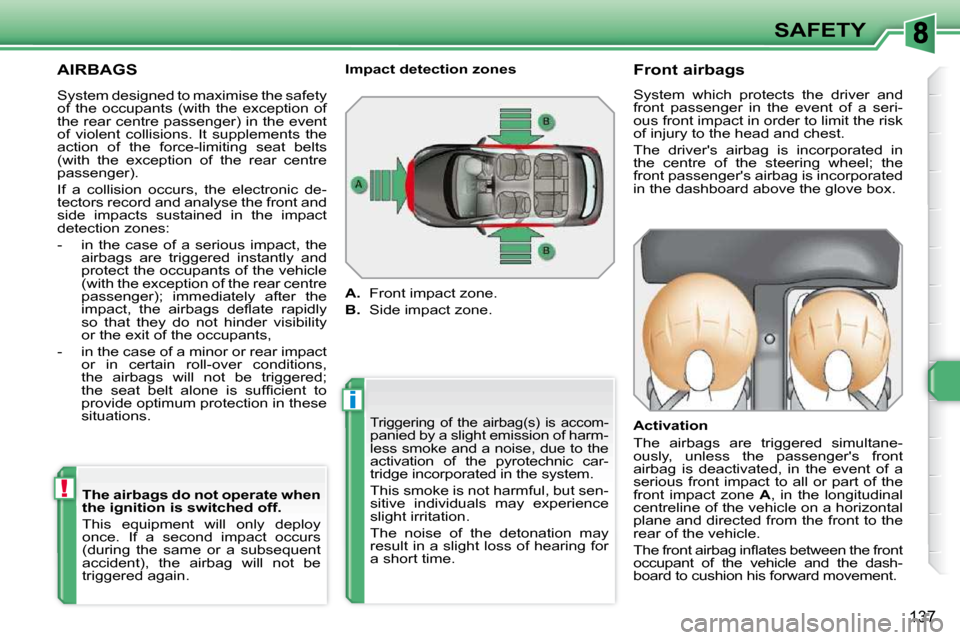

AIRBAGS
Triggering of the airbag(s) is accom-panied by a slight emission of harm-
less smoke and a noise, due to the
activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone
A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t
occupant of the vehicle and the dash-
board to cushion his forward movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not operate when
the ignition is switched off.
This equipment will only deploy
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not be
triggered again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions,
the airbags will not be triggered;
t h e s e a t b e l t a l o n e i s s u f fi c i e n t t o
provide optimum protection in these
situations.
Page 152 of 329
!
!
138
SAFETY If at least one of the two airbag
warning lamps come on continu-
ously, do not install a child seat on
the front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event of
a serious impact. Steering column airbag *
System which protects the driver's knees
in the event of a serious front impact.
This airbag is incorporated in the dash-
board below the steering column.
Activation
It is deployed at the same time as the
front airbags.
Reactivation
When you remove the child seat, turn
the switch to the
"ON" position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.
With the ignition on, this warn-
ing lamp comes on on the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if the pas-
senger's front airbag is activated. To assure the safety of your child,
it is imperative that the passenger's
front airbag is deactivated when
you install a "rear facing" child seat
on the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered.
According to version, this warn-
ing lamp comes on either on
the instrument panel or on the
seat belt and passenger's front
airbag warning lamps display when the
ignition is on and until the airbag is re-
activated. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
* According to country.
Page 154 of 329
!
140
SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.

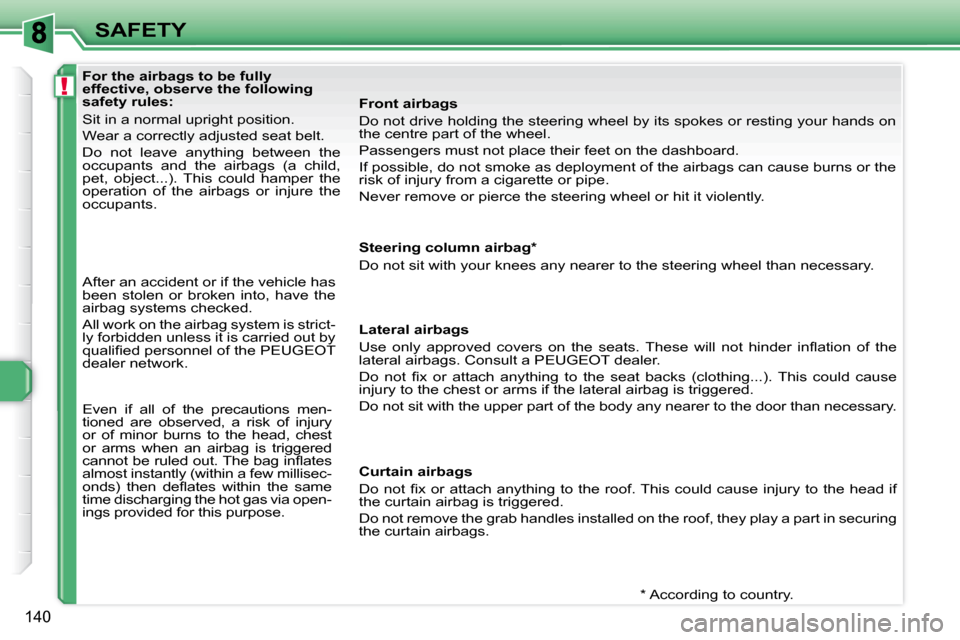

Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
* According to country.
Steering column airbag *
Do not sit with your knees any nearer to the steering wheel
than necessary.
Lateral airbags
U s e o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d c a u s e
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles installed on the roof, the y play a part in securing
the curtain airbags.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via open-
ings provided for this purpose.
Page 157 of 329
i
143
DRIVING

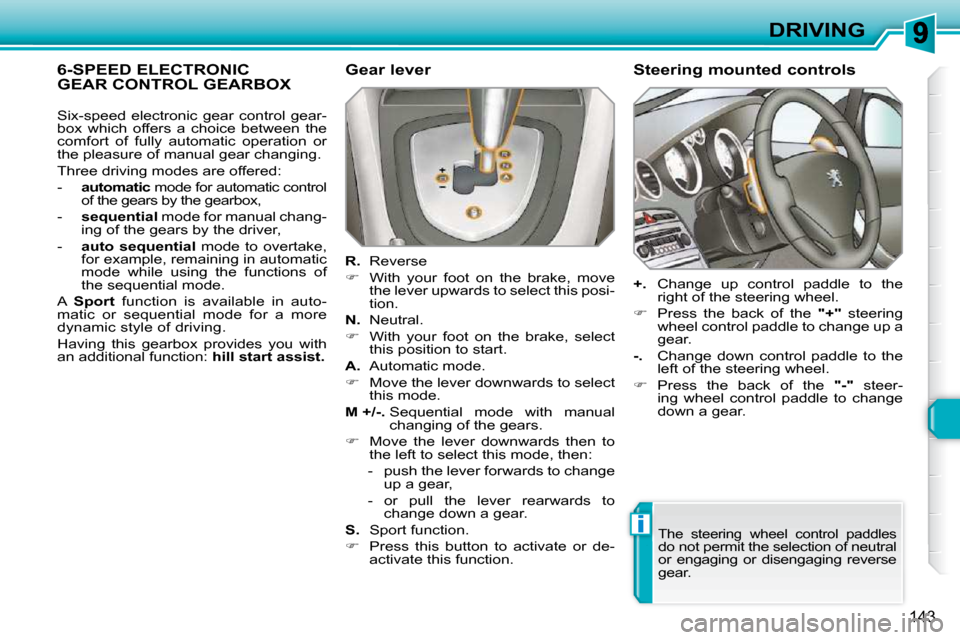

6-SPEED ELECTRONIC GEAR CONTROL GEARBOX Gear lever
R. Reverse
With your foot on the brake, move
the lever upwards to select this posi-
tion.
N. Neutral.
With your foot on the brake, select
this position to start.
A. Automatic mode.
Move the lever downwards to select
this mode.
M +/-. Sequential mode with manual
changing of the gears.
Move the lever downwards then to
the left to select this mode, then:
- push the lever forwards to change up a gear,
- or pull the lever rearwards to change down a gear.
S. Sport function.
Press this button to activate or de-
activate this function. Steering mounted controls
+. Change up control paddle to the
right of the steering wheel.
Press the back of the "+" steering
wheel control paddle to change up a
gear.
-. Change down control paddle to the
left of the steering wheel.
Press the back of the "-" steer-
ing wheel control paddle to change
down a gear.
The steering wheel control paddles do not permit the selection of neutral
or engaging or disengaging reverse
gear.
S i x - s p e e d e l e c t r o n i c g e a r c o n t r o l g e a r -
b o x w h i c h o f f e r s a c h o i c e b e t w e e n t h e
comfort of fully automatic operation or
the pleasure of manual gear changing.
Three driving modes are offered:
-
automatic mode for automatic control
o f t h e g e a r s b y t h e g e a r b o x ,
- sequential mode for manual chang-
ing of the gears by the driver,
- auto sequential mode to overtake,
f o r e x a m p l e , r e m a i n i n g i n a u t o m a t i c
mode while using the functions of
the sequential mode.
A Sport function is available in auto-
matic or sequential mode for a more
dynamic style of driving.
H a v i n g t h i s g e a r b o x p r o v i d e s y o u w i t h
an additional function: hill start
assist
.
