11PRACTICAL INFORMATION

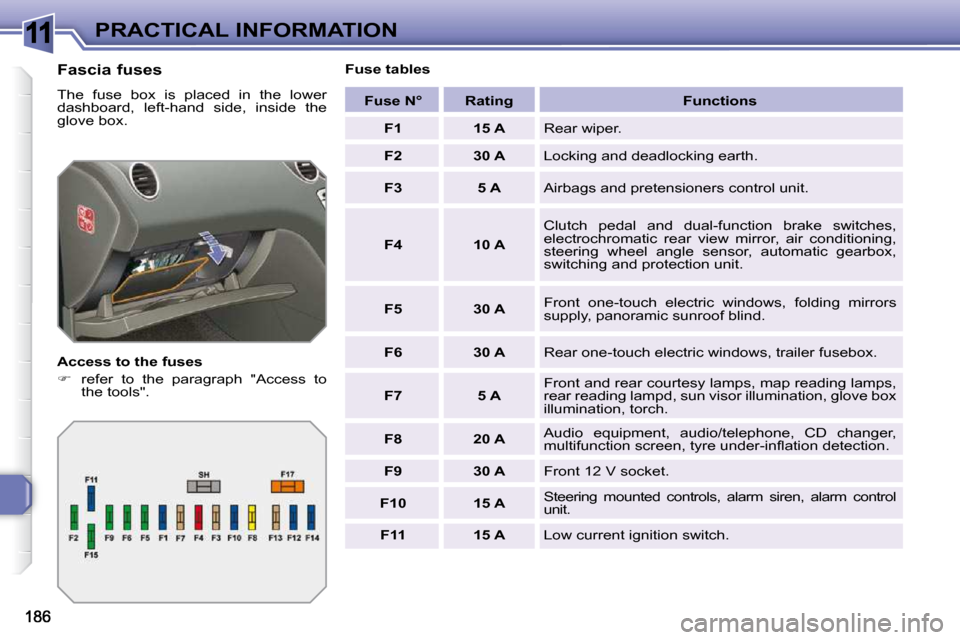

Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r
dashboard, left-hand side, inside the
g l o v e b o x .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 30 A Locking and deadlocking earth.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , t r a i l e r f u s e b o x .
F7 5 A Front and rear courtesy lamps, map reading lamps,
r e a r r e a d i n g l a m p d , s u n v i s o r i l l u m i n a t i o n , g l o v e b o x
illumination, torch.
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n s c r e e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket.
F10 15 A Steering mounted controls, alarm siren, alarm cont
rol
unit.
F11 15 A Low current ignition switch.
Page 204 of 329
11
190

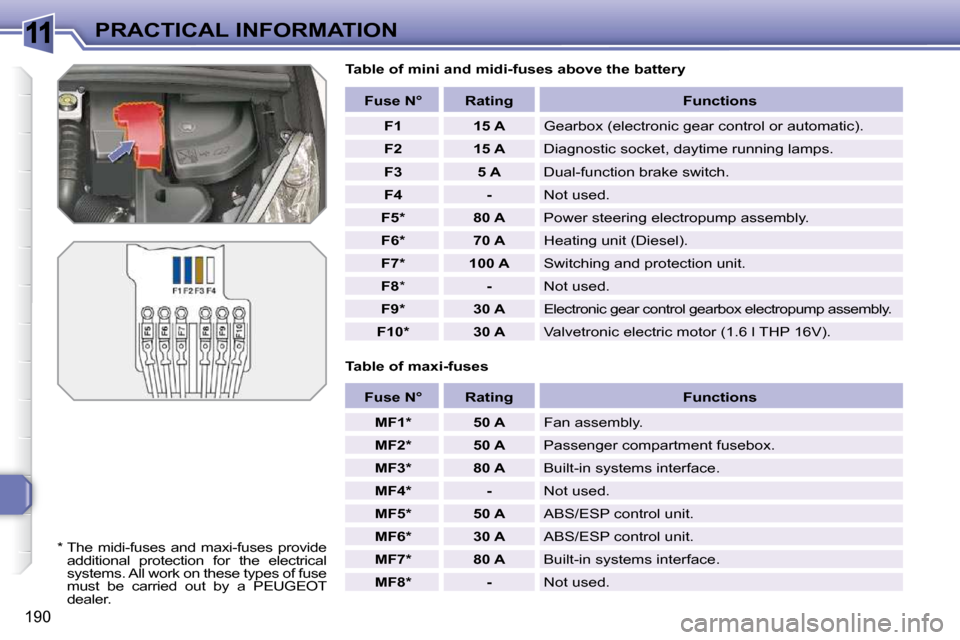

PRACTICAL INFORMATION Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N° Rating Functions
F1 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F2 15 A Diagnostic socket, daytime running lamps.
F3 5 A Dual-function brake switch.
F4 - Not used.
F5 * 80 A Power steering electropump assembly.
F6 * 70 A H e a t i n g u n i t ( D i e s e l ) .
F7 * 100 A Switching and protection unit.
F8 * - Not used.
F9 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
F10 * 30 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l T H P 1 6 V ) .
Fuse N° Rating Functions
MF1 * 50 A Fan assembly.
MF2 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF3 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF4 * - Not used.
MF5 * 50 A A B S / E S P c o n t r o l u n i t .
MF6 * 30 A A B S / E S P c o n t r o l u n i t .
MF7 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF8 * - Not used.
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o v i d e
additional protection for the electrical
systems. All work on these types of fuse
must be carried out by a PEUGEOT
dealer.
Page 205 of 329
11
191
PRACTICAL INFORMATION

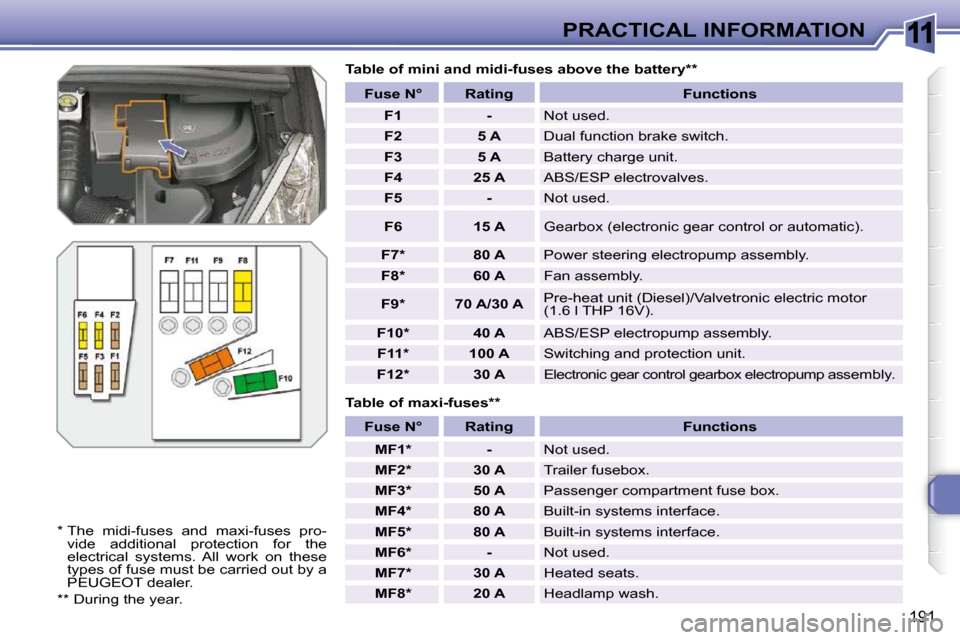

Table of maxi-fuses **
Table of mini and midi-fuses above the battery **
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o - vide additional protection for the
electrical systems. All work on these
types of fuse must be carried out by a
PEUGEOT dealer.
* * D u r i n g t h e y e a r .
Fuse N° Rating Functions
F1 - Not used.
F2 5 A Dual function brake switch.
F3 5 A B a t t e r y c h a r g e u n i t .
F4 25 A A B S / E S P e l e c t r o v a l v e s .
F5 - Not used.
F6 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F7 * 80 A Power steering electropump assembly.
F8 * 60 A Fan assembly.
F9 * 70 A/30 A P r e - h e a t u n i t ( D i e s e l ) / V a l v e t r o n i c e l e c t r i c m o t o r
( 1 . 6 l T H P 1 6 V ) .
F10 * 40 A A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 A Switching and protection unit.
F12 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating Functions
MF1 * - Not used.
MF2 * 30 A T r a i l e r f u s e b o x .
MF3 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * - Not used.
MF7 * 30 A Heated seats.
MF8 * 20 A Headlamp wash.
Page 209 of 329
11
!i
195
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the electronic
g e a r c o n t r o l g e a r b o x o r
a u t o m a t i c g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 210 of 329
11
!i
196
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
T o g a i n a c c e s s t o i t :
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its
support,
remove the towing eye from the
same support. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Page 270 of 329
257
3
1 1
2
3
2
0 7

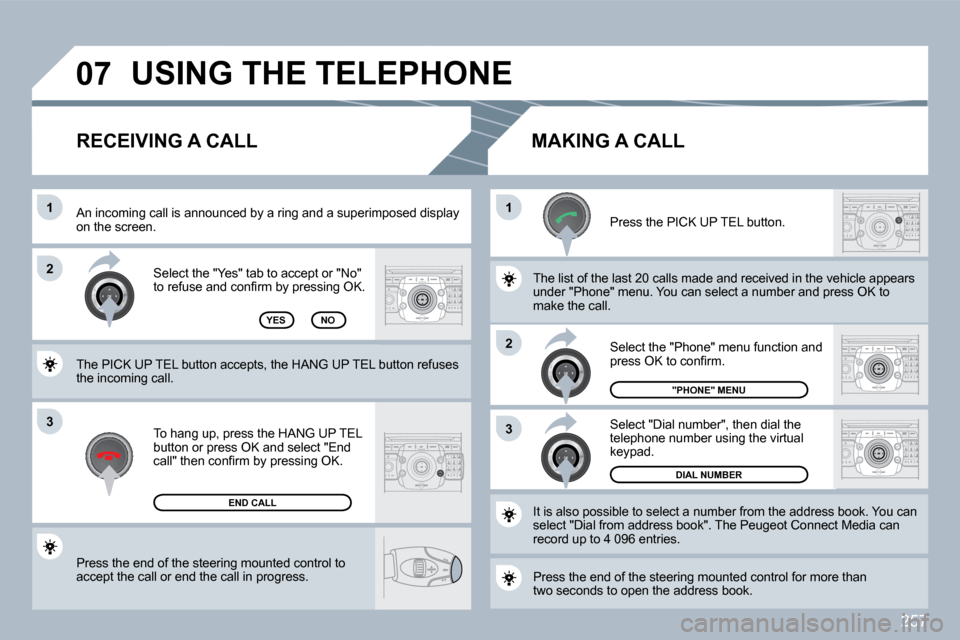

Press the end of the steering mounted control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No" t o r e f u s e a n d c o n fi r m b y p r e s s i n g O K .
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimpperimposed display on the screen.
To hang up, press the HANG UP TEL button or press OK and select "End c a l l " t h e n c o n fi r m b y p r e s s i n g O K .
END CALL
Press the PICK UP TEL button.
Press the end of the steering mounted control for more more than two seconds to open the address book.
It is also possible to select a number from the address bress book. You can select "Dial from address book". The Peugeot Connec t Mnect Media can record up to 4 096 entries.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" menu function and p r e s s O K t o c o n fi r m .
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under "Phone" menu. You can select a number and pre sd press OK to make the call. YESNO
The PICK UP TEL button accepts, the HANG UP TEL bu tton refuses the incoming call.
USING THE TELEPHONE
Page 272 of 329
259
0 9

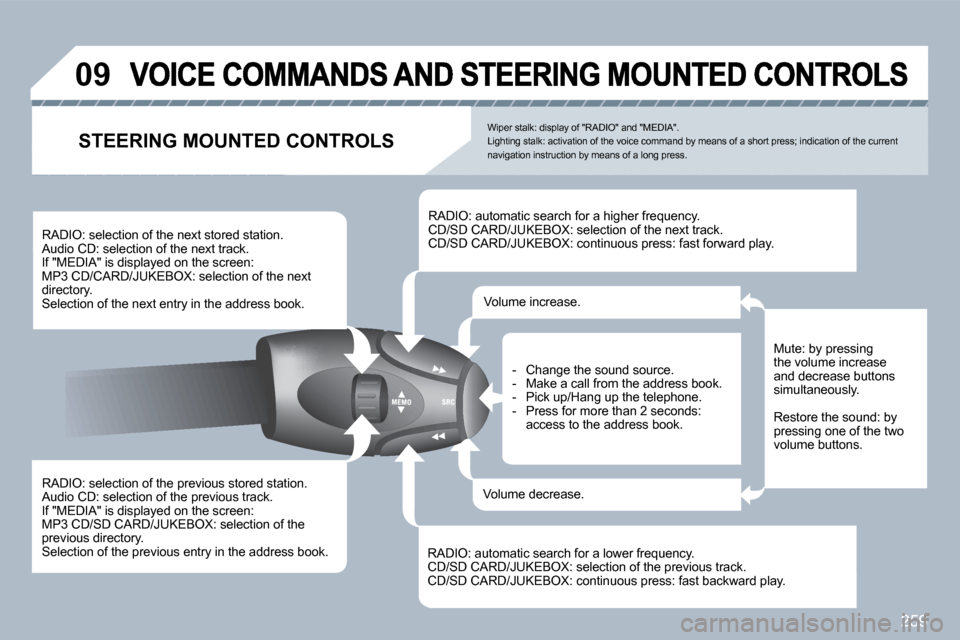

R A D I O : s e l e c t i o n o f t h e p r e v i o u s s t o r e d s t a t i o n . A u d i o C D : s e l e c t i o n o f t h e p r e v i o u s t r a c k . I f " M E D I A " i s d i s p l a y e d o n t h e s c r e e n : M P 3 C D / S D C A R D / J U K E B O X : s e l e c t i o n o f t h e previous directory. Selection of the previous entry in the address book.
R A D I O : s e l e c t i o n o f t h e n e x t s t o r e d s t a t i o n . A u d i o C D : s e l e c t i o n o f t h e n e x t t r a c k . I f " M E D I A " i s d i s p l a y e d o n t h e s c r e e n : M P 3 C D / C A R D / J U K E B O X : s e l e c t i o n o f t h e n e x t directory. Selection of the next entry in the address book.
R A D I O : a u t o m a t i c s e a r c h f o r a h i g h e r f r e q u e n c y . C D / S D C A R D / J U K E B O X : s e l e c t i o n o f t h e n e x t t r a c k . C D / S D C A R D / J U K E B O X : c o n t i n u o u s p r e s s : f a s t f o r w a r d p l a y .
R A D I O : a u t o m a t i c s e a r c h f o r a l o w e r f r e q u e n c y . C D / S D C A R D / J U K E B O X : s e l e c t i o n o f t h e p r e v i o u s t r a c k . C D / S D C A R D / J U K E B O X : c o n t i n u o u s p r e s s : f a s t b a c k w a r d p l a y .
- Change the sound source. - Make a call from the address book. - P i c k u p / H a n g u p t h e t e l e p h o n e . - P r e s s f o r m o r e t h a n 2 s e c o n d s : access to the address book.
Volume increase.
Volume decrease.
STEERING MOUNTED CONTROLS
M u t e : b y p r e s s i n g the volume increase and decrease buttons simultaneously.
R e s t o r e t h e s o u n d : b y pressing one of the two volume buttons.
W i p e r s t a l k : d i s p l a y o f " R A D I O " a n d " M E D I A " . L i g h t i n g s t a l k : a c t i v a t i o n o f t h e v o i c e c o m m a n d b y m e a n s o f a s h o r t p r e s s ; i n d i c a t i o n o f t h e c u r r e n t navigation instruction by means of a long press.
Page 273 of 329
260
TU
PQRS
0
*
1 1
SETUP
2 2
0 9
B e f o r e u s i n g t h e s y s t e m f o r t h e fi r s t t i m e , y o u a r e a d v i s e d t o listen to, say and repeat the instructions for use.
Press the SETUP button and select the "Language & Speech" function. Turn the ring and select "Voice control". Activate the voice recognition. Select "Tutorial".
V O I C E C O M M A N D S -
V O I C E R E C O . I N I T I A T I O N
The phrases to be spoken according to the context are indicated in the tables below. Speak and Peugeot Connect Media acts.
Long press on this button or press on the e n d o f t h e l i g h t i n g s t a l k : a c t i v a t e s t h e v o i c e recognition.
CONTEXT SAY ACTION
GENERAL Help address book Help voice control Help media Help navigation Help telephone Help radio Cancel
Correction
Access to the address book help Access to the voice reco help Access to the media management help Access to the guidance, navigation help Access to the telephone help Access to the radio help To cancel a voice command which is in progress Request to correct the last voice recognition carried out Clear
RADIO Select station S t a t i o n < t t s : s t a t i o n N a m e >
Read out station list Enter frequency
Select wave band
AM FM TA on TA off
Select a radio station Select a radio station using its RDS d e s c r i p t i o n < t t s : s t a t i o n N a m e > f r o m t h e RADIO list Listen to the list of stations available Listen to the frequency of the current radio station Choose the frequency waveband (AM o r F M ) Change the frequency waveband to AM Change the frequency waveband to FM A c t i v a t e t h e T r a f fi c I n f o ( T A ) D e a c t i v a t e t h e T r a f fi c I n f o
NAVIGATION Destination input
Voice advice off
Voice advice on Save address
Start guidance
Abort guidance Navigate entry
POI Search
Command to enter a new destination address Deactivate the spoken guidance instructions Activate the spoken guidance instructions Save an address in the address book Start guidance (once the address has b e e n e n t e r e d ) Stop the guidance S t a r t g u i d a n c e t o a fi l e i n t h e a d d r e s s book Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
