Sequential mode
When the vehicle has moved off, se-
lect position M to change to sequential
mode.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y t o
permit reacceleration of the vehicle in
the correct gear.
T h e g e a r b o x i s t h e n o p e r a t i n g i n a u t o -
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear on the instrument panel
screen.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode. "Auto sequential mode"
This mode enables you to overtake, for
e x a m p l e , r e m a i n i n g i n a u t o m a t i c m o d e
while using the functions of the sequen-
tial mode.
Operate steering wheel control pad-
dle + or - .
T h e g e a r b o x e n g a g e s t h e g e a r r e q u e s t -
ed if the engine speed permits. AUTO is
still displayed on the instrument panel.
After a few moments without any action
o n t h e c o n t r o l s , t h e g e a r b o x r e s u m e s
automatic control of the gears.
At very low speed, if reverse gear
is requested, this will only be taken
into account when the vehicle is
immobilised. The
Foot on brake
w a r n i n g l a m p m a y fl a s h o n t h e i n -
strument panel to prompt you to
brake.
At high speed, if reverse gear is re-
quested, the N indicator lamp will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e
to neutral automatically. To engage
a gear again, return the lever to po-
sition A or M .
O n s h a r p a c c e l e r a t i o n , t h e g e a r b o x will not change up unless the driver
acts on the gear lever or the steering
mounted controls.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed. F o r o p t i m u m a c c e l e r a t i o n , f o r e x a m -
ple when overtaking another vehicle,
p r e s s t h e a c c e l e r a t o r p e d a l fi r m l y
past the point of resistance.
Page 164 of 329
i
1 5 0
DRIVING

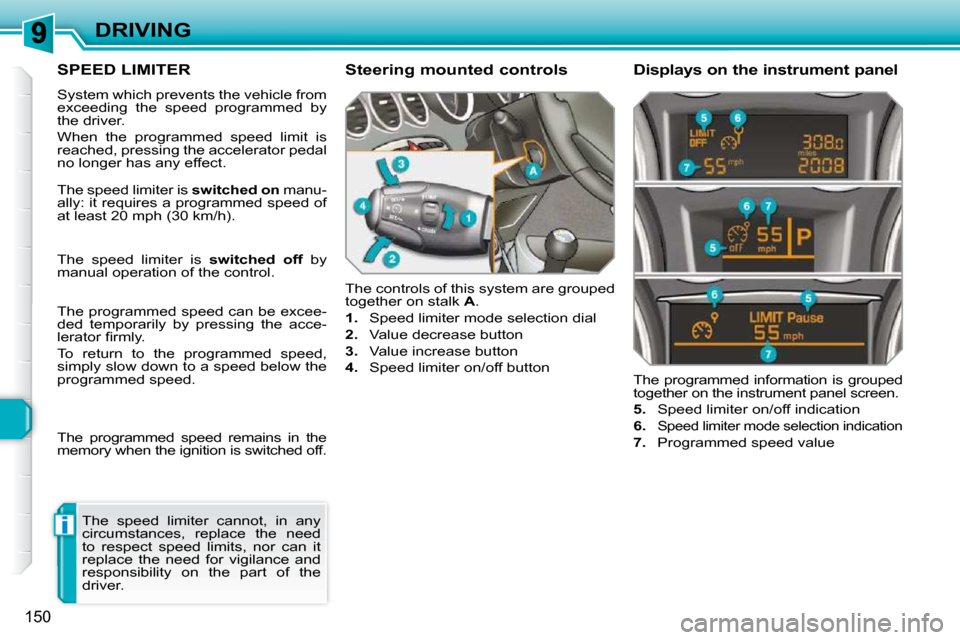

SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect. The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection dial
2. Value decrease button
3. Value increase button
4. S p e e d l i m i t e r o n / o f f b u t t o n
The programmed information is grouped
together on the instrument panel screen.
5. S p e e d l i m i t e r o n / o f f i n d i c a t i o n
6.
Speed limiter mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The speed limiter is switched on manu-
ally: it requires a programmed speed of
a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x c e e -
ded temporarily by pressing the acce-
l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off.
Page 166 of 329
i
152
DRIVING

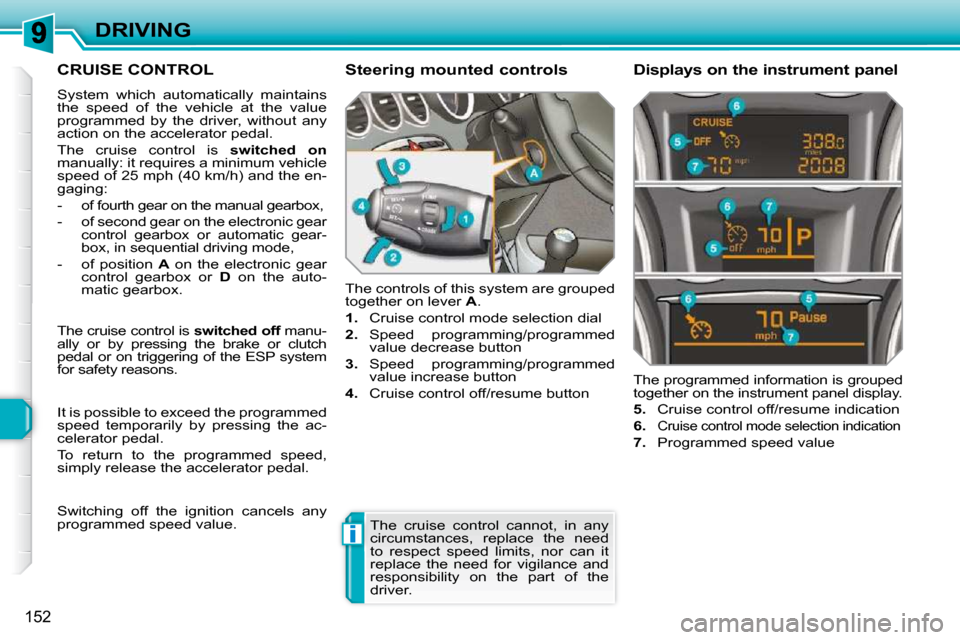

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
s p e e d o f 2 5 m p h ( 4 0 k m / h ) a n d t h e e n -
gaging:
- o f f o u r t h g e a r o n t h e m a n u a l g e a r b o x ,
- of second gear on the electronic gear c o n t r o l g e a r b o x o r a u t o m a t i c g e a r -
b o x , i n s e q u e n t i a l d r i v i n g m o d e ,
- of position A on the electronic gear
c o n t r o l g e a r b o x o r D on the auto-
m a t i c g e a r b o x . The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value decrease button
3. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value increase button
4. C r u i s e c o n t r o l o f f / r e s u m e b u t t o n The programmed information is grouped
together on the instrument panel display.
5. C r u i s e c o n t r o l o f f / r e s u m e i n d i c a t i o n
6.
Cruise control mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is switched off manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 173 of 329
10
160
CHECKS
PETROL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 174 of 329
10
161
CHECKS
DIESEL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d
for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. B l e e d s c r e w * .
* A c c o r d i n g t o e n g i n e .
Page 175 of 329
10
!
162
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either
when the ignition is switched on using
the oil level indicator on the instrument
panel, or using the dipstick. T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
C h a n g i n g t h e fl u i d
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, the mini-
m u m l e v e l o f t h i s fl u i d i s i n d i -
cated by an audible signal and a
message on the multifunction screen.
Top up the level when you stop the ve-
hicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's re-
commendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Changing the coolant
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up with or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold. F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).
Page 179 of 329
11
i
165
PRACTICAL INFORMATION
This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot below the
fl o o r . I t i s fi t t e d i n t h e t o o l b o x , l o c a t e d
below the storage compartment. Using the kit
This procedure, comprising several
steps, must be carried out in full.
Switch off the ignition.
Turn the selector A to the "SEALANT"
position.
Check that the switch B is in
position "0" .
Connect the white pipe C to the
valve of the tyre to be repaired.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
A f fi x t h e s p e e d l i m i t a t i o n s t i c k e r
to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.
Start the vehicle and leave the
engine running.
Access to the kit
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits
temporary re-
pair of the tyre so that you can drive to
the nearest garage.
Page 182 of 329
11
i
168
PRACTICAL INFORMATION
This repair kit is available from
PEUGEOT dealers.
It is designed to repair holes of a
m a x i m u m d i a m e t e r o f 6 m m , o n l y
where located on the tyre tread or
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.
TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and a bottle of sealant which per-
mits temporary repair of the tyre so that
you can drive to the nearest garage.
The kit is stowed in the boot storage
tray. Using the kit
Switch off the ignition.
Tick the wheel to be repaired on the
speed limitation sticker enclosed
t h e n a f fi x t h e s t i c k e r t o t h e v e h i c l e ' s
steering wheel to remind you that a
wheel is in temporary use.
Clip the bottle 1 on the compressor 2 .
Check that the switch A is tilted to
position "0" .
Connect the pipe of the bottle 1 to
the valve of the tyre to be repaired.
Unwind the pipe of the compressor
2
fully, then connect it to the bottle.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
Start the vehicle and leave the
engine running.
