INSTRUMENTS and CONTROLS Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n -
utes for the zero reset to be taken
into account.

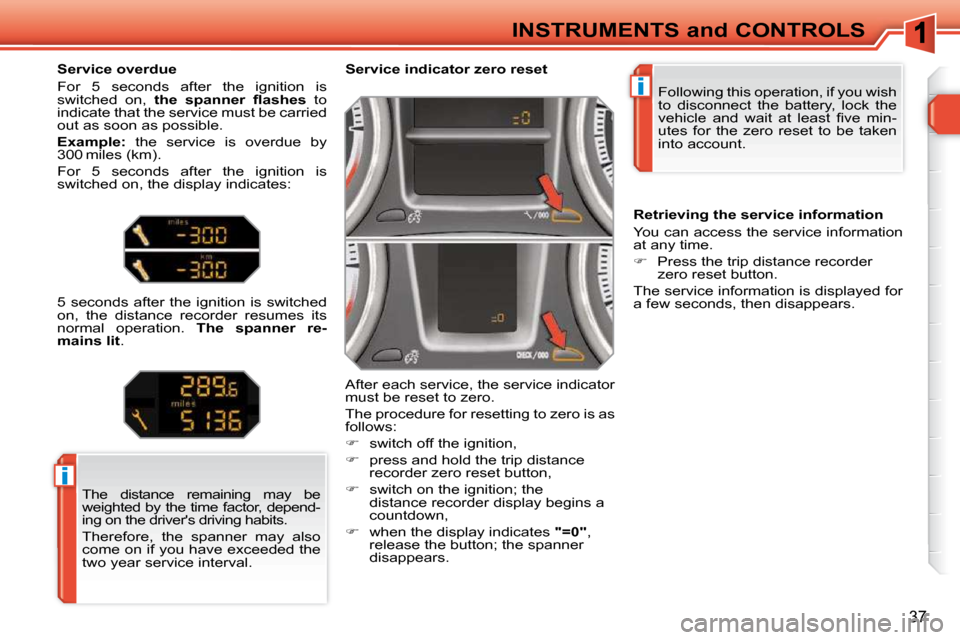

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the
distance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit . Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder
zero reset button.
The service information is displayed for
a few seconds, then disappears.
10
!
1 6 4
CHECKS Only use products recommended
by PEUGEOT or products of equiv-
a l e n t q u a l i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads
Parking brake Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
For information relating to
checking the brake disc wear,
contact a PEUGEOT dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked
by a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
6-speed electronic gear control
gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking interval for
this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for details
of the level checking interval for
this component.
