Page 7 of 329
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicators
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Audio/video sockets/
Fusebox.
9. Bonnet release lever.
10. Storage compartment or control
panel navigator associated with the
Peugeot Connect Media.
11. 12 V accessories socket.
12. Front ashtray.
13. Heating/air conditioning controls.
14. CD changer.
15. Audio and telematics system.
16. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.
Page 115 of 329
i
104
FITTINGS

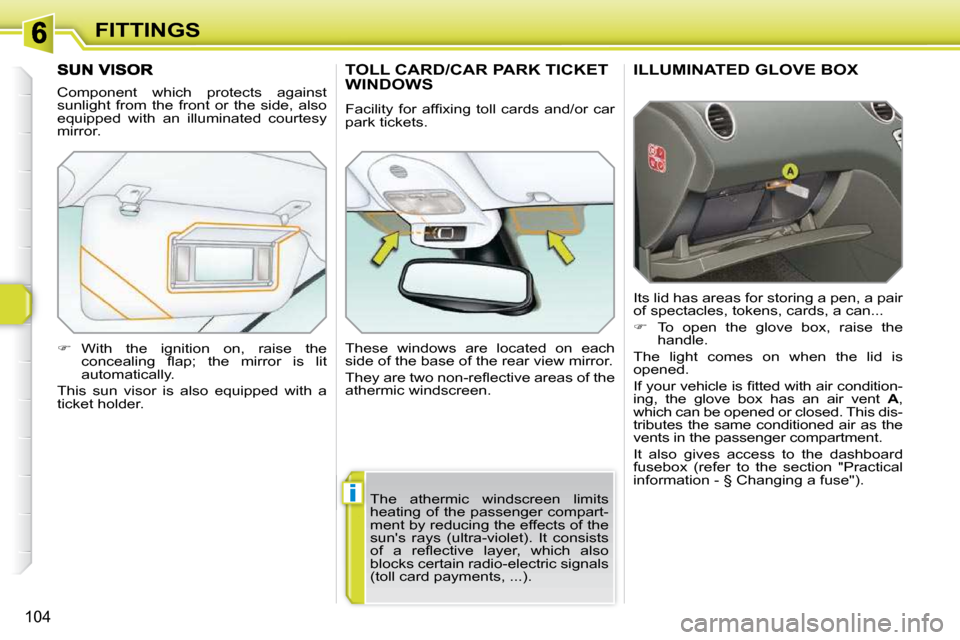

ILLUMINATED GLOVE BOX
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
I f y o u r v e h i c l e i s fi t t e d w i t h a i r c o n d i t i o n -
ing, the glove box has an air vent A ,
w h i c h c a n b e o p e n e d o r c l o s e d . T h i s d i s -
tributes the same conditioned air as the
vents in the passenger compartment.
It also gives access to the dashboard
fusebox (refer to the section "Practical
i n f o r m a t i o n - § C h a n g i n g a f u s e " ) .
C o m p o n e n t w h i c h p r o t e c t s a g a i n s t
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the
c o n c e a l i n g fl a p ; t h e m i r r o r i s l i t
automatically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET WINDOWS
F a c i l i t y f o r a f fi x i n g t o l l c a r d s a n d / o r c a r
park tickets.
These windows are located on each
side of the base of the rear view mirror.
T h e y a r e t w o n o n - r e fl e c t i v e a r e a s o f t h e
athermic windscreen.
The athermic windscreen limits
h e a t i n g o f t h e p a s s e n g e r c o m p a r t -
ment by reducing the effects of the
s u n ' s r a y s ( u l t r a - v i o l e t ) . I t c o n s i s t s
o f a r e fl e c t i v e l a y e r , w h i c h a l s o
b l o c k s c e r t a i n r a d i o - e l e c t r i c s i g n a l s
(toll card payments, ...).
Page 173 of 329
10
160
CHECKS

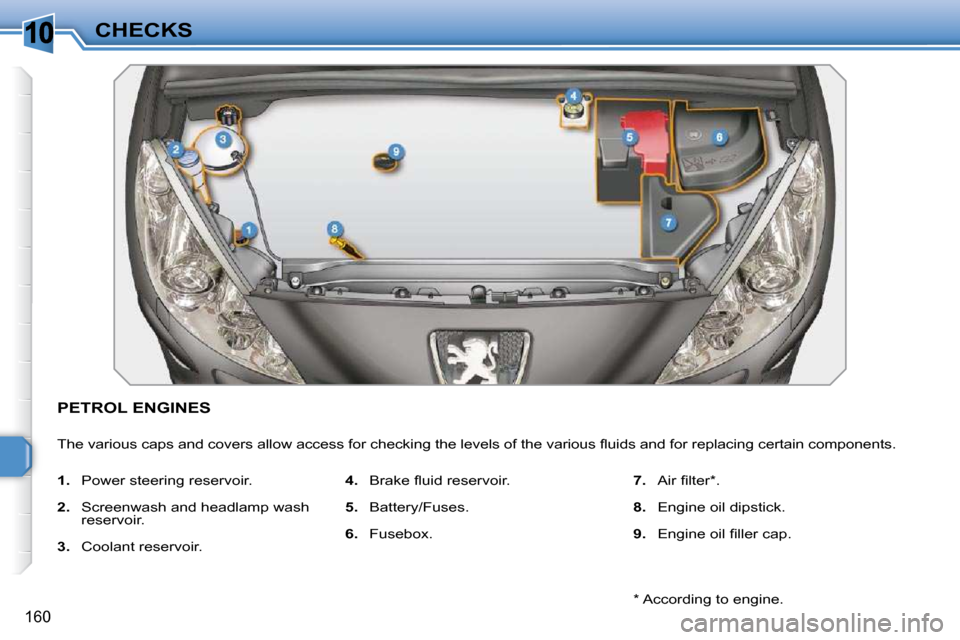

PETROL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 174 of 329
10
161
CHECKS

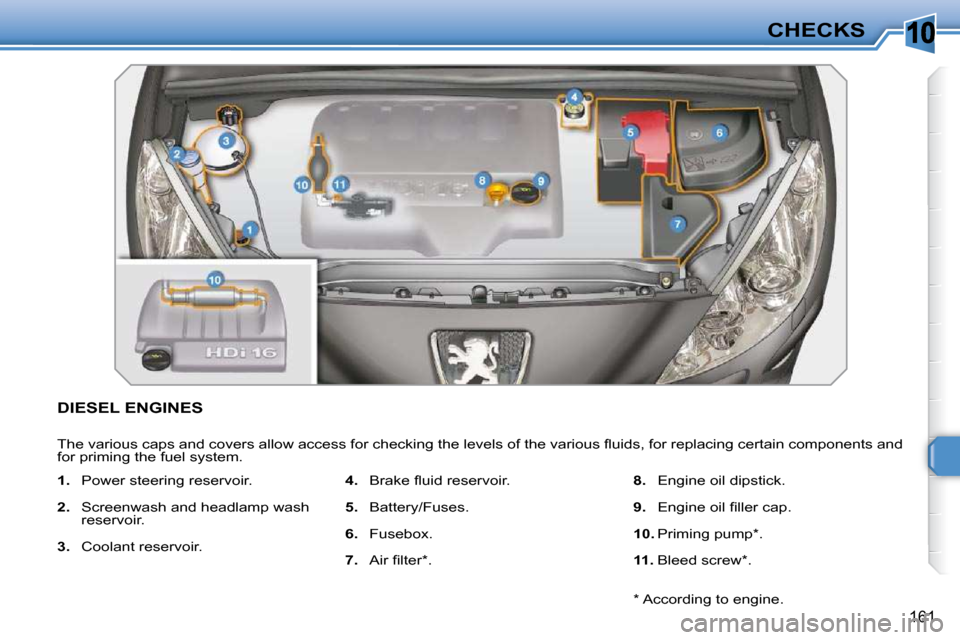

DIESEL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d
for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. B l e e d s c r e w * .
* A c c o r d i n g t o e n g i n e .
Page 274 of 329
261
0 9
V O I C E R E C O . I N I T I A T I O N
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
CONTEXT SAY ACTION
MEDIA Media Select media Single slot Jukebox USB External device SD-Card Track <1 - 1 000>
Folder <1 - 1 000>
Select the MEDIA source Choose a source Select the CD player source Select the Jukebox source Select the USB reader source Select the audio AUX input source Select the SD card source S e l e c t a s p e c i fi c t r a c k ( n u m b e r b e t w e e n 1 a n d 1 0 0 0 ) o n t h e a c t i v e M E D I U M S e l e c t a F o l d e r ( n u m b e r b e t w e e n 1 a n d 1 0 0 0 ) on the active MEDIUM
TELEPHONE Phone menu Enter number Phone book Dial Save number Accept Reject
Open the Telephone Menu Enter a telephone number to be called Open the phone book Make a call Save a number in the phone book Accept an incoming call Refuse an incoming call
ADDRESS BOOK Address book menu Call
Navigate
Open the address book C a l l fi l e u s i n g i t s d e s c r i p t i o n < fi l e > a s d e s c r i b e d in the address book Start guidance to an address in the address book u s i n g i t s d e s c r i p t i o n < fi l e >
