i
97
VISIBILITY
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
m a t e l y 1 2 m p h ( 2 0 k m / h ) a n d a s s o c i -
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
If a malfunction occurs, this warn-
i n g l a m p fl a s h e s o n t h e i n s t r u m e n t
panel, accompanied by a mes-
sage on the multifunction screen.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in rela-
tion to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the ser-
vice warning lamp is displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your headlamps
in the lowest position. When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 89 of 313
!
i
97
VISIBILITY
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
m a t e l y 1 2 m p h ( 2 0 k m / h ) a n d a s s o c i -
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
If a malfunction occurs, this warn-
i n g l a m p fl a s h e s o n t h e i n s t r u m e n t
panel, accompanied by a mes-
sage on the multifunction screen.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in rela-
tion to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the ser-
vice warning lamp is displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your headlamps
in the lowest position. When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 91 of 313
!
99
VISIBILITY
Windscreen and headlamp wash
B. rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
If the dipped headlamps are on, the
headlamp washers operate at the same
time.
Rear wiper
I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when us-
ing a tailgate bicycle carrier, deac-
tivate the automatic rear wiper via
t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu. Programming
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated
by default. Screenwash/headlamp wash low
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/
or the service warning lamp is displayed
on the instrument panel, accompanied by
an audible signal and a message on the
multifunction screen.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n w a s h /
headlamp wash reservoir.
The warning lamp is displayed when the igni-
tion is switched on, or every time the stalk
i s o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
Page 98 of 313
105
FITTINGS

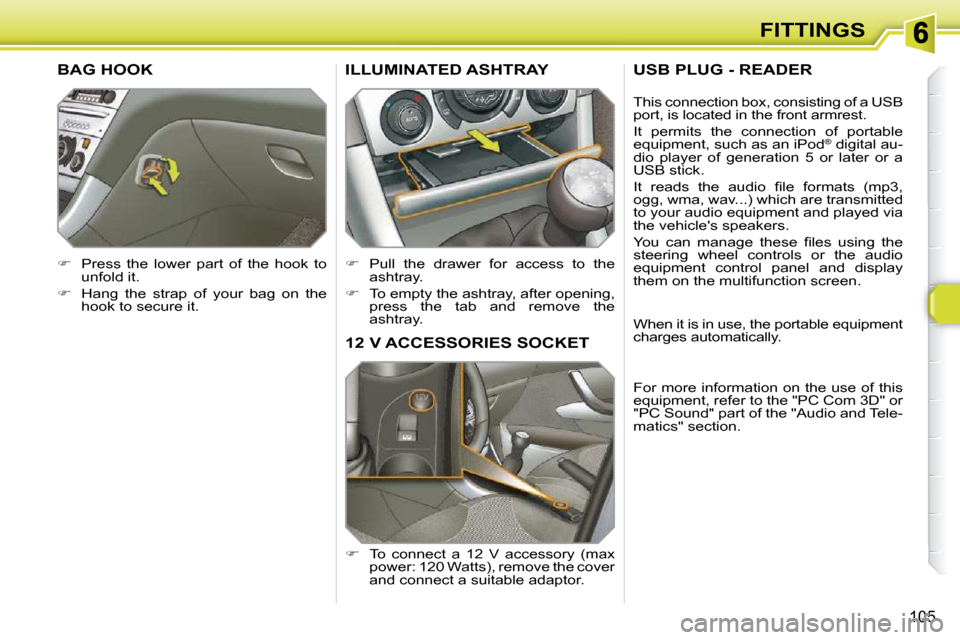

12 V ACCESSORIES SOCKET
T o c o n n e c t a 1 2 V a c c e s s o r y ( m a x
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY
Pull the drawer for access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the
ashtray.
BAG HOOK
Press the lower part of the hook to
unfold it.
Hang the strap of your bag on the
hook to secure it.
USB PLUG - READER
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f a U S B
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
U S B s t i c k .
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
equipment, refer to the "PC Com 3D" or
" P C S o u n d " p a r t o f t h e " A u d i o a n d T e l e -
matics" section.
Page 100 of 313
105
FITTINGS
12 V ACCESSORIES SOCKET
T o c o n n e c t a 1 2 V a c c e s s o r y ( m a x
power: 120 Watts), remove the cover
and connect a suitable adaptor.
ILLUMINATED ASHTRAY
Pull the drawer for access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the
ashtray.
BAG HOOK
Press the lower part of the hook to
unfold it.
Hang the strap of your bag on the
hook to secure it.
USB PLUG - READER
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f a U S B
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
U S B s t i c k .
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the use of this
equipment, refer to the "PC Com 3D" or
" P C S o u n d " p a r t o f t h e " A u d i o a n d T e l e -
matics" section.
Page 125 of 313
!
i
i
i
129
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a w h e e l fi t t e d w i t h t h i s s y s t e m m u s t
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate the
need to have the tyre pressures
checked regularly (refer to the
" I d e n t i fi c a t i o n m a r k i n g s " s e c t i o n ) t o
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal,
to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning lamp comes
on and/or this warning lamp
is displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction screen locat-
ing the wheel concerned.
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
Repair or change the damaged
w h e e l ( p u n c t u r e d o r v e r y d e fl a t e d
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
If your vehicle is equipped with a
s p a r e w h e e l , t h i s i s n o t fi t t e d w i t h
a sensor.
Page 129 of 313
133
SAFETY

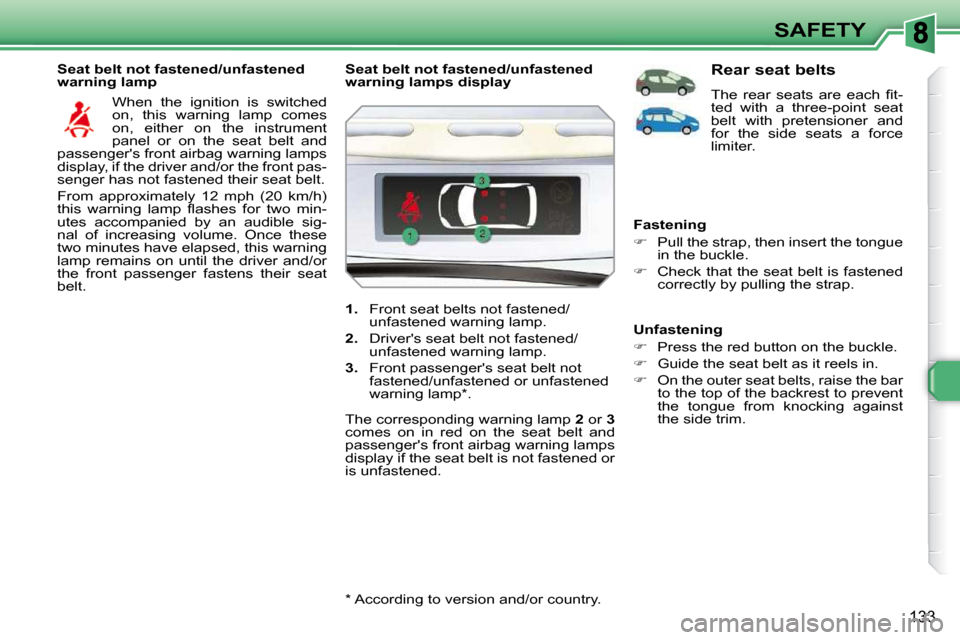

Seat belt not fastened/unfastened
warning lamp When the ignition is switched
on, this warning lamp comes
on, either on the instrument
panel or on the seat belt and
passenger's front airbag warning lamps
display, if the driver and/or the front pas-
senger has not fastened their seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the driver and/or
the front passenger fastens their seat
belt.
* According to version and/or country.
Seat belt not fastened/unfastened
warning lamps display
1. Front seat belts not fastened/
unfastened warning lamp.
2. Driver's seat belt not fastened/
unfastened warning lamp.
3. Front passenger's seat belt not
fastened/unfastened or unfastened
warning lamp * .
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt with pretensioner and
for the side seats a force
limiter.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim.
Page 130 of 313

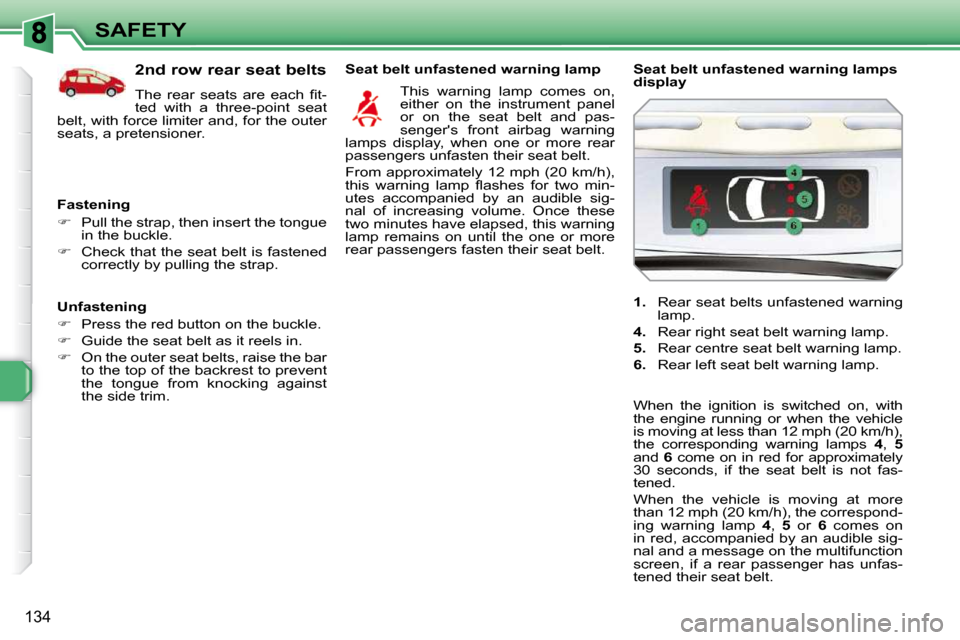

134
SAFETY
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim. Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger's front airbag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the one or more
rear passengers fasten their seat belt.
1. Rear seat belts unfastened warning
lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps
4 , 5
and 6 come on in red for approximately
30 seconds, if the seat belt is not fas-
tened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5 or 6 comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a rear passenger has unfas-
tened their seat belt.
2nd row rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt, with force limiter and, for the outer
seats, a pretensioner.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
