CHILD SAFETY
This system is independent and in no
circumstances does it take the place
of the central locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k e a c h
time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even for
a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one quarter of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
R e m o t e c o n t r o l s y s t e m t o p r e v e n t o p e n -
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
The control is located on the driver's
door, with the electric window controls.
Press button A .
The indicator lamp on button A comes
on, accompanied by a message on the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking
Unlocking
Turn the red control one quarter of
a turn to the right using the ignition
key. Activation
Deactivation
Press button A again.
The indicator lamp on button A switches
off, accompanied by a message on the
multifunction screen.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
Page 135 of 313
!
139
SAFETY
Lateral airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the chest.
Each lateral airbag is incorporated:
- in the front, in the seat back frame, on the door side,
- in the rear, in the side trim (except on 3-door and SW models).
Activation
The lateral airbags are triggered unilater-ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle. Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pil-
lars and the upper passenger compart-
ment area. Operating fault
Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal plane
and directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
In the event of a rear or front colli-
sion, the airbag is not triggered.
Impact detection zones
A. Front impact zone.
B. Side impact zone. If this warning lamp comes on
on the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
T h e l a t e r a l a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the corresponding door trim panel.
Page 182 of 313
11PRACTICAL INFORMATION
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
t i o n o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 30 A Locking and deadlocking earth.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , t r a i l e r f u s e b o x .
F7 5 A Front and rear courtesy lamps, map reading lamps,
r e a r r e a d i n g l a m p s , s u n v i s o r i l l u m i n a t i o n , g l o v e b o x
illumination, torch.
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n s c r e e n , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket.
F10 15 A Steering mounted controls, alarm siren, alarm
control unit.
F11 15 A Low current ignition switch.
Page 189 of 313
11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 195 of 313
11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
a r o u n d 5 c a t e g o r i e s : P R O T E C T I O N -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
Page 196 of 313
11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
a r o u n d 5 c a t e g o r i e s : P R O T E C T I O N -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
Page 244 of 313
249
0 6 MUSIC MEDIA PLAYERS
C D , M P 3 / W M A C D ,
MP3/WMA SD CARD/USB READER
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, vel 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is ard is always used f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) for optimum sound quality. In the particular case of a multi-session CD, the Joliet stoliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n ".mp3" with a speed of between 8 Kbps and 320 Kbps abps and the extension ".wma" with a speed of between 5 Kbps and 3s and 384 Kbps. I t a l s o s u p p o r t s t h e V B R ( V a r i a b l e B i t R a t e ) m o d e . N o o t h e r t y p e o f fi l e ( . m p 4 , . m 3 u . . . ) c a n b e p l a y e d .
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
C o n n e c t i n g a n I P o d : T o p l a y M P 3 t y p e fi l e s , c o n n e c t t h e I P o d u s i n g t h e U S B p o r t T o p l a y M P 3 t y p e fi l e s , c o n n e c t t h e I P o d u s i n g t h e U S B p o r t ( l i m i t e d f u n c t i o n s ) . T o p l a y I T u n e s fi l e s , c o n n e c t t h e I P o d u s i n g t h e a u x i l i a r y s o c k e t T o p l a y I T u n e s fi l e s , c o n n e c t t h e I P o d u s i n g t h e a u x i l i a r y s o c k e t ( A U X ) .
In order to be read, a USB memory stick must be f orma formatted to FAT 32.
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g a n d d i s p l a y i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y i n g a n d d i s p l a y i n g problems.
During play, exit the "SD-Card" or "USB" source b efore efore removing the SD card or the USB memory stick from its reader.
To avoid any risk of theft, remove the SD card or the USthe USB memory stick when you leave your vehicle with the roof ope n.
INFORMATION AND ADVICE
Page 280 of 313
285

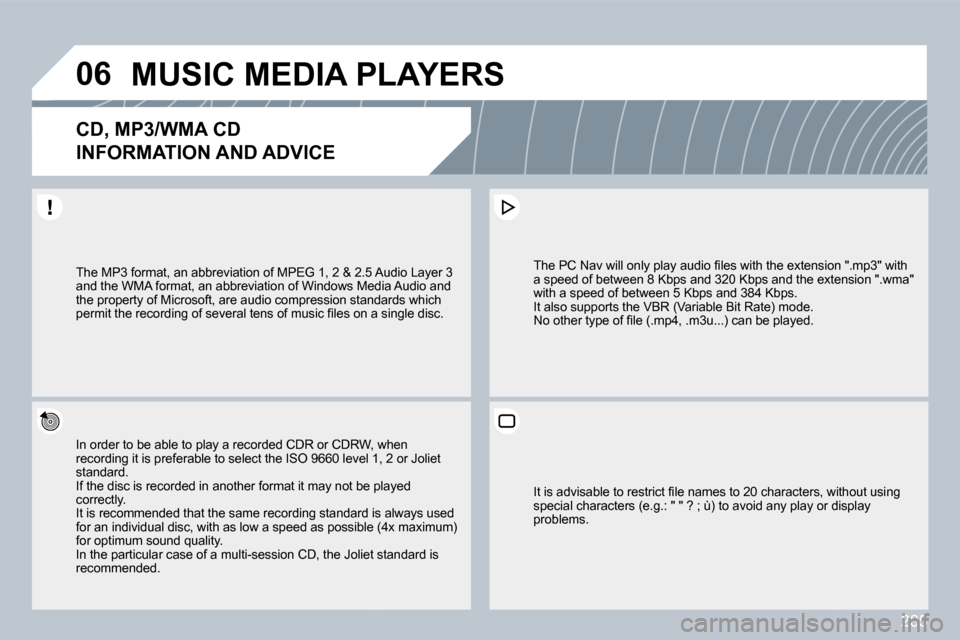

0 6 M U S I C M E D I A P L A Y E R S
C D , M P 3 / W M A C D
I N F O R M A T I O N A N D A D V I C E
I n o r d e r t o b e a b l e t o p l a y a r e c o r d e d C D R o r C D R W , w h e n I n o r d e r t o b e a b l e t o p l a y a r e c o r d e d C D R o r C D R W , w h e n r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t t h e I S O 9 6 6 0 l e v e l 1 , 2 o r J o l i e t r e c o r d i n g i t i s p r e f e r a b l e t o s e l e c t t h e I S O 9 6 6 0 l e v e l 1 , 2 o r J o l i e t standard. If the disc is recorded in another format it may not be pla be played correctly. I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d I t i s r e c o m m e n d e d t h a t t h e s a m e r e c o r d i n g s t a n d a r d i s a l w a y s u s e d f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) for optimum sound quality. I n t h e p a r t i c u l a r c a s e o f a m u l t i - s e s s i o n C D , t h e J o l i e t s t a n d a r d i s I n t h e p a r t i c u l a r c a s e o f a m u l t i - s e s s i o n C D , t h e J o l i e t s t a n d a r d i s recommended.
T h e P C N a v w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h T h e P C N a v w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s p e e d o f b e t w e e n 8 K b p s a n d 3 2 0 K b p s a n d t h e e x t e n s i o n " . w m a " a s p e e d o f b e t w e e n 8 K b p s a n d 3 2 0 K b p s a n d t h e e x t e n s i o n " . w m a " w i t h a s p e e d o f b e t w e e n 5 K b p s a n d 3 8 4 K b p s . I t a l s o s u p p o r t s t h e V B R ( V a r i a b l e B i t R a t e ) m o d e . N o o t h e r t y p e o f fi l e ( . m p 4 , . m 3 u . . . ) c a n b e p l a y e d .
The MP3 format, an abbreviation of MPEG 1, 2 & 2. 5 Au 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y o r d i s p l a y s p e c i a l c h a r a c t e r s ( e . g . : " " ? ; ù ) t o a v o i d a n y p l a y o r d i s p l a y problems.
