2009.5 Peugeot 308 SW BL Dag window

!
i
79
ACCESS
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.

 Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle. Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this
position for more than two seconds
to close the windows automatically
in addition to locking (according to
version).

 Turn the key to the right again
within fi ve seconds to deadlock the
vehicle. Folding the key

 First press button A to fold the key. Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.

 Press the closed padlock on the
remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

!
i
82
ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl ashes once per second.
The exterior perimeter protection is acti-
vated, 5 seconds after the locking button
on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking but-
ton on the remote control is pressed.
Exterior perimeter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Self-protection function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indicator
lamp on button A switches off.
If an opening - door or boot - is
not closed fully, the vehicle is not
locked, but the exterior perimeter
protection will be activated after
45 seconds at the same time as
the interior volumetric protection.

i
i
!
84
ACCESS The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control panel, carry out
the operation from the control panel
of the passenger door concerned,
and vice versa.
ELECTRIC WINDOWS
Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.

1. Driver's electric window control.

2. Passenger's electric window
control.

3. Rear right electric window
control.

4. Rear left electric window control.

5. Deactivation of the rear electric
window and door controls. If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:

 press and hold the control until
the window opens fully,

 then pull the control immediately
and hold it until the window
closes,

 continue to hold the control for
approximately one second after
the window has closed.

The safety
anti
-
pinch
function is
not operational during these op-
erations.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
-
automatic mode

 Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

 Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
-
manual mode

 Press or pull the control gently.
The window stops when the
control is released. After approximately ten consecutive
complete opening/closing move-
ments of the window, a protection
function is activated which only au-
thorises closing of the window to
prevent damage to the electric win-
dow motor.
Once the window is closed, the con-
trols will become available again
after approximately 40 minutes.

!
i
!

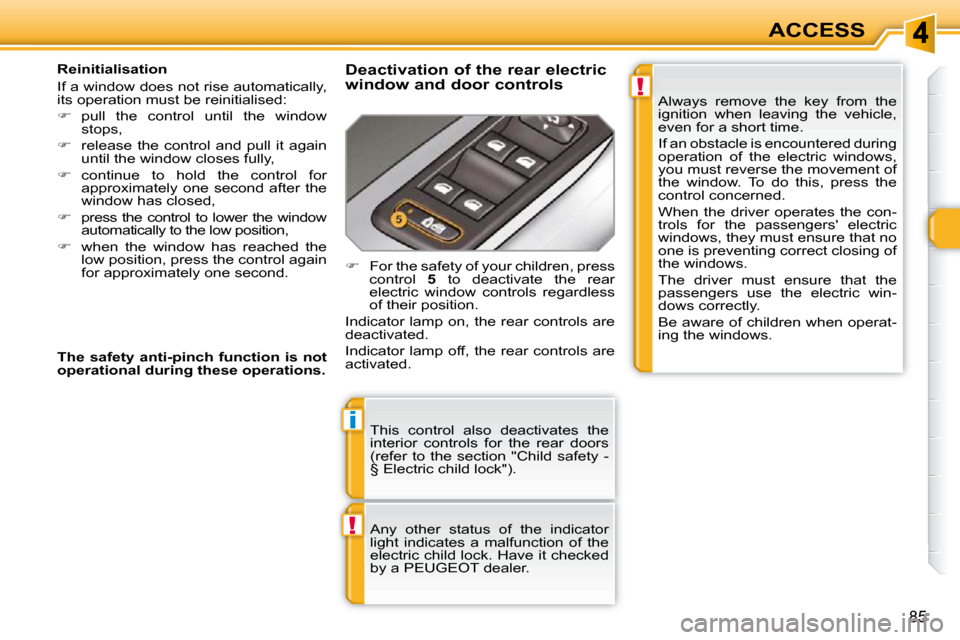

85
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again
until the window closes fully,

 continue to hold the control for
approximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Deactivation of the rear electric
window and door controls

 For the safety of your children, press
control 5 to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.

The safety
anti
-
pinch
function is not
operational during these operations.

103
FITTINGS
INTERIOR FITTINGS

1. Spectacles storage

2. Sun visor
(see details on following page)

3. Grab handle with coat hook

4. Toll card/car park ticket windows
(see details on following page)

5. Storage compartment

6. Oddments box

7. Bag hook

8. Illuminated glove
box
(see details on following page)

9. Door trays

10. Illuminated ashtray
(see details on following page)

11. Storage compartment
with non-slip carpet

12. 12 V accessories socket
(see details on following page)

13. Cup
holder

14. Front armrest
(see details on following page)

15. Storage box

i
104
FITTINGS
ILLUMINATED GLOVE BOX
This has areas for storing a bottle of water,
the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair of
spectacles, tokens, cards, a can...
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).
 To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A ,
which can be opened or closed. This
distributes the same conditioned air as
the vents in the passenger compart-
ment.

!i
117
FITTINGS
Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
For the boot lighting function, refer to
the "Visibility - § Boot lighting" section.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approxi-
mately 45 minutes and charges while
you are driving. Use

 Extract the torch from its location
pulling it upwards.

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch off the torch, this switches it off
automatically. Side blinds
Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.

 Pull the blind by the central tab.

 Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the accumulators.
Never replace the accumulators
with batteries. It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

!

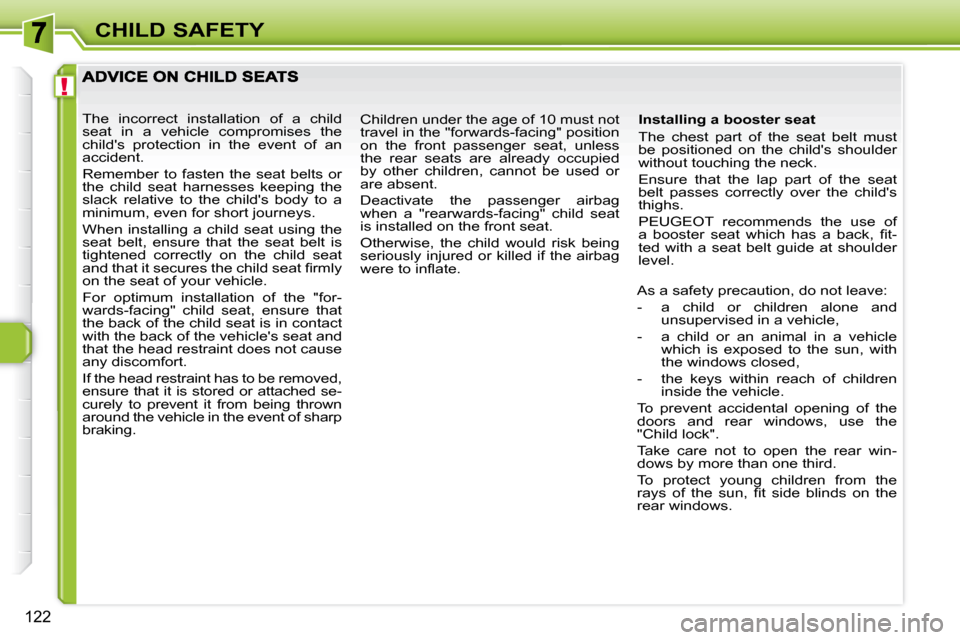

122
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
