2009.5 Citroen C CROSSER DAG Owner's Manual

4
FAMILIARISATION
Sunroof
This roof improves the ventilation and light in the passenger compartment.
 82
 81  124
EXTERIOR
Audible rear parking assistance
This equipment warns you if an ob-stacle is detected behind the vehicle when reversing.
Reversing camera
This equipment is activated automati-cally when reverse gear is engaged providing a visual return on the colour display.
Lower tailgate
This lower tailgate provides remarkable accessibility and makes the loading of bulky objects easier.
 125

5
FAMILIARISATION
Fuel tank
A. Opening of the fuel fi ller fl ap.
B. Opening of the fuel tank cap.
 84
1. Locking of the vehicle.
2. Unlocking of the vehicle.
Remote control key
A. Unfolding/folding of the key.
B. Unlocking of the vehicle.
C. Locking of the vehicle.
 73
Manual centralised control
 79
OPENING
When refi tting the cap, insert the upper part fi rst turning it to the right.
Capacity of the tank: approximately60 litres.

!
6
FAMILIARISATION
Opening
 After unlocking the vehicle using the remote control or the key, press the handle A and raise the tailgate.
Tailgate Lower tailgate
Opening
 Push the handle C to the right and tilt the tailgate D gently.
The maximum authorised weight on the lower tailgate when open is 200 kg .
Spare wheel and tools
Access to the spare wheel
 Remove the plastic cover E to gain access to the spare wheel fi xing system.
 80
OPENING
 81  133
Closing
 Pull the handle B downwards.
Closing
 Raise the tailgate D , push it to close it, then check that it is secured correctly.
Access to the tools
The tools are stored in the storage com-partment F in the boot right-hand trim.

7
FAMILIARISATION
CONFIGURING

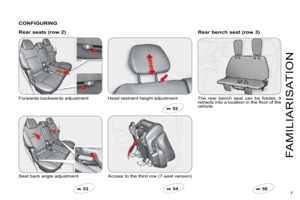

Rear seats (row 2)
Forwards-backwards adjustment
Seat back angle adjustment
 53
Head restraint height adjustment
Access to the third row (7-seat version)
 54
Rear bench seat (row 3)
The rear bench seat can be folded. It retracts into a location in the fl oor of the vehicle.
 58
 52

8
FAMILIARISATION
INTERIOR
Automatic air conditioning
This automatic air conditioning sys-tem guarantees comfort and a suffi -cient circulation of air in the passenger compartment.
Cruise control
This system automatically maintains the vehicle speed at the value pro-grammed by the driver, without the ac-celerator pedal being pressed.
Audio and communication systems
This equipment benefi ts from the lat-est technology: MP3 compatible audio equipment, Bluetooth hands-free tele-phone, colour display...
Four wheel drive system with electronic control
This system permits the selection of a transmission mode in relation to the driving conditions.
 44
 122
 164
 120

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Lights and direction indicators
controls.
Headlamp wash control.
5. Instrument panel.
6. Driver's air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. Bonnet release.
11. Enclosed storage compartment.
Fuse box.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric window deactivation controls.
3. Front and rear wipers/wash-wipe control.
4. Central adjustable and closing vents.
5. Sunshine sensor.
6. Upper glove box with air conditioning.
7. Lower glove box with lock.
Passenger air bag disarming.
8. Heated seat controls.
9. Armrest with storage compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position selector.
12. Removable ashtray/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.

11
FAMILIARISATION
SITTING COMFORTABLY
 51
Front seats
Forwards-backwards Driver's seat cushion height and angle Seat back angle
Manual adjustments
Electric adjustments (driver's seat only)
Forwards-backwards Seat cushion height and angle Seat back angle
 50
