2008 YAMAHA RHINO 700 warning light

6-7
5B410007
Starting the engine
1. Turn the main switch to “ON”.NOTICE
The coolant temperature warning light and en-
gine trouble warning light should come on,
then go off.
If a warning light does not go off, see pages
4-9–4-11 for the corresponding warning light
circuit check.
2. Apply the brake pedal.
3. Shift the drive select lever into the neutral po-
sition.


When the drive select lever is in the neu-
tral position, the neutral indicator light
should come on. If the neutral indicator
light does not come on, ask a Yamaha
dealer to inspect the electric circuit.
EE.book Page 7 Monday, October 8, 2007 4:48 PM

6-15 1. Drive select lever a. L (Low)
b. H (High) c. N (Neutral)
d. R (Reverse)
1. Sélecteur de marche a. L (gamme basse)
b. H (gamme haute) c. N (point mort)
d. R (marche arrière)
1. Palanca selectora a. L (marcha corta)
b. H (marcha larga) c. N (punto muerto)
d. R (marcha atrás)
Shifting: neutral to reverse
WARNING
Before you shift into reverse, make sure there
are no obstacles or people behind you. When it
is safe to proceed, go slowly. Hitting an obsta-
cle or person could result in serious injury or
death.1. Stop the vehicle. Take your foot off the accel-
erator pedal and check behind you.
2. Apply the brake pedal.
3. Shift from neutral to reverse or vice versa by
moving the drive select lever along the shift
guide.


When in reverse, the reverse indicator
light should be on. Due to the synchroniz-
ing mechanism in the engine, the light
may not come on until the vehicle starts
moving.


If the light does not come on, ask a
Yamaha dealer to inspect the reverse in-
dicator light electrical circuit.
EE.book Page 15 Monday, October 8, 2007 4:48 PM

8-81 1. Bolt (× 3)
1. Vis (× 3)
1. Perno (× 3)
1
1. Tailpipe 2. Spark arrester 3. Gasket
1. Tube d’échappement arrière 2. Pare-étincelles
3. Joint
1. Tubo de escape 2. Parachispas
3. Junta
3
12
5B410018
Cleaning the spark arrester
WARNING
Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the engine
is stopped and the exhaust system is cool be-
fore cleaning spark arrester. Do not start the
engine while cleaning the exhaust system.1. Remove the bolts.
2. Remove the tailpipe by pulling it out of the
muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
4. Install the gasket, and then insert the tailpipe
into the muffler and align the bolt holes.
5. Install the bolts and tighten them to the spec-
ified torque.
EE.book Page 81 Monday, October 8, 2007 4:48 PM

8-151
EVU01010

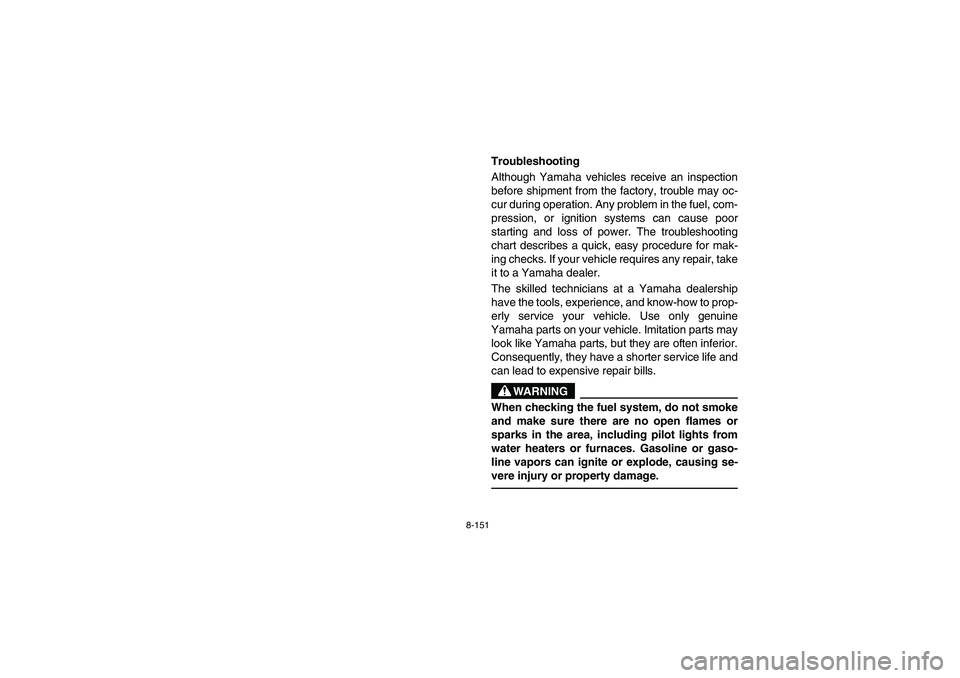

Troubleshooting
Although Yamaha vehicles receive an inspection
before shipment from the factory, trouble may oc-
cur during operation. Any problem in the fuel, com-
pression, or ignition systems can cause poor
starting and loss of power. The troubleshooting
chart describes a quick, easy procedure for mak-
ing checks. If your vehicle requires any repair, take
it to a Yamaha dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your vehicle. Use only genuine
Yamaha parts on your vehicle. Imitation parts may
look like Yamaha parts, but they are often inferior.
Consequently, they have a shorter service life and
can lead to expensive repair bills.
WARNING
When checking the fuel system, do not smoke
and make sure there are no open flames or
sparks in the area, including pilot lights from
water heaters or furnaces. Gasoline or gaso-
line vapors can ignite or explode, causing se-
vere injury or property damage.
EE.book Page 151 Monday, October 8, 2007 4:48 PM

10-7
Bulb voltage, wattage × quantity:
Headlight 12 V 30.0 W/30.0 W × 2
Tail/brake light 12 V 5.0 W/21.0 W × 2
Indicator lights:
Neutral indicator light LED
Reverse indicator light LED
Coolant temperature warning light LED
Engine trouble warning light LED
Parking brake indicator light LED
On-Command four-wheel-drive/differential gear
lock indicatorLCD
On-Command differential gear lock indicator light LED
High-range indicator light LED
Low-range indicator light LEDModel YXR70FX
