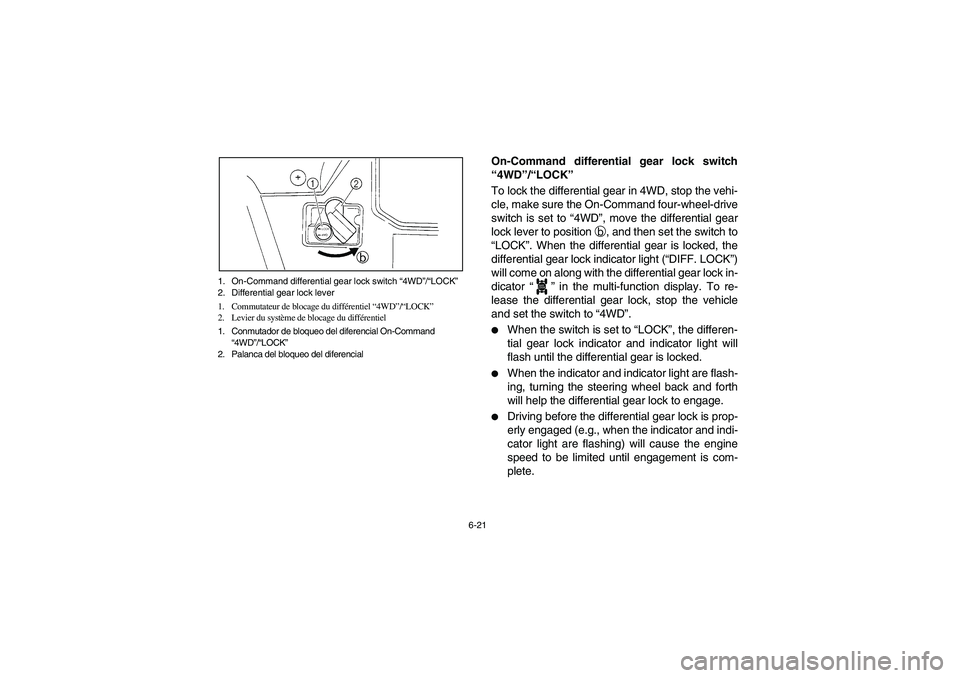

6-21 1. On-Command differential gear lock switch “4WD”/“LOCK”
2. Differential gear lock lever
1. Commutateur de blocage du différentiel “4WD”/“LOCK”
2. Levier du système de blocage du différentiel
1. Conmutador de bloqueo del diferencial On-Command
“4WD”/“LOCK”
2. Palanca del bloqueo del diferencial
On-Command differential gear lock switch
“4WD”/“LOCK”
To lock the differential gear in 4WD, stop the vehi-
cle, make sure the On-Command four-wheel-drive
switch is set to “4WD”, move the differential gear
lock lever to positionb, and then set the switch to
“LOCK”. When the differential gear is locked, the
differential gear lock indicator light (“DIFF. LOCK”)
will come on along with the differential gear lock in-
dicator “” in the multi-function display. To re-
lease the differential gear lock, stop the vehicle
and set the switch to “4WD”.
When the switch is set to “LOCK”, the differen-
tial gear lock indicator and indicator light will
flash until the differential gear is locked.
When the indicator and indicator light are flash-
ing, turning the steering wheel back and forth
will help the differential gear lock to engage.
Driving before the differential gear lock is prop-
erly engaged (e.g., when the indicator and indi-
cator light are flashing) will cause the engine
speed to be limited until engagement is com-
plete.
DIFF.
LOCK
