2008 YAMAHA JOG50R warning

EWA11310
s s
WARNING
●Make sure that no foreign
material enters the final trans-
mission case.
●Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAUS1200
Coolant (only for liquid-
cooled models)
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM2101
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
NOTE:
●The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
●Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant level window
2. Maximum level mark
3. Minimum level mark
3. If the coolant is at or below the
minimum level mark, remove the
cowling A. (See page 6-5.)
4. Open the reservoir cap, and then
add coolant to the maximum
level mark.
Coolant reservoir capacity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.11 L (0.12 US qt) (0.10 Imp.qt)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 43

1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
ECA10471
CAUTION:
●If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
●If water has been used instead
of coolant, replace it with coo-
lant as soon as possible, other-
wise the cooling system will
not be protected against frost
and corrosion.
●If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content ofthe coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be
reduced.
EWA10380
s s
WARNING
Never attempt to remove the radia-
tor cap when the engine is hot.
5. Close the reservoir cap, and then
install the cowling.
EAU33030
Changing the coolantEWA10380
s s
WARNING
Never attempt to remove the radia-
tor cap when the engine is hot.
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.
EAU40370
Air filter element
The air filter element must be cleaned
and replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart. Have a Yamaha dealer
clean and replace the air filter ele-
ment.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 44

EAU33600
Tires
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified tires.
Tire air pressure
The tire air pressure should be chec-
ked and, if necessary, adjusted befo-
re each ride.
EWA10500
s s
WARNING
●The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperatu-
re of the tires equals the
ambient temperature).
●The tire air pressure must be
adjusted in accordance with
the riding speed and with the
total weight of rider, passenger,
cargo, and accessories appro-
ved for this model.EWA11200
s s
WARNING
Because loading has an enormous
impact on the handling, braking,
performance and safety characte-
ristics of your vehicle, you should
keep the following precautions in
mind.
●NEVER OVERLOAD THE VEHI-
CLE! Operation of an overloa-
ded vehicle may result in tire
damage, loss of control, or
severe injury. Make sure that
the total weight of rider, pas-
senger, cargo, and accessories
does not exceed the specified
maximum load for the vehicle.
●Do not carry along loosely pac-
ked items, which can shift
during a ride.
●Securely pack the heaviest
items close to the center of the
vehicle and distribute the
weight evenly on both sides.
●Adjust the tire air pressure with
regard to the load.
●Check the tire condition and air
pressure before each ride.
Tire air pressure (measured on
cold tires):
0~90 kg (0~198 lb):
Front:
175 kPa (25 psi) (1.75 kgf/cm
2)
Rear:
200 kPa (28 psi) (2.00 kgf/cm
2)
CS50/CS50M 90~169 kg
(198~373 lb)
CS50Z 90~166 kg (198~366 lb):
Front:
175 kPa (25 psi) (1.75 kgf/cm
2)
Rear:
225 kPa (32 psi) (2.25 kgf/cm
2)
Maximum load*:
CS50/CS50M 169 kg (373 lb)
CS50Z 166 kg (366 lb)
* Total weight of rider, passenger,
cargo and accessories
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 46

1. Tire tread depth
2. Tire sidewall
Tire inspection
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
NOTE:
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This model is equipped with tubeless
tires.
EWA10470
s s
WARNING
●Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
●The replacement of all wheel
and brake related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience.
EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified wheels.
●The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
●The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
●Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
Front tire:
Size:
110/70-12 47L
Manufacturer/model:
CHENG SHIN TIRE/C922
Rear tire:
Size:
120/70-12 51L
Manufacturer/model:
CHENG SHIN TIRE/C922
Minimum tire tread depth (front
and rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 47

EAUT1220
Checking the front brake
lever free play
1. Front brake lever free play
The brake lever free play should mea-
sure 2~5 mm (0.08~0.20 in) as shown.
Periodically check the brake lever free
play and, if necessary, have a Yamaha
dealer check the brake system.
EWA10640
s s
WARNING
An incorrect brake lever free play
indicates a hazardous condition in
the brake system. Do not operate
the vehicle until the brake system
has been checked or repaired by a
Yamaha dealer.
EAU22170
Adjusting the rear brake
lever free play
1. Rear brake lever free play
The brake lever free play should mea-
sure 5~10 mm (0.20~0.40 in) as
shown. Periodically check the brake
lever free play and, if necessary,
adjust it as follows.
1. Adjusting nut
To increase the brake lever free play,
turn the adjusting nut at the brake
shoe plate in direction (a). To decrea-
se the brake lever free play, turn the
adjusting nut in direction (b).
EWA10650
s s
WARNING
If proper adjustment cannot be
obtained as described, have a
Yamaha dealer make this adjust-
ment.
(a)
(b)
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 48

EAU23191
Checking and lubricating the
centerstand
1. Centerstand
The operation of the centerstand
should be checked before each ride,
and the pivots and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA11300
s s
WARNING
If the centerstand does not move
up and down smoothly, have a
Yamaha dealer check or repair it.
EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
EWA10750
s s
WARNING
Securely support the vehicle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricants:
Front brake lever:
Silicone grease
Rear brake lever:
Lithium-soap-based grease
(all-purpose grease)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 52

ECA10590
CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart. 1. Place a stand under the engine to raise the front wheel off the
ground.
EWA10750
s s WARNING
Securely support the vehicle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the stee-
ring.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
5RW-F8199-E4.QXD 21/11/07 11:15 Página 53

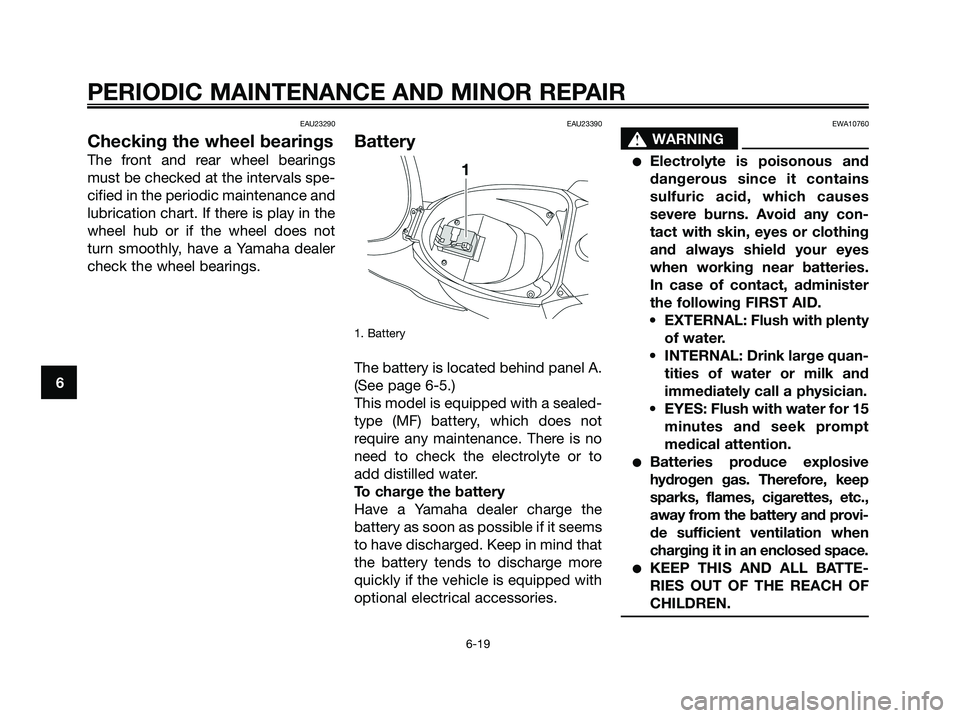

EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAU23390
Battery
1. Battery
The battery is located behind panel A.
(See page 6-5.)
This model is equipped with a sealed-
type (MF) battery, which does not
require any maintenance. There is no
need to check the electrolyte or to
add distilled water.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
EWA10760
s s
WARNING
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and provi-
de sufficient ventilation when
charging it in an enclosed space.
●KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 54
