2008 TOYOTA SIENNA light

08 SIENNA_U (L/O 0801)
161
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Canada only
Ty p e B

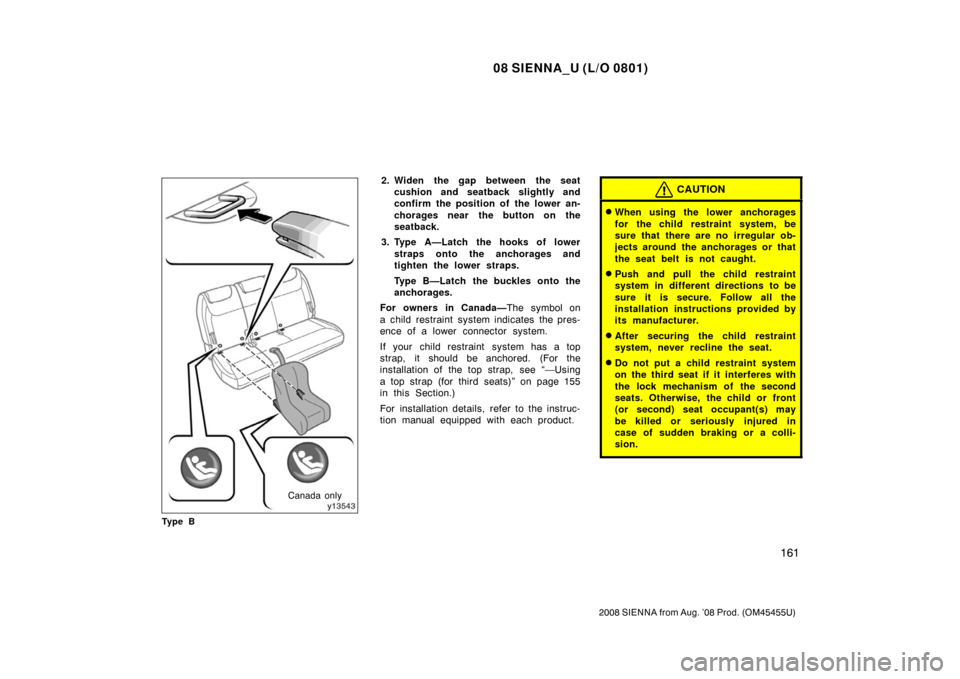

2. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for third seats)” on page 155
in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not put a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or front
(or second) seat occupant(s) may
be killed or seriously injured in
case of sudden braking or a colli-
sion.

08 SIENNA_U (L/O 0801)
165
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Vehicles with the auto anti−glare inside
rear view mirror—On some models, when
the inside rear view mirror surface dark-
ens in “AUTO” mode, the outside rear
view mirror surface also darkens to re-
duce the reflection of the headlights of the
vehicle behind you. (For details, see “Auto
anti −glare inside rear view mirror” on page
167 in this Section.)
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers and windshield wiper de −icer” on
page 184 in Section 1 −5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
Ty p e A
Ty p e B
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the engine
switch is in the “ACC” or “ON” position.
Vehicles with the driving position memory
system—The position of the outside rear
view mirrors and driver’s seat can be
memorized. For details, see “Driving posi-
tion memory system” on page 65 in Sec-
tion 1 −3.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

08 SIENNA_U (L/O 0801)
167
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the engine switch is turned on, the
inside rear view mirror always turns on in
the automatic function mode.
The indicator illuminates to show you that
the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror

08 SIENNA_U (L/O 0801)
168
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.To use the vanity mirrors, swing down
the sun visor and open the cover.
On vehicles with the vanity lights, the light
will come on when you open the cover.
VANITY LIGHTS CUT OFF OPERATION
When the engine switch is turned off and
vanity light stays lighting on, the light will
cut off automatically after 20 minutes.
Vanity mirrors

08 SIENNA_U (L/O 0801)
169
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
You can cancel the cut off operation by:
Turning the engine switch to the “ACC”
position.
Opening or closing any of front and
sliding doors.
Turning off all the “ON” lights.
All the lights are cut off when all the side
doors and back door are locked by key or
wireless remote control transmitter.
The engine switch must be turned off.

08 SIENNA_U (L/O 0801)
171
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight beam level control 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Front personal lights 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Rear personal lights 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Luggage compartment light 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine (ignition) switch light 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior foot lights 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Windshield wipers and washer 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers and windshield wiper de −icer 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 5

08 SIENNA_U (L/O 0801)
172
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
For the U.S.A.
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
On some models—
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
On some models—
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
Automatic light cut off system
Position 1—
The lights automatically turn off when the
driver ’s door is opened with the engine
switch in the “ACC” or “LOCK” position.
Position 2—
The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the engine switch in
the “ACC” or “LOCK” position.If the lock switch of the wireless remote
control transmitter is pushed when all the
side doors and back door are already
locked, the lights automatically turn off
immediately.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
To turn them on again, turn the engine
switch to the “ON” position or actuate the
headlight switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(without automatic light
control system)

08 SIENNA_U (L/O 0801)
173
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Daytime Running Light (DRL) system
(all models sold in Canada and some
models sold in U.S.A.)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make the headlights
come on when:
The engine switch is on with the en-
gine running.
The knob is in the “OFF” position or
position 1.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2 or turn the engine switch off.
HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
