2008 TOYOTA SIENNA Owners Manual

08 SIENNA_U (L/O 0801)
241
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
AUX adapter 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio remote controls 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Rear seat entertainment system 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 309
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands −free phone system 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

08 SIENNA_U (L/O 0801)
242
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
Type 21: AM·FM radio/compact disc play-
er with changer (with XM Satellite Radio∗
controller)
Type 22: AM·FM radio/compact disc play-
er with changer (with XM  Satellite Radio∗
controller)∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details. This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the engine
switch is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “AM·SAT”
∗, “FM1”, “FM2”,
“DISC·AUX” or “LOAD” to turn on that
function without pushing “PWR·VOL”.
You can turn on each player by inserting
a compact disc.
You can turn off each player by ejecting
the compact disc. If the audio system was
previously off, then the entire audio sys-
tem will be turned off when you eject the
compact disc. If another function was pre-
viously playing, it will come on again.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
Reference Using your audio system—
—Some basics

08 SIENNA_U (L/O 0801)
243
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “AM·SAT”
∗, “FM1”, “FM2”,
“DISC·AUX” or “LOAD” if the system is
already on but you want to switch from
one function to another.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
LISTENING TO THE XM  SATELLITE
RADIO BROADCAST
∗ (type 21 and 22)
To listen to a satellite radio br oadcast in
your vehicle, an additional genuine Toyota
satellite receiver and ant enna (or equiva-
lents) must be purchased and installed. A
subscription to the XM  Satellite Radio
service is also necessary.
How to subscribe to an XM  Satellite
Radio
An XM  Satellite Radio is a tuner de-
signed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contiguous
states. How to subscribe:
You must enter into a separate service
agreement with the XM
 Satellite Radio in
order to receive satellite broadcast pro-
gramming in the vehicle. Additional activa-
tion and service subscription fees apply
that are not included in the purchase price
of the vehicle and optional digital satellite
tuner. For complete information on sub-
scription rates and terms, or to subscribe
to the XM  Satellite Radio, visit XM  on
the web at www.xmradio.com
or call an
XM ’s Listener Care at (800) 967 −2346.
The XM  Satellite Radio is solely respon-
sible for the quality, availability and con-
tent of the satellite radio services pro-
vided, which are subject to the terms and
conditions of the XM  Satellite Radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM  Satellite Radio and are
subject to change. Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM
 Sat-
ellite Radio Inc. as proof of compatibility
with the services offered by the XM
Satellite Radio.
Displaying the radio ID
Each XM  tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM  service or when reporting
a problem.
If you select the “CH 000” using the
“TUNE·FILE” knob, the ID code of 8 al-
phanumeric characters appears. If you se-
lect another channel, display of the ID
code is canceled. The channel (000) alter-
nates the display between the radio ID
and the specific radio ID code.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.

08 SIENNA_U (L/O 0801)
244
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
SRS (type 1 and 2 −1)
The audio systems utilize SRS FOCUS
and SRS TruBass audio enhancement
technologies, under license from SRS
Labs, Inc., in all modes except AM radio
mode.
FOCUS, TruBass, SRS and
 symbols
are trademarks of SRS Labs, Inc.
FOCUS and TruBass technologies are
incorporated under license from SRS
Labs, Inc. Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2
−2) and bass
levels. In fact, different kinds of music
and vocal programs usually sound better
with different mixes of treble, midrange
and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has the mast type antenna or
on− glass antenna printed on the inside of
the rear quarter window.
Mast type antenna—To remove an anten-
na, carefully turn it counterclockwise.
NOTICE
 Mast type antenna:
To prevent damage to the antenna,
make sure it is removed before
driving your Toyota through an au-
tomatic car wash.
 Onglass antenna:
Putting a film (especially a conduc-
tive or metallic film) on the rear
window will noticeably reduce the
sensitivity of the radio.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

08 SIENNA_U (L/O 0801)
245
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 21 and 22)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one compact disc into slot at
a ti me.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.
CAUTION
Laser products
Do not take this unit apart or at-
tempt to make any changes your-
self. This is an intricate unit that
uses a laser pickup to retrieve in-
formation from the surface of com-
pact discs. The laser is carefully
shielded so that its rays remain in-
side the cabinet. Therefore, never
try to disassemble the player or al-
ter any of its parts since you may
be exposed to laser rays and dan-
gerous voltages.
This product ut ilizes a laser. Use
of controls or adjustments or per-
formance of procedures other than
those specified herein may result in
hazardous radiation exposure.

08 SIENNA_U (L/O 0801)
246
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features

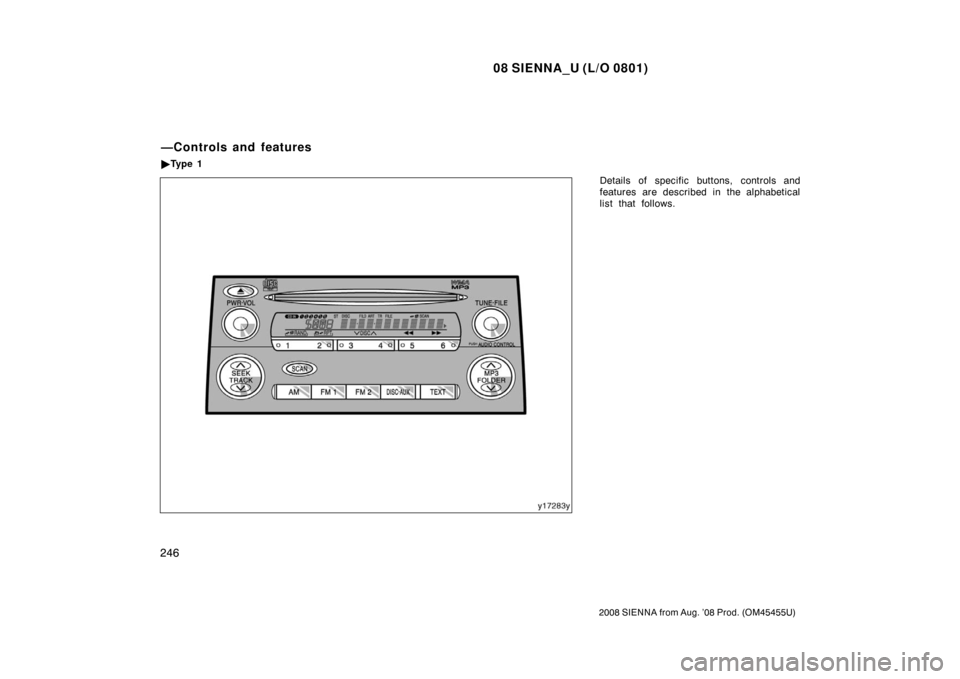

Ty p e 1

08 SIENNA_U (L/O 0801)
247
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The button num-
ber will appear on the display.
To recall a preset station: Push the button
for the station you want. The button num-
ber and station frequency will appear on
the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing. AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. In addi-
tion, turning the knob allows you to select
from LOW, MID, and HIGH volume and
tone settings. The ASL system automati-
cally adjusts volume and tone in accor-
dance with ambient noise levels. This
helps ensure an optimal listening experi-
ence even when road, wind or other ambi-
ent noise levels rise.
RSE: Vehicles with a rear seat entertain-
ment system—The system can be locked.
For details, see page 280 in this Section.

08 SIENNA_U (L/O 0801)
248
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
DISC·AUX (Compact disc)
Push the “DISC·AUX” button to play a
compact disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Vehicles with rear seat entertainment sys-
tem—
The “DISC·AUX” button may also be used
to operate a DVD player when a disc is
loaded in the DVD player. Pressing the
“DISC·AUX” button changes between the
CD player and DVD player. When the
DVD player is in operation, “AUX” appears
on the display.
Vehicles with AUX adapter—
To switch between CD, DVD, and AUX
(external device) modes, press the
“DISC·AUX” button. The AUX mode is only
available when AUX adapter is connected
to the system. When the AUX adapter is
in use, “AUX” will appear on the display.Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If “NO MUSIC” appears on the display,
it indicates that a disc with no MP3/WMA
data has been inserted. Remove the disc
from the player and insert an MP3/WMA
data disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DISC
With compact disc changer only—
Use these buttons to select the disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
MP3/FOLDER (Folder up/down)
To skip up or down to a different folder:
Push either side of the “MP3/FOLDER”
several times until the number of the fold-
er you want to listen to appears on the
display.
To jump to the first file in the current
folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played.
