2008 TOYOTA SIENNA Navigation Manual

Finish
AUDIO/VIDEO SYSTEM
171
8“AUDIO” button
Push this button to display the audio
control screen. For details, see page
172.
9“SEEK/TRACK” button
Push either side of this button to seek up
or down for a station, or to access a de-
sired track, file or chapter. For details,
see pages 177, 188, 192,196 and 199.
10“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 172.
Using your audio/video
system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the engine
switch is set at ACC or ON.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.
CAUTION
For vehicles sold in U.S.A. and Canada:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment. Radio frequen-
cy exposure. This device is approved
for Mobile Application only and, to
comply with applicable FCC radio fre-
quency exposure regulations, must
be used with a distance of at least 7.9
in. (20 cm) between the antenna and
the body of any person at all time dur-
ing use.

Finish
AUDIO/VIDEO SYSTEM
172
Laser products
Do not take this unit apart or at-
tempt to make any changes your-
self. This is an intricate unit that
uses a laser pickup to retrieve infor-
mation from the surface of compact
discs. The laser is carefully
shielded so that its rays remain in-
side the cabinet. Therefore, never
try to disassemble the player or al-
ter any of its parts since you may be
exposed to laser rays and danger-
ous voltages.
This product utilizes a laser. Use of
controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.(a) Turning the system on and off
“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display touch
screen buttons for audio system (audio con-
trol mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See page 165 for details.Push “AM·SAT”, “FM” or “DISC·AUX” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the CD changer does not
turn on.
You can turn off the CD changer by ejecting
all the discs. If the audio system was pre-
viously off, then the entire audio system will
be turned off when you eject all the discs. If
the other function was previously playing, it
will come on again.

Finish
AUDIO/VIDEO SYSTEM
173
The touch screen buttons for radio, CD
changer and DVD player operation are dis-
played on the function touch screen but-
ton display screen when the audio control
mode is selected. Touch them lightly and
directly on the screen.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touch screen button, move
your finger away from the screen and
then touch it again.
You cannot operate dimmed touch
screen buttons.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
(b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.
1. Push the “AUDIO” button.
2. Touching “SOUND” displays the
sound adjustment screen.

Finish
AUDIO/VIDEO SYSTEM
174
3. Touch the desired button.
“TREB” “+” or “–”: Adjusts high−pitched
tones.
“MID” “+” or “–”: Adjusts mid−pitched
tones.
“BASS” “+” or “–”: Adjusts low−pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance between
the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM, FM1
and CD changer) can be adjusted.(c) DSP control
You can turn on/off the surround function and
the automatic sound levelizer.
1. Push the “AUDIO” button.
2. Touch “DSP” to display the DSP con-
trol mode screen.
Surround function:
Select “ON” of “SURROUND” and touch
“OK”.
The surround function will turn on.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to be
heard due to road noise, wind noise or other
noises while driving, the system adjusts to the
optimum volume according to the noise level.
Select “ON” of “ASL” and touch “OK”.

Finish
AUDIO/VIDEO SYSTEM
175
(d) Selecting screen size (with rear seat
entertainment system)
The video screen can be changed from nor-
mal mode to wide mode.
1. Push the “AUDIO” button.
2. Touch “WIDE”.
“NORMAL”:Displays a 3  4 screen, with
either side in black.
“WIDE 1”:Widens the 3  4 screen hori-
zontally to fill the screen.
“WIDE 2”:Widens the 3  4 screen verti-
cally and horizontally, in the
same ratio, to fill the screen.
When you touch
, the previous screen
returns.
(e) Your CD changer
When you insert a disc, touch “LOAD” and
gently push the disc in with the label side up.
This CD changer can store up to four discs.
The changer will play from track 1 through to
the end of the disc. Then it will play from track
1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the s-
lot.

Finish
AUDIO/VIDEO SYSTEM
176
(f) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment sys-
tem can be enjoyed by pushing the
“DISC·AUX” button.
(g) AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to
AUX mode. For details, refer to the “Owner’s
Manual”.— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
If your vehicle is equipped with a satellite ra-
dio broadcast system, when you push the
“AM·SAT” button, “AM”, “SAT1”, “SAT2”,
“SAT3” station appears on the display. For
details about satellite radio broadcast, see
“— Radio operation (XM satellite radio
broadcast)” on page 179.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.

Finish
AUDIO/VIDEO SYSTEM
177
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touch screen buttons
(1 — 6) you want and hold it until a beep is
heard. This sets the station to the touch
screen button and the frequency appears
on the touch screen button.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the touch screen but-
ton (1 — 6) for the station you want. The
touch screen button is highlighted and the
station frequency appears on the screen.
Seek tuning: Push the “SEEK/TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch “SCAN”
on the screen or push the “SCAN” button
briefly. “SCAN” appears on the screen. The
radio will find the next station and stay there
for a few seconds, and then scan again. To
select a station, touch “SCAN” or push the
“SCAN” button again.
To scan the preset stations: Touch
“SCAN” on the screen or push the “SCAN”
button for longer than a second. “P. SCAN”
appears on the screen. The radio will tune in
the next preset station, stay there for a few se-
conds, and then move to the next preset sta-
tion. To select a station, touch “SCAN” or
push the “SCAN” button again.(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode provides
you to receive text messages from radio sta-
tions that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use only on
FM stations which broadcast RDS informa-
tion.

Finish
AUDIO/VIDEO SYSTEM
178

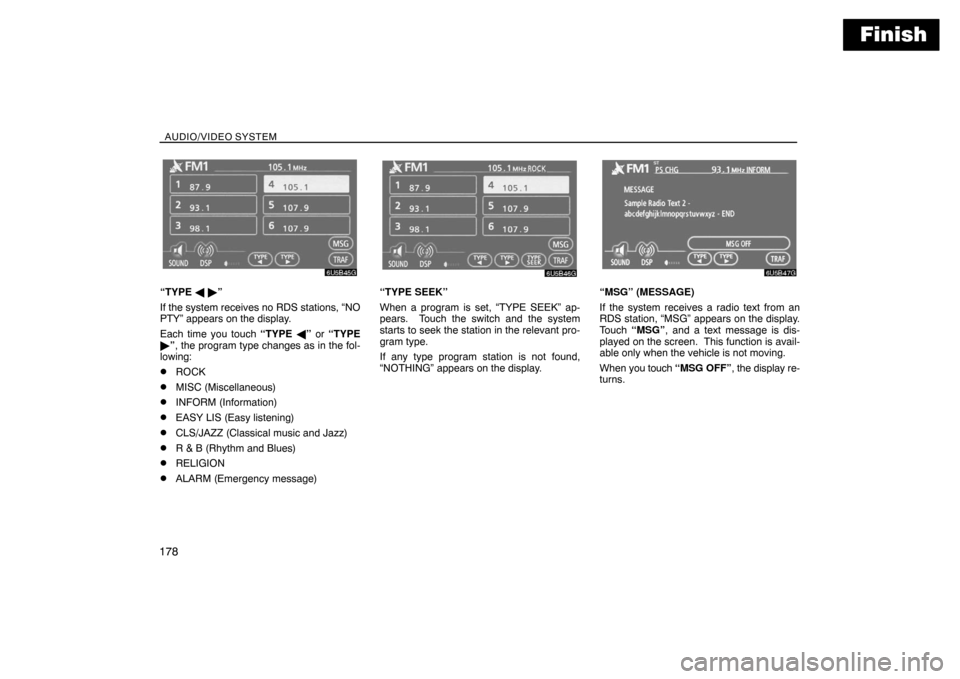

“TYPE  ”
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch “TYPE ” or “TYPE
”, the program type changes as in the fol-
lowing:
ROCK
MISC (Miscellaneous)
INFORM (Information)
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R & B (Rhythm and Blues)
RELIGION
ALARM (Emergency message)
“TYPE SEEK”
When a program is set, “TYPE SEEK” ap-
pears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.“MSG” (MESSAGE)
If the system receives a radio text from an
RDS station, “MSG” appears on the display.
Touch “MSG”, and a text message is dis-
played on the screen. This function is avail-
able only when the vehicle is not moving.
When you touch “MSG OFF”, the display re-
turns.
