2008 Seat Leon 5D COMMUNICATION SYSTEM

Communication
24
If the number from which the incoming call is being made is associated with
a name in the existing phone book then the name will be displayed on the
radio display.
Information on radio display
An incoming call is indicated on the display. To receive call, press button
on the multi-function control or button on the radio (see Radio manual).
To reject the call, press the multi-function button on the radio.
To cancel an outgoing call, press the multi-function button on the radio
(see Radio manual).
Information regarding the mobile phone coverage is displayed on the radio
display.
Fig. 13 Incoming call
Fig. 14 Outgoing call
AEAAAB
AB

Communication25
Controls and equipment
Dialogue
The voice command system can be activated with the “press
to talk” button, located on the multi-function control.
In this manual, Dialogue is defined as the time in which the voice command
system may receive vocal commands and provide assistance for the comple-
tion of different functions where the user is hesitant and unsure how to
proceed. The system also responds with vocal messages. The dialogue starts
and is stopped by pressing the “press to talk” button Ÿpage 23, fig. 11
or on the radio display.
If a call is received, then the dialogue is immediately interrupted. The call may
be accepted by pressing the key “answer” on the multi-function control.
Assistance from voice control system when commands are not recognised.
If a command is not recognised by the system, it will answer with the cue
and the command can then be given once again clearly.
After a third failure the system will answer with and the dialogue will
be ended. Please note the following to ensure that you are properly understood:
•Speak in a normal tone and without pauses or exaggerated pronuncia-
tion.
•Avoid poor articulation of words.
•Keep the doors, windows and sun roof closed if possible to avoid back-
ground noises that might affect the system.
•Keep the air vents directed away from the microphone (located on the
interior light).
•At high speeds, you might need to speak louder to drown out background
noises.
•Avoid other noises in the vehicle during a dialogue (e.g. other passengers
speaking in the vehicle).
•Avoid speaking when the system is saying a cue.
•The hands-free microphone is directed towards the driver, therefore, only
the driver should try to operate the system.
•To make a call when there is heavy background noise we recommend
using the speech controlled telephone book instead of saying individual
digits. This will help avoid mistakes when specifying telephone numbers.
Micro off
If, at any time, we do not wish to be heard by the person on the other end of
the line during a call, the vehicle microphone can be temporarily discon-
nected. To do so, press the multi-function button on the radio (see Radio
manual) during the call.
To reactivate the micro, press the multi-function button on the radio again
(see Radio manual).Fig. 15 Current phone
call
ACok

AA
AA

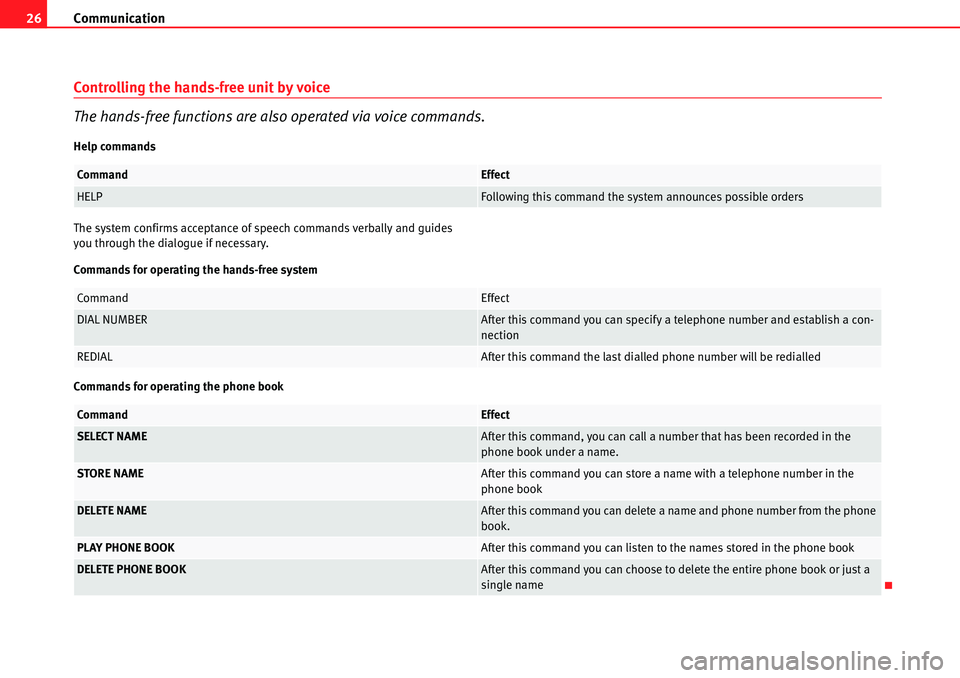

Communication
26
Controlling the hands-free unit by voice
The hands-free functions are also operated via voice commands.
Help commands
The system confirms acceptance of speech commands verbally and guides
you through the dialogue if necessary.
Commands for operating the hands-free system
Commands for operating the phone book
CommandEffect
HELPFollowing this command the system announces possible orders
CommandEffect
DIAL NUMBERAfter this command you can specify a telephone number and establish a con-
nection
REDIALAfter this command the last dialled phone number will be redialled
CommandEffect
SELECT NAMEAfter this command, you can call a number that has been recorded in the
phone book under a name.
STORE NAMEAfter this command you can store a name with a telephone numbe r in the
phone book
DELETE NAMEAfter this command you can delete a name and phone number from the phone
book.
PLAY PHONE BOOKAfter this command you can listen to the names stored in the phone book
DELETE PHONE BOOKAfter this command you can choose to delete the entire phone book or just a
single name

Communication27
Controls and equipment
Control commands
The control commands are used to ca rry out functions that have already been chosen.
The control commands are used during or at the end of a dialogue to carry out
certain functions.
Possible commands
Dial number
A telephone number can be vocally specified to the system and then dialled.
– Press the talk button Ÿpage 23, fig. 11 . Activation of the
system is confirmed by a tone.
– After the tone, say the command DIAL NUMBER.After this command the system will then request you to specify a telephone
number. A connection will then be established to the specified number. The
telephone number can be specified all at once, in blocks of digits (separated
by a brief pause), or as single digits. You can specify the digits from zero to
nine . After each block of digits you specify (separated by a brief pause) the
CommandEffect
DIALTelephone number already entered is dialled.
STOREA name is saved in the phonebook with its phone number
CANCELCancels a running dialogue.
REPEATThe specified name or all of the digits specified up to this point will be
repeated. The system will then give the cue so that you can
specify additional digits or commands.
CORRECTIONThe specified name or the last entered block of digits will be deleted. The sys-
tem will then give the cue so that you can specify additional
digits or commands.
DELETEAll specified digits will be deleted. The system will then give the cue number has been deleted. Please, proceed> so that you can specify new digits
or commands.
AC

Communication
28
system will repeat the digits. The system can only recognise single digits
(one, zero, two, five, etc.), and not combinations of digits (e.g. ten, twenty-
five). Notes on specifying telephone numbers:
•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
Example of how to enter a telephone number:
A running dialogue can be cancelled at any time by pressing the talk button Ÿ page 22, fig. 9 .
CommandConditionMessageEffect
DIAL NUMBERPhone switched onDialogue
for example, ZERO, SEVEN, THREE,
ONEDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back, or specify additional digits>Dialogue
THREE, NINE, TWODialogue
DIALDialogue -The telephone number
0731492 will be dialled
End of dialogue
AC

Communication29
Controls and equipment
Redial
– Press the talk button .
– After the tone, say the command REDIAL.After giving the command the last number dialled via the hands-free system
will be dialled again.
Example of the REDIAL command:
A running dialogue can be cancelled at any time by pressing the talk button Ÿ page 23, fig. 10 .
To store names in the phone book
You can store names and telephone numbers in the internal phone book.
– Press the talk button . The beep tone indicates that the system
is ready.
– After the tone, say the command STORE NAME.
After giving the command the system will request you to specify a name and
telephone number to store in the internal phone book. The telephone book can store 50 names and numbers. You can specify the digits from
zero to
nine .
The telephone number can be specified all at once, in blocks of digits (sepa-
rated by a brief pause), or as single digits. After each block of digits you
specify (separated by a brief pause) the system will repeat the digits. The
system can only recognise single digits (one, zero, two, five, etc.), and not
combinations of digits (e.g. ten, twenty-five).
Say STORE to store the entry in the phone book.
AC
CommandConditionMessageEffect
REDIALPhone switched onDialogue
End of dialogue
AC
AC
CommandConditionMessageEffect
STORE NAMEPhone book is not fullDialogue
COMPANY XYZDialogue

Communication
30
A running dialogue can be cancelled at any time by pressing the talk button
Ÿ page 23, fig. 10 .
Note
•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
•Say the command delete or back to delete or correct the corresponding
block of digits.
•Say repeat to have all the digits that have been recognised up to that
point repeated.
•If two or more names sound alike, it is better to save the names including
the first name or some other distinguishing entry.
•A running dialogue can be cancelled at any time by pressing the talk
button .
•The phone book works only in conjunction with the hands-free voice
command system; the entries are not stored on the phone SIM card.
COMPANY XYZDialogue
ZERO, ONE, TWO, THREEDialogue
FOUR, FIVE, SIXDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command repeat, back, delete, or specify addi-
tional digits>Dialogue
STOREDialogue - The name COMPANY XYZ
with the telephone number 0123456
has been stored
End of dialogue
AC
AC

Communication31
Controls and equipment
Calling a name in the phone book
– Press the talk button .
– After the tone, say the command SELECT NAMEAfter the system has recognised this command, you may select a stored entry
from the telephone book to call the required number. The system best recog-
nises names spoken by the person who stored the name.
Example of how to select an entry from the phone book
A running dialogue can be cancelled at any time by pressing the talk button Ÿ page 23, fig. 10 .AC
CommandConditionMessageEffect
SELECT NAMEPhone is switched on, telephone book
contains entries.Dialogue
COMPANY XYZDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command repeat, back>Dialogue
DIALDialogue - The telephone number for
Company XYZ is being dialled
End of dialogue
AC
