General information
4General informationThis manual contains information, recommendations, advice and warnings
related to your radio equipment. The other publications in the vehicle wallet
contain further information which you should be aware of for your own safety
and for the safety of your passengers.
Ensure that the onboard documentation is kept in the vehicle at all times.
This is especially important when lending or selling the vehicle to another
person.
This manual contains a description of the Radio equipment supplied at the
time of going to press. So me of the equipment described here will not be
available until a later date, or are only available in certain markets.
The illustrations are intended as a general guide, and may vary from the
equipment fitted in your vehicle in some details.
Directions and positions (e.g. right, left, front, rear) are always relative to the
direction of travel of the vehicle unless otherwise stated.
The equipment marked with an asterisk * comes in series only in determined
model versions, is optional in some mo dels, or is only offered in specific
countries.
® Registered trademarks are marked ®. However, the absence of this
symbol does not constitute a waiver of the rights concerning any propri-
etary name.
The section is continued on the following page.

This shows the end of the section .WARNING
Texts preceded by this symbol contain safety information. They warn you
of serious dangers, possibly involving accident or injury.
Caution
Texts preceded by this symbol draw your attention to a possible risk of
damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol refer to relevant points concerning environ-
mental protection.
Note
Texts preceded by this symbol contain additional information.
Car stereo_EN.book Seite 4 Di enstag, 18. März 2008 4:15 16

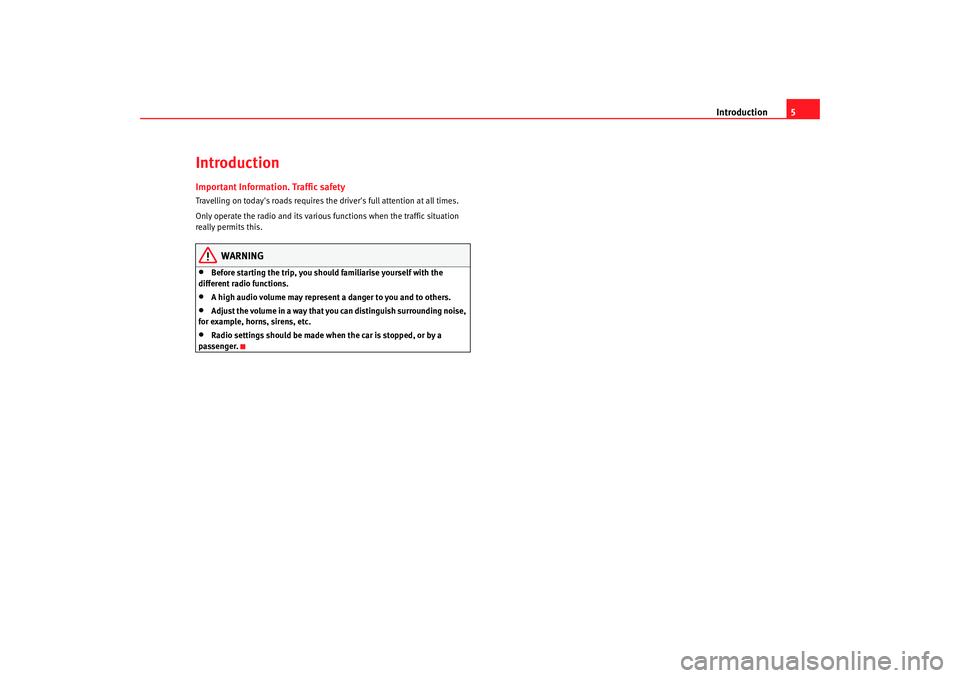

Introduction5
IntroductionImportant Information. Traffic safetyTravelling on today's roads requires the driver's full attention at all times.
Only operate the radio and its various functions when the traffic situation
really permits this.
WARNING
•
Before starting the trip, you should familiarise yourself with the
different radio functions.
•
A high audio volume may represent a danger to you and to others.
•
Adjust the volume in a way that you can distinguish surrounding noise,
for example, horns, sirens, etc.
•
Radio settings should be made when the car is stopped, or by a
passenger.
Car stereo_EN.book Seite 5 Di enstag, 18. März 2008 4:15 16

Remember
6RememberConvenience anti-theft codeThe sound equipment automatically identifies “its” vehicle.
If the electricity supply is interrupted, when the ignition is switched on again,
the sound equipment automatically checks whether it can still identify “its”
vehicle. Once the vehicle has been identified, the sound equipment is again
ready to be used after a few seconds.
With the convenience code it is no longer necessary to manually unblock the
sound equipment.
However, if the sound equipment is in another vehicle, it must be unblocked
by entering the code. To obtain the code, contact an authorised SEAT
dealer.Important information concerning the handling of your radio equipment Use when driving
Travelling on today's roads requires the driver's full attention at all times.
Thanks to their many sophisticated features, modern radio equipments
provide a great variety of entertainment forms and a range of information on
traffic and road conditions, etc.
However, the radio, with all its possibil ities, should only be used if traffic
conditions really allow it.
For example, changing CDs or reading song titles while driving may easily
lead to dangerous situations. The radio volume should be set so that acoustic signals from outside can also
be heard at all times.
WARNING
Please keep your attention on driving as a priority!Soft-Clipping FunctionThe radio has an automatic volume reduction system to avoid distortion and
possible damage to the radio and speakers.
The majority of the time, this adjustme
nt is made when the volume indicator
is not visible (normal screen for the selected source) and the change is not
noticeable.
Remember that if this protection is activated when the temporary volume
indicator is visible, it will appear to be a reduction of the volume selected by
the user.Protection against overloadingIn the event of high temperatures and/or large volumes, the protection circuit
may react.
During this phase, to discharge the amplifiers, the final stages of the
speakers are disconnected.
Car stereo_EN.book Seite 6 Di enstag, 18. März 2008 4:15 16

USB/iPod® from Apple* mode
28To switch the function on, press button briefly. The loudspeaker symbol on
the display appears with a line through it.
To switch the function off, press or turn button briefly.INFO FunctionDisplay information (artist, track name, ...) if available on the ID3.
The function is switched on using the key “info”. This button is only avail-
able when the information has been correctly read by the device.
If the length of the information is greater than the display capacity, the
display scrolls once the text to the left.
Additional instructions
Additional instructions for the mass storage device (MSD: Mass Storage
Device):•
Only USB devices compatible with USB 2.0 protocol are compatible.
•
The file systems of the external data storage devices must be FAT16 (<
2GB) or FAT32 (>2GB). (FAT: File Allocation Table)
•
If the data structures on the storage device are very complex (many
folders, subfolders, non-playable data fi les), they may take some time to read
the contents of the device data. (Message on the radio: Loading) The reaction
time may also be influenced by the connected device.
•
The maximum supported levels in data structure are 8 subfolders. Each
folder must contain a maximum of 1,000 files.
•
USB-HUBS cannot be used for the connection of audio devices.
•
The use of memory cards adapter may lead to a system non-operation.
•
If there are several partitions on one disc, only the first containing music
is played.
•
If the MP3 music player has been updated by the manufacturer (Firmware-
Upgrade), this may lead to misfunctioning.
•
Some audio players will have to be switched on before connecting them
to the vehicle and the data mode selected, if possible.
•
Please, consult the manufacturer's instruction manual to handle the
external audio devices.
•
Compatible formats include: MP3, WMA, OGG-Vorbis, AAC.
•
The files in WMA (Windows Media Auto) format can be played whenever
they are not protected with DRM (Digital Rights Management).
•
Play lists are compatible with the following formats: PLS, B4S, ASX and
WPL
•
Play lists store play order of the files stores in the CD. The play list has no
audio file by itself. A play list can only be played if the file is found at the same
directory in which it was found when the play list was created. Otherwise, the
list will not be played.
•
Some tracks may not play or may be played incorrectly. This may be due
to the configuration of the disc, the so ftware or the hardware used for the
recording.
WARNING
•
The connected audio devices must be protected from possible mechan-
ical damage and other kind of wear.
•
We do not hold responsible for any possible damage on the connected
devices.
AC
AC
AA
Car stereo_EN.book Seite 28 Dienstag, 18. März 2008 4:15 16

Important information concerning the CD reader
30Important information concerning the CD readerPrecautionary measures for the use of laser equipmentLaser devices are classified by DIN IEC 76 (CO) 6/ VDE 0837 into safety
classes 1 to 4.
The SEAT CD player corresponds to safety class 1.
The lasers used in class 1 units are low energy lasers, or are shielded in such
a manner that they present no danger when used correctly.
Do not remove the cover of the unit. It does not have any parts which can be
serviced by the user.Tips for CD modeTo ensure perfect, high-quality CD reproduction, only clean, undamaged CDs
should be used.
Please do not stick any labels onto the CDs.
Compact discs not being used should always be stored in the CD rack (you
can find one, for example, in the SEAT Genuine accessories Catalogue) or in
their original case.
Never expose CDs to direct sunlight!
Caution
Use only standard 12 cm CDs. Special “shape CDs” or 8 cm “singles” cannot
be played because they may damage the CD player.
Tips on cleaning CDsUse a soft, lint–free cloth to clean CDs. Clean discs in a straight line from the
centre outwards. If they are very dirty use a conventional CD cleaner or
isopropyl alcohol.
WARNING
Never use fluids such as petrol, paint thinner or record cleaner, as these
can damage the CD surface!
Car stereo_EN.book Seite 30 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system33
Phone book
The speech control system offers the option of creating and using an phone
book belonging to the vehicle system and independent of the mobile tele-
phone. This phone book may contain 50 entries.
WARNING
•
Please concentrate on driving. As the driver, you have the responsibility
for your safety and that of others. For this reason, you should only use the
functions in a manner that allows you to maintain control of the vehicle in
all situations - otherwise, you may create an accident risk!
•
The speech system must not be used in cases of emergency, since the
voice changes in stressful situations. This could result in a failed or delayed
telephone connection. Always dial emergency numbers manually!
Using the hands-free system from the multi-function controlThe hands-free system can be activated using the multi-func-
tion control.As well as using the speech control, it is possible to use the hands-free
system functions from the controls on the steering wheel and from the multi-
function control lever.
When the connection is established between your mobile telephone and
hands-free device, the phonebook in your SIM card is downloaded to the
hands-free device.
Depending on the version, when the connection is established between your
mobile telephone and the hands-free device, the phonebook in the tele-
phone is downloaded to the hands-free device as well as lost calls, received
calls and last calls.
Fig. 11 Multi-function
control
Car stereo_EN.book Seite 33 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system35
Information on radio displayAn incoming call is indicated on the display. To receive call, press button
on the multi-function control or button ⇒page 34, fig. 12 on the radio. To
reject the call, press button on the radio. To cancel an outgoing call, press button
⇒page 9, fig. 1 on the radio.
Information regarding the mobile phone coverage is displayed on the radio
display.
WARNING
•
The use of an integrated exterior aerial is recommended; this should be
installed professionally for telecommunications equipment, for example,
mobile telephones, specifically with the vehicle occupants in mind.
•
The exterior aerial diverts the electromagnetic fields out of the vehicle
and reduces the field intensity inside the vehicle in comparison to systems
without an exterior aerial.
•
The use of the exterior aerial will avoid any of the related health risks
presently under scientific discussion.
•
Investigations have concluded that in unfavorable conditions, the use
of a mobile phone inside the vehicle without an exterior aerial may exceed
international health risk limits.
•
The use of an exterior aerial may be ineffective for diversion of electro-
magnetic fields to the exterior of the vehicle if the installation has not been
completed correctly.
Fig. 14 Incoming callFig. 15 Outgoing phone
call
AE
AA
AB
AB
Car stereo_EN.book Seite 35 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system
46Notes on the phone bookTake note of these tips and suggestions when using the
phone book.•
It is important that names stored in the phone book have a noticeable
acoustic difference between them so the system can recognise the entries.
•
In the event that an telephone book entry is not recognised (e.g. if
someone else tries to call-up a name), the phone book entries can be read out
by giving the command PLAY PHONE BOOK .
•
The numbers zero to nine are recognised by the system. Say the numbers
clearly so that the system can recognise them easily.
Should the system say , check the status of the
hands-free system as follows.
•
Is the phone switched on?
•
Has the PIN code been entered?
WARNING
The speech system must not be used in cases of emergency, since the voice
changes in stressful situations. This could result in a failed or delayed tele-
phone connection. For this reason, always enter emergency numbers
manually.
NO
The telephone book will then be read
out.
No command
Talk button pressed as the entry to
be deleted is read out.
(name)?>
Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command

Dialogue
YES

The entry will be deleted and the
remaining entries will be read out.
All entries are read out.
End of dialogue
AC
Car stereo_EN.book Seite 46 Dienstag, 18. März 2008 4:15 16
