2008 PONTIAC GRAND PRIX Owners Manual

The CHANGE OIL SOON message is reset by
acknowledging the message. The ENGINE OIL
MONITOR SYSTEM screen under the options menu
on the DIC must also be reset. See “Engine Oil Monitor
System” in options underDIC Operation and Displays
(Uplevel DIC with Trip Computer) on page 3-55or
DIC Operation and Displays (Base Level DIC) on
page 3-62for more information.
This message displays while the ignition is in ON/RUN.
Press the set/reset button to acknowledge this
message and to clear it from the screen.
This message continues to display for three seconds
if it has not been acknowledged when the engine
is turned off. It also re-displays for three seconds if the
message has been acknowledged, but the condition
still exists when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.CHARGING SYSTEM FAILURE
This symbol comes on
with this message.
This message displays when there is a problem with the
generator and battery charging systems. Driving with this
problem could drain the battery. Turn off all unnecessary
accessories. Stop and turn off the vehicle as soon as
it is safe to do so. Have the electrical system checked by
your dealer/retailer as soon as possible.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message is
displayed. Press the set/reset button to acknowledge this
message and to clear it from the screen.
This message continues to display if it has not been
acknowledged when the engine is turned off. It also
re-displays for three seconds if the message has been
acknowledged, but the condition still exists when the
engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-69

CHECK GAS CAP
This message displays when the fuel cap is not on,
or is not fully tightened. Check the fuel cap to ensure it is
on and properly tightened. The diagnostic system can
determine if the fuel cap has been left off or improperly
installed. A loose or missing fuel cap allows fuel to
evaporate into the atmosphere. A few driving trips with
the cap properly installed should turn this message off.
SeeFilling the Tank on page 5-8for more information.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed and then the message continues to display.
Press the set/reset button to acknowledge this
message and to clear it from the screen.
This message continues to display for three seconds
if it has not been acknowledged when the engine
is turned off. It also re-displays for three seconds if the
message has been acknowledged, but the condition
still exists when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
CHECK TIRE PRESSURE
This message displays when the pressure in one or
more of the vehicle’s tires needs to be checked. This
message also displays LEFT FRONT, RIGHT FRONT,LEFT REAR, or RIGHT REAR to indicate which tire
needs to be checked. You can receive more than one tire
pressure message at a time. To read the other messages
that may have been sent at the same time, press the
set/reset button. If a tire pressure message appears on
the DIC, stop as soon as you can. Have the tire pressures
checked and set to those shown on the Tire Loading
Information label. SeeTires on page 5-62,Loading Your
Vehicle on page 4-22, andInflation - Tire Pressure on
page 5-69. The DIC also shows the tire pressure values.
SeeDIC Operation and Displays (Uplevel DIC with Trip
Computer) on page 3-55orDIC Operation and Displays
(Base Level DIC) on page 3-62. If the tire pressure is low,
the low tire pressure warning light comes on. SeeTire
Pressure Light on page 3-49.
This message displays while the ignition is in ON/RUN.
Press the set/reset button to acknowledge this
message and to clear it from the screen.
This message continues to display for three seconds
if it has not been acknowledged when the engine
is turned off. It also re-displays for three seconds if the
message has been acknowledged, but the condition
still exists when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-70

CRUISE SET
This symbol comes on
with this message.
This message and symbol display briey whenever the
cruise control is set. The cruise control light on the
instrument panel cluster also comes on when cruise
control is set. SeeCruise Control Light on page 3-53.
CRUISE SET also appears briey in the Head-Up
Display (HUD), if your vehicle has this feature. This
message displays when the ignition is in ON/RUN.
SeeCruise Control on page 3-12for more information.
This message does not need to be acknowledged.
DELAYED LOCKING
This message displays when the doors of the vehicle
are closed and the delayed locking feature has
been programmed through the DIC. See “DELAYED
LOCKING” underDIC Vehicle Customization on
page 3-89for more information.This message displays when the ignition is in
LOCK/OFF. A chime sounds for two seconds
when this message is displayed.
This message cannot be acknowledged.
HEADLAMPS SUGGESTED
This message displays when the amount of available
light outside the vehicle is low and the exterior
lamps control has been turned off. This condition
happens when the headlamps are turned off at night
or the Daytime Running Lamps (DRL) are turned
off during the day. This message informs the driver
that it has become dark enough outside to require the
headlamps to be turned on. When the headlamps
are turned on, this message clears from the screen.
SeeExterior Lamps on page 3-16andDaytime Running
Lamps (DRL) on page 3-17for more information.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this warning message and to clear it from the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-71

HOT COOLANT
Notice:If the HOT COOLANT warning message
appears on the DIC display, stop the vehicle as soon
as possible. Do not increase the engine speed
above normal idling speed. Severe engine damage
can result from driving a vehicle with an overheated
engine. SeeEngine Overheating on page 5-27for
more information.
This symbol comes on
with this message.
This message displays when the engine coolant
temperature is too hot. The engine coolant temperature
warning light also appears on the instrument panel
cluster. Also, the engine coolant temperature gage
will read in the red or hot area. SeeEngine Coolant
Temperature Warning Light on page 3-48andEngine
Coolant Temperature Gage on page 3-49for more
information.
To avoid added strain, turn off the air conditioner if it is
on. When the coolant temperature returns to normal,
the air conditioner can be turned back on.This message displays only while the ignition is in
ON/RUN. A chime sounds continuously when this
message is displayed. Press the set/reset button
to acknowledge this message and to clear it from
the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
HOT ENGINE OIL. REDUCE SPEED
On some vehicles, this message displays when
the vehicle’s engine oil is above the proper engine
operating temperature. Reduce the speed of the vehicle.
If this message continues to display, have the vehicle
serviced by your dealer/retailer as soon as possible.
A chime sounds continuously when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.
If the condition still exists, the message re-appears
when the engine is turned on.
3-72

HOT TRANS (Transmission) FLUID
This symbol comes on
with this message.
This message displays when the transmission uid in
the vehicle is too hot. Stop the vehicle and allow it to
idle until it cools down. If this message continues
to display, have the vehicle serviced by your
dealer/retailer as soon as possible.
If the vehicle has the Uplevel Trip Computer DIC,
you can determine the actual temperature of the
transmission uid using the vehicle’s gages button.
SeeDIC Operation and Displays (Uplevel DIC with
Trip Computer) on page 3-55orDIC Operation
and Displays (Base Level DIC) on page 3-62for
more information.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
KEY FOB BATTERY LOW
This symbol comes on
with this message.
This message displays when the battery in the Remote
Keyless Entry (RKE) transmitter needs to be replaced.
To replace the battery, see “Battery Replacement”
underRemote Keyless Entry (RKE) System Operation
on page 2-4.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.
3-73

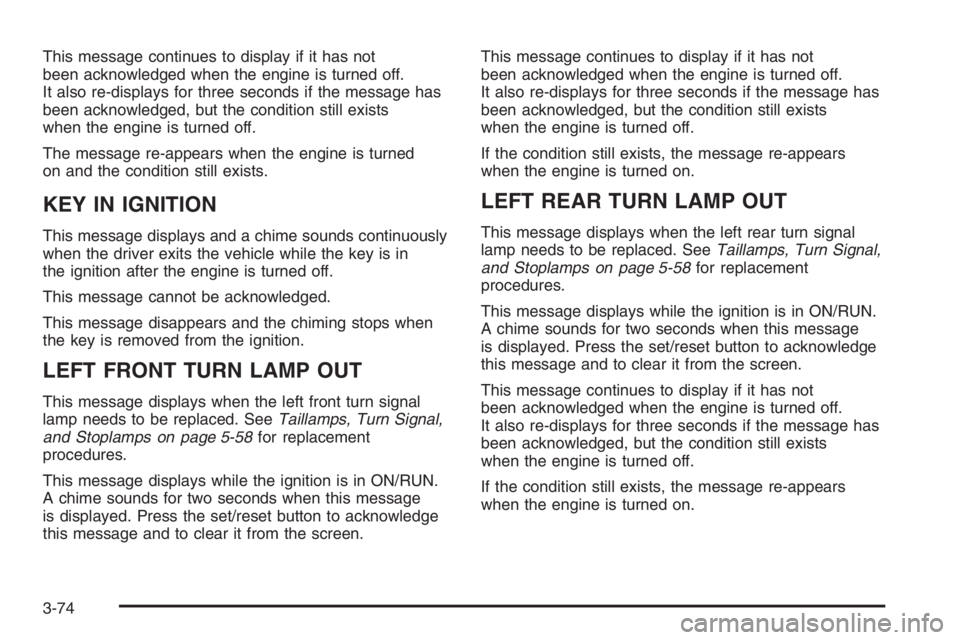

This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
The message re-appears when the engine is turned
on and the condition still exists.
KEY IN IGNITION
This message displays and a chime sounds continuously
when the driver exits the vehicle while the key is in
the ignition after the engine is turned off.
This message cannot be acknowledged.
This message disappears and the chiming stops when
the key is removed from the ignition.
LEFT FRONT TURN LAMP OUT
This message displays when the left front turn signal
lamp needs to be replaced. SeeTaillamps, Turn Signal,
and Stoplamps on page 5-58for replacement
procedures.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
LEFT REAR TURN LAMP OUT
This message displays when the left rear turn signal
lamp needs to be replaced. SeeTaillamps, Turn Signal,
and Stoplamps on page 5-58for replacement
procedures.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-74

LOW BRAKE FLUID
This symbol comes on
with this message.
This message displays when the brake uid level is low.
Have the brake system serviced by your dealer/retailer
as soon as possible. SeeBrakes on page 5-41.
The brake system warning light also appears on the
instrument panel cluster when this message appears
on the DIC. SeeBrake System Warning Light on
page 3-45.
This message displays only while the ignition is in
ON/RUN. A chime sounds for two seconds while this
message is displayed. Press the set/reset button
to acknowledge this message and to clear it from the
screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition exists, the message re-appears when
the engine is turned on.
LOW FUEL
This symbol comes on
with this message.
This message displays when the vehicle is low on fuel.
Rell the fuel tank as soon as possible.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
3-75

LOW OIL LEVEL
On some vehicles, this message displays when the
vehicle’s engine oil is low.
This symbol comes on
with this message.
If this message comes on, ll the oil to the proper
level as soon as possible. SeeEngine Compartment
Overview on page 5-12for engine oil ll location. Also,
seeEngine Oil on page 5-15for information on the
kind of oil to use and proper oil level.
This message displays while the ignition is in ON/RUN.
A chime sounds for two seconds when this message
is displayed. Press the set/reset button to acknowledge
this message and to clear it from the screen.
This message continues to display if it has not
been acknowledged when the engine is turned off.
It also re-displays for three seconds if the message has
been acknowledged, but the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
LOW OIL PRESSURE
Notice:If the LOW OIL PRESSURE warning
message appears on the DIC display, stop the
vehicle immediately. Do not drive the vehicle until
the cause of the low oil pressure is corrected.
Severe engine damage can result from driving a
vehicle with low oil pressure. SeeEngine Oil
on page 5-15for more information.
This symbol comes on
with this message.
This message displays when the vehicle’s engine oil
pressure is low. The low oil pressure warning light
also appears on the instrument panel cluster. SeeOil
Pressure Light on page 3-52.
3-76
