2008 Peugeot 407 C Owner's Manual

8
94
When maintenance opera-
tions need to be carried out
with the engine running, apply
the handbrake and select the

P ark position. Sport and Snow programmes
These are two special programmes.
The programme selected is displayed
on the instrument panel screen. It is only possible to change
from one gear to another if
the vehicle speed and engine
speed permit. If they do not,
the vehicle will operate temporarily in
automatic mode.
When the vehicle is stationary or mov-
ing very slowly, the gearbox automati-
cally selects gear M1 .
Programmes S (sport) and  (snow)
do not operate in manual gear selec-
tion mode.
Any operating abnormality is
indicated by lighting of this
warning light, accompanied
by an audible signal and a
message on the multi-func-
tion display.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substantial
knock when changing from P to R and
from N to R (this will not cause any
damage to the gearbox).
Do not exceed 60 mph (100 km/h) or
keep within local speed limits.
Contact a PEUGEOT dealer as soon
as possible.
Operating check
Operation with manual selection of the gears

 select position M in the gate,

 push the lever to the + sign to
change up a gear and push again
to change up another gear,

 pull the lever to the - sign to change
down a gear and pull again to
change down another gear.
You can change from position D (driv-
ing in automatic mode) to position M
(driving in manual mode) at any time.
The auto-adaptive programme

 select position D in the gate: the
gearbox operates in auto-adaptive
mode, without any action on your
part, taking into account the follow-
ing parameters:
- the style of driving,
- the profi le of the road,
- the vehicle load.
To obtain maximum acceleration with-
out touching the lever, press the ac-
celerator down fully (kick down). The
programme will change down auto-
matically or will stay in the gear selected
until the maximum engine speed is
reached.
When the brake is applied, the pro-
gramme will change down automati-
cally in order to provide effi cient engine
braking.
Sport programme

 Press button S once the vehicle
has been started in position D , the
auto-adaptive programme favours
dynamic driving
Snow programme
This programme improves starting and
drive when traction is poor.

 Press button  once the vehicle
has been started and position D has
been selected, the auto-adaptive
programme adjusts the performance
of the vehicle to the condition of the
slippery road.
You can deactivate the Sport or Snow
programme at any time by pressing
the button selected.
Releasing the accelerator
sharply does not have any im-
mediate effect on the speed of
the vehicle.
Never select position N when
the vehicle is moving.
Never select positions P or R
unless the vehicle is stationary.
Never change between positions to op-
timise braking on a slippery surface.
If the battery is fl at and the le-
ver is in position P , it will be
impossible to change to an-
other position.
In particular, do not force the lever
or there is a risk the gearbox may be
damaged.

8
95

 Press switch 1 , the indi-
cator light comes on and
the SPORT warning light
comes on.
Manual selection of the SPORT
position

 Press switch 1 again. The
indicator light is switched
off and the AUTO indica-
tor light comes on.
To return to automatic operation
In this position, the suspension is
maintained in the
SPORT position.

In the event of a fault , it
comes on, accompanied by
an audible signal and a mes-
sage on the multifunction
display.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible.
Operating check
This is confi rmed by the switch light
and the indicator lights.
ELECTRONICALLY CONTROLLED SUSPENSION
The suspension adapts automatically
and instantly to different driving styles
and road characteristics, improving
the comfort of the occupants and the
vehicle's road holding capabilities. The
suspension favours smooth shock ab-
sorption, ensuring a comfortable ride,
but as soon as conditions demand a
change (sporty driving, tight bends,
avoidance action, etc.) it automatically
selects fi rmer shock absorption, guar-
anteeing optimum road holding.

8
96
CRUISE CONTROL/SPEED LIMITER
Selecting the function

 Place switch 1 in the CRUISE po-
sition. The cruise control is not
yet active and no speed has been
memorised. The display indicates:
Switching the function off

 Place switch 1 in position 0 or

LIMIT to switch the system off.
Note: It is possible to acceler-
ate and drive momentarily at a
speed greater than the memo-
rised speed. The value mem-
orised fl ashes. When the accelerator
pedal is released, the vehicle will re-
turn to the memorised speed.
Cancelling the memorised speed
If you wish to cancel the memorised
speed:

 Press button 4 or the brake or
clutch pedal. The display indicates
(e.g. at 70 mph (110 km/h)):
Activation/memorising a speed
As soon as you reach the chosen speed,
press button 2 or 3 . This memorises the
speed, which will be maintained auto-
matically. The display indicates (e.g. at
70 mph (110 km/h)):
On a steep descent, the cruise
control, which does not act on
the brakes, is not able to pre-
vent the vehicle from exceed-
ing the programmed speed.
In no circumstances does the cruise
control replace the requirement to re-
spect speed limits, nor does it replace
the need for vigilance and responsibil-
ity on the part of the driver.
We recommend that your feet remain
near the pedals.
Cruise control function
This enables the vehicle to maintain a
steady speed programmed by the driver
In order for it to be memorised, the
vehicle speed must be greater than
25 mph (40 km/h) with at least fourth
gear engaged (second gear for the
automatic gearbox), with the engine
running .

8

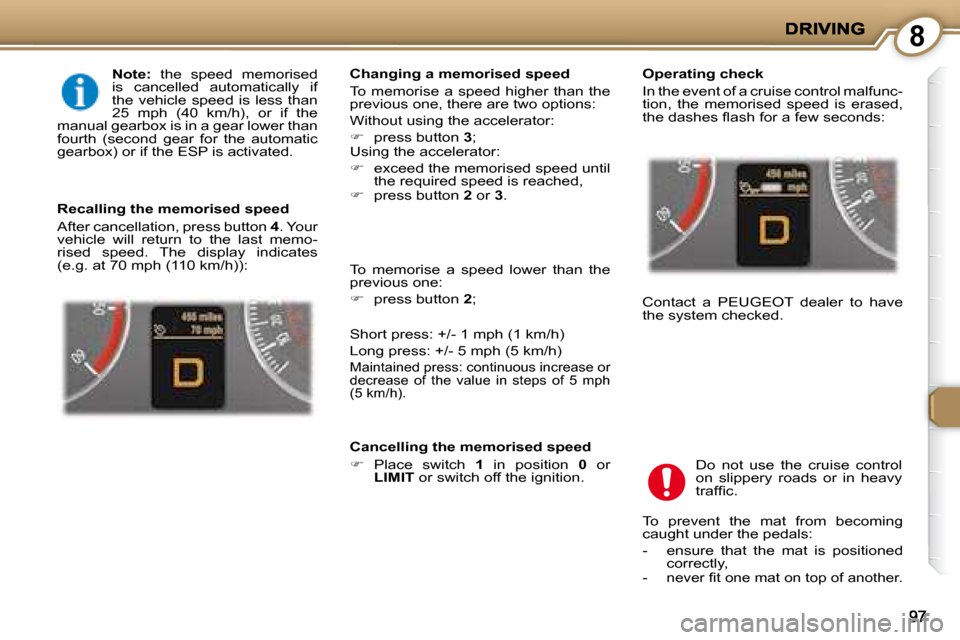

Note: the speed memorised
is cancelled automatically if
the vehicle speed is less than
25 mph (40 km/h), or if the
manual gearbox is in a gear lower than
fourth (second gear for the automatic
gearbox) or if the ESP is activated. Operating check
In the event of a cruise control malfunc-
tion, the memorised speed is erased,
the dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked.
Do not use the cruise control
on slippery roads or in heavy
traffi c.
Changing a memorised speed
To memorise a speed higher than the
previous one, there are two options:
Without using the accelerator:

 press button 3 ;
Using the accelerator:

 exceed the memorised speed until
the required speed is reached,

 press button 2 or 3 .
Recalling the memorised speed
After cancellation, press button 4 . Your
vehicle will return to the last memo-
rised speed. The display indicates
(e.g. at 70 mph (110 km/h)):
Cancelling the memorised speed

 Place switch 1 in position 0 or

LIMIT or switch off the ignition.
To memorise a speed lower than the
previous one:

 press button 2 ;
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned correctly,
-
never fi t one mat on top of another.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)

Maintained press: continuous increase or
decrease of the value in steps of 5 mph
(5 km/h).

8
98
CRUISE CONTROL/SPEED LIMITER
Selecting the function

 Place switch 1 in the LIMIT posi-
tion. The limiter is not yet active.
By default the display indicates:
Switching the function off

 Place switch 1 in position 0 or

CRUISE or switch off the ignition
to switch the system off. The last
speed programmed remains in the
memory.
Memorising a speed
A speed can be memorised without
activation of the limiter.
Pressing buttons 2 and 3 decreases or
increases the speed.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase or
decrease of the value in steps of 5 mph
(5 km/h).
Activation/deactivation of the
limiter
Pressing button 4 activates the limiter,
pressing this button again deactivates it.
When the limiter is active, the display
indicates (e.g. at 70 mph (110 km/h)):

The operations must be carried
out with the engine running.
On a steep descent or if the
driver accelerates sharply, the
speed limiter, which does not
act on the brakes, is not able
to prevent the vehicle from exceeding
the programmed speed.
In no circumstances does the speed
limiter replace the requirement to re-
spect speed limits, nor does it replace
the need for vigilance and responsibil-
ity on the part of the driver.
The driver must remain vigilant and
stay in complete control of his vehicle.
Limiter function
This prevents the vehicle speed ex-
ceeding the speed programmed by
the driver (minimum speed of 18 mph
(30 km/h)).

8

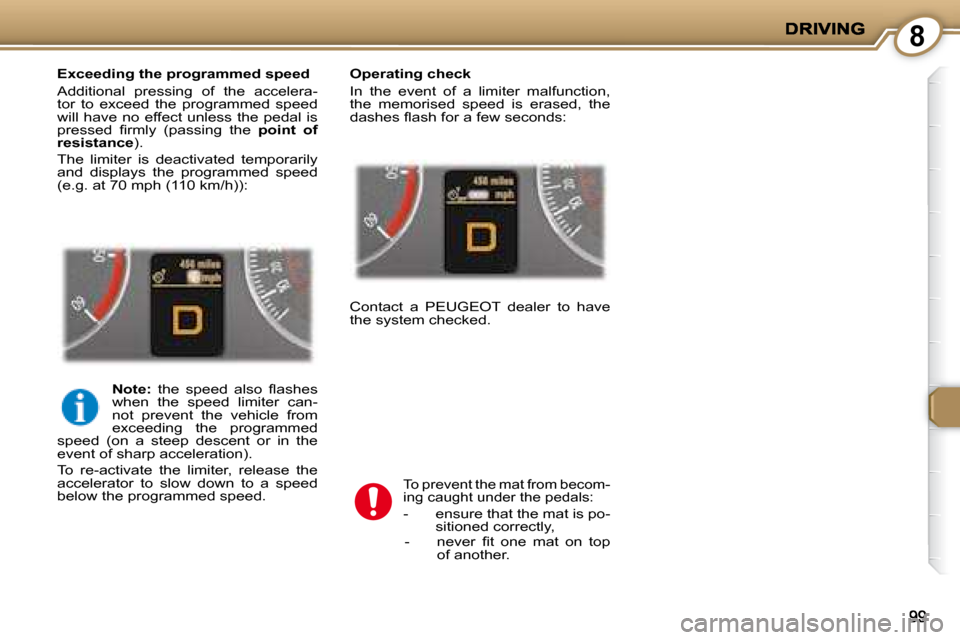

Exceeding the programmed speed
Additional pressing of the accelera-
tor to exceed the programmed speed
will have no effect unless the pedal is
pressed fi rmly (passing the point of
resistance ).
The limiter is deactivated temporarily
and displays the programmed speed
(e.g. at 70 mph (110 km/h)):
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is po- sitioned correctly,
Operating check
In the event of a limiter malfunction,
the memorised speed is erased, the
dashes fl ash for a few seconds:

Note: the speed also fl ashes
when the speed limiter can-
not prevent the vehicle from
exceeding the programmed
speed (on a steep descent or in the
event of sharp acceleration).
To re-activate the limiter, release the
accelerator to slow down to a speed
below the programmed speed. Contact a PEUGEOT dealer to have
the system checked.
- never fi t one mat on top of another.

8
100
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
This system consists of proximity sen-
sors:
- six in the front bumper,
and/or
- four in the rear bumper.
It detects any obstacle (person, vehi-
cle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it. The proximity of the obstacle is indi-
cated by:
- an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,
- a graphic on the multifunction dis- play, with blocks which become in-
creasingly close to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; that is, front or rear and
right or left.
When the distance between the vehi-
cle and the obstacle is less than ap-
proximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears
on the multifunction display.
The system becomes inactive again:
- when you exit reverse gear,
- when the speed is above 6 mph (10 km/h),
- at the end of the manoeuvre, when stationary, after a few seconds
(front parking assistance only).
Detection zone
To guarantee optimum opera-
tion, in bad weather or in win-
ter, ensure that the sensors
are not covered with mud,
frost or snow. The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
-
the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction display.

8
101

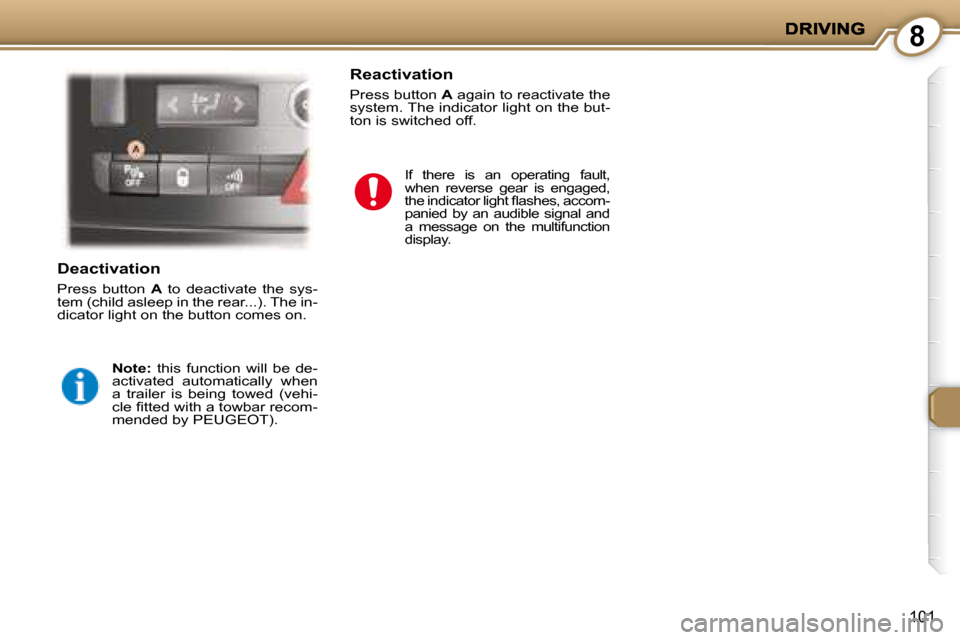

Deactivation
Press button A to deactivate the sys-
tem (child asleep in the rear...). The in-
dicator light on the button comes on.

Note: this function will be de-
activated automatically when
a trailer is being towed (vehi-
cle fi tted with a towbar recom-
mended by PEUGEOT ).
Reactivation
Press button A again to reactivate the
system. The indicator light on the but-
ton is switched off.
If there is an operating fault,
when reverse gear is engaged,
the indicator light fl ashes, accom-
panied by an audible signal and
a message on the multifunction
display.
