2008 Peugeot 407 C light

Sunroof
This roof improves the ventilation and
light in the passenger compartment.
Visual and audible front parking
assistance
This equipment warns you if an obsta-
cle is detected in front of the vehicle in
forward gear. Visual and audible rear parking
assistance
This equipment warns you if an obsta-
cle is detected behind the vehicle when
reversing.
Tyre under-infl ation detection
This equipment checks the pressure of
the tyres while driving and warns you if
a malfunction occurs.

 72

 100

 102

 100 Directional headlamps
This additional lighting automatically
provides additional visibility when cor-
nering.

 76

A. Unfolding/Folding of the key.

B. Normal locking or deadlocking.

C. Complete or selective unlocking.

D. Unlocking of the boot.

1. Bonnet opening control.

2. Opening of the bonnet.

 104
Low fuel level

 73

1. Fuel fi ller fl ap opening button.

2. Opening of the fuel fi ller fl ap.

3. Opening and hooking of the fuel
tank cap.
Capacity of the tank: approximately
67 litres.
When this warning light
comes on on the instru-
ment panel, you have
enough fuel left to drive
approximately 30 miles
(50 km).

 64
Fuel tank Bonnet Remote control key

1. Steering wheel height and depth
adjustment.

2. Cruise control/
speed limiter switches.

3. Lights and direction indicators
controls.

4. Speakers (tweeters).

5. Adjustable and closing central
vents.

6. Air diffuser vent grille.

7. Windscreen de-icing and demisting
vent.

8. Sunshine sensor.

9. Adjustable and closing side vent.

10. Bonnet release.

11. Passenger air bag.

12. Glove box/Video sockets.
Fascia fuse box.

13. Passenger footwell air outlet.

14. Passenger heated seat control.

15. Passenger seat electric controls.
* According to country.

1. Multifunction display.

2. Audio and telematics system.

3. Automatic air conditioning controls.

4. Deactivation of the parking
assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.
SPORT suspension control.
Deactivation of the ESP system.

5. Front ashtray/lighter
(100 W max).

6. Gear lever.

7. Handbrake.

8. Retractable cup/can holder.

9. Armrest with storage compartment.

10. 12 volt accessories socket
(100 W max).

11. Rear ashtray. WIP Com
 130
WIP Sound
 159

Switch on the ignition and press switch 1 :
- indicator light 2 on (switch pressed):
automatic operation.
- indicator light 2 off: automatic sys-
tem off. The mirror remains at its
clearest status.

A. Exterior mirrors selection,
adjustment and folding control.

1. Selection of the driver's mirror.

2. Selection of the passenger mirror.

3. Folding of the mirrors.
Interior mirror adjustment

 49

 48
Exterior mirrors adjustment Memorising driving positions
The memorisation takes into account the
electric adjustment of the driver's seat,
steering wheel and exterior mirrors.
You can memorise two driving positions
using buttons M/1 and M/2 .

 55

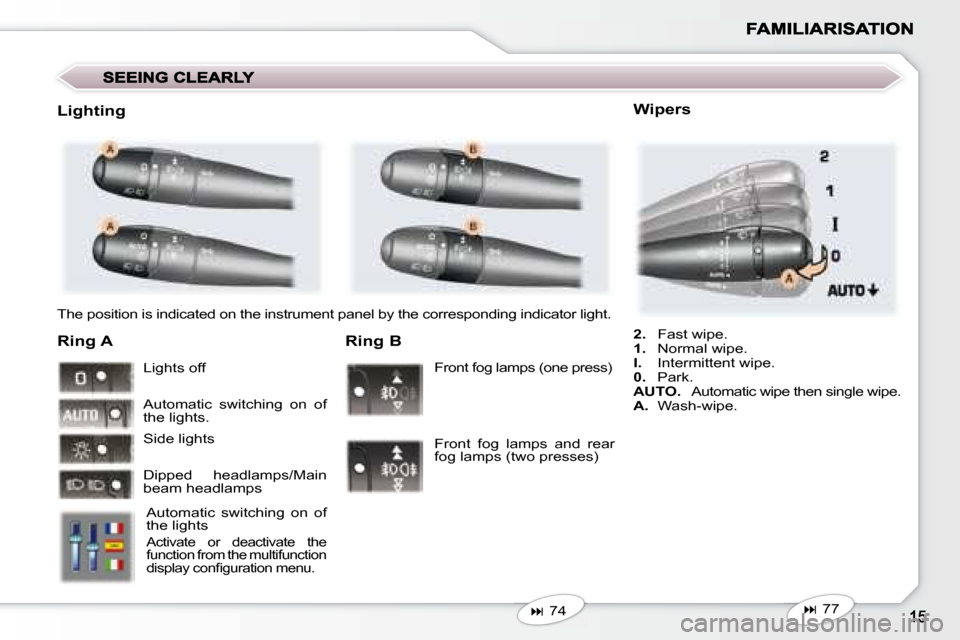

The position is indicated on the instrument panel by the corresponding indicator light.
Ring A
Automatic switching on of
the lights
Activate or deactivate the
function from the multifunction
display confi guration menu.
Ring B
Front fog lamps (one press)
Front fog lamps and rear
fog lamps (two presses)

 74
2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

AUTO. Automatic wipe then single wipe.

A. Wash-wipe.

 77
Wipers Lighting
Lights off
Automatic switching on of
the lights.
Side lights
Dipped headlamps/Main
beam headlamps

 20 With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If a warning light remains on, refer to
the page concerned.
Lighting of the indicator light indicates
the status of the corresponding function.

A. With the ignition on, the fuel gauge
needle should rise.

B. With the engine running, the associ-
ated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
level which is low.
Warning lights

 22
Controls bar Instrument panel
 100

A. Deactivation of the front
and/or rear parking
assistance.

B. Central locking.

C. Deactivation of the
interior protection alarm.

D. Hazard warning lights.

E. Selection of the
electronically controlled
suspension.

F. Deactivation of the
electronic stability
programme ESP. 
70
 68
 83
 95
 84

 89

1. Insert the key.

2. Select the "OFF" position.

3. Remove the key keeping the switch
in this position.
* According to country. Passenger air bag disarmed
This warning light remains on
on the instrument panel whilst
the air bag is disarmed.
Front passenger air bag *
When the ignition is switched on, if a
front occupant has not fastened his seat
belt and if the vehicle speed is below
12 mph (20 km/h), you are warned by
the seat belt warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h), you are warned by the seat
belt warning light which fl ashes, an
audible signal and a message on the
multifunction display locating the seat
belt(s) which is(are) not fastened.
Detection of fastening of the front
seat belts

 86
To guarantee the safety of your child,
it is essential that you disarm the pas-
senger air bag when you install a "rear
facing" child seat on the front passen-
ger seat. Otherwise, the child would risk
being seriously injured or killed if the air
bag were to infl ate.
