2008 Peugeot 407 C Dag headlamp

9

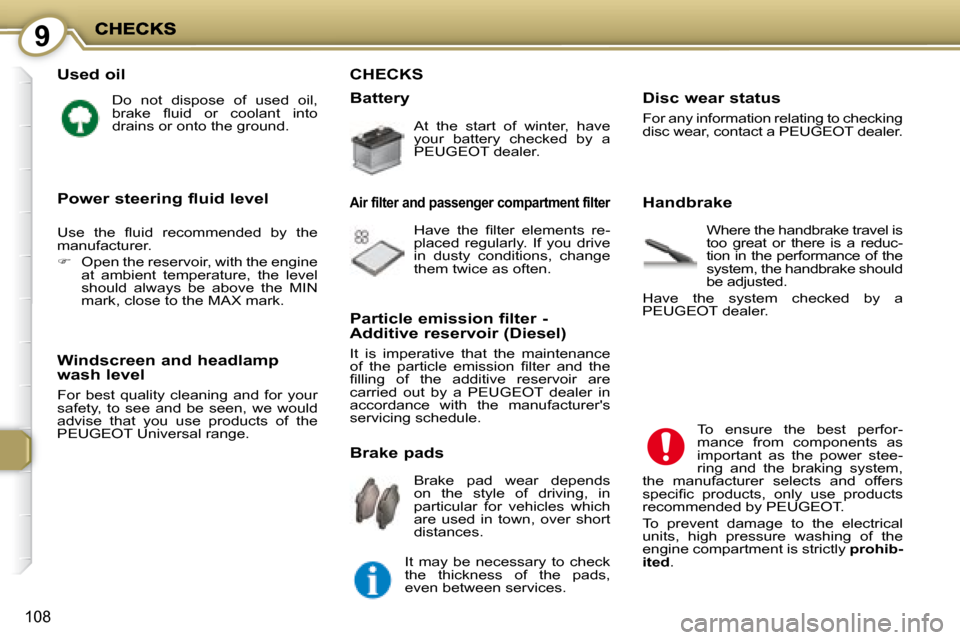

108
Used oil
Do not dispose of used oil,
brake fl uid or coolant into
drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range. At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Battery
CHECKS
Have the fi lter elements re-
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends
on the style of driving, in
parti cular for vehicles which
are used in town, over short
distances.
Brake pads
It may be necessary to check
the thickness of the pads,
even between services. Where the handbrake travel is
too great or there is a reduc-
tion in the performance of the
system, the handbrake should
be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
To ensure the best perfor-
mance from components as
important as the power stee-
ring and the braking system,
the manufacturer selects and offers
specifi c products, only use products
recommended by PEUGEOT .
To prevent damage to the electrical
units, high pressure washing of the
engine compartment is strictly prohib-
ited .
Use the fl uid recommended by the
manufacturer.

 Open the reservoir, with the engine
at ambient temperature, the level
should always be above the MIN
mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance
of the particle emission fi lter and the
fi lling of the additive reservoir are
carried out by a PEUGEOT dealer in
accordance with the manufacturer's
servicing schedule.
Disc wear status
For any information relating to checking
disc wear, contact a PEUGEOT dealer.
Power steering fluid level

1010
112
CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Side lights: W 5 W (COOL BLUE
®).

 Turn the access cap a quarter turn,
remove the bulb and change it.

3 - Direction indicators:
PY 21 W (DIADEM
®).

 Turn the access cap a quarter turn,

 Remove the bulb holder.

 Change the bulb.

4 - Front fog lamps: H11 - 55 W.
The headlamps are fi tted with polycar-
bonate glass with a protective coating.
Do not clean them with a dry or abrasive
cloth, nor with a detergent or solvent
product.
Ensure that the liquid used to fi ll the
wash-wipe and headlamp wash reser-
voir is of good quality. Integrated direction indicator side
repeaters

 Push the repeater forwards or
backwards and release it.

 Unclip the repeater and change it.
Repeaters can be obtained from a
PEUGEOT dealer.
Front lights
In the engine compartment, remove
the cover secured by one or two but-
terfl y screws, a plastic retainer clip and
two quarter turn screws.

1 - Dipped beam and main beam headlamps: D1S - 35 W xenon bulb.

WARNING: RISK OF
ELECTROCUTION Coloured bulbs (side lights
and direction indicators) must
be replaced with bulbs of iden-
tical specifi cation and colour.
In certain climatic conditions
(low temperature, humidity),
condensation on the inside
surface of the headlamp glass
is normal; it disappears a few minutes
after the lights are switched on.
Xenon bulbs must be replaced by a
PEUGEOT dealer.

1010
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully and
refi t the battery cover when you have
fi nished.
Fuse N° Rating Functions

1 20 A Engine control unit, fan assembly relay supply.

2 15 A Horn.

3 10 A Wash-wipe pump.

4 20 A Headlamp wash pump.

5 15 A Fuel pump, engine management actuators
(air fl ow sensor, solenoid valves, ...).

6 10 A ESP control unit.

7 10 A Automatic headlamp adjustment.

8 20 A Starter coil.

1010
117
The electrical system of your
vehicle is designed to operate
with standard or optional equip-
ment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer. PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular where the equip-
ment in question consumes more than
10 milliamperes. The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer.
Fuse N° Rating
Functions
9 10 A Directional headlamps control unit, additional heat
ing switching and protection control unit, clutch
switch.
10 30 A A Engine management actuators (ignition coil, injec
tors, thermostats, solenoid valves, oxygen
sensors), diesel additive pump, fuel pump, engine c ontrol unit, Blow-by heater.
11 40 A Air conditioning blower.
.
12 30 A Windscreen wipers..
13 40 ABuilt-in systems interface supply (ignition positiv e).
14 30 A Not used.
.
