5
74

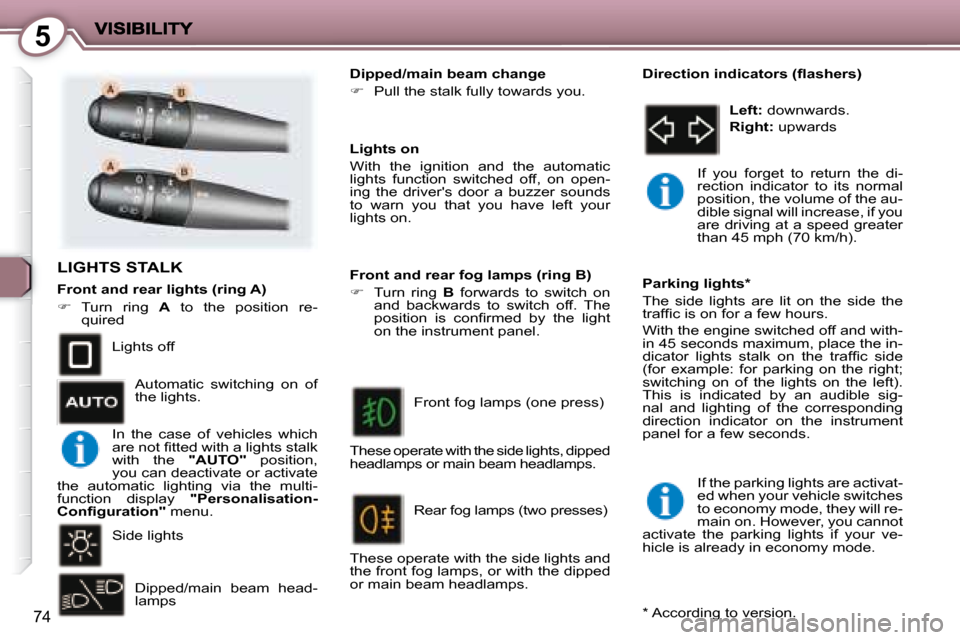

LIGHTS STALK
Lights off
Side lights Dipped/main beam head-
lamps Lights on
With the ignition and the automatic
lights function switched off, on open-
ing the driver's door a buzzer sounds
to warn you that you have left your
lights on.
Front and rear fog lamps (ring B)
Turn ring B forwards to switch on
and backwards to switch off. The
p o s i t i o n i s c o n fi r m e d b y t h e l i g h t
on the instrument panel.
Front fog lamps (one press)
These operate with the side lights, dipped
headlamps or main beam headlamps. Rear fog lamps (two presses)
These operate with the side lights and
the front fog lamps, or with the dipped
or main beam headlamps.
Left: downwards.
Right: upwards
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
If you forget to return the di-
rection indicator to its normal
position, the volume of the au-
dible signal will increase, if you
are driving at a speed greater
than 45 mph (70 km/h).
Parking lights *
The side lights are lit on the side the
t r a f fi c i s o n f o r a f e w h o u r s .
With the engine switched off and with-
in 45 seconds maximum, place the in-
d i c a t o r l i g h t s s t a l k o n t h e t r a f fi c s i d e
(for example: for parking on the right;
switching on of the lights on the left).
This is indicated by an audible sig-
nal and lighting of the corresponding
direction indicator on the instrument
panel for a few seconds.
If the parking lights are activat-
ed when your vehicle switches
to economy mode, they will re-
main on. However, you cannot
activate the parking lights if your ve-
hicle is already in economy mode.
Dipped/main beam change
Pull the stalk fully towards you.
* According to version.
Automatic switching on of
the lights.
In the case of vehicles which
a r e n o t fi t t e d w i t h a l i g h t s s t a l k
with the "AUTO" position,
you can deactivate or activate
the automatic lighting via the multi-
function display "Personalisation-
C o n fi g u r a t i o n " menu.
Front and rear lights (ring A)
Turn ring A to the position re-
quired
Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 85 of 211
5
76
AUTOMATIC HEADLAMP ADJUSTMENT
W h e n s t a t i o n a r y a n d w h e n t h e v e h i -
c l e i s m o v i n g , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver
is then assured of having optimum light-
ing and not causing a nuisance to other
road users.
DIRECTIONAL HEADLAMPS
Activation/Deactivation
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The quality of your lighting when turning
is improved considerably.
I n c a s e s o f m a l f u n c t i o n ,
the warning light comes on
on the instrument panel dis-
play, accompanied by an au-
dible signal and a message
on the multifunction display. The sys-
tem places your headlamps to the low
position.
Do not touch the xenon bulbs.
Consult a PEUGEOT dealer. F u n c t i o n a c t i v a t e d
F u n c t i o n d e a c t i v a t e d To deactivate or acti-
vate the function, go to
the
"Personalisation-
C o n fi g u r a t i o n " menu on
your multifunction display.
When the engine is switched on, the
status of activation/deactivation of this
function selected when the engine was
switched off is retained.
By default, this function is activated.
Note: when stationary or dri-
ving at very low speed, or in
reverse gear, this function is
inactive.
I n t h e e v e n t o f a m a l f u n c -
t i o n , t h i s w a r n i n g l i g h t fl a s h -
es on the instrument panel.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
lights, the function is only acti-
vated if the lights stalk is in the
dipped/main beam headlamps
position.
On starting, with the engine
running, the headlamps ini-
tialise automatically and per-
form a vertical sweep.
Consult a PEUGEOT dealer.
Page 87 of 211
5
78
Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk. W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
S c r e e n w a s h / h e a d l a m p w a s h l o w
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n -
wash/headlamp wash reservoir.
The warning light comes on each time
the stalk is operated, until the reser-
v o i r i s fi l l e d .
Page 115 of 211
9
105
2.2 LITRE 16V AND 3 LITRE V6 24V PETROL INJECTION ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Power steering reservoir.
3. Coolant reservoir.
4. Dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. Fuse box.
8. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
I f y o u h a v e t o r e m o v e o r r e fi t
the engine style cover, handle
it with care to avoid damaging
t h e fi x i n g c l i p s .
Page 116 of 211
9
106
2 LITRE 16V HDI AND 2.7 LITRE V6 24V HDI DIESEL ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Power steering reservoir.
3. Coolant reservoir.
4. Dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. Fuse box.
8. B r a k e fl u i d r e s e r v o i r .
I f y o u h a v e t o r e m o v e o r r e fi t
the engine style cover, handle
it with care to avoid damaging
t h e fi x i n g c l i p s .
Page 118 of 211
9
108
Used oil
Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range. At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Battery
CHECKS
H a v e t h e fi l t e r e l e m e n t s r e -
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends
on the style of driving, in
parti cular for vehicles which
are used in town, over short
distances.
Brake pads
It may be necessary to check
the thickness of the pads,
even between services. Where the handbrake travel is
too great or there is a reduc-
tion in the performance of the
system, the handbrake should
be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
To ensure the best perfor-
mance from components as
important as the power stee-
ring and the braking system,
the manufacturer selects and offers
s p e c i fi c p r o d u c t s , o n l y u s e p r o d u c t s
recommended by PEUGEOT .
To prevent damage to the electrical
units, high pressure washing of the
engine compartment is strictly prohib-
ited .
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Open the reservoir, with the engine
at ambient temperature, the level
should always be above the MIN
mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance
o f t h e p a r t i c l e e m i s s i o n fi l t e r a n d t h e
fi l l i n g o f t h e a d d i t i v e r e s e r v o i r a r e
carried out by a PEUGEOT dealer in
accordance with the manufacturer's
servicing schedule.
Disc wear status
For any information relating to checking
disc wear, contact a PEUGEOT dealer.
Power steering fluid level
