2008 PEUGEOT 4007 manual radio set

1
i
i
INSTRUMENTS and CONTROLS
Set the time using the buttons as indi-
cated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.

 Press the appropriate button to set
the time:

Button
H: setting of the hours
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button: 00: resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
 After setting the time, press the

DISP button; the time display stops
fl ashing.
The digital clock does not display
seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.

 Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).

 After selecting the mode, you can exit
the "Functions setting mode"menu
by pressing button B "TUNE" for ap-
proximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "functions setting mode"
menu automatically.

11
AUDIO EQUIPMENT and TELEMATICS

Audio equipment On/Off.

Decreasing/Increasing
of the volume.

Selection of the CD/
Changer/AUX mode.

Automatic search for a lower
radio frequency.

Search for the previous
track.
Selection and setting
of the audio modes
(BASS, TREBLE, ...).

Manual search for a lower
or higher radio frequency/ PTY.

Functions setting mode
(AF, REG, TP, SCV, ...).

Search for the previous or
next MP3 folder.

Ejecting of one or more
CDs.

CD slot.

Loading of one
or more discs.

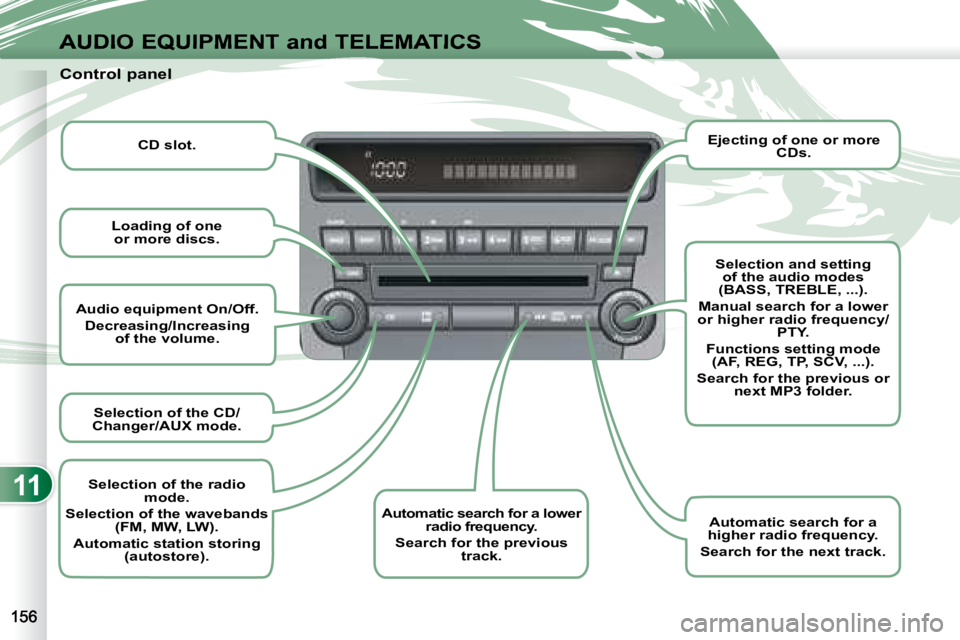

Control panel

Selection of the radio
mode.

Selection of the wavebands
(FM, MW, LW).

Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.

Search for the next track.

11
i
i

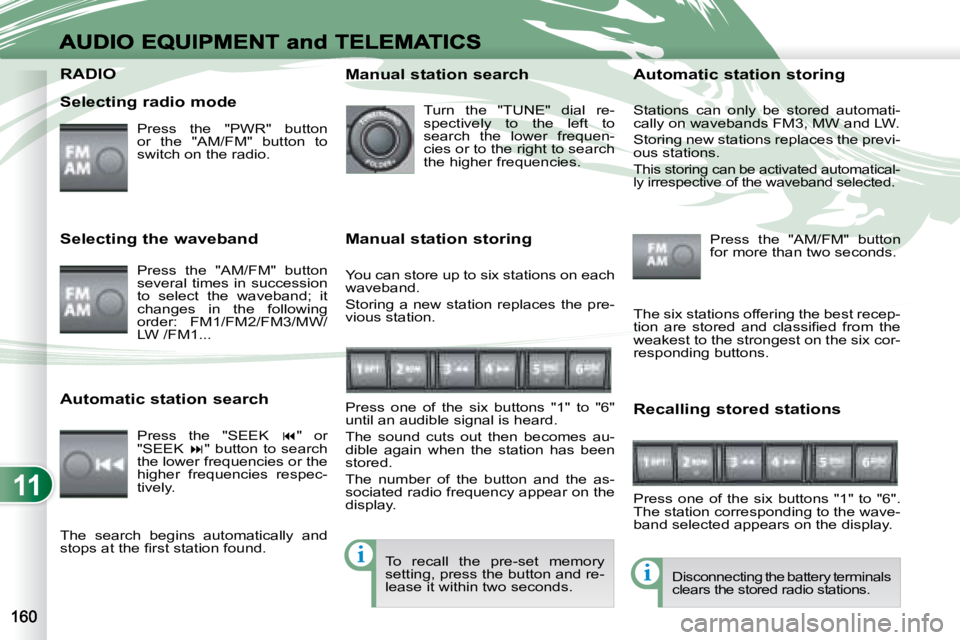

RADIO RADIO
Selecting radio mode Press the "PWR" button
or the "AM/FM" button to
switch on the radio.
Disconnecting the battery terminals
clears the stored radio stations.
Selecting the waveband
Press the "AM/FM" button
several times in succession
to select the waveband; it
changes in the following
order: FM1/FM2/FM3/MW/
LW /FM1...
Automatic station search Press the "SEEK  " or
"SEEK  " button to search
the lower frequencies or the
higher frequencies respec-
tively. Manual station search
Turn the "TUNE" dial re-
spectively to the left to
search the lower frequen-
cies or to the right to search
the higher frequencies.
Manual station storing
Press one of the six buttons "1" to "6"
until an audible signal is heard.
The sound cuts out then becomes au-
dible again when the station has been
stored.
The number of the button and the as-
sociated radio frequency appear on the
display. Automatic station storing
Press the "AM/FM" button
for more than two seconds.
Recalling stored stations
Press one of the six buttons "1" to "6".
The station corresponding to the wave-
band selected appears on the display.
The search begins automatically and
stops at the fi rst station found. The six stations offering the best recep-
tion are stored and classifi ed from the
weakest to the strongest on the six cor-
responding buttons.
You can store up to six stations on each
waveband.
Storing a new station replaces the pre-
vious station. Stations can only be stored automati-
cally on wavebands FM3, MW and LW.
Storing new stations replaces the previ-
ous stations.

This storing can be activated automatical-
ly irrespective of the waveband selected.
To recall the pre-set memory
setting, press the button and re-
lease it within two seconds.
