11
i

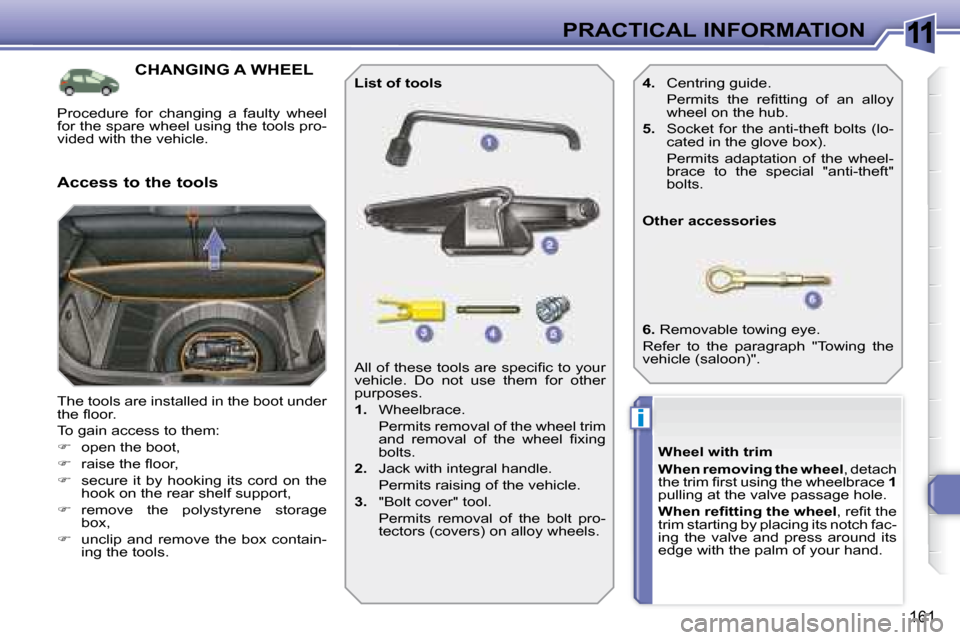

161
PRACTICAL INFORMATION
CHANGING A WHEEL
The tools are installed in the boot under
t h e fl o o r .
To gain access to them:
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the rear shelf support,
remove the polystyrene storage
b o x ,
u n c l i p a n d r e m o v e t h e b o x c o n t a i n -
ing the tools. A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
vehicle. Do not use them for other
purposes.
1. Wheelbrace.
Permits removal of the wheel trim a n d r e m o v a l o f t h e w h e e l fi x i n g
bolts.
2. Jack with integral handle.
Permits raising of the vehicle.
3. "Bolt cover" tool.
Permits removal of the bolt pro- tectors (covers) on alloy wheels.
List of tools
Other accessories
6. Removable towing eye.
Refer to the paragraph "Towing the
vehicle (saloon)".
Access to the tools
Wheel with trim
When removing the wheel , detach
t h e t r i m fi r s t u s i n g t h e w h e e l b r a c e 1
pulling at the valve passage hole.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.
4. Centring guide.
P e r m i t s t h e r e fi t t i n g o f a n a l l o y wheel on the hub.
5. Socket for the anti-theft bolts (lo-
c a t e d i n t h e g l o v e b o x ) .
Permits adaptation of the wheel- brace to the special "anti-theft"
bolts.
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Page 158 of 260
11
i
i
162
PRACTICAL INFORMATION
Fixing the steel or "space-
saving" type spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice, when
t i g h t e n i n g t h e b o l t s o n fi t t i n g , t h a t
the washers do not come into con-
tact with the steel or "space-saving"
type spare wheel. The wheel is
secured by the conical contact of
each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
According to country, the spare wheel
may be steel, alloy or of the "space sav-
ing" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page.
Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e c e n -
tre of the wheel and clip it.
P u t t h e p o l y s t y r e n e s t o r a g e b o x
back in place.
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 159 of 260
11
i

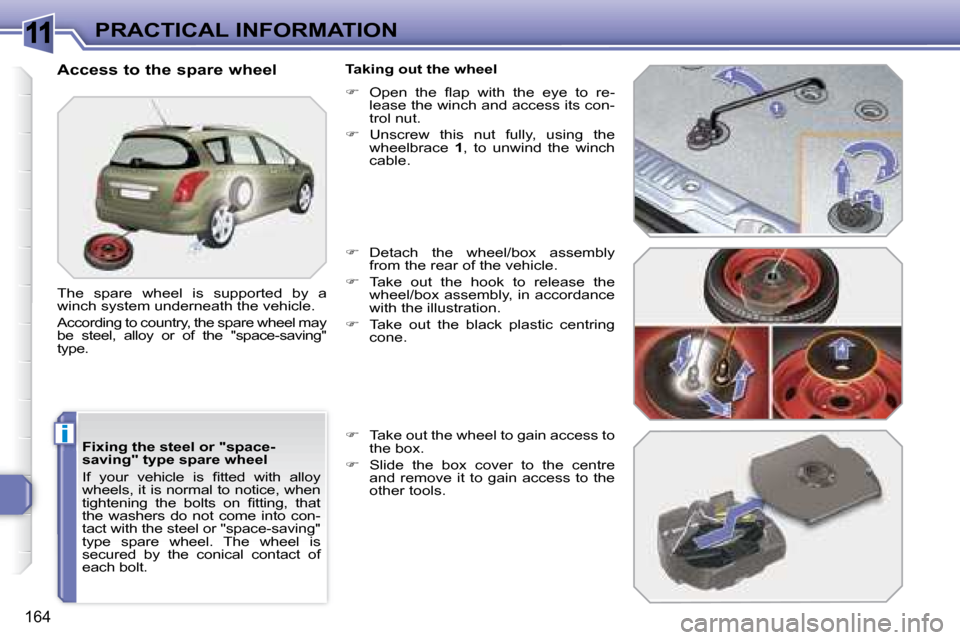

164
PRACTICAL INFORMATION
Fixing the steel or "space-
saving" type spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice, when
t i g h t e n i n g t h e b o l t s o n fi t t i n g , t h a t
the washers do not come into con-
tact with the steel or "space-saving"
type spare wheel. The wheel is
secured by the conical contact of
each bolt.
Access to the spare wheel
The spare wheel is supported by a
winch system underneath the vehicle.
According to country, the spare wheel may
be steel, alloy or of the "space-saving"
type.
Taking out the wheel
O p e n t h e fl a p w i t h t h e e y e t o r e -
lease the winch and access its con-
trol nut.
Unscrew this nut fully, using the
wheelbrace 1 , to unwind the winch
cable.
D e t a c h t h e w h e e l / b o x a s s e m b l y
from the rear of the vehicle.
Take out the hook to release the
w h e e l / b o x a s s e m b l y , i n a c c o r d a n c e
with the illustration.
Take out the black plastic centring
cone.
Take out the wheel to gain access to
t h e b o x .
S l i d e t h e b o x c o v e r t o t h e c e n t r e
and remove it to gain access to the
other tools.
Page 176 of 260
11
181
PRACTICAL INFORMATION
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut,
remove the plastic cover to gain ac-
cess to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
Page 180 of 260
11
!i
184
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
On the rear bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
To gain access to it:
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towbar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the piloted manual
g e a r b o x o r a u t o m a t i c g e a r b o x ) .
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Procedure for having your vehicle towed
or for towing another vehicle using a
removable towing eye.
Page 184 of 260
11
i
188
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, aluminium or PVC door
sills, fragrance cartridges.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, dog guard, snow
chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable device which prevents the
accumulation of snow at the radiator
cooling fan.
Fitting
Offer up the very cold climate screen
in front of the lower section of the
front bumper.
P r e s s o n i t s p e r i p h e r y t o c l i p i t s fi x -
ing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the outside temperature e x c e e d s 1 0 ° C ,
- when towing,
- at speeds higher than 75 mph (120 km/h).
Removal
Use a screwdriver as a lever to un-
c l i p e a c h fi x i n g c l i p i n t u r n .
* According to country.
Page 185 of 260
11
i
188
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection": "Touring":
mats ** , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, aluminium or PVC door
sills, fragrance cartridges.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle track-
ing system, dog guard, snow
chains. For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable device which prevents the
accumulation of snow at the radiator
cooling fan.
Fitting
Offer up the very cold climate screen
in front of the lower section of the
front bumper.
P r e s s o n i t s p e r i p h e r y t o c l i p i t s fi x -
ing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the outside temperature e x c e e d s 1 0 ° C ,
- when towing,
- at speeds higher than 75 mph (120 km/h).
Removal
Use a screwdriver as a lever to un-
c l i p e a c h fi x i n g c l i p i n t u r n .
* According to country.
