28
Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e
of a fault in the emission control sys-
tem.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
t o d r i v e a p p r o x i m a t e l y 3 0 m i l e s
(50 km).
T h e c a p a c i t y o f t h e t a n k i s a p p r o x i m a t e -
ly 60 litres. Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-
mediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel.
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the
injection system on Diesel engines.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
-
if the speed is below 6 mph (10 km/h),
this warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes
on continuously, accompanied by
an audible signal. Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt, ...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
S p e c i fi c w a r n i n g l i g h t s
* Only with alarm.
INSTRUMENTS and CONTROLS
Page 9 of 260
30
Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking. Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR
system or in the hill start assistance.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as possible.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light is
displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is
displayed in red. Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t .
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel re-
m a i n i n g t o d r i v e a p p r o x i m a t e l y
30 miles (50 km).
T h e c a p a c i t y o f t h e t a n k i s a p p r o x i m a t e -
ly 60 litres. S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wipers stalk, it in-
d i c a t e s a n i n s u f fi c i e n t l e v e l o f
fl u i d .
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u -
id reservoir when you stop. INSTRUMENTS and CONTROLS
Page 66 of 260
!
i
80
ACCESS
ALARM

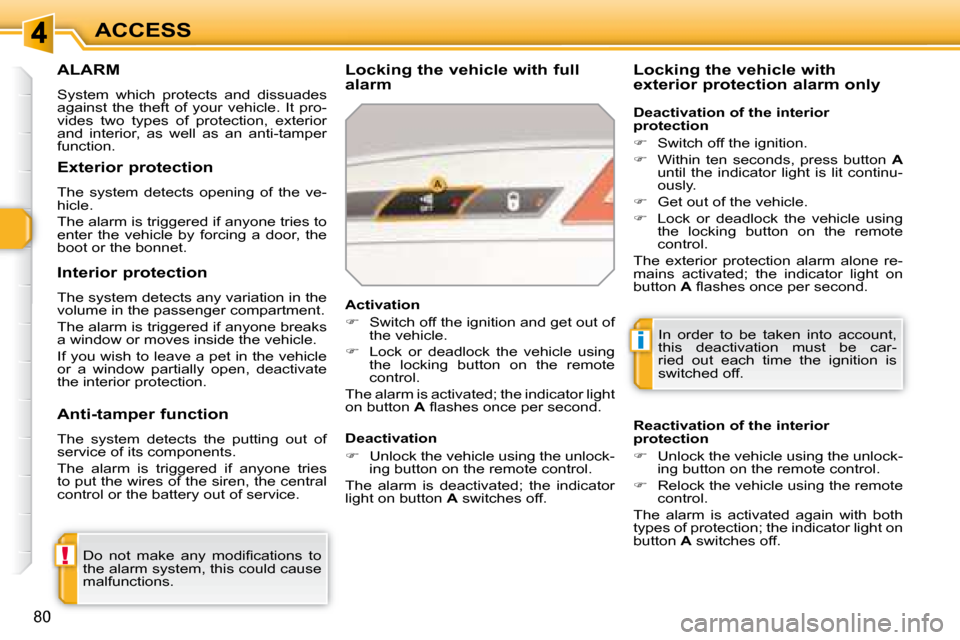

System which protects and dissuades
against the theft of your vehicle. It pro-
v i d e s t w o t y p e s o f p r o t e c t i o n , e x t e r i o r
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
Reactivation of the interior
protection
Unlock the vehicle using the unlock-
ing button on the remote control.
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator light is lit continu-
ously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
T h e e x t e r i o r p r o t e c t i o n a l a r m a l o n e r e -
mains activated; the indicator light on
button A fl a s h e s o n c e p e r s e c o n d .
Page 148 of 260
10
i
154
CHECKS
BONNET

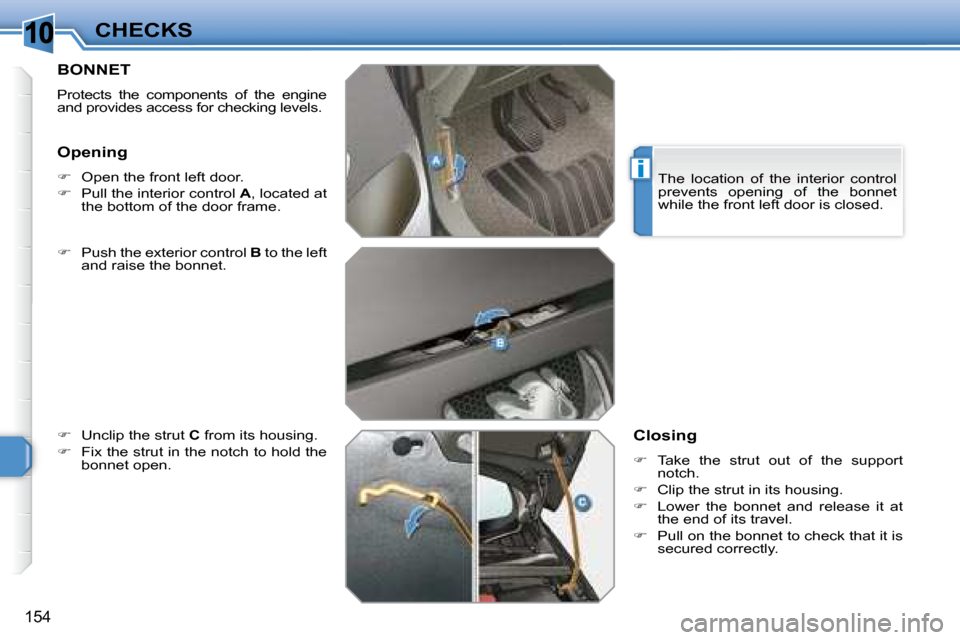

Protects the components of the engine
and provides access for checking levels.
P u s h t h e e x t e r i o r c o n t r o l B to the left
and raise the bonnet.
Unclip the strut C from its housing.
F i x t h e s t r u t i n t h e n o t c h t o h o l d t h e
bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
Open the front left door.
Pull the interior control A , located at
the bottom of the door frame. The location of the interior control
prevents opening of the bonnet
while the front left door is closed.
Page 149 of 260
10
ii
155
CHECKS

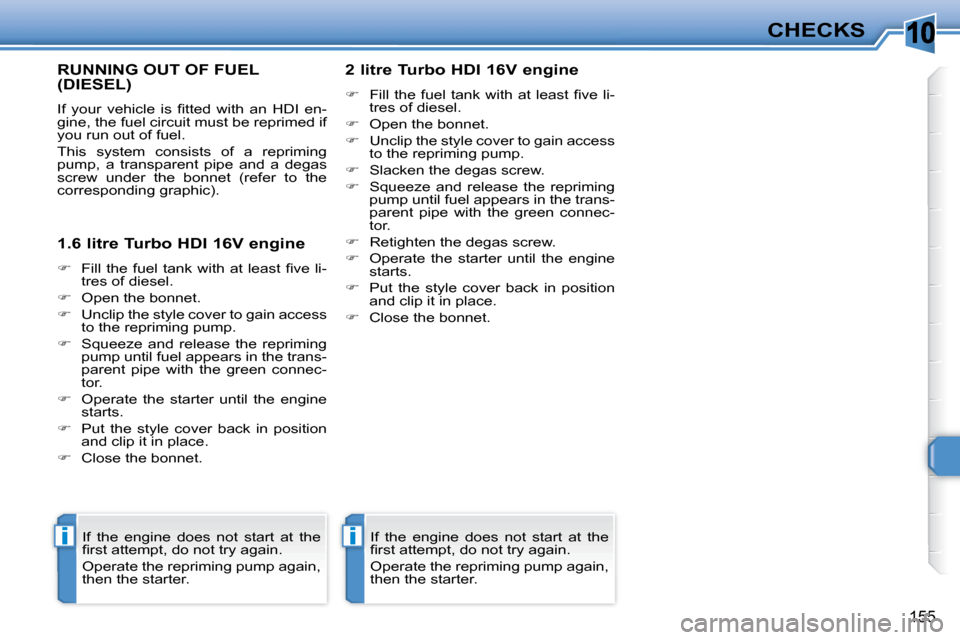

RUNNING OUT OF FUEL (DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel circuit must be reprimed if
you run out of fuel.
This system consists of a repriming
pump, a transparent pipe and a degas
screw under the bonnet (refer to the
corresponding graphic).
1.6 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Unclip the style cover to gain access
to the repriming pump.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connec-
tor.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet. 2 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Unclip the style cover to gain access
to the repriming pump.
Slacken the degas screw.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connec-
tor.
Retighten the degas screw.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump again,
then the starter. If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump again,
then the starter.
Page 176 of 260
11
181
PRACTICAL INFORMATION
BATTERY

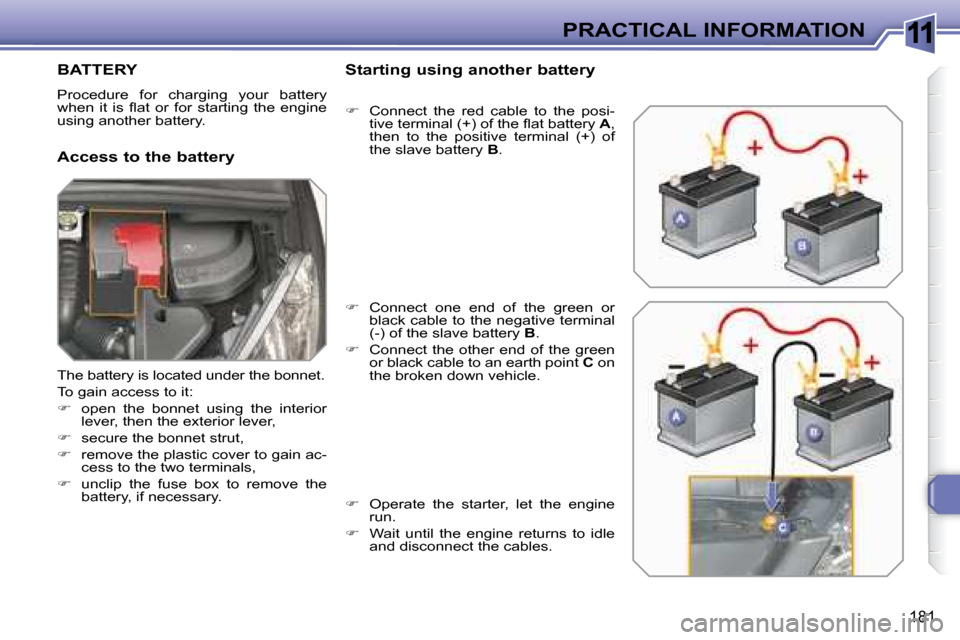

Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut,
remove the plastic cover to gain ac-
cess to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
battery, if necessary.
