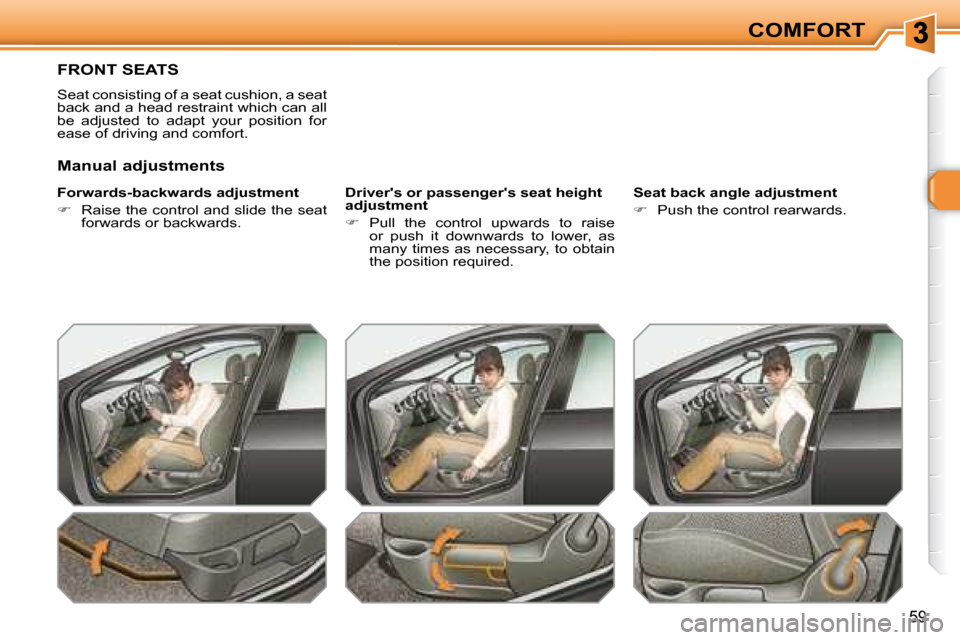

59
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Raise the control and slide the seat
forwards or backwards. Driver's or passenger's seat height
adjustment
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment
Push the control rearwards.
Manual adjustments
Page 41 of 260
i
60
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Push the control forwards or rearwards
to slide the seat. Seat cushion height and angle
adjustment
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. Seat back angle adjustment
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments The electrical functions of the driv-
e r ' s s e a t a r e d e a c t i v a t e d a p p r o x i -
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 42 of 260
!
!
61
COMFORT
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.
Access to the rear seats (3-door)
Pull the control upwards to fold the
seat back and move the seat for-
ward.
When put back in place, the seat re- turns to its initial position.
Head restraint height and angle
adjustment
To raise the head restraint, pull it for-
wards and upwards at the same time.
To remove the head restraint, press the lug
A and pull the head restraint upwards.
To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.
To lower the head restraint, press the lug A
and the head restraint at the same time.
To adjust the angle of the head restraint,
tilt its lower part forwards or rearwards.
T h e h e a d r e s t r a i n t i s fi t t e d w i t h a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment
Turn the dial to obtain the correct
lumbar position.
Additional adjustments
Lower the support B incorporated in
the control to rest the seat belt on
it. It enables you to retrieve the seat
belt more easily when you need to
put it back on.
Page 56 of 260
!
i
74
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary
, pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations are
carried out while the vehicle is sta-
tionary.
In order to guarantee optimum
visibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.
Page 57 of 260
!
i
74
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary
, pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations are
carried out while the vehicle is sta-
tionary.
In order to guarantee optimum
visibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.
Page 81 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle para-
meters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
load.
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 83 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle para-
meters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
load.
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
Page 84 of 260
!
i
93
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle para-
meters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
w h e n a l o w l e v e l o f e x t e r n a l l i g h t i s d e -
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, this warning light is displayed
on the instrument panel and/or a
message appears on the multifunction dis-
play, accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 p e o p l e + m a x i m u m a u t h o r i s e d
load.
3. D r i v e r + m a x i m u m a u t h o r i s e d l o a d .
