103
LAYOUT

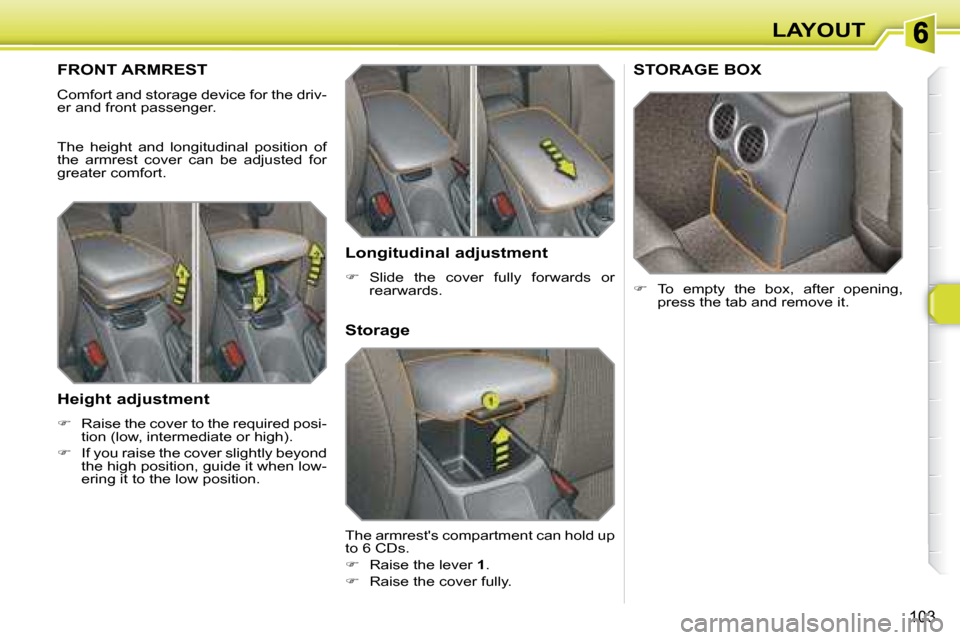

FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Height adjustment
Raise the cover to the required posi-
tion (low, intermediate or high).
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.
STORAGE BOX
T o e m p t y t h e b o x , a f t e r o p e n i n g ,
press the tab and remove it.
Storage
The armrest's compartment can hold up
to 6 CDs.
Raise the lever 1 .
Raise the cover fully.
Longitudinal adjustment
Slide the cover fully forwards or
rearwards.
130
SAFETY Height adjustment
Seat belt not fastened/unfastened
warning light
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point,
squeeze the control A and slide it
downwards.
To raise the attachment point, slide
the control A upwards.
When the ignition is switched
on, this warning light comes on,
either on the instrument panel
or on the seat belt and passen-
ger's front air bag warning lights display,
if the driver and/or the front passenger
has not fastened his seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h )
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal
of increasing volume. Once these two
minutes have elapsed, this warning light
remains on until the driver and/or the
front passenger fastens his seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
SEAT BELTS
On the 3-door versions, lower the sup-
port incorporated in the control to rest
the seat belt on it. This enables you to
retrieve the seat belt more easily when
you have to put it back on.
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so increasing his protection.
