2008 Peugeot 308 SW BL Dag ECU

108
LAYOUT Luggage retaining net
Hooked onto the stowing rings, this enables
you to secure your luggage.

 Raise the boot carpet to gain access
to the storage box.
This has areas for storing a box of spare
bulbs, a fi rst aid kit, a puncture repair
kit, two warning triangles, ...
Storage box In order to connect a 12 V accesso-
ry (max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket
There are three possible positions:
- fl at at the bottom of the boot,
- horizontal at the rear shelf,
- vertical at the back of the rear seats.
Movable straps
Hooked onto the stowing rings, they
permit securing of your luggage.

i

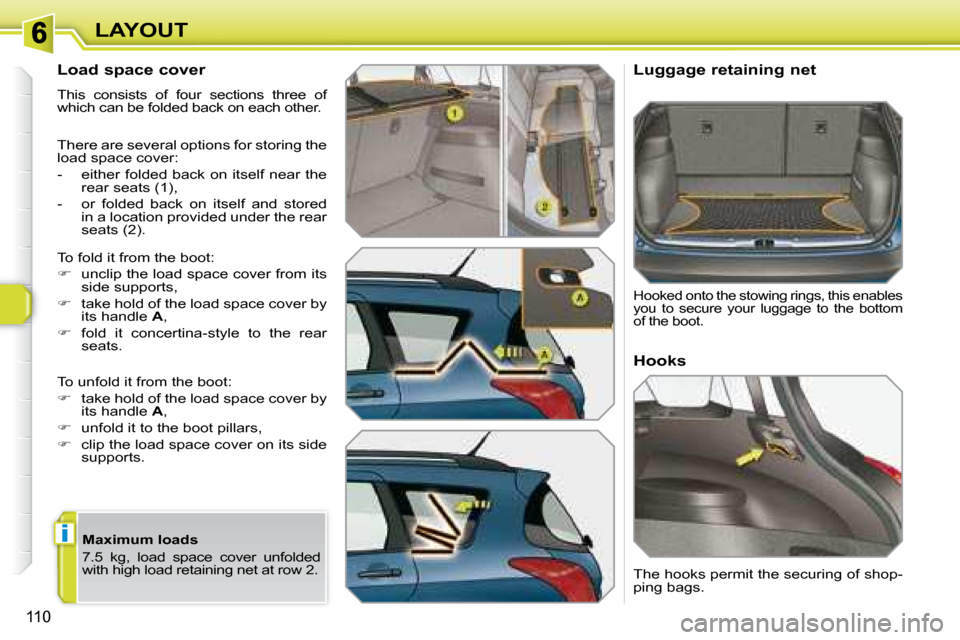

110
LAYOUT
Load space cover
This consists of four sections three of
which can be folded back on each other.
There are several options for storing the
load space cover:
- either folded back on itself near the rear seats (1),
- or folded back on itself and stored in a location provided under the rear
seats (2).
To fold it from the boot:

 unclip the load space cover from its
side supports,

 take hold of the load space cover by
its handle A ,

 fold it concertina-style to the rear
seats.
To unfold it from the boot:

 take hold of the load space cover by
its handle A ,

 unfold it to the boot pillars,

 clip the load space cover on its side
supports. Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage to the bottom
of the boot.
Hooks
The hooks permit the securing of shop-
ping bags.
Maximum loads
7.5 kg, load space cover unfolded
with high load retaining net at row 2.

i
113
LAYOUT
Load space screen
To install the load space screen:

 position one of the ends of the roller
in its support,

 insert the second end in its support;
the catch locks automatically,

 unroll the load space screen to the
boot pillars,

 insert the load space screen guides
in the rails on the boot pillars.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.
To remove the load space screen:

 remove the load space screen guides
from the rails on the boot pillars,

 roll up the load space screen in its
roller,

 pull and support the catch at one of
the ends of the roller to release it,

 remove the roller from its support
from the released end, then from the
second. Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space screen
roller, this enables you to secure your
luggage.
You can access the boot by opening
the rear screen and raising the load
space screen fl ap.
The roller has two rings for fi xing the
luggage retaining net depending on
its location.

i
114
LAYOUT
High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row. 12 V accessories socket

 In order to connect a 12 V accesso-
ry (max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):

 roll up or remove the load space
screen,


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 attach the snap hook of each of the
net's straps in the corresponding
ring 2 , located on the lower fi xing of
the rear side seat belt,

 tighten the straps,

 check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

117
CHILD SAFETY

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years(approximately 22 kg),
the booster is
used on its own.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :

117
CHILD SAFETY

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years(approximately 22 kg),
the booster is
used on its own.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :

118
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child
seats secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat
in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".

U (R1) : identical to U , with the vehicle's seat adjusted to the intermediate lo ngitudinal position.

U (R2) : identical to U , with the vehicle's seat adjusted to the highest positio n and moved back fully.
* The seat's head restraint must be removed and stored.

Seat
Weight of the child/ indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From 22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat (c)
- fi xed
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
Rear side seats U U * U * U *
Rear centre seat U U * U * U *

119
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2005/40), this table indicates the options for the installation
of child seats secured using the seat belt and universally appro ved (a) depending on the weight of the child and
the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg.
Seat
Weight of the child /indicative age

Below 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
9 to 18 kg
(group 1)
From 1 to ≈ 3 years

15 to 25 kg
(group 2)
From 3 to ≈ 6 years

22 to 36 kg
(group 3)

From 6 to ≈ 10 years

1st
row Front passenger seat (c)
- fi xed

U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)

2nd
row Side
Seat off centre and
recentred

U U U U
Centre
Centre seat
U U U U

3rd
row Side
Additional seat

U U U U
Side
2nd row seat
U U U U
(c) Consult the current legislation in your country before installing your
child on this seat.

U : seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U (R1) : identical to U , with the vehicle's
seat adjusted to the intermedi-
ate longitudinal position.

U (R2) : identical to U , with the vehicle's
seat adjusted to its highest po-
sition and moved back fully.
