120
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child's
body to a minimum , even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
Page 116 of 260
i
122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 117 of 260
i
122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 118 of 260
123
CHILD SAFETY

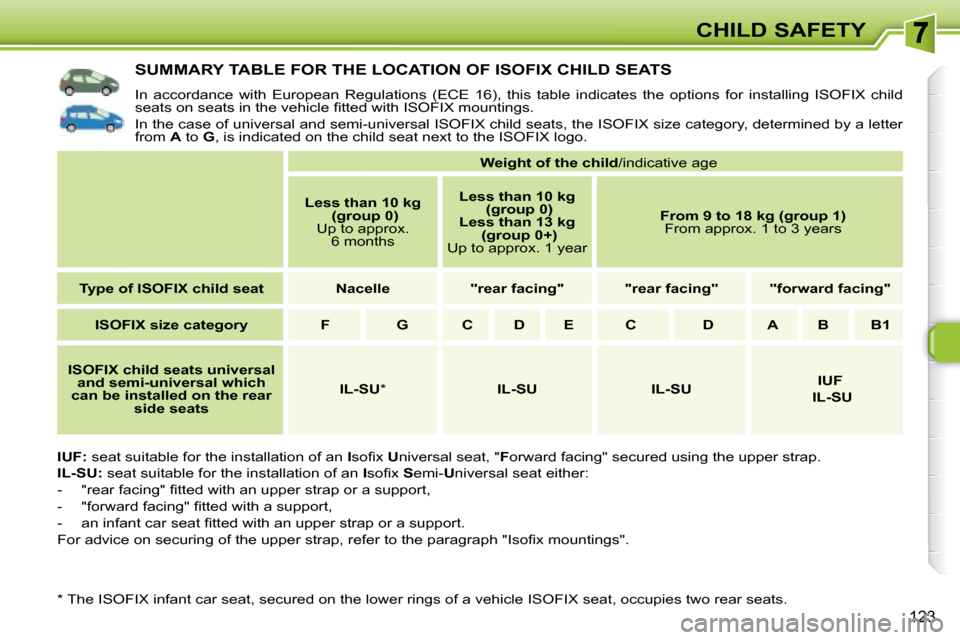

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
In accordance with European Regulations (ECE 16), this table indicates the options for installing ISOFIX child
s e a t s o n s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter
from A to G , i s i n d i c a t e d o n t h e c h i l d s e a t n e x t t o t h e I S O F I X l o g o .
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e u p p e r s t r a p , r e f e r t o t h e p a r a g r a p h " I s o fi x m o u n t i n g s " .
* The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
Weight of the child /indicative age
Less than 10 kg
(group 0)
U p t o a p p r o x . 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
U p t o a p p r o x . 1 y e a r
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Nacelle "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
ISOFIX child seats universal
and semi-universal which
can be installed on the rear side seats
IL-SU * IL-SU IL-SU IUF
IL-SU
Page 119 of 260
124
CHILD SAFETY

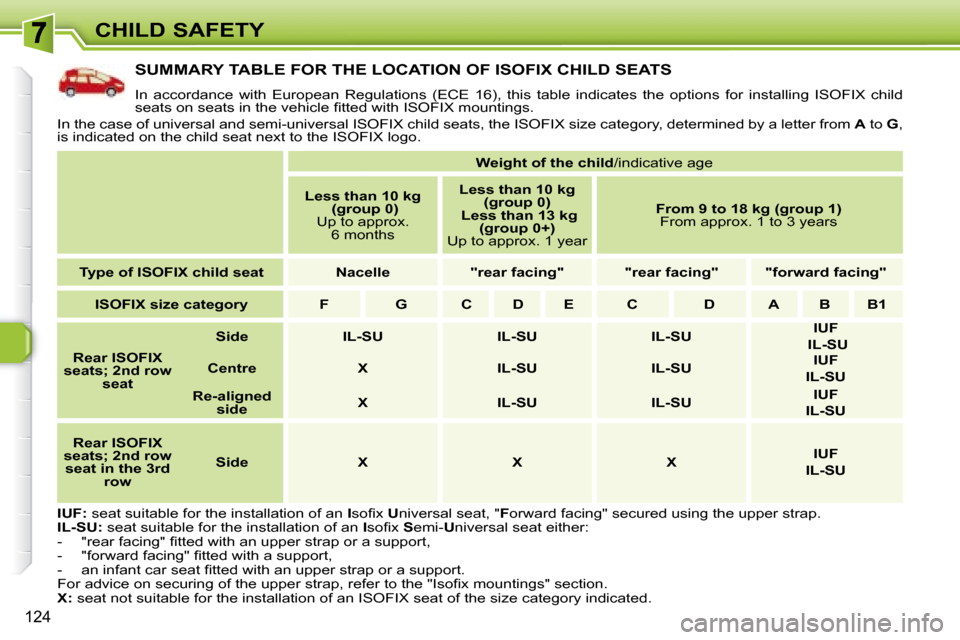

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
In accordance with European Regulations (ECE 16), this table indicates the options for installing ISOFIX child
s e a t s o n s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
i s i n d i c a t e d o n t h e c h i l d s e a t n e x t t o t h e I S O F I X l o g o .
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e u p p e r s t r a p , r e f e r t o t h e " I s o fi x m o u n t i n g s " s e c t i o n .
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
U p t o a p p r o x . 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
U p t o a p p r o x . 1 y e a r
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Nacelle "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Rear ISOFIX
seats; 2nd row seat
Side IL-SU IL-SU IL-SU
IUF
IL-SU
Centre X IL-SU IL-SU
IUF
IL-SU
Re-aligned
side
X IL-SU IL-SU
IUF
IL-SU
Rear ISOFIX
seats; 2nd row seat in the 3rd row
Side X X X
IUF
IL-SU
Page 128 of 260
i
133
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r m -
ance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
w a t e r o r a t e x t i l e c l e a n i n g p r o d u c t ,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 132 of 260
!
137
SAFETY
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
Front air bags
Do not drive holding the steering wheel by its spokes or resti ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Steering column air bag *
Do not sit with your knees any nearer to the steering wheel than necessary.
Side air bags
P u t a p p r o v e d c o v e r s o n l y o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e s i d e
air bags. Consult a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e c h e s t
or arms if the side air bag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f t h e
curtain air bag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain air bags.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked.
All work on the air bag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a f e w
m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose.
Page 148 of 260
10
i
154
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.
P u s h t h e e x t e r i o r c o n t r o l B to the left
and raise the bonnet.
Unclip the strut C from its housing.
F i x t h e s t r u t i n t h e n o t c h t o h o l d t h e
bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
Open the front left door.
Pull the interior control A , located at
the bottom of the door frame. The location of the interior control
prevents opening of the bonnet
while the front left door is closed.
