2008 NISSAN ROGUE 06IT Navigation Manual

Black plate (60,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

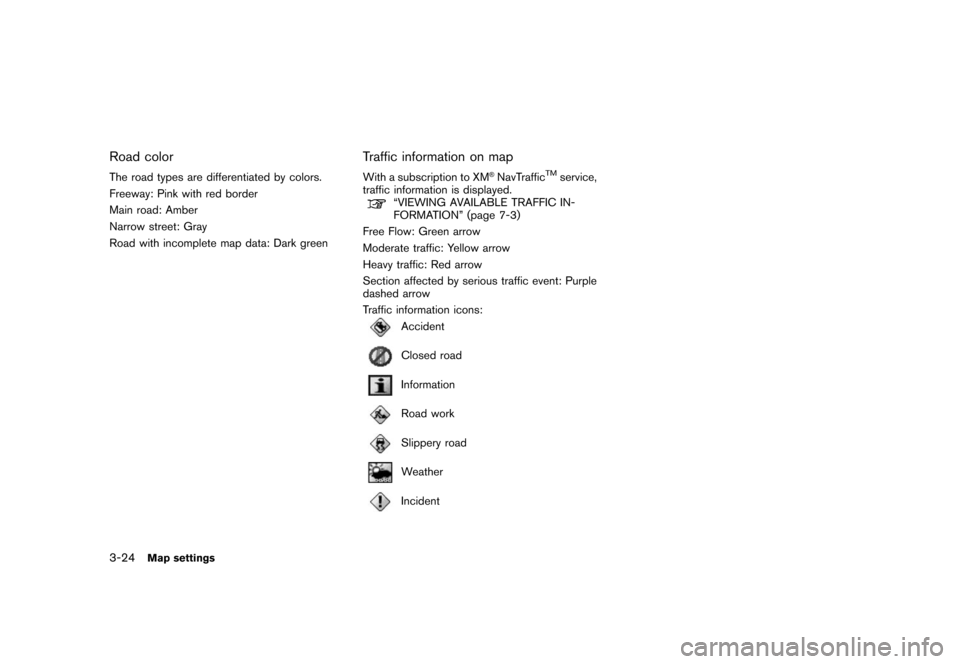

Road color
The road types are differentiated by colors.
Freeway: Pink with red border
Main road: Amber
Narrow street: Gray
Road with incomplete map data: Dark green
Traffic information on map
With a subscription to XM®NavTrafficTMservice,
traffic information is displayed.
“VIEWING AVAILABLE TRAFFIC IN-
FORMATION” (page 7-3)
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event: Purple
dashed arrow
Traffic information icons:
Accident
Closed road
Information
Road work
Slippery road
Weather
Incident
3-24Map settings

Black plate (10,1)

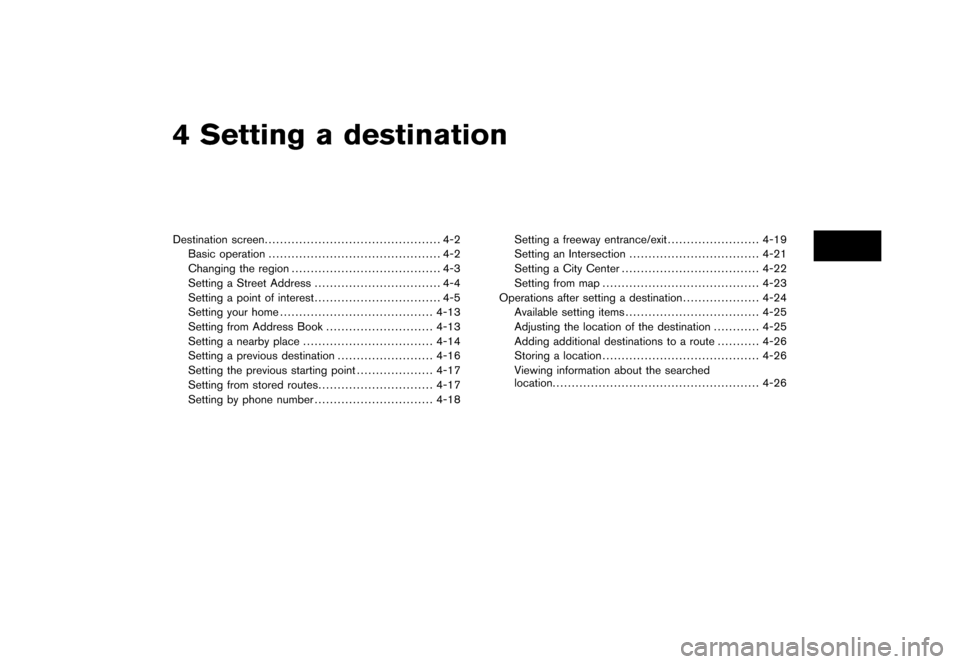

4 Setting a destination
Model "NAV2-N" EDITED: 2007/ 3/ 8
Destination screen.............................................. 4-2
Basic operation............................................. 4-2
Changing the region....................................... 4-3
Setting a Street Address................................. 4-4
Setting a point of interest................................. 4-5
Setting your home........................................4-13
Setting from Address Book............................4-13
Setting a nearby place..................................4-14
Setting a previous destination.........................4-16
Setting the previous starting point....................4-17
Setting from stored routes..............................4-17
Setting by phone number...............................4-18Setting a freeway entrance/exit........................4-19
Setting an Intersection..................................4-21
Setting a City Center....................................4-22
Setting from map.........................................4-23
Operations after setting a destination....................4-24
Available setting items...................................4-25
Adjusting the location of the destination............4-25
Adding additional destinations to a route...........4-26
Storing a location.........................................4-26
Viewing information about the searched
location......................................................4-26

Black plate (62,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
There are several methods you can use to set
your destination. Understand the advantages of
each method and select the best method for
finding and setting your destination.
BASIC OPERATION
1. Push.
2. Highlight the preferred destination setting
method and push.
Available setting items
.Street Address:
Searches for a destination by address.
.Points of Interest:
Searches for a destination from various
categories of businesses or locations..Home:
Searches for a route from the current
location to the previously stored home
destination.
.Address Book:
Searches for a destination from the list of the
stored locations.
.Nearby Places:
Searches for a business or location near
your vehicle.
.Previous Dest.:
Searches for a destination from the previous
destinations.
Available setting items (Next page
screen)
.Previous Starting Point:
Sets the previous starting point as the
destination..Stored Route:
Selects a stored route.
.Phone Number:
Searches for a POI destination by the
telephone number.
INFO:
It will not search for residential phone
numbers.
.Freeway Entrance/Exit:
Searches for a destination from a freeway
entrance/exit.
.Intersection:
Searches for a destination from intersec-
tions.
.City Center:
Sets the center of a city as the destination.
DESTINATION SCREEN
4-2Setting a destination

Black plate (63,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

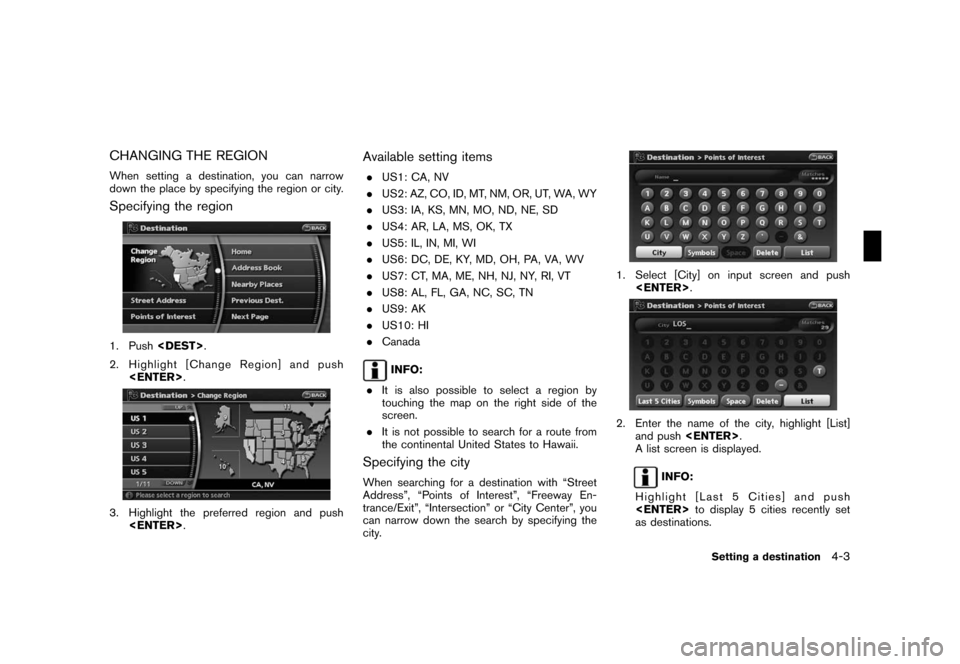

CHANGING THE REGION
When setting a destination, you can narrow
down the place by specifying the region or city.
Specifying the region
1. Push.
2. Highlight [Change Region] and push
.
3. Highlight the preferred region and push
.
Available setting items
.US1: CA, NV
.US2: AZ, CO, ID, MT, NM, OR, UT, WA, WY
.US3: IA, KS, MN, MO, ND, NE, SD
.US4: AR, LA, MS, OK, TX
.US5: IL, IN, MI, WI
.US6: DC, DE, KY, MD, OH, PA, VA, WV
.US7: CT, MA, ME, NH, NJ, NY, RI, VT
.US8: AL, FL, GA, NC, SC, TN
.US9: AK
.US10: HI
.Canada
INFO:
.It is also possible to select a region by
touching the map on the right side of the
screen.
.It is not possible to search for a route from
the continental United States to Hawaii.
Specifying the city
When searching for a destination with “Street
Address”, “Points of Interest”, “Freeway En-
trance/Exit”, “Intersection” or “City Center”, you
can narrow down the search by specifying the
city.
1. Select [City] on input screen and push
.
2. Enter the name of the city, highlight [List]
and push.
A list screen is displayed.
INFO:
Highlight [Last 5 Cities] and push
to display 5 cities recently set
as destinations.
Setting a destination4-3

Black plate (64,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

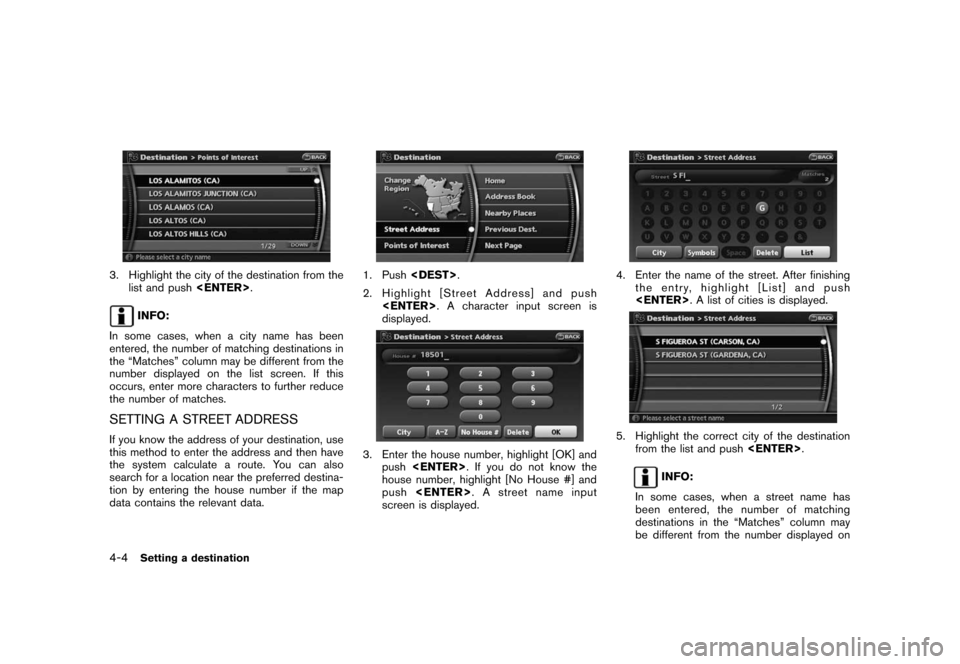

3. Highlight the city of the destination from the
list and push.
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
SETTING A STREET ADDRESS
If you know the address of your destination, use
this method to enter the address and then have
the system calculate a route. You can also
search for a location near the preferred destina-
tion by entering the house number if the map
data contains the relevant data.
1. Push.
2. Highlight [Street Address] and push
. A character input screen is
displayed.
3. Enter the house number, highlight [OK] and
push. If you do not know the
house number, highlight [No House #] and
push. A street name input
screen is displayed.
4. Enter the name of the street. After finishing
the entry, highlight [List] and push
. A list of cities is displayed.
5. Highlight the correct city of the destination
from the list and push.
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the “Matches” column may
be different from the number displayed on
4-4Setting a destination

Black plate (65,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

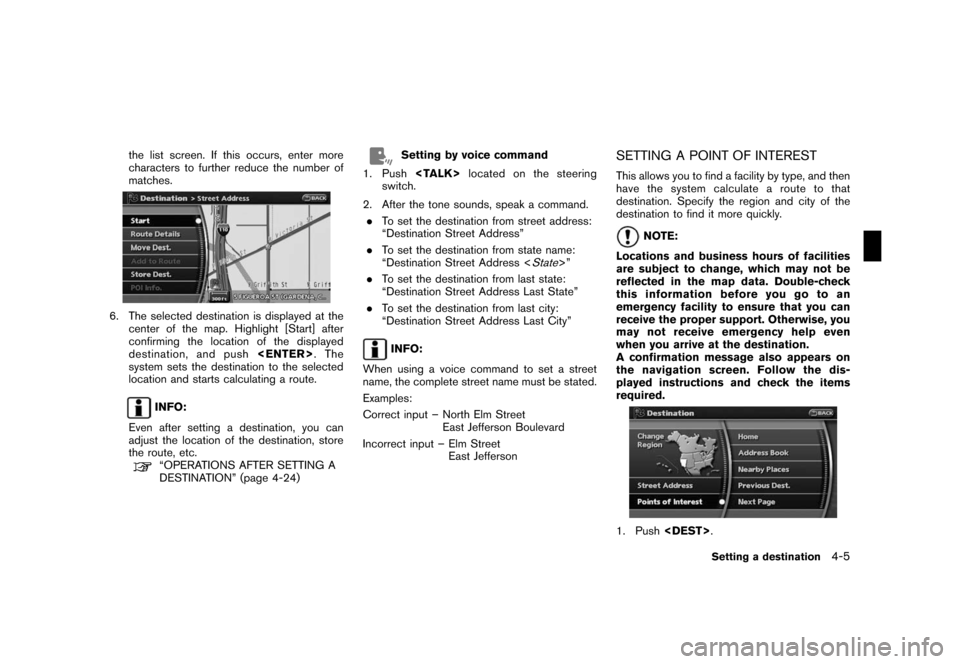

the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
6. The selected destination is displayed at the
center of the map. Highlight [Start] after
confirming the location of the displayed
destination, and push.The
system sets the destination to the selected
location and starts calculating a route.
INFO:
Even after setting a destination, you can
adjust the location of the destination, store
the route, etc.
“OPERATIONS AFTER SETTING A
DESTINATION” (page 4-24)
Setting by voice command
1. Pushlocated on the steering
switch.
2. After the tone sounds, speak a command.
.To set the destination from street address:
“Destination Street Address”
.To set the destination from state name:
“Destination Street Address <
State>”
.To set the destination from last state:
“Destination Street Address Last State”
.To set the destination from last city:
“Destination Street Address Last City”
INFO:
When using a voice command to set a street
name, the complete street name must be stated.
Examples:
Correct input – North Elm Street
East Jefferson Boulevard
Incorrect input – Elm Street
East Jefferson
SETTING A POINT OF INTEREST
This allows you to find a facility by type, and then
have the system calculate a route to that
destination. Specify the region and city of the
destination to find it more quickly.
NOTE:
Locations and business hours of facilities
are subject to change, which may not be
reflected in the map data. Double-check
this information before you go to an
emergency facility to ensure that you can
receive the proper support. Otherwise, you
may not receive emergency help even
when you arrive at the destination.
A confirmation message also appears on
the navigation screen. Follow the dis-
played instructions and check the items
required.
1. Push.
Setting a destination4-5

Black plate (66,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

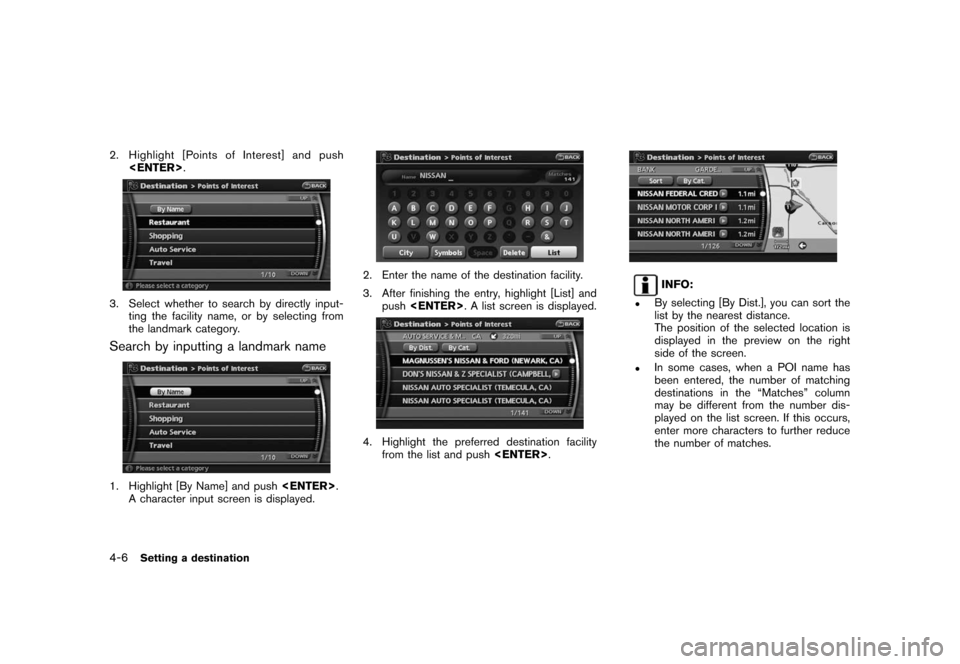

2. Highlight [Points of Interest] and push
.
3. Select whether to search by directly input-
ting the facility name, or by selecting from
the landmark category.
Search by inputting a landmark name
1. Highlight [By Name] and push.
A character input screen is displayed.
2. Enter the name of the destination facility.
3. After finishing the entry, highlight [List] and
push. A list screen is displayed.
4. Highlight the preferred destination facility
from the list and push.
INFO:
.By selecting [By Dist.], you can sort the
list by the nearest distance.
The position of the selected location is
displayed in the preview on the right
side of the screen.
.In some cases, when a POI name has
been entered, the number of matching
destinations in the “Matches” column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
4-6Setting a destination

Black plate (67,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

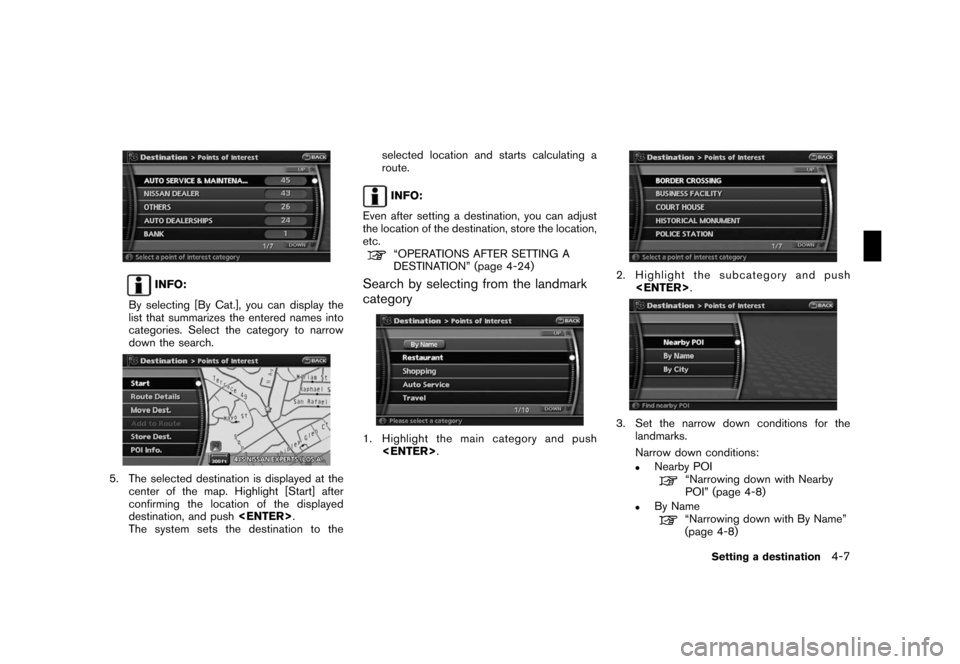

INFO:
By selecting [By Cat.], you can display the
list that summarizes the entered names into
categories. Select the category to narrow
down the search.
5. The selected destination is displayed at the
center of the map. Highlight [Start] after
confirming the location of the displayed
destination, and push.
The system sets the destination to theselected location and starts calculating a
route.
INFO:
Even after setting a destination, you can adjust
the location of the destination, store the location,
etc.
“OPERATIONS AFTER SETTING A
DESTINATION” (page 4-24)
Search by selecting from the landmark
category
1. Highlightthemaincategoryandpush
.
2. Highlight the subcategory and push
.
3. Set the narrow down conditions for the
landmarks.
Narrow down conditions:
.Nearby POI“Narrowing down with Nearby
POI” (page 4-8)
.By Name“Narrowing down with By Name”
(page 4-8)
Setting a destination4-7
