2008 NISSAN ROGUE 06IT Navigation Manual

Black plate (176,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

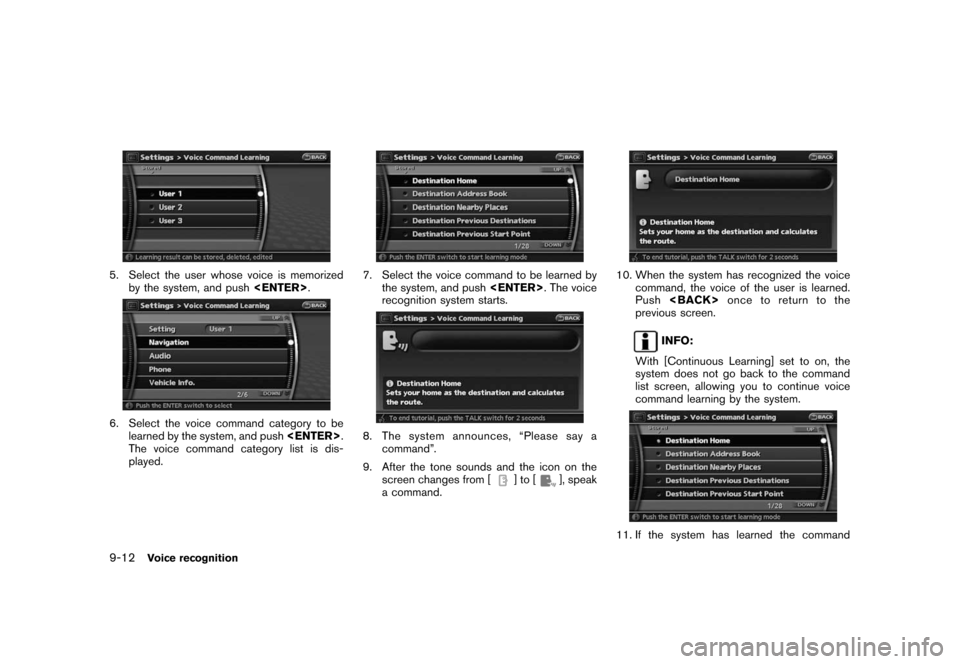

5. Select the user whose voice is memorized
by the system, and push.
6. Select the voice command category to be
learned by the system, and push.
The voice command category list is dis-
played.
7. Select the voice command to be learned by
the system, and push. The voice
recognition system starts.
8. The system announces, “Please say a
command”.
9. After the tone sounds and the icon on the
screen changes from [
]to[], speak
a command.
10. When the system has recognized the voice
command, the voice of the user is learned.
Pushonce to return to the
previous screen.
INFO:
With [Continuous Learning] set to on, the
system does not go back to the command
list screen, allowing you to continue voice
command learning by the system.
11. If the system has learned the command
9-12Voice recognition

Black plate (177,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

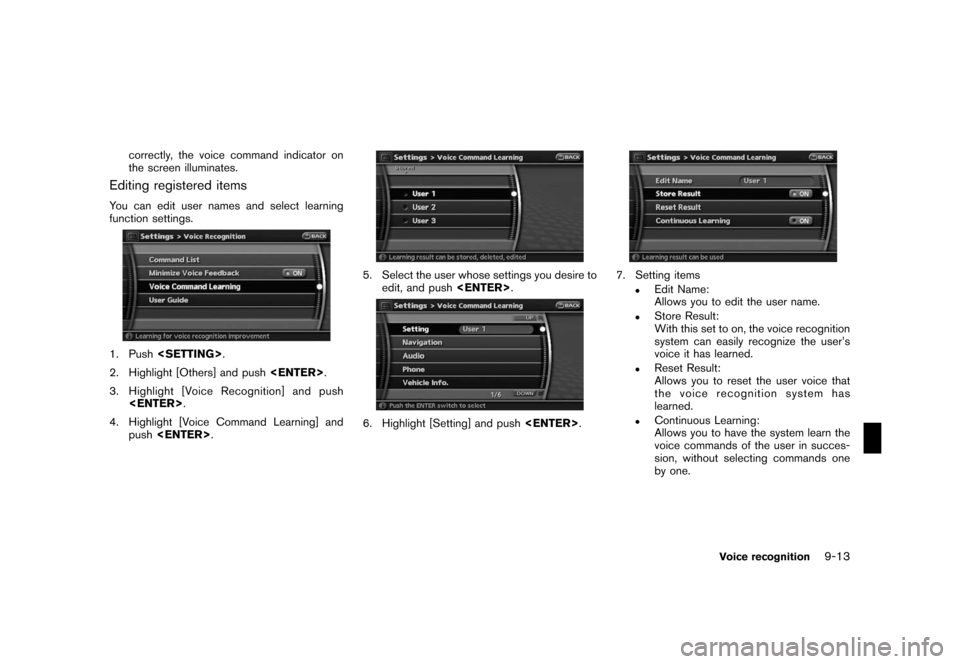

correctly, the voice command indicator on
the screen illuminates.
Editing registered items
You can edit user names and select learning
function settings.
1. Push.
2. Highlight [Others] and push.
3. Highlight [Voice Recognition] and push
.
4. Highlight [Voice Command Learning] and
push.
5. Select the user whose settings you desire to
edit, and push.
6. Highlight [Setting] and push.
7. Setting items
.Edit Name:
Allows you to edit the user name.
.Store Result:
With this set to on, the voice recognition
system can easily recognize the user’s
voice it has learned.
.Reset Result:
Allows you to reset the user voice that
the voice recognition system has
learned.
.Continuous Learning:
Allows you to have the system learn the
voice commands of the user in succes-
sion, without selecting commands one
by one.
Voice recognition9-13

Black plate (178,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

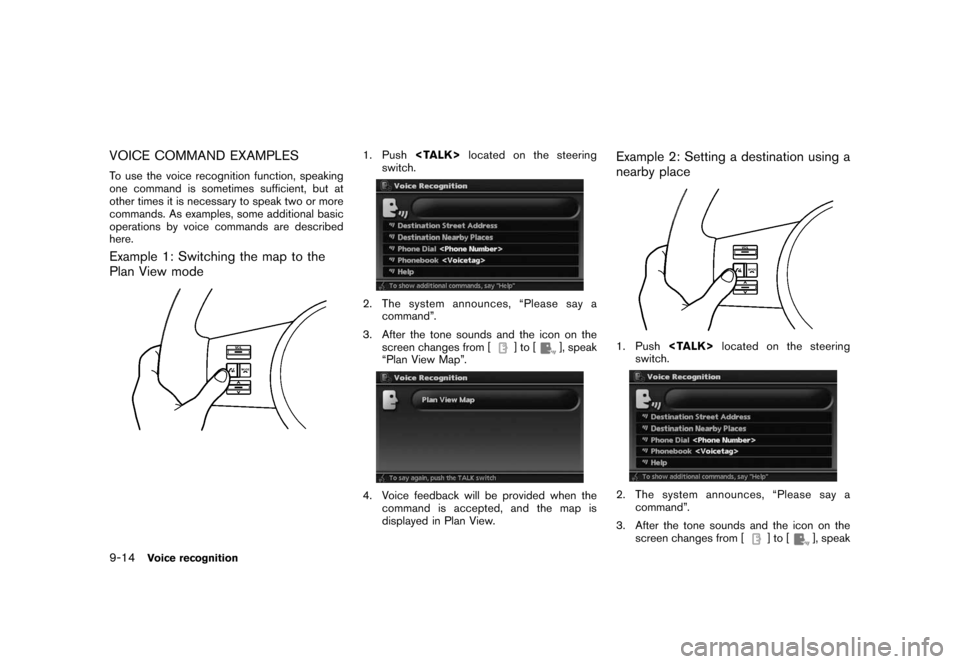

VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching the map to the
Plan View mode
1. Pushlocated on the steering
switch.
2. The system announces, “Please say a
command”.
3. After the tone sounds and the icon on the
screen changes from [
]to[], speak
“Plan View Map”.
4. Voice feedback will be provided when the
command is accepted, and the map is
displayed in Plan View.
Example 2: Setting a destination using a
nearby place
1. Pushlocated on the steering
switch.
2. The system announces, “Please say a
command”.
3. After the tone sounds and the icon on the
screen changes from [
]to[], speak
9-14Voice recognition

Black plate (179,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

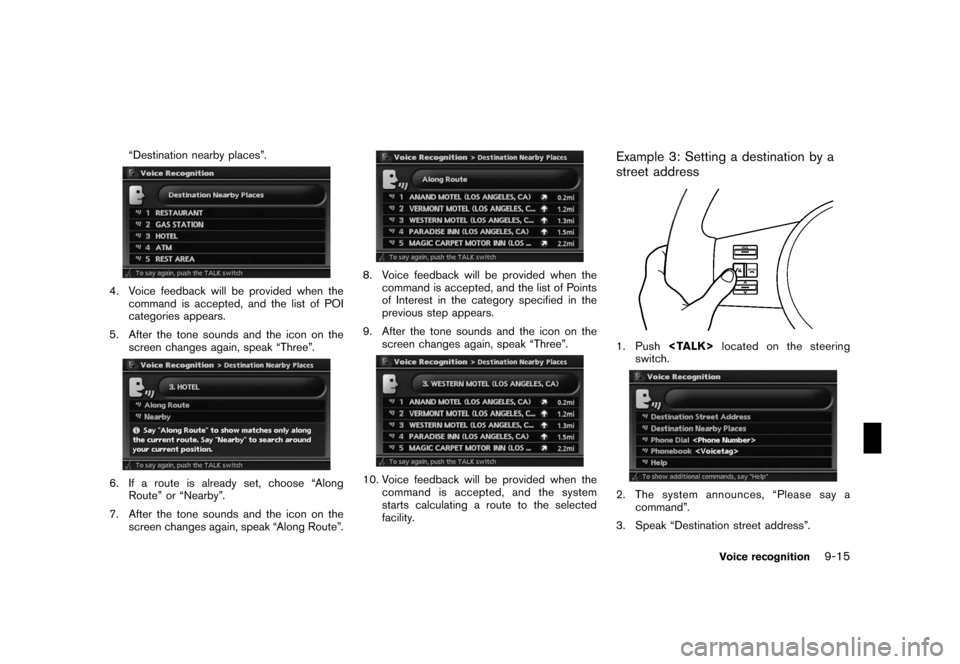

“Destination nearby places”.
4. Voice feedback will be provided when the
command is accepted, and the list of POI
categories appears.
5. After the tone sounds and the icon on the
screen changes again, speak “Three”.
6. If a route is already set, choose “Along
Route” or “Nearby”.
7. After the tone sounds and the icon on the
screen changes again, speak “Along Route”.
8. Voice feedback will be provided when the
command is accepted, and the list of Points
of Interest in the category specified in the
previous step appears.
9. After the tone sounds and the icon on the
screen changes again, speak “Three”.
10. Voice feedback will be provided when the
command is accepted, and the system
starts calculating a route to the selected
facility.
Example 3: Setting a destination by a
street address
1. Pushlocated on the steering
switch.
2. The system announces, “Please say a
command”.
3. Speak “Destination street address”.
Voice recognition9-15

Black plate (180,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
4. Speak the name of the state, “California”.
5. Speak the name of the city, “Gardena”.
6. Speak the name of the street, “South
figueroa street”.
INFO:
Only the official street names stored in the
map data can be recognized by the system.
You need to speak the street name precisely
including boulevard, way, north, south, etc.
In this case, you cannot speak “Figueroa
street” or “Figueroa”.
7. Voice feedback will be provided when the
command is accepted, and the list of street
names appears.
8. After the tone sounds and the icon on the
screen changes again, speak “One”.
9. Speak the house number.“How to speak numbers” (page 9-10)
9-16Voice recognition

Black plate (181,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
INFO:
If you do not know the house number, speak
“No house number”.
10. To confirm the destination location on the
map, speak “Show map”. To calculate a
route, speak “Calculate route”.
Voice recognition9-17

Black plate (182,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

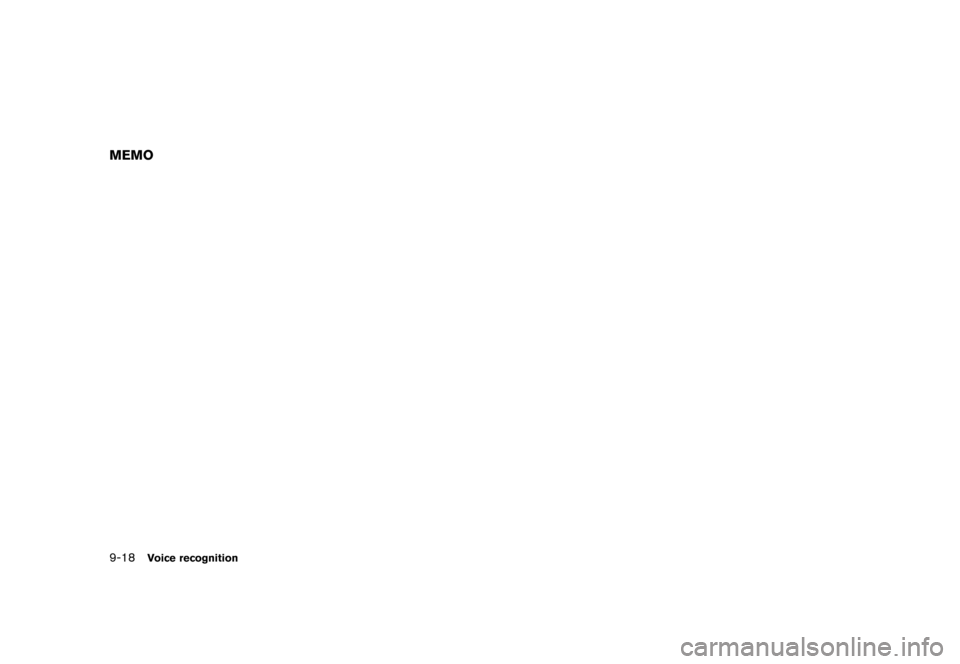

MEMO
9-18Voice recognition

Black plate (28,1)

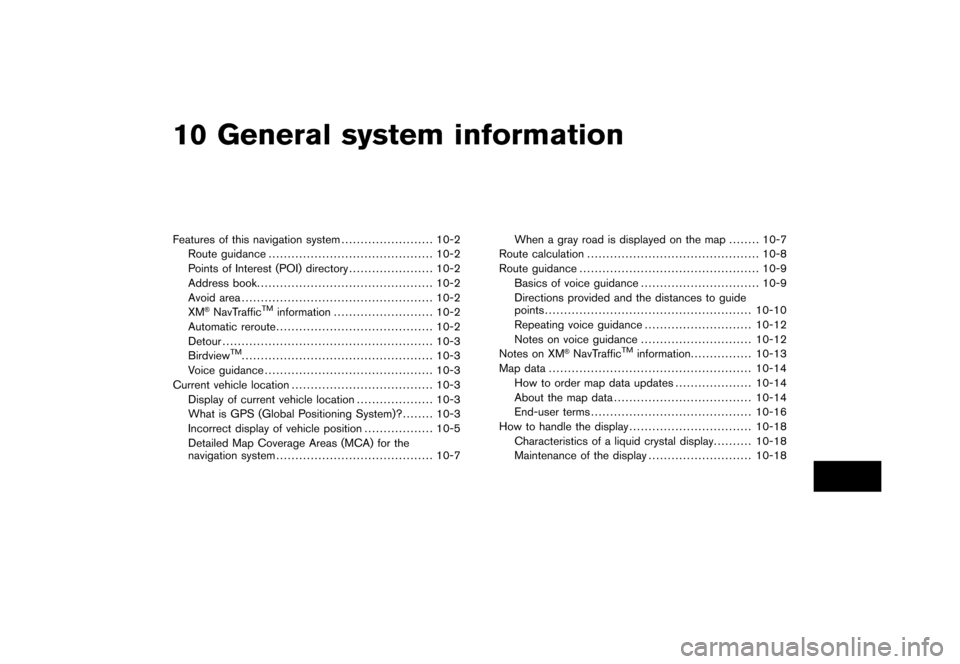

10 General system information
Model "NAV2-N" EDITED: 2007/ 3/ 8
Features of this navigation system........................ 10-2
Route guidance........................................... 10-2
Points of Interest (POI) directory...................... 10-2
Address book.............................................. 10-2
Avoid area.................................................. 10-2
XM
®NavTrafficTMinformation.......................... 10-2
Automatic reroute......................................... 10-2
Detour....................................................... 10-3
Birdview
TM.................................................. 10-3
Voice guidance............................................ 10-3
Current vehicle location..................................... 10-3
Display of current vehicle location.................... 10-3
What is GPS (Global Positioning System)?........ 10-3
Incorrect display of vehicle position.................. 10-5
Detailed Map Coverage Areas (MCA) for the
navigation system......................................... 10-7When a gray road is displayed on the map........ 10-7
Route calculation............................................. 10-8
Route guidance............................................... 10-9
Basics of voice guidance............................... 10-9
Directions provided and the distances to guide
points...................................................... 10-10
Repeating voice guidance............................ 10-12
Notes on voice guidance............................. 10-12
Notes on XM®NavTrafficTMinformation................ 10-13
Map data..................................................... 10-14
How to order map data updates.................... 10-14
About the map data.................................... 10-14
End-user terms.......................................... 10-16
How to handle the display................................ 10-18
Characteristics of a liquid crystal display.......... 10-18
Maintenance of the display........................... 10-18
