2008 NISSAN ROGUE 06IT Navigation Manual

Black plate (108,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

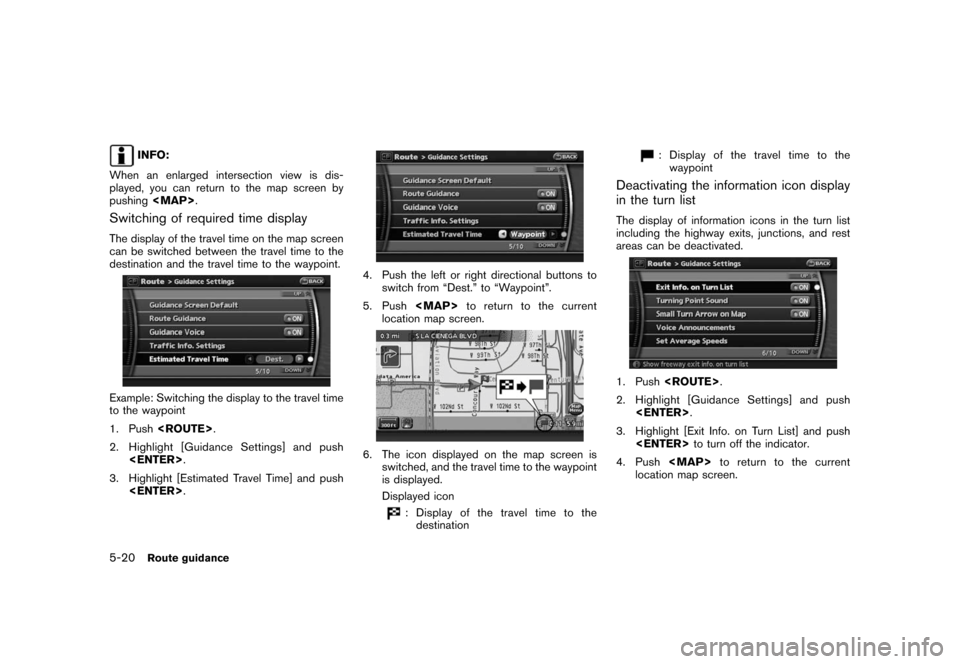

INFO:
When an enlarged intersection view is dis-
played, you can return to the map screen by
pushing

Black plate (109,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

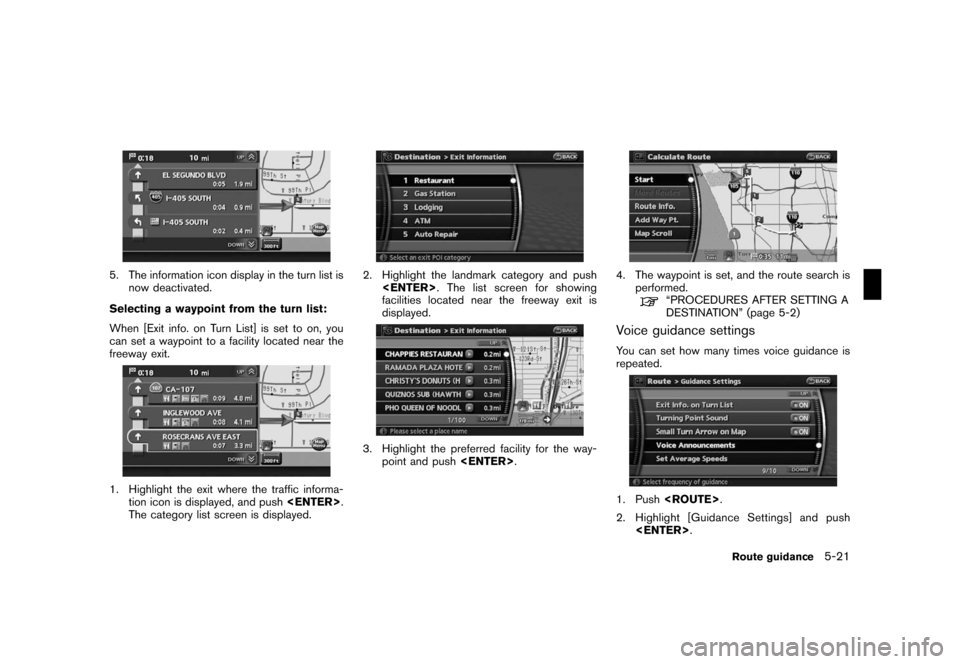

5. The information icon display in the turn list is
now deactivated.
Selecting a waypoint from the turn list:
When [Exit info. on Turn List] is set to on, you
can set a waypoint to a facility located near the
freeway exit.
1. Highlight the exit where the traffic informa-
tion icon is displayed, and push.
The category list screen is displayed.
2. Highlight the landmark category and push
. The list screen for showing
facilities located near the freeway exit is
displayed.
3. Highlight the preferred facility for the way-
point and push.
4. The waypoint is set, and the route search is
performed.
“PROCEDURES AFTER SETTING A
DESTINATION” (page 5-2)
Voice guidance settings
You can set how many times voice guidance is
repeated.
1. Push.
2. Highlight [Guidance Settings] and push
.
Route guidance5-21

Black plate (110,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

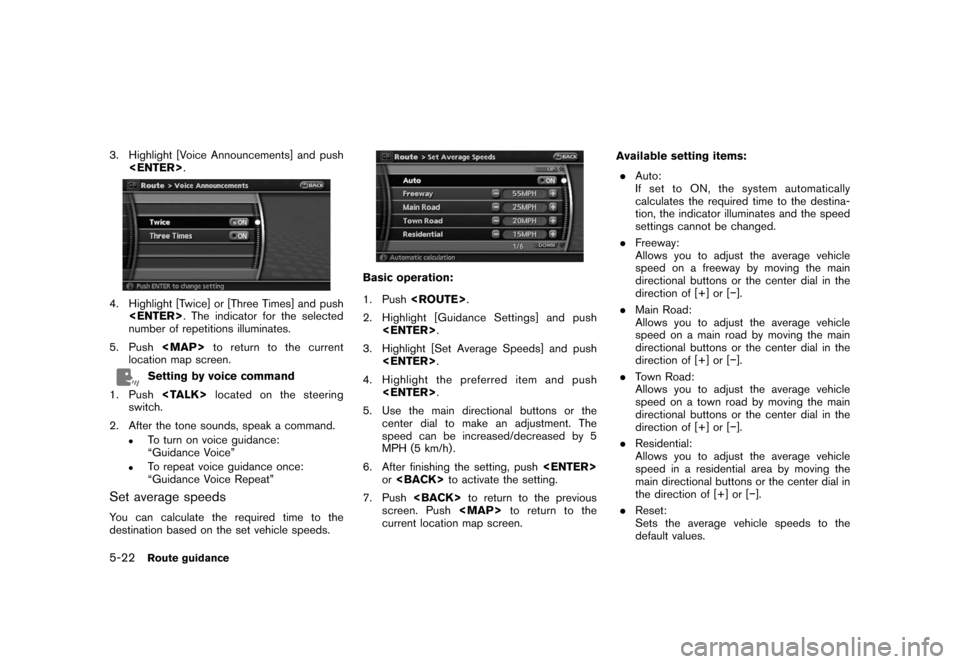

3. Highlight [Voice Announcements] and push
.
4. Highlight [Twice] or [Three Times] and push
. The indicator for the selected
number of repetitions illuminates.
5. Push

Black plate (111,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

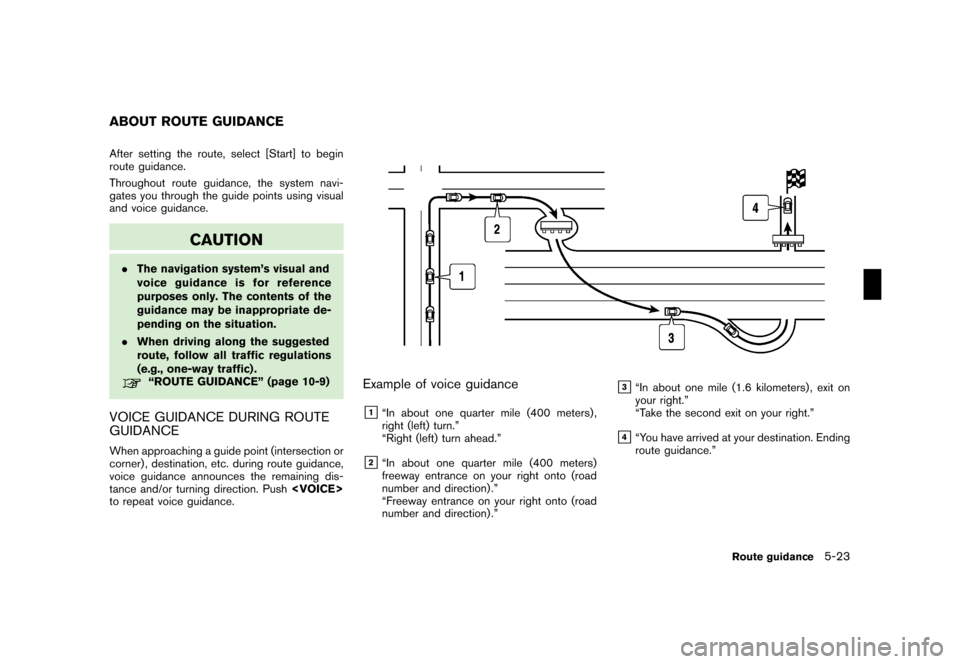

After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates you through the guide points using visual
and voice guidance.
CAUTION
.The navigation system’s visual and
voice guidance is for reference
purposes only. The contents of the
guidance may be inappropriate de-
pending on the situation.
.When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“ROUTE GUIDANCE” (page 10-9)
VOICE GUIDANCE DURING ROUTE
GUIDANCE
When approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push
to repeat voice guidance.
Example of voice guidance
&1“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
&2“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
&3“In about one mile (1.6 kilometers) , exit on
your right.”
“Take the second exit on your right.”
&4“You have arrived at your destination. Ending
route guidance.”
ABOUT ROUTE GUIDANCE
Route guidance5-23

Black plate (112,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

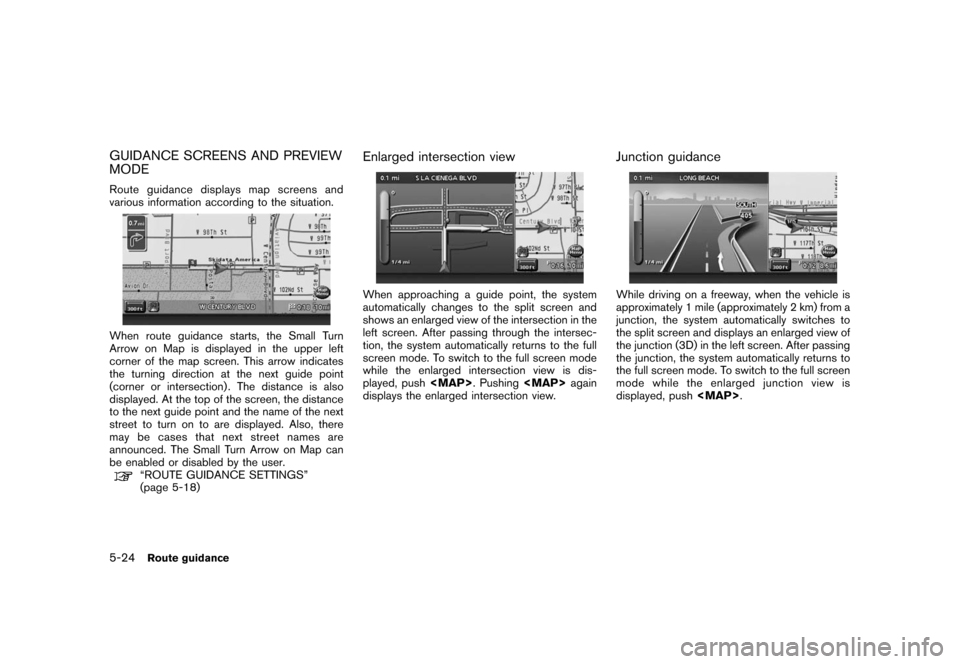

GUIDANCE SCREENS AND PREVIEW
MODE
Route guidance displays map screens and
various information according to the situation.
When route guidance starts, the Small Turn
Arrow on Map is displayed in the upper left
corner of the map screen. This arrow indicates
the turning direction at the next guide point
(corner or intersection) . The distance is also
displayed. At the top of the screen, the distance
to the next guide point and the name of the next
street to turn on to are displayed. Also, there
may be cases that next street names are
announced. The Small Turn Arrow on Map can
be enabled or disabled by the user.
“ROUTE GUIDANCE SETTINGS”
(page 5-18)
Enlarged intersection view
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection in the
left screen. After passing through the intersec-
tion, the system automatically returns to the full
screen mode. To switch to the full screen mode
while the enlarged intersection view is dis-
played, push

Black plate (113,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

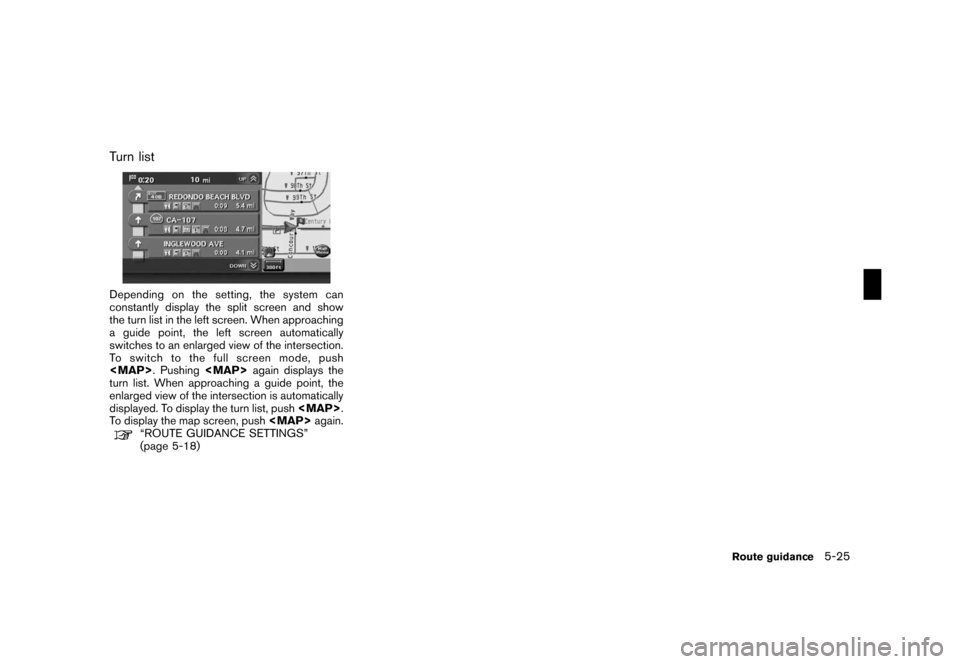

Turn list
Depending on the setting, the system can
constantly display the split screen and show
the turn list in the left screen. When approaching
a guide point, the left screen automatically
switches to an enlarged view of the intersection.
To switch to the full screen mode, push

Black plate (114,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

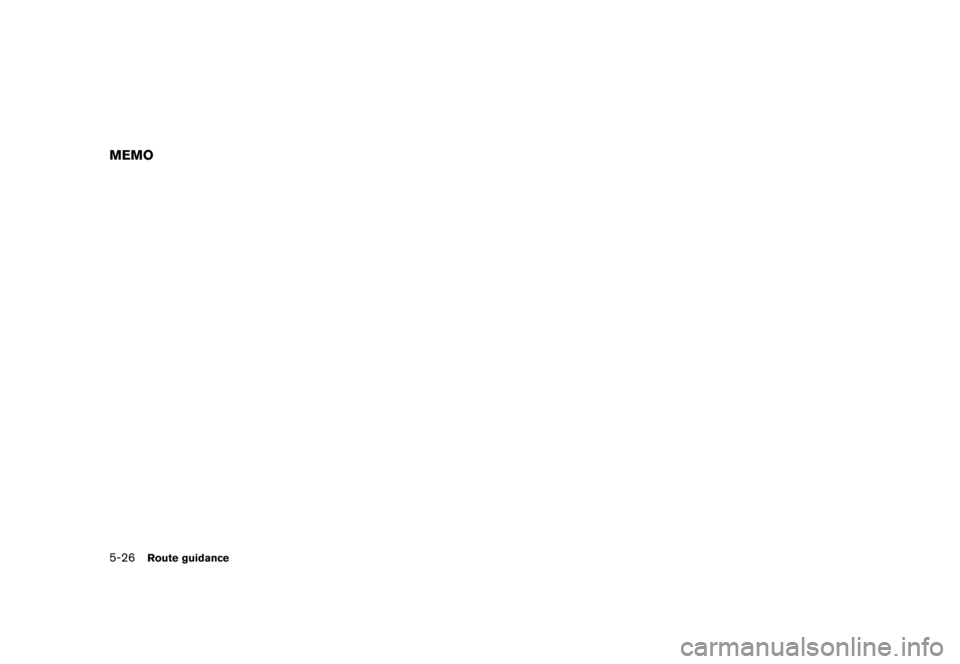

MEMO
5-26Route guidance

Black plate (16,1)

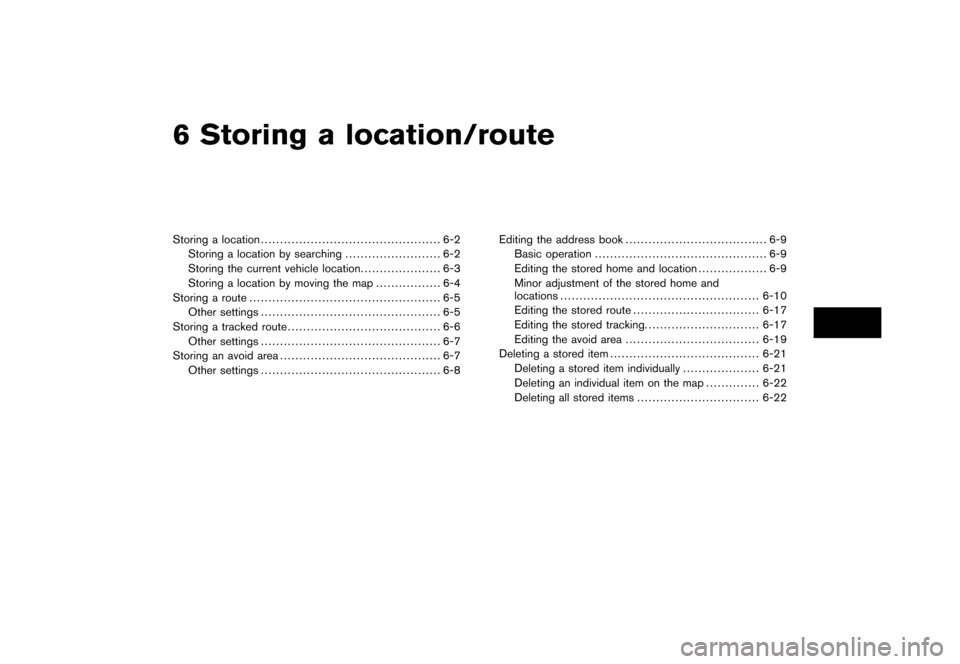

6 Storing a location/route
Model "NAV2-N" EDITED: 2007/ 3/ 8
Storing a location............................................... 6-2
Storing a location by searching......................... 6-2
Storing the current vehicle location..................... 6-3
Storing a location by moving the map................. 6-4
Storing a route.................................................. 6-5
Other settings............................................... 6-5
Storing a tracked route........................................ 6-6
Other settings............................................... 6-7
Storing an avoid area.......................................... 6-7
Other settings............................................... 6-8Editing the address book..................................... 6-9
Basic operation............................................. 6-9
Editing the stored home and location.................. 6-9
Minor adjustment of the stored home and
locations....................................................6-10
Editing the stored route.................................6-17
Editing the stored tracking..............................6-17
Editing the avoid area...................................6-19
Deleting a stored item.......................................6-21
Deleting a stored item individually....................6-21
Deleting an individual item on the map..............6-22
Deleting all stored items................................6-22
