2008 NISSAN MAXIMA Quick Reference Guide

GUIDE VOICE BUTTON
Press the GUIDE VOICE buttonto hear the current navigation situation.
SWITCHING THE MAP VIEW
Press the MAPbutton. The current loca-
tion map screen is displayed.
 Press the ENTERbutton.
 Highlight the“Map View” keyand press the
ENTER button.
 Highlight either one of the “Plan View” keys or
one of the “Birdview” keys and press the EN-
TER button to select the map view. Press the
MAP button
or the “Back” key to accept
the changes.
PLAN VIEW
 Displays themap ina2-dimensional environ-
ment similar to a road map.
BIRDVIEW™
 Displays the map in an elevated perspective.
SELECTING A MENU SCREEN
1. To select a preferred menu key, use the joystick to highlight the corresponding key on
the screen and press the ENTERbutton.
2. Depending on the key you selected, a detailed menu screen, a character input screen
or asetting screen, etc.isdisplayed. Onthe screen displayed, makeadjustments,
input information, etc. accordingly.
23

3.Press the BACKbuttonto return to the previous screen without applying any
changes; insome cases pressing the BACK button
willaccept thechanges
you made.
4. Press the MAP button
toreturn tothe current location mapscreen without
applying any changes.
NOTE: Depending on the menu selected, pressing the MAPbutton
may not return you
to the current location map screen.
STORING YOUR HOME IN YOUR ADDRESS BOOK
 Press the DESTbutton.
 Highlight the“Address Book”keyand press
the ENTER button.
 Highlight the“Home (AddNew)” keyand
press the ENTERbutton, a confirmation mes-
sage is displayed. Highlight the “YES” key and
press the ENTERbutton.
 Highlight the“Street Address” key andpress
the ENTER button. A character input screen is
displayed.
 Enter the address of your home, highlight the
“OK” keyand press the ENTER button.The
map screen is displayed.
 Moving thejoystick rightorleft, adjust your
home location if necessary. After adjusting the
location, press the ENTERbutton.
24

Your home isdisplayed atthe center ofthe
map. Aconfirmation messageisdisplayed,
and the system sets your home as the destina-
tion.
 Press theMAP button
toreturn tothe
current location map screen. The home icon is
displayed on the screen.
SETTING A STREET ADDRESS AS A DESTINATION
 Press the DESTbutton.
 Highlight the“Street Address” key andpress
the ENTER button. A character input screen is
displayed.
 Make surethatthecorrect regionisselected
before inputting the name of the location.
 Enter thehouse number; whenfinished high-
light the “OK” key and press the ENTERbut-
ton. Ifyou donot know thehouse number,
highlight the “Skip” key and press the ENTER
button.
 Enter the name of the street. After finishing the
entry, highlight the“OK” keyand press the
ENTER button. A list of cities is displayed.
 Highlight thecorrect cityofthe destination
from the list and press the ENTERbutton.
 The selected destination isdisplayed atthe
center of the map. Highlight the “OK” key and
press the ENTER buttonafterconfirming the
location of the displayed destination. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
25

SETTING A PLACE AS A DESTINATION
Press the DESTbutton.
 A nearby airport is set as a destination in this
example.
 Highlight the “Points of Interest” key and press
the ENTER button.
 Highlight the“Travel” key andpress theEN-
TER button.
 From thecategory list,highlight the“AIR-
PORT” keyand press the ENTER button.A
character input screen appears.
 Make surethatthecorrect regionisselected
before inputting the name of the location.
 After inputting the name of the location, high-
light the “OK” key and press the ENTERbut-
ton. A list screen appears.
 Highlight the preferred airport key from the list
and press the ENTERbutton.
 The selected destination isdisplayed atthe
center of the map. Highlight the “OK” key after
confirming the location of the displayed desti-
nation, and press the ENTERbutton. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
26

BEGINNING ROUTE GUIDANCE
After setting a destination and performing route calculation, the suggested route is displayed.  Highlight the “OK” key and press the ENTER
button. Thesystem willnavigate youthrough
the guide points usingvisual andvoice guid-
ance.
 When approaching aguide point,thesystem
automatically changes to the split screen and
shows an enlarged view of the intersection in
the left screen.
 When arriving atthe destination, theroute
guidance automatically ends.
27

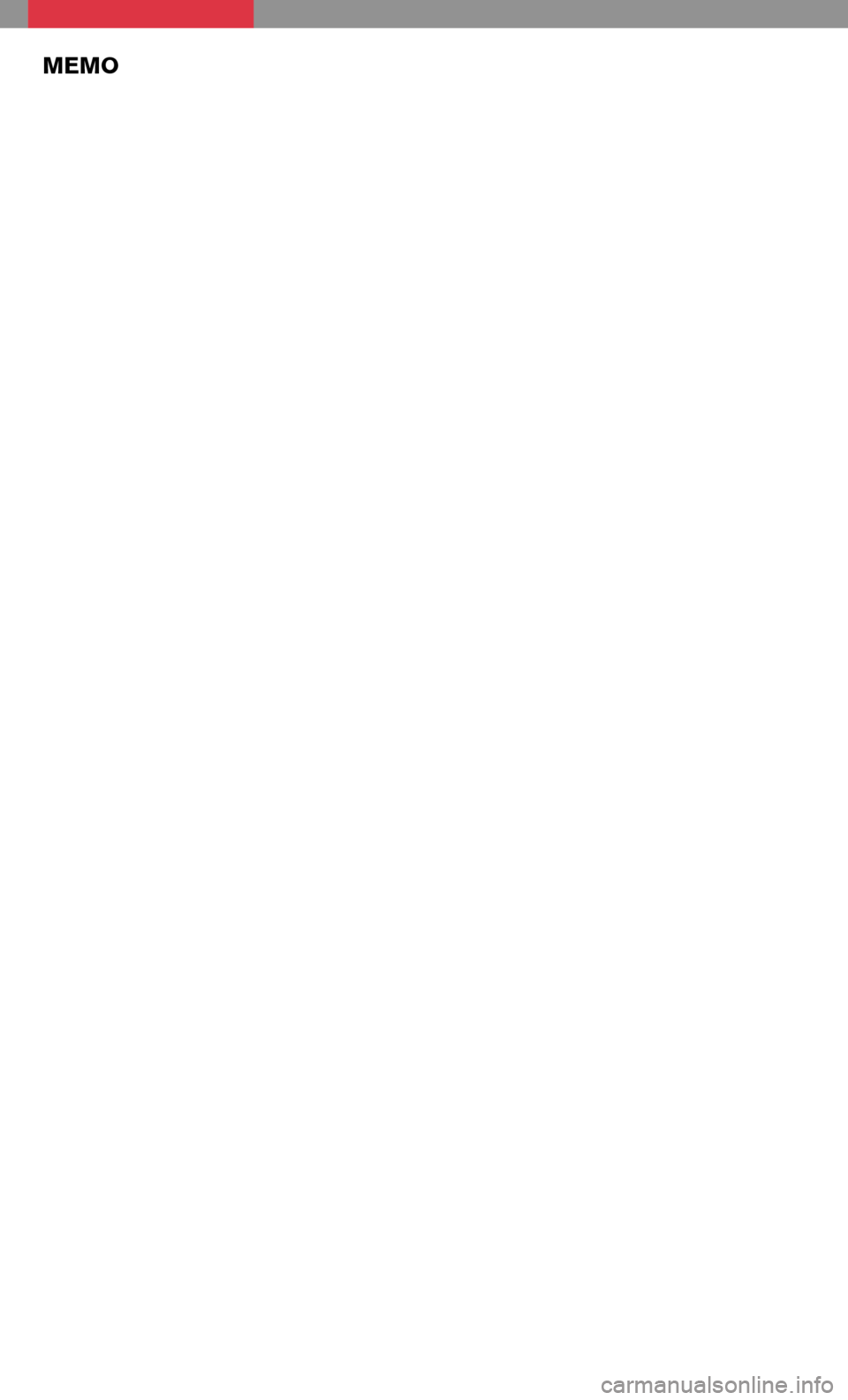

MEMO

MEMO

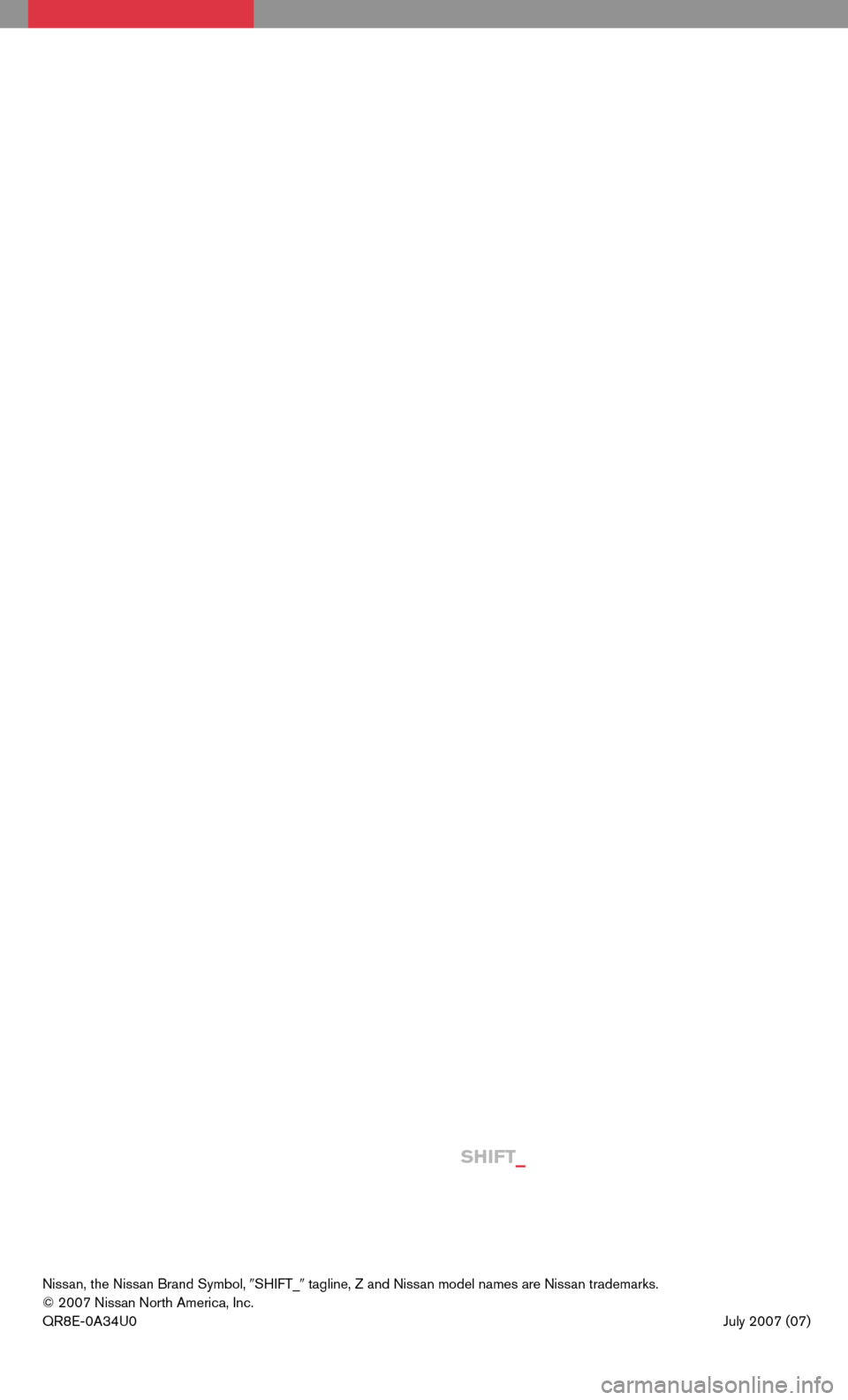

SHIFT_
